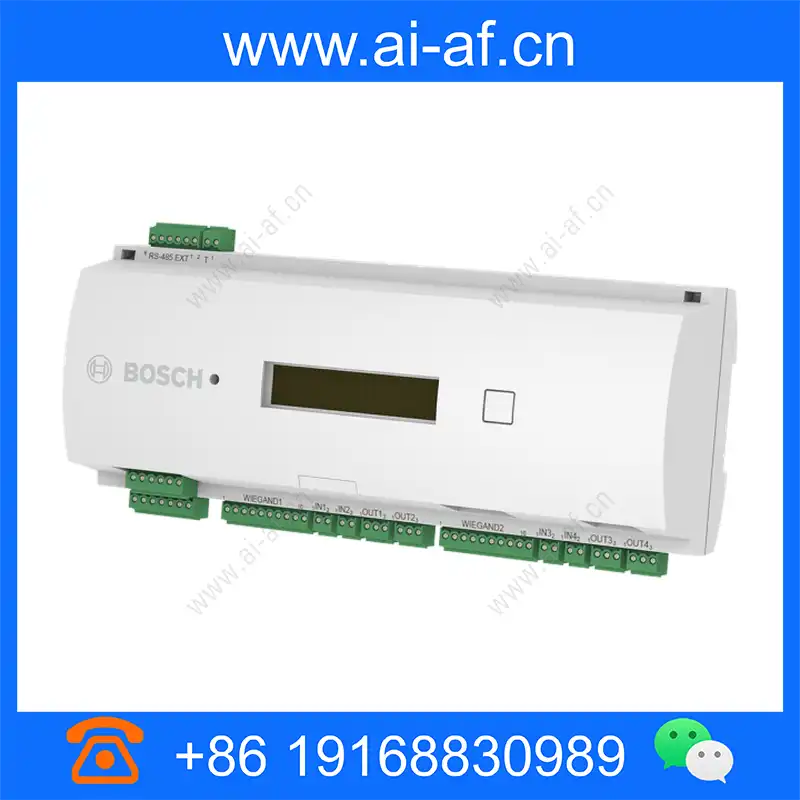

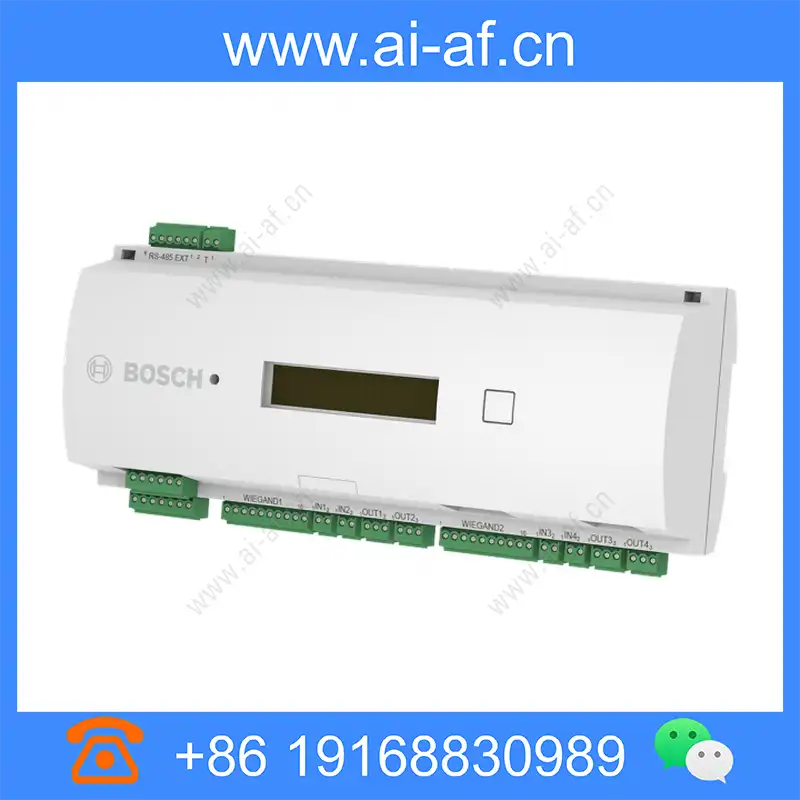

Bosch APC-AMC2-2WCF AMC2 - Access Modular Controller Door controller WI 2 readers F.01U.371.285

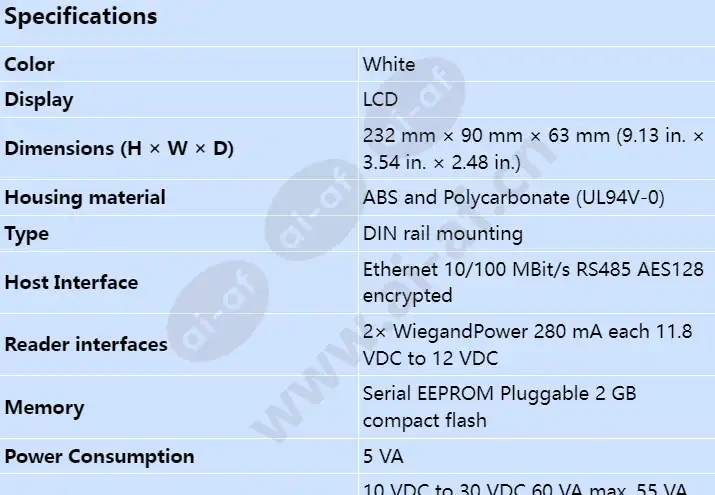

Supports up to two Wiegand readers Supports Wiegand extension boards Provides power to the readers Electronically supervised inputs and outputs Offline capability Type DIN rail mounting Housing material ABS and Polycarbonate (UL94V-0) Dimensions (H × W × D) 232 mm × 90 mm × 63 mm (9.13 in. × 3.54 in. × 2.48 in.) Weight 503 g Color White Memory Serial EEPROM Pluggable 2 GB compact flash Reader interfaces 2× WiegandPower 280 mA each 11.8 VDC to 12 VDC Host interface Ethernet 10/100 MBit/s RS485 AES128 encrypted Extension interface - RS485 9,6 kBit/s, no parity, 8 bit, 2 stop bit Outputs 4× relay outputs 30 V DC max. (switching voltage) 1,25 A max. (switching current) @ 30Vdc Operation mode: wet and dry Inputs 4 analog inputs with tamper detection Power consumption 5 VA Tamper 2-wire input
