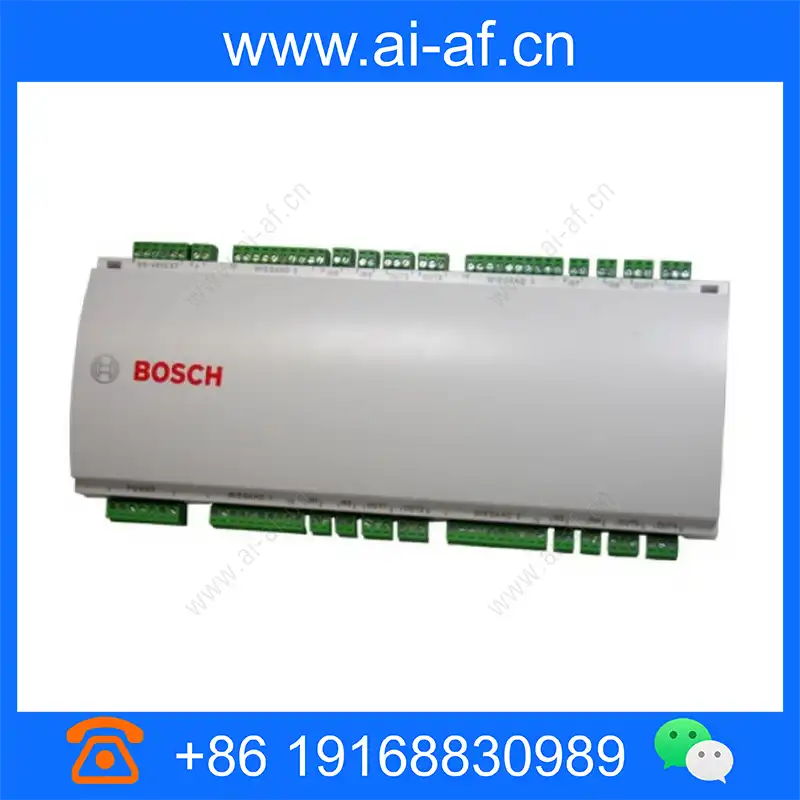

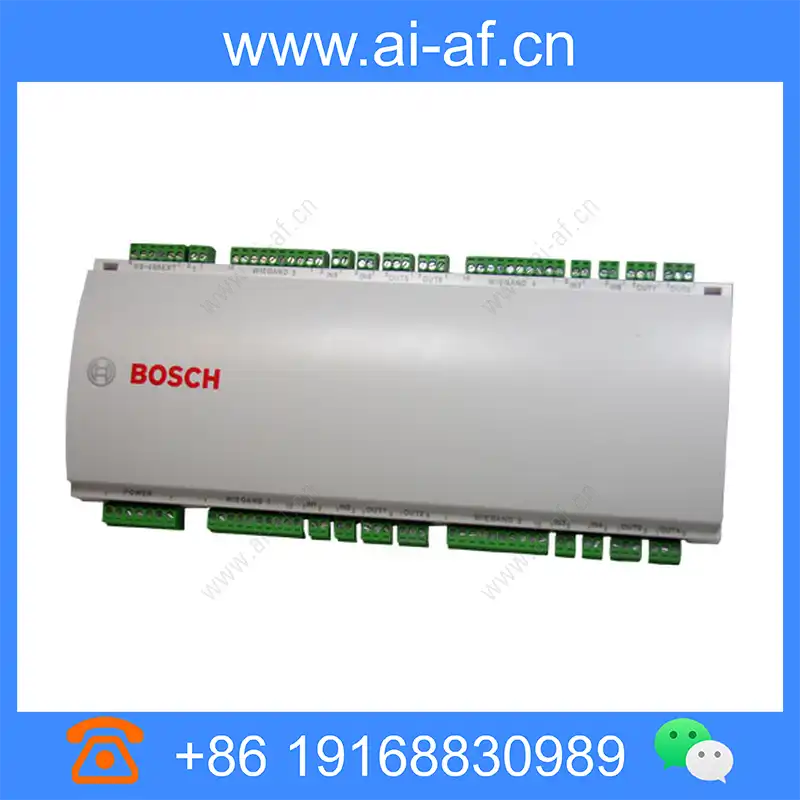

Bosch API-AMC2-4WE Access Modular Controller 2 Door controller Wiegand extension F.01U.011.593

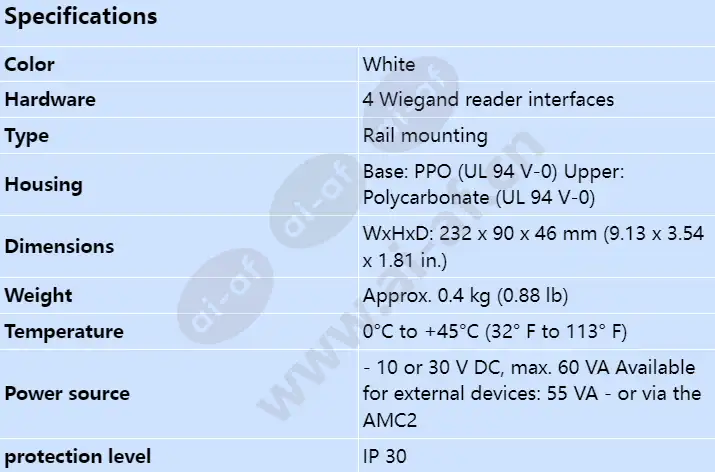

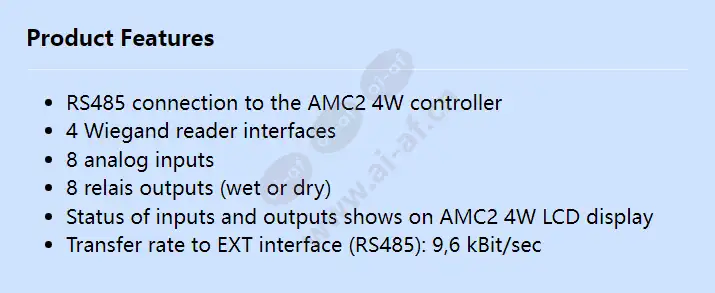

RS485 connection to the AMC2 4W controller 4 Wiegand reader interfaces 8 analog inputs 8 relais outputs (wet or dry) Status of inputs and outputs shows on AMC2 4W LCD display Transfer rate to EXT interface (RS485): 9,6 kBit/sec Hardware 4 Wiegand reader interfaces Temperature 0°C to +45°C (32° F to 113° F) Power supply - 10 or 30 V DC, max. 60 VA Available for external devices: 55 VA - or via the AMC2 Protection class IP 30 Housing Base: PPO (UL 94 V-0) Upper: Polycarbonate (UL 94 V-0) Color White Dimensions WxHxD: 232 x 90 x 46 mm (9.13 x 3.54 x 1.81 in.) Weight Approx. 0.4 kg (0.88 lb) Type Rail mounting
