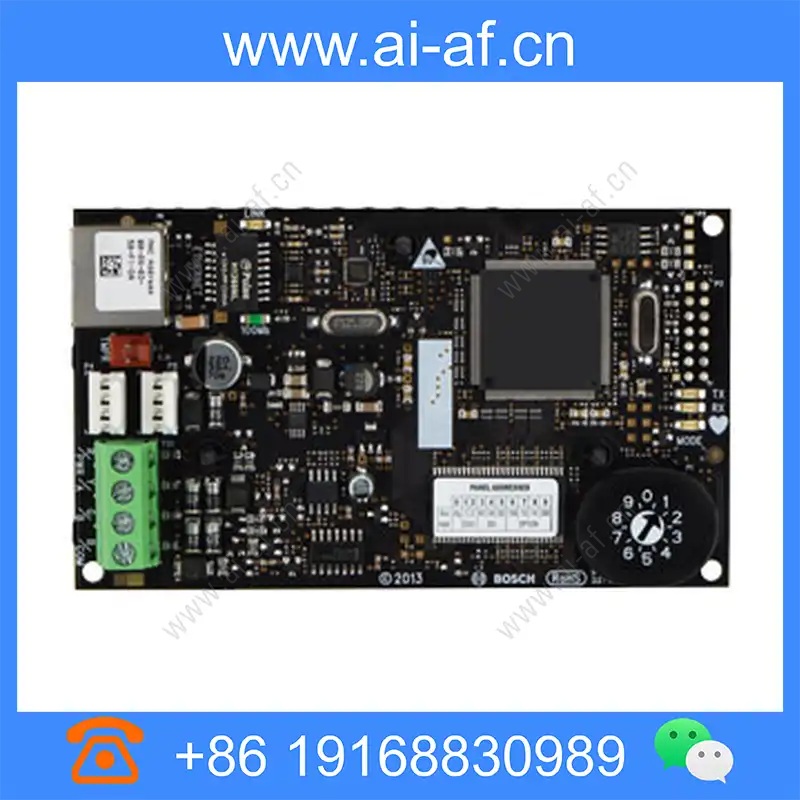

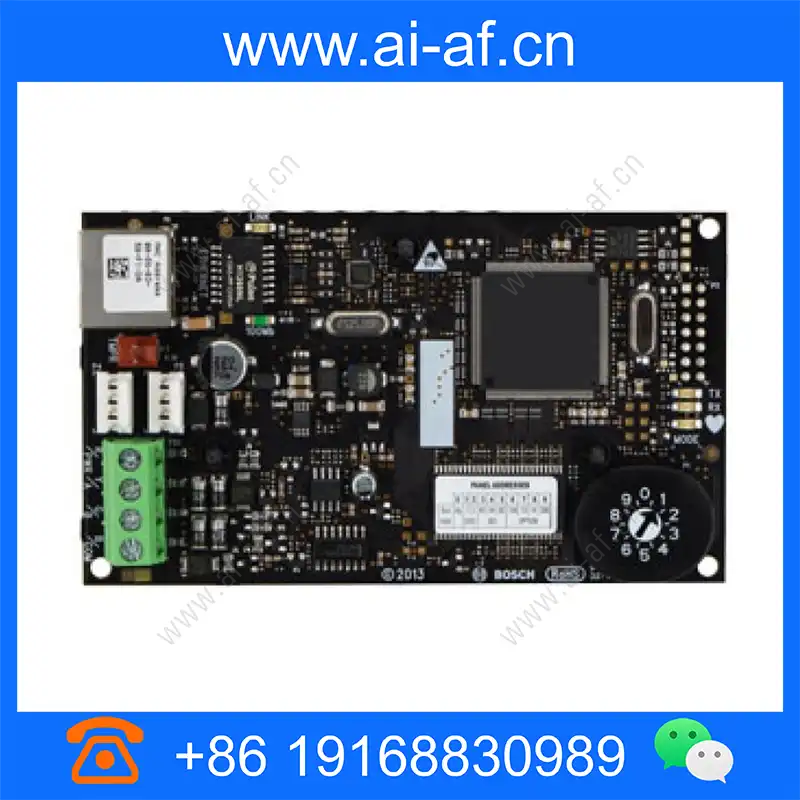

Bosch B426 Ethernet Communication Module F.01U.324.383

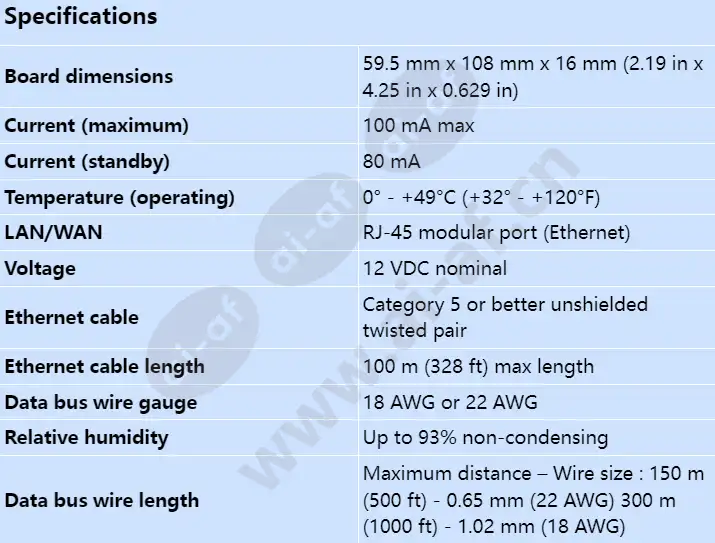

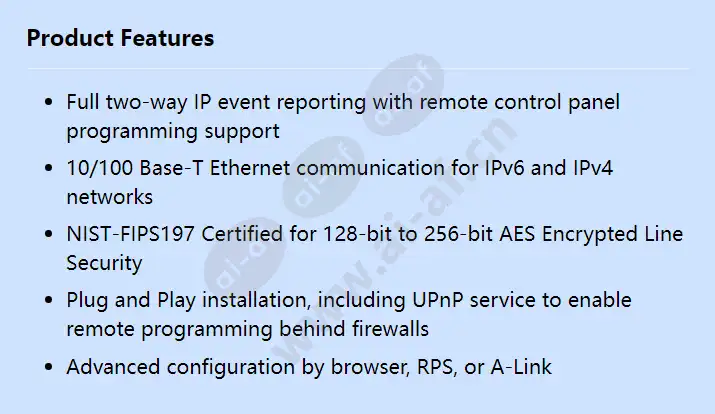

Full two-way IP event reporting with remote control panel programming support 10/100 Base-T Ethernet communication for IPv6 and IPv4 networks NIST-FIPS197 Certified for 128-bit to 256-bit AES Encrypted Line Security Plug and Play installation, including UPnP service to enable remote programming behind firewalls Advanced configuration by browser, RPS, or A-Link Relative humidity Up to 93% non-condensing Temperature (operating) 0° - +49°C (+32° - +120°F) Board dimensions 59.5 mm x 108 mm x 16 mm (2.19 in x 4.25 in x 0.629 in) Current (maximum) 100 mA max Current (standby) 80 mA Voltage 12 VDC nominal LAN/WAN RJ-45 modular port (Ethernet) Ethernet cable Category 5 or better unshielded twisted pair Ethernet cable length 100 m (328 ft) max length Data bus wire gauge 18 AWG or 22 AWG Data bus
