Bosch B820 Inovonics SDI2 bus interface F.01U.383.287

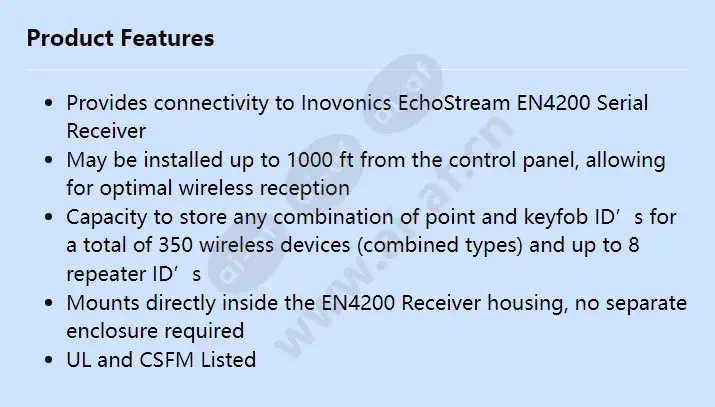

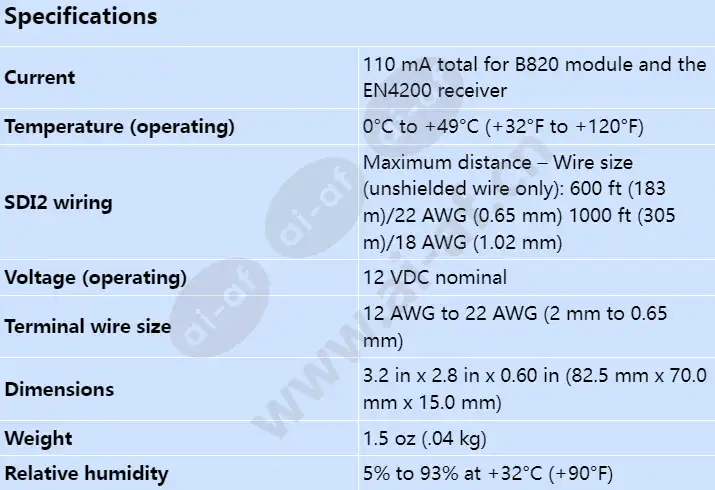

Provides connectivity to Inovonics EchoStream EN4200 Serial Receiver May be installed up to 1000 ft from the control panel, allowing for optimal wireless reception Capacity to store any combination of point and keyfob ID’s for a total of 350 wireless devices (combined types) and up to 8 repeater ID’s Mounts directly inside the EN4200 Receiver housing, no separate enclosure required UL and CSFM Listed Dimensions 3.2 in x 2.8 in x 0.60 in (82.5 mm x 70.0 mm x 15.0 mm) Weight 1.5 oz (.04 kg) Relative humidity 5% to 93% at +32°C (+90°F) Temperature (operating) 0°C to +49°C (+32°F to +120°F) Current 110 mA total for B820 module and the EN4200 receiver Voltage (operating) 12 VDC nominal Terminal wire size 12 AWG to 22 AWG (2 mm to 0.65 mm) SDI2 wiring Maximum distance – Wire size (unshielded
