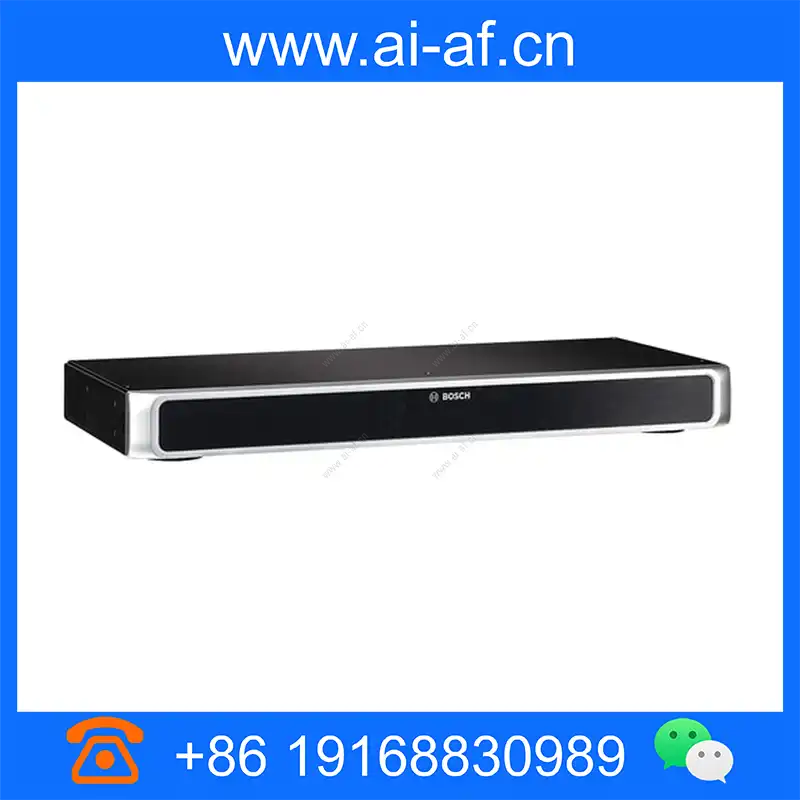

Bosch CCSD-EXU CCS 1000D System extension unit F.01U.307.207

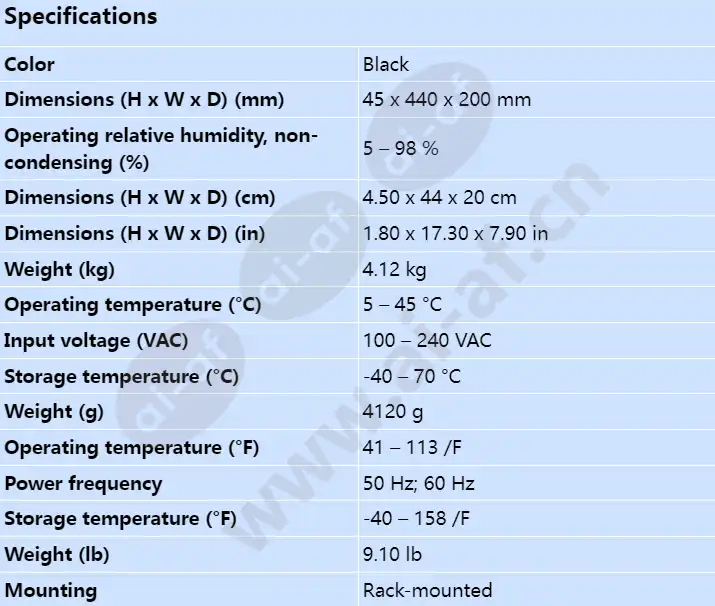

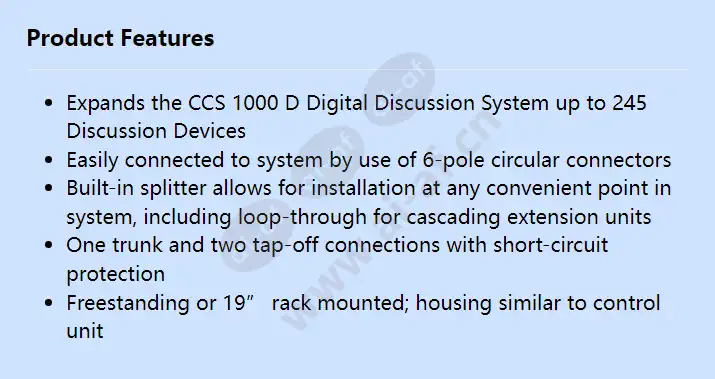

Expands the CCS 1000 D Digital Discussion System up to 245 Discussion Devices Easily connected to system by use of 6-pole circular connectors Built-in splitter allows for installation at any convenient point in system, including loop-through for cascading extension units One trunk and two tap-off connections with short-circuit protection Freestanding or 19” rack mounted; housing similar to control unit Color Black Dimensions (H x W x D) (cm) 4.50 x 44 x 20 cm Dimensions (H x W x D) (in) 1.80 x 17.30 x 7.90 in Dimensions (H x W x D) (mm) 45 x 440 x 200 mm Input voltage (VAC) 100 – 240 VAC Mounting type Rack-mounted Operating relative humidity, non-condensing (%) 5 – 98 % Operating temperature (°C) 5 – 45 °C Operating temperature (°F) 41 – 113 /F Power frequency 50 Hz; 60 Hz Storage
