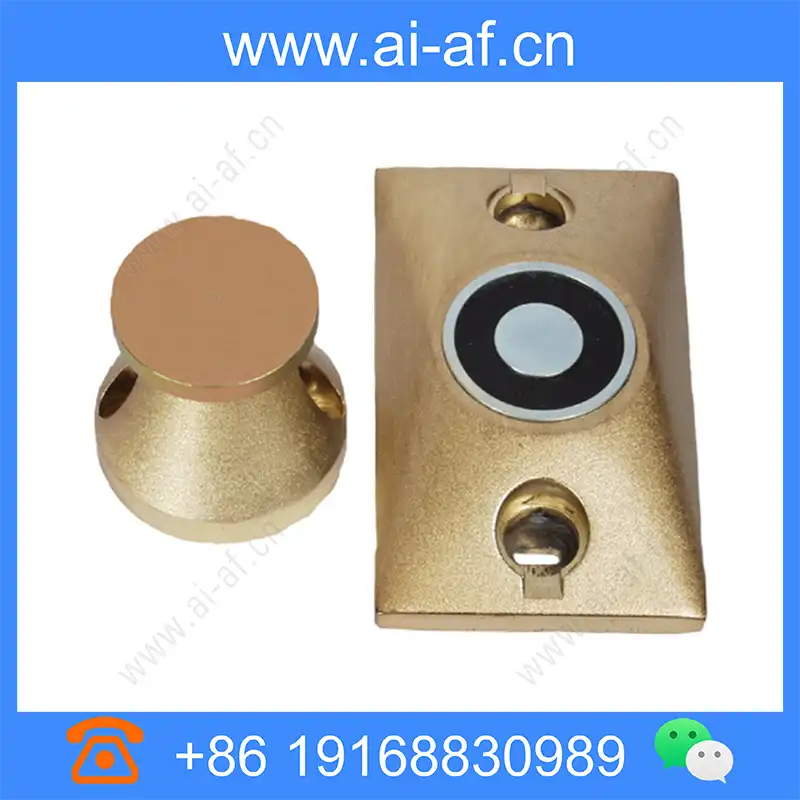

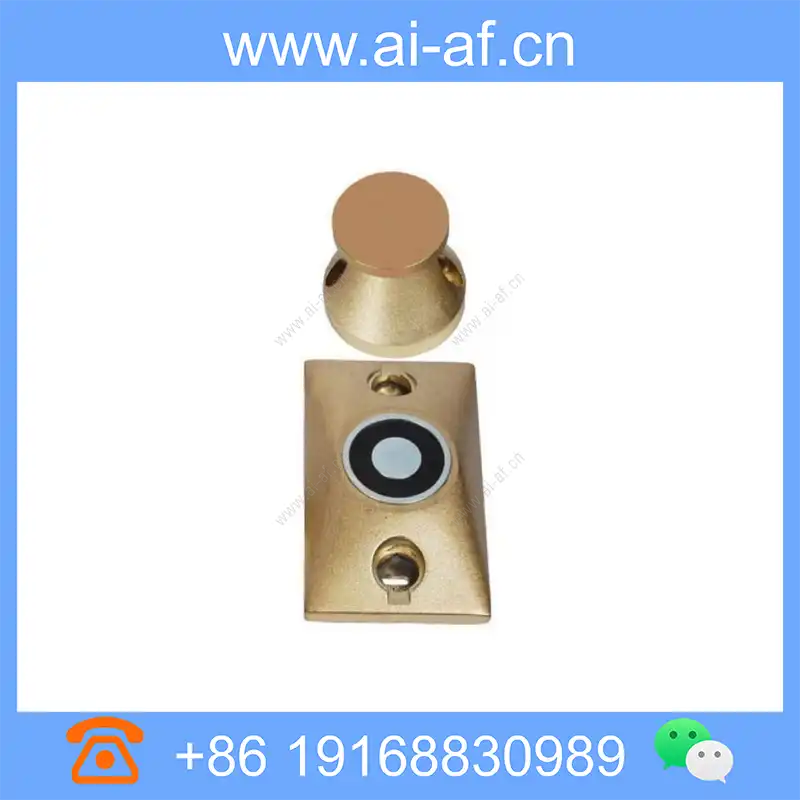

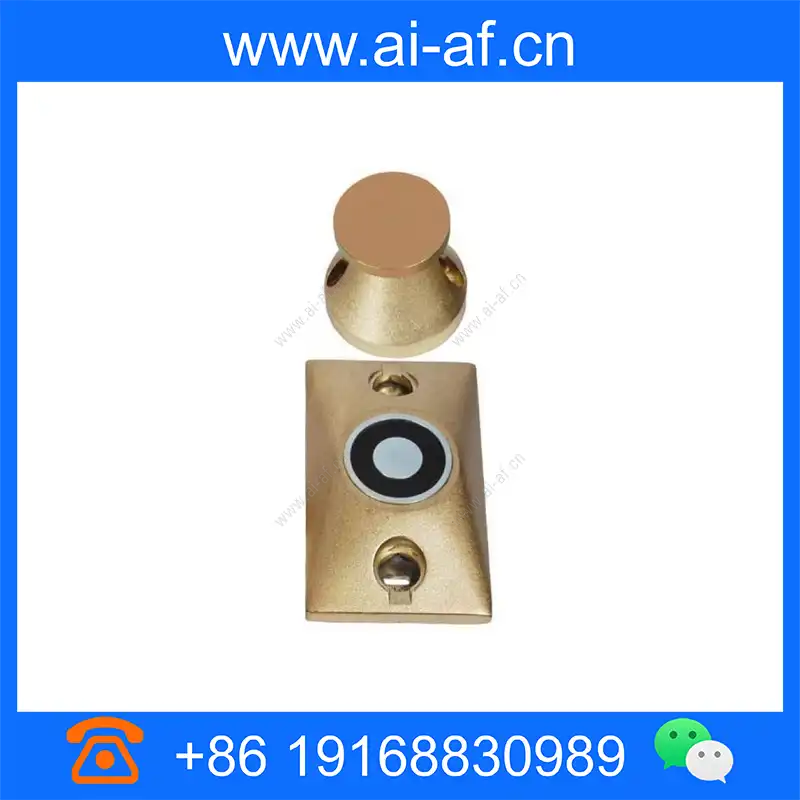

Bosch D370B D370 Family Wall-mount Door Holders Wall door holder brass finish Commercial F.01U.013.673

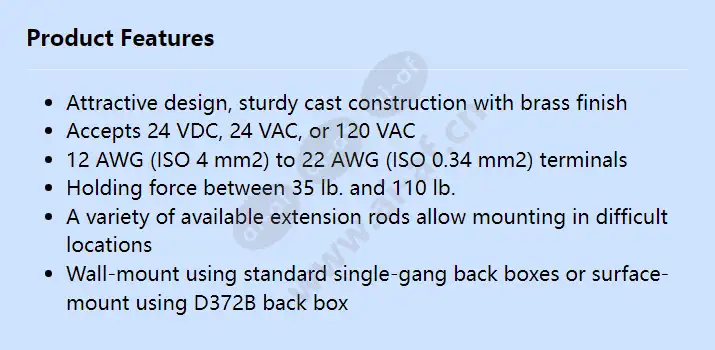

Attractive design, sturdy cast construction with brass finish Accepts 24 VDC, 24 VAC, or 120 VAC 12 AWG (ISO 4 mm2) to 22 AWG (ISO 0.34 mm2) terminals Holding force between 35 lb. and 110 lb. A variety of available extension rods allow mounting in difficult locations Wall-mount using standard single-gang back boxes or surface-mount using D372B back box 24 VAC 19 mA 24 VDC 20 mA Common and highvoltage terminals 20 mA Common and lowvoltage terminals 100 mA Voltage (supply) 24 VDC, 24 VAC, or 120 VAC Relative humidity Up to 95%, non-condensing Temperature (operating) +32°F to +120°F (0°C to +49°C) Catch plate (diameter x depth)1 2.25 in. x 2.25 in. (5.7 cm x 5.7 cm) Electromagnet (H x W x D)2 4.625 in. x 2.75 in. x 2 in. (11.7 cm x 7 cm x 5.1 cm)
