Bosch LBB4443/00-CN End-of-line supervision board F.01U.097.260

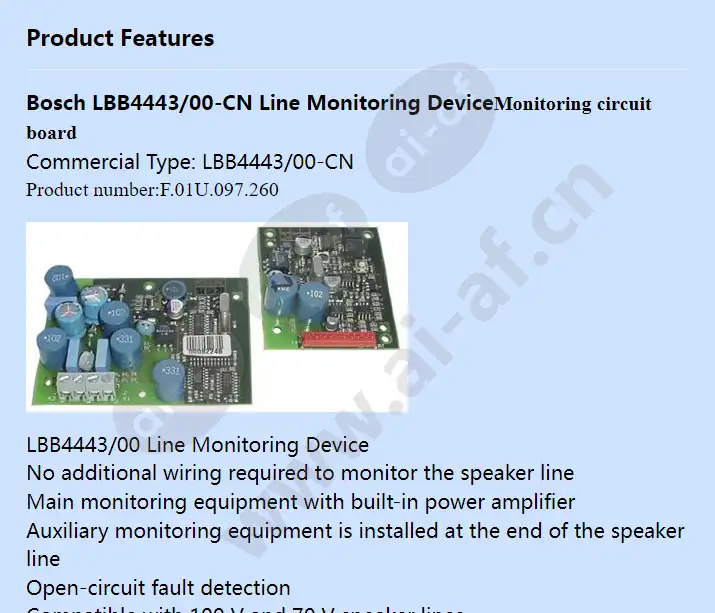

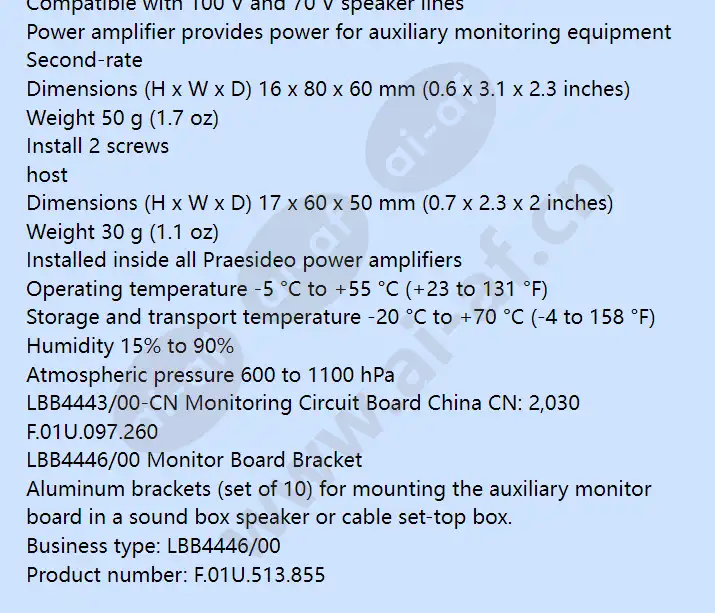

Bosch LBB4443/00-CN Line Monitoring Device Monitoring circuit board Commercial Type: LBB4443/00-CN Product number: F.01U.097.260 LBB4443/00 Line Monitoring Device No additional wiring required to monitor the speaker line Main monitoring equipment with built-in power amplifier Auxiliary monitoring equipment is installed at the end of the speaker line Open-circuit fault detection Compatible with 100 V and 70 V speaker lines Power amplifier provides power for auxiliary monitoring equipment Second-rate Dimensions (H x W x D) 16 x 80 x 60 mm (0.6 x 3.1 x 2.3 inches) Weight 50 g (1.7 oz) Install 2 screws host Dimensions (H x W x D) 17 x 60 x 50 mm (0.7 x 2.3 x 2 inches) Weight 30 g (1.1 oz) Installed inside all Praesideo power amplifiers Operating temperature -5 °C to +55 °C (+23 to 131 °F)
