Bosch LBC1430/10 Program selector (BS) F.01U.523.831

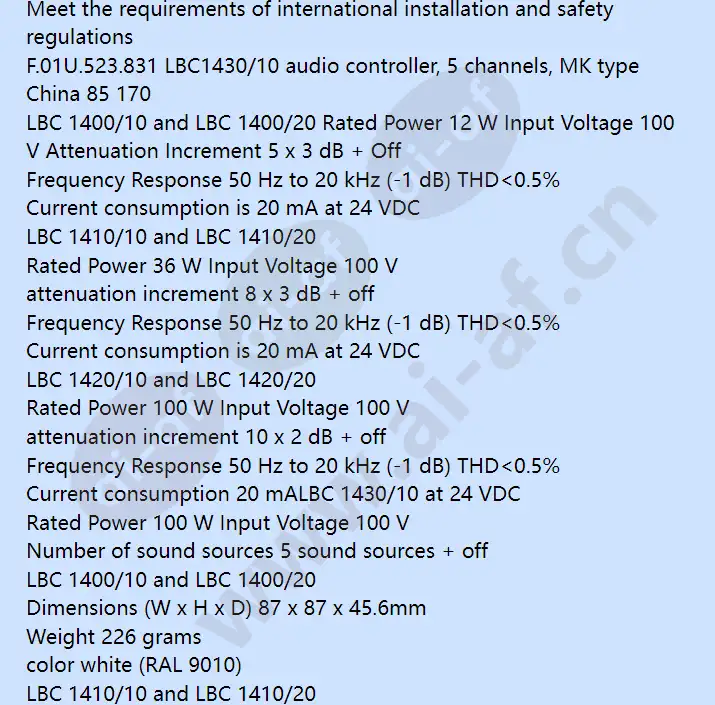

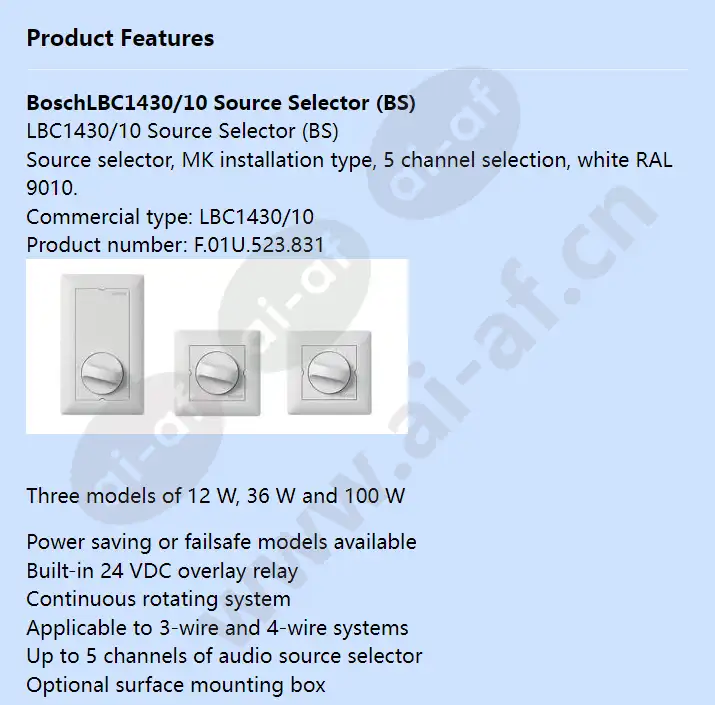

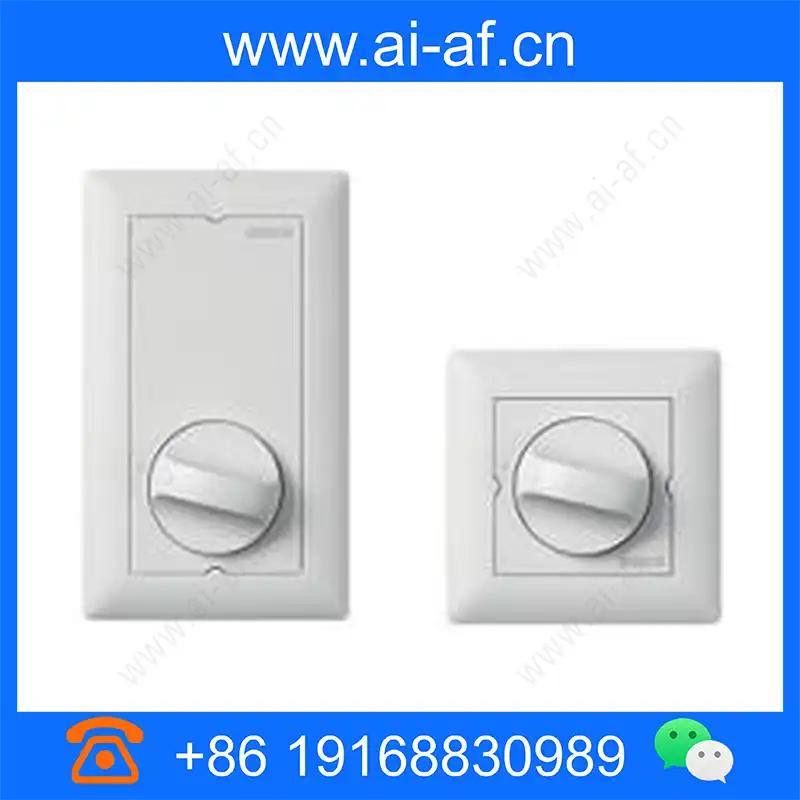

Bosch LBC1430/10 Source Selector (BS) LBC1430/10 Source Selector (BS) Source selector, MK installation type, 5 channel selection, white RAL 9010. Commercial type: LBC1430/10 Product number: F.01U.523.831 Three models of 12 W, 36 W and 100 W Power saving or failsafe models available Built-in 24 VDC overlay relay Continuous rotating system Applicable to 3-wire and 4-wire systems Up to 5 channels of audio source selector Optional surface mounting box Meet the requirements of international installation and safety regulations F.01U.523.831 LBC1430/10 audio controller, 5 channels, MK type China 85 170 LBC 1400/10 and LBC 1400/20 Rated Power 12 W Input Voltage 100 V Attenuation Increment 5 x 3 dB + Off Frequency Response 50 Hz to 20 kHz (-1 dB) THD <0.5% Current consumption is 20 mA at 24 VDC
