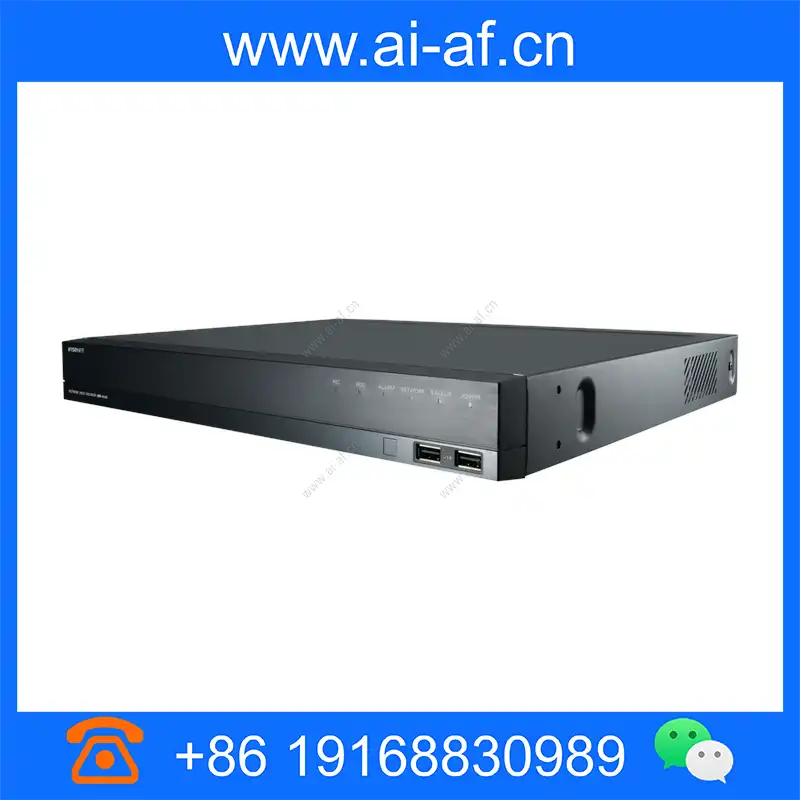

Samsung Hanwha QRN-1610S 16-Channel H.265 Network Video Recorder with PoE Switch

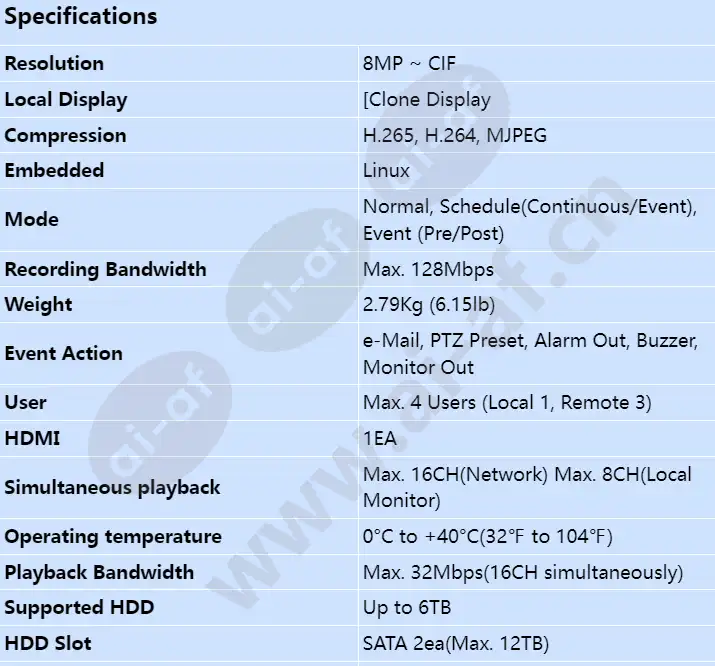

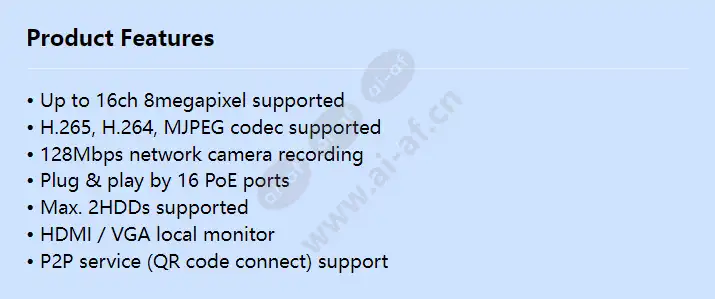

• Up to 16ch 8megapixel supported • H.265, H.264, MJPEG codec supported • 128Mbps network camera recording • Plug & play by 16 PoE ports • Max. 2HDDs supported • HDMI / VGA local monitor • P2P service (QR code connect) support Inputs Max. 16CH Resolution 8MP ~ CIF Protocols Wisenet, ONVIF Local Display [Clone Display Embedded Linux Compression H.265, H.264, MJPEG Recording Bandwidth Max. 128Mbps Mode Normal, Schedule(Continuous/Event), Event (Pre/Post) Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out Playback Bandwidth Max. 32Mbps(16CH simultaneously) User Max. 4 Users (Local 1, Remote 3) Simultaneous playback Max. 16CH(Network) Max. 8CH(Local Monitor) Fisheye Dewarping N/A (processed
