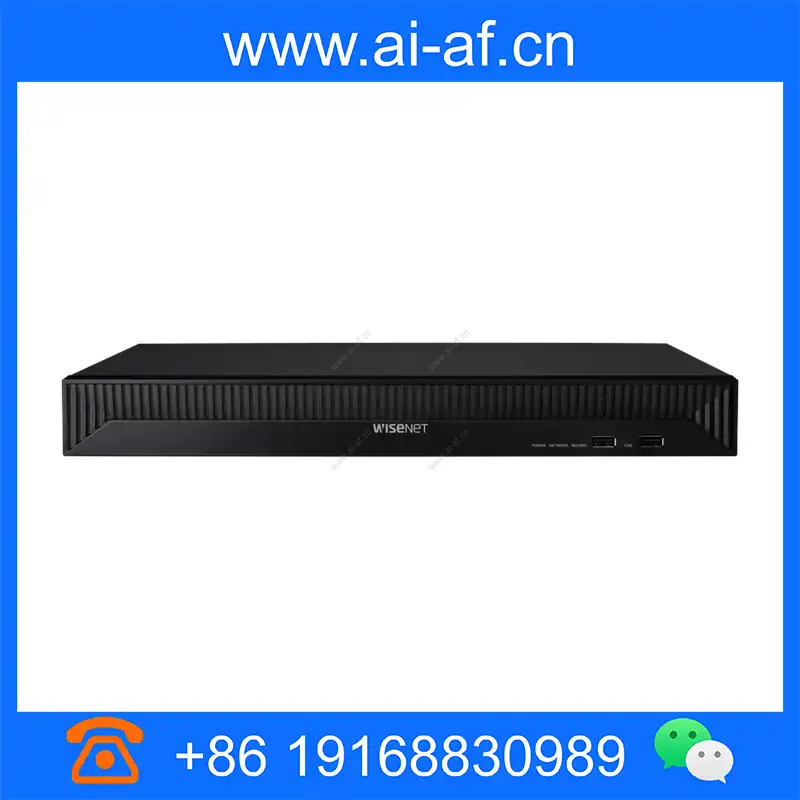

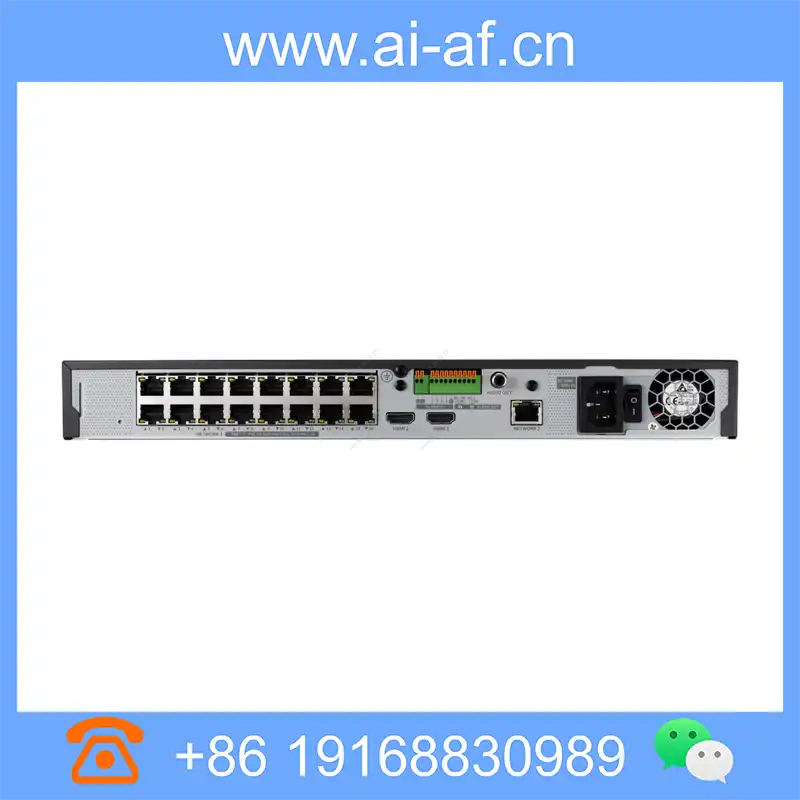

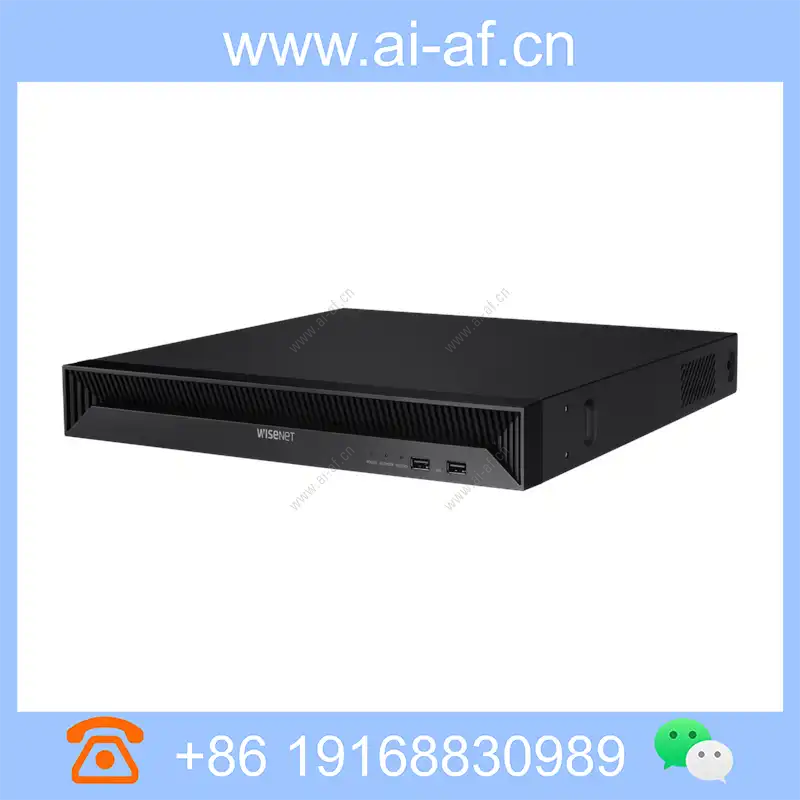

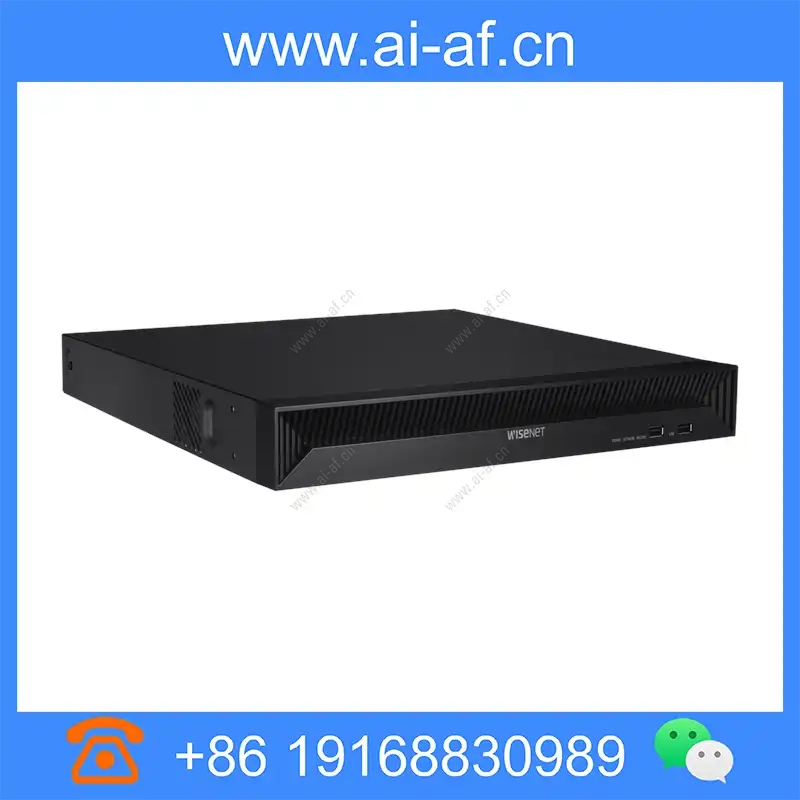

Samsung Hanwha QRN-1630S 16-Channel Network Video Recorder

Brand: Hanwha

Model: QRN-1630S

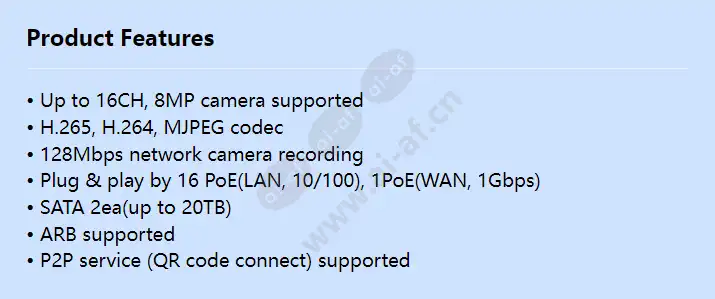

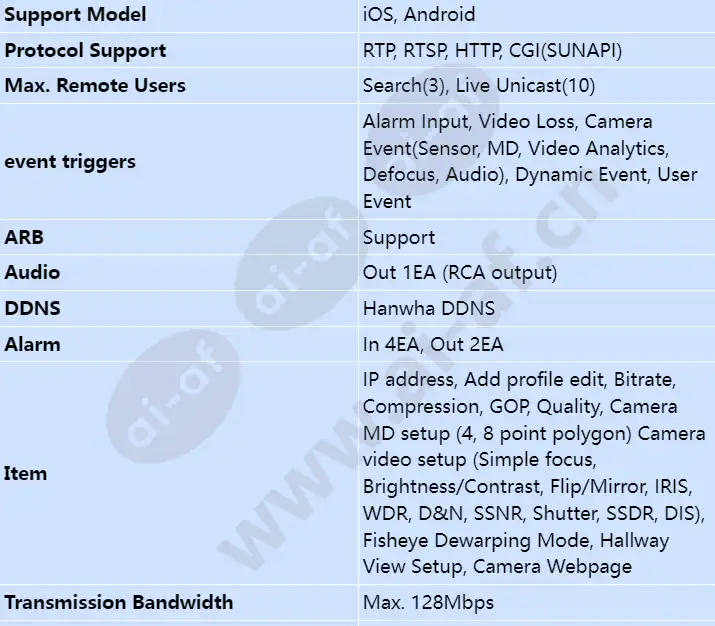

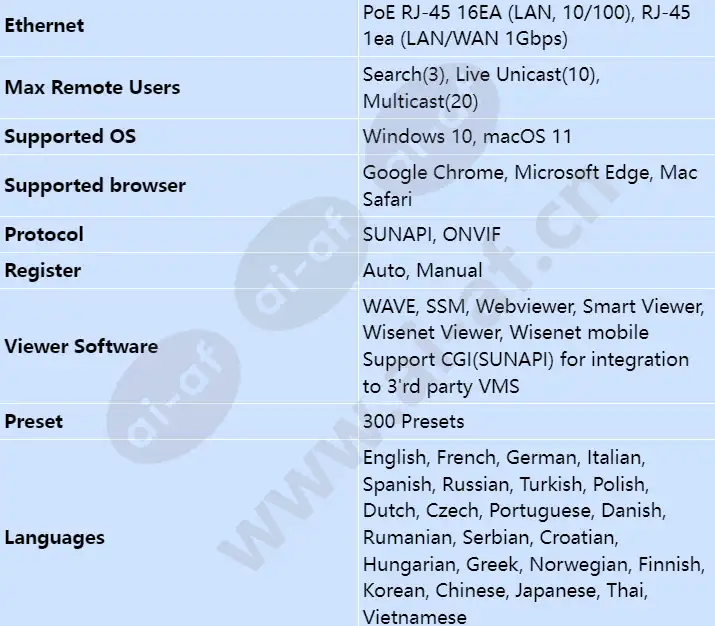

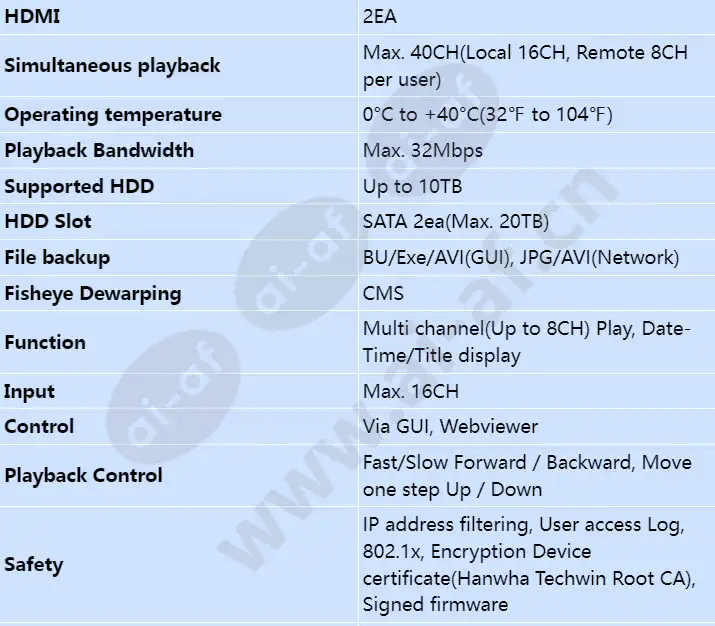

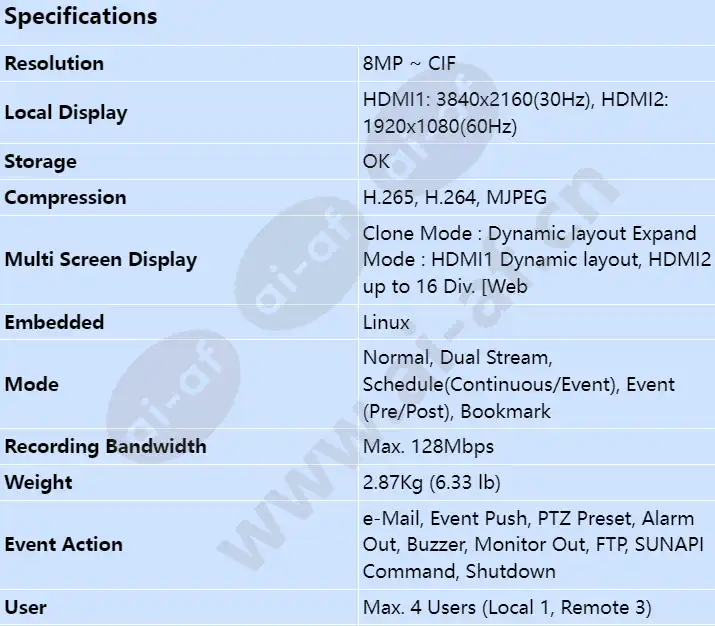

• Up to 16CH, 8MP camera supported • H.265, H.264, MJPEG codec • 128Mbps network camera recording • Plug & play by 16 PoE(LAN, 10/100), 1PoE(WAN, 1Gbps) • SATA 2ea(up to 20TB) • ARB supported • P2P service (QR code connect) supported Inputs Max. 16CH Resolution 8MP ~ CIF Protocols SUNAPI, ONVIF Local Display HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz) Multi Screen Display Clone Mode : Dynamic layout Expand Mode : HDMI1 Dynamic layout, HDMI2 up to 16 Div. [Web Embedded Linux Compression H.265, H.264, MJPEG Recording Bandwidth Max. 128Mbps Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event Event Action e-Mail, Event Push, PTZ Preset
