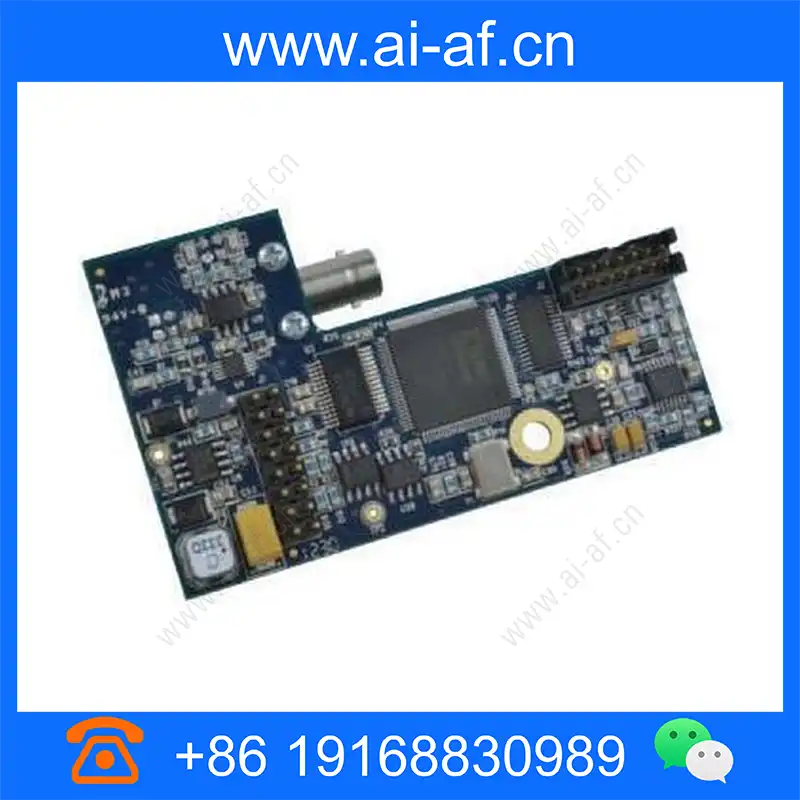

Pelco FSV10D1S1ST 1 Channel Video Fiber Transmitter ST Connector

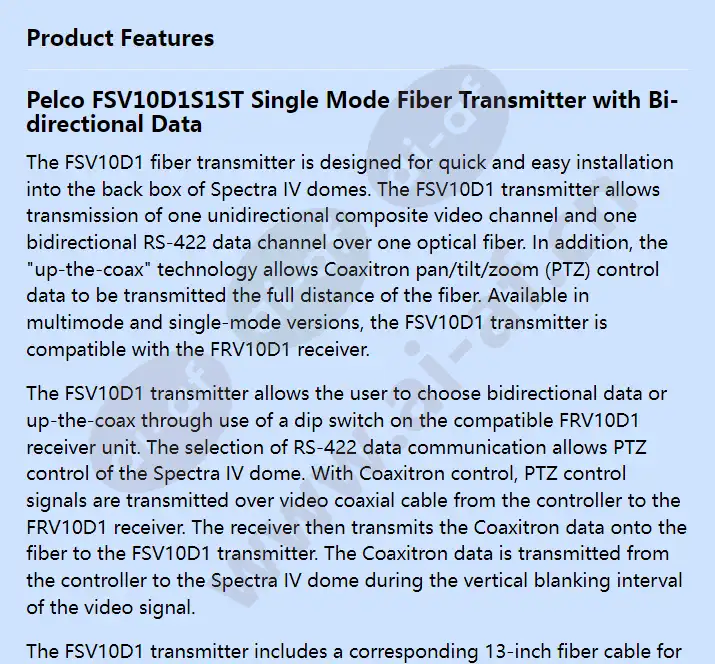

Pelco FSV10D1S1ST Single Mode Fiber Transmitter with Bi-directional Data The FSV10D1 fiber transmitter is designed for quick and easy installation into the back box of Spectra IV domes. The FSV10D1 transmitter allows transmission of one unidirectional composite video channel and one bidirectional RS-422 data channel over one optical fiber. In addition, the "up-the-coax" technology allows Coaxitron pan/tilt/zoom (PTZ) control data to be transmitted the full distance of the fiber. Available in multimode and single-mode versions, the FSV10D1 transmitter is compatible with the FRV10D1 receiver. The FSV10D1 transmitter allows the user to choose bidirectional data or up-the-coax through use of a dip switch on the compatible FRV10D1 receiver unit. The selection of RS-422 data communication
