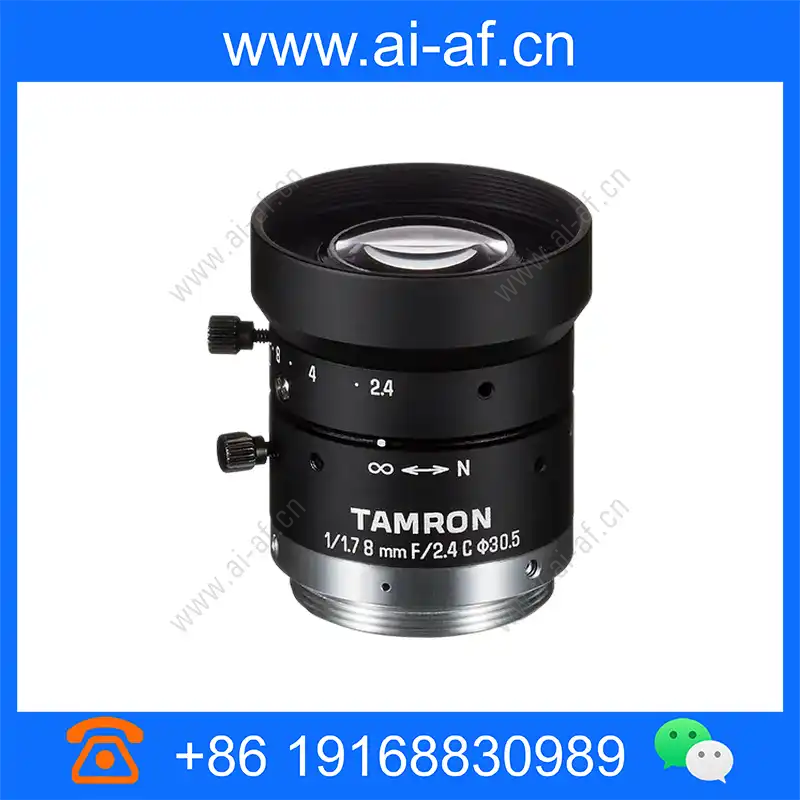

TAMRON M117FM08 1/1.7" 8mm F/2.4-16 Manual Iris FA and Machine Vision Lens C Mount

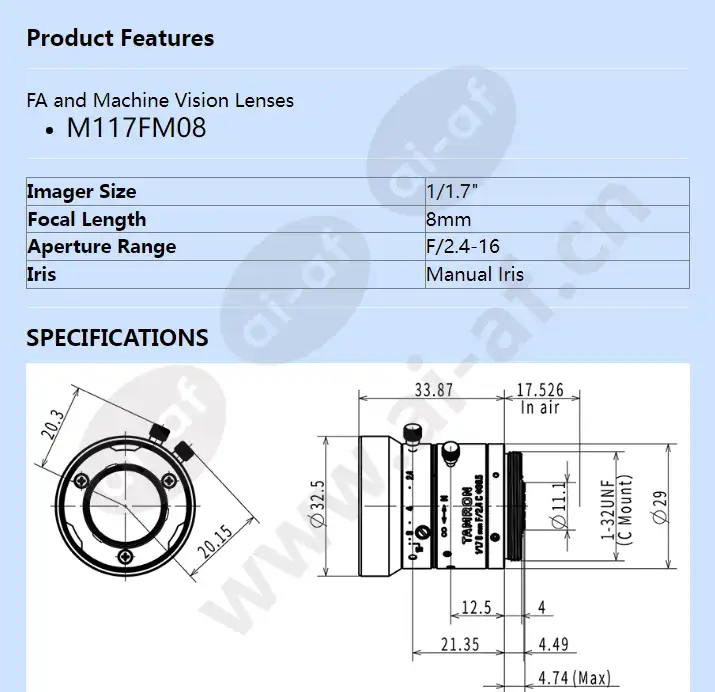

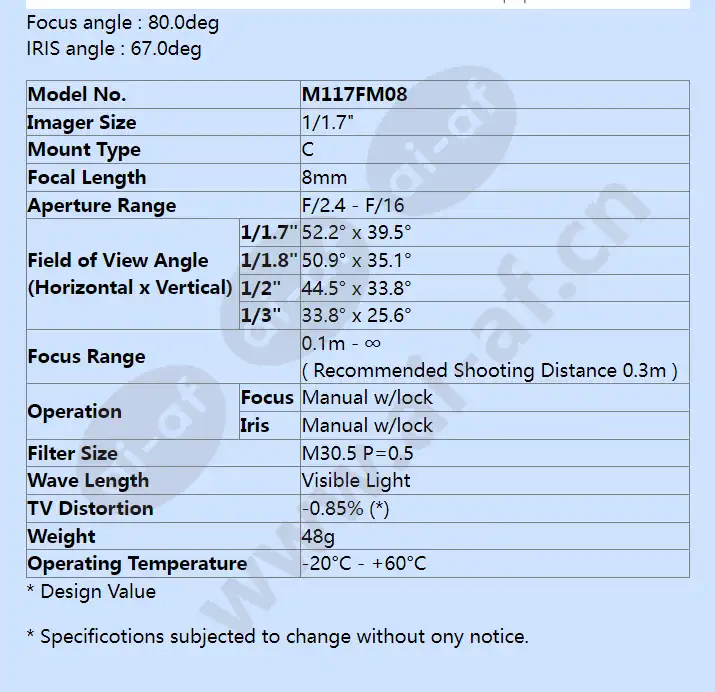

FA and Machine Vision Lenses M117FM08 Imager Size 1/1.7" Focal Length 8mm Aperture Range F/2.4-16 Iris Manual Iris SPECIFICATIONS Focus angle : 80.0deg IRIS angle : 67.0deg Model No. M117FM08 Imager Size 1/1.7" Mount Type C Focal Length 8mm Aperture Range F/2.4 - F/16 Field of View Angle (Horizontal x Vertical) 1/1.7" 52.2° x 39.5° 1/1.8" 50.9° x 35.1° 1/2" 44.5° x 33.8° 1/3" 33.8° x 25.6° Focus Range 0.1m - ∞ ( Recommended Shooting Distance 0.3m ) Operation Focus Manual w/lock Iris Manual w/lock Filter Size M30.5 P=0.5 Wave Length Visible Light TV Distortion -0.85% (*) Weight 48g Operating Temperature -20°C - +60°C * Design Value * Specificotions subjected to change without ony notice.
