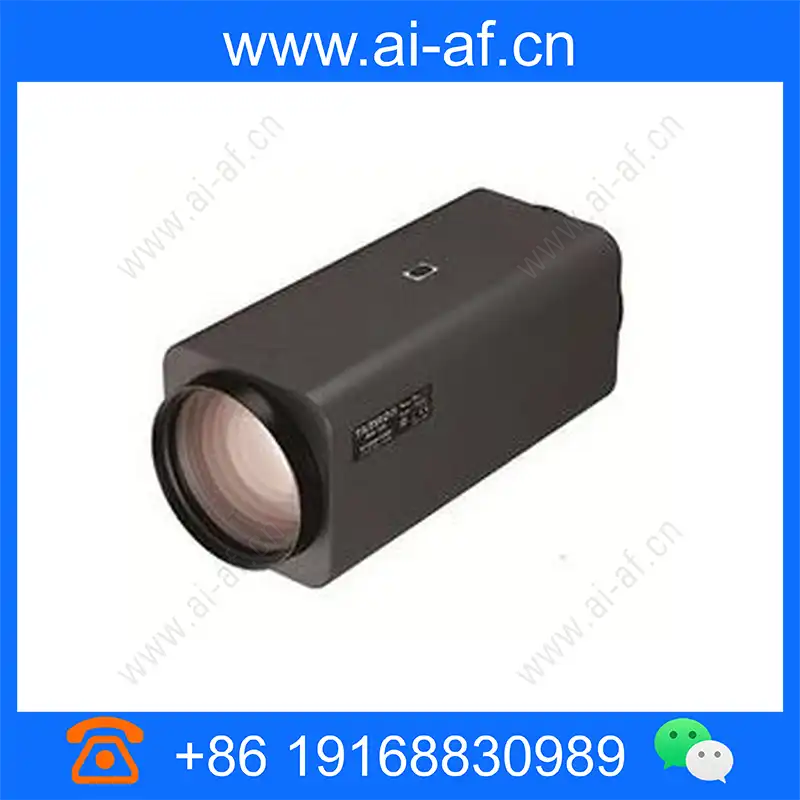

TAMRON M12ZG34X15IRPF 1/2" 15-510mm F/3.0-13 DC Auto-Iris CCTV Lens C Mount
Brand: TAMRON
Model: M12ZG34X15IRPF

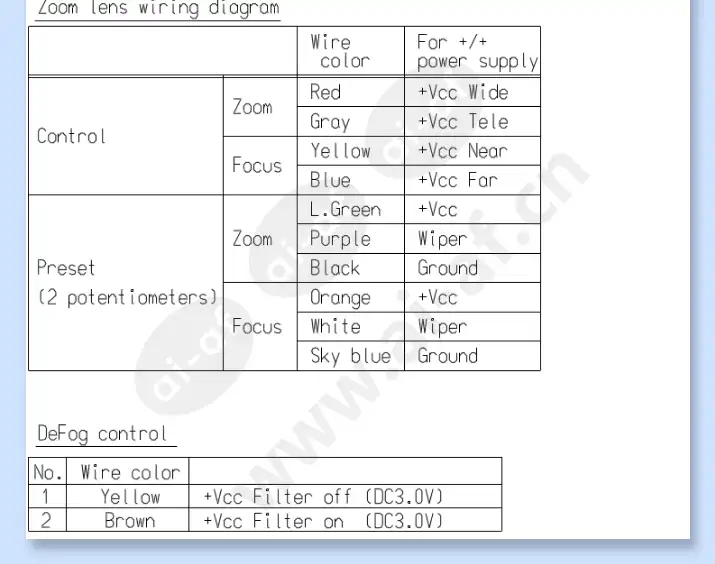

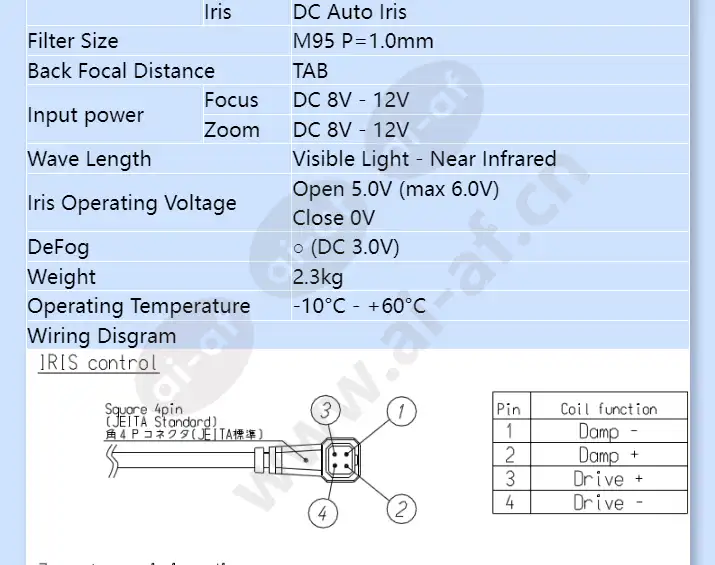

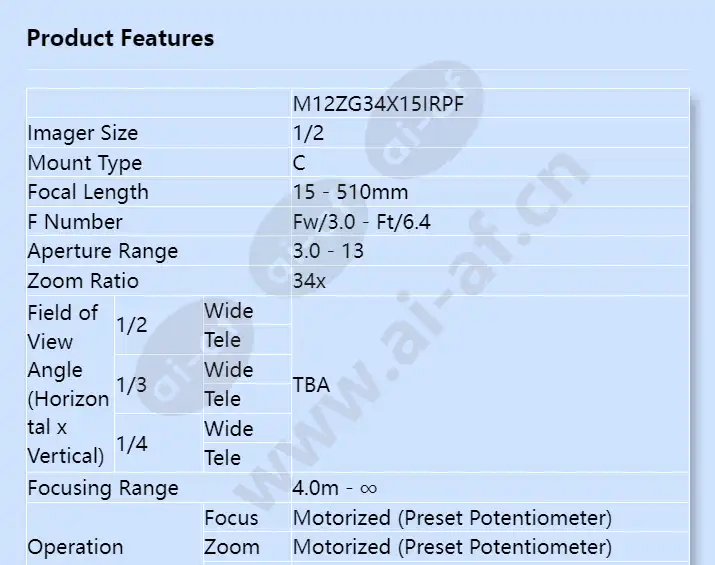

M12ZG34X15IRPF Imager Size 1/2 Mount Type C Focal Length 15 - 510mm F Number Fw/3.0 - Ft/6.4 Aperture Range 3.0 - 13 Zoom Ratio 34x Field of View Angle (Horizontal x Vertical) 1/2 Wide TBA Tele 1/3 Wide Tele 1/4 Wide Tele Focusing Range 4.0m - ∞ Operation Focus Motorized (Preset Potentiometer) Zoom Motorized (Preset Potentiometer) Iris DC Auto Iris Filter Size M95 P=1.0mm Back Focal Distance TAB Input power Focus DC 8V - 12V Zoom DC 8V - 12V Wave Length Visible Light - Near Infrared Iris Operating Voltage Open 5.0V (max 6.0V) Close 0V DeFog ○ (DC 3.0V) Weight 2.3kg Operating Temperature -10°C - +60°C Wiring Disgram
