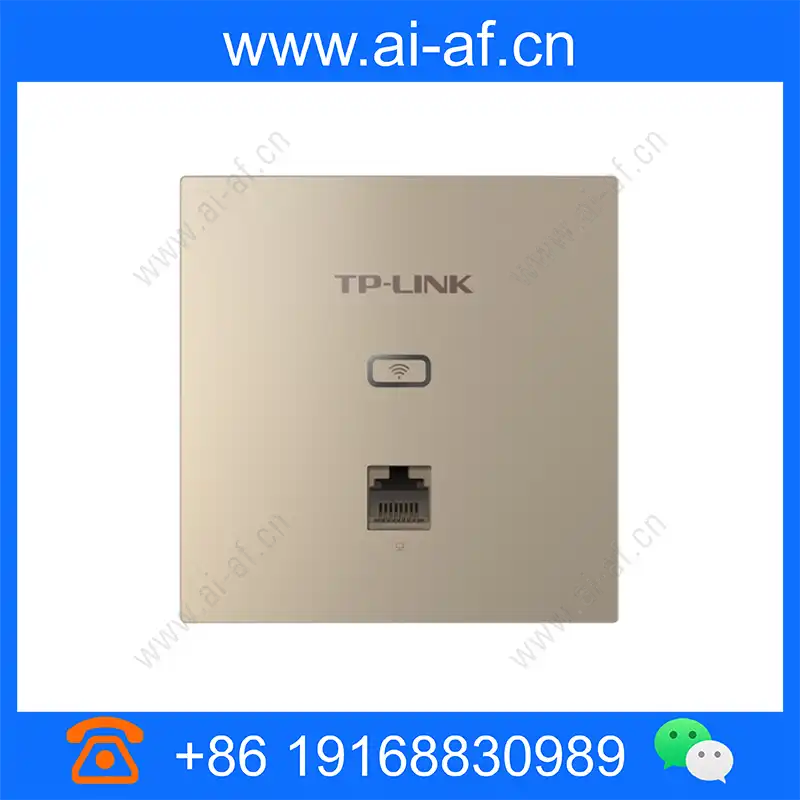

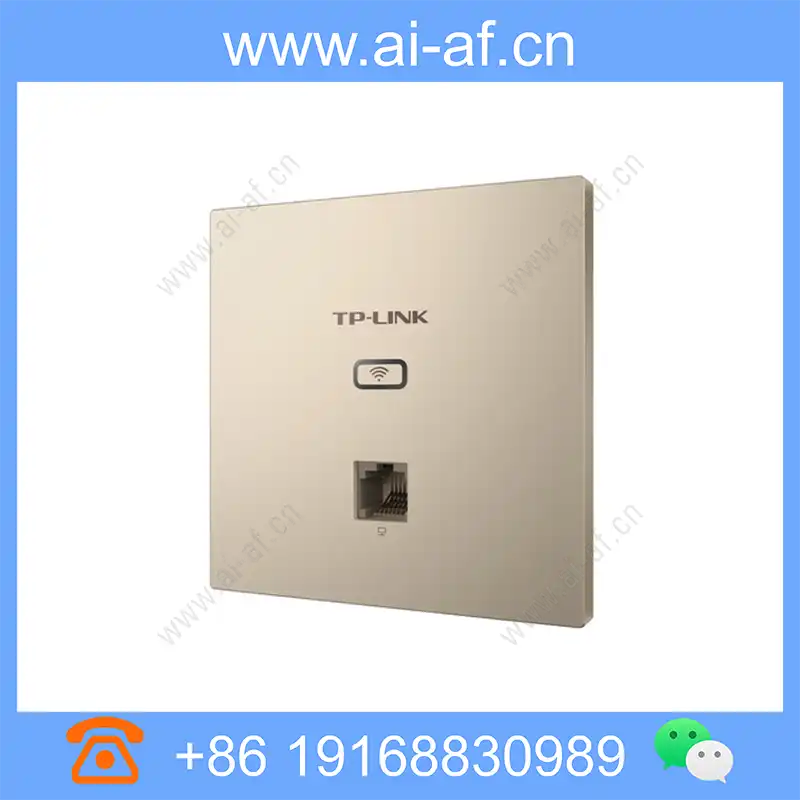

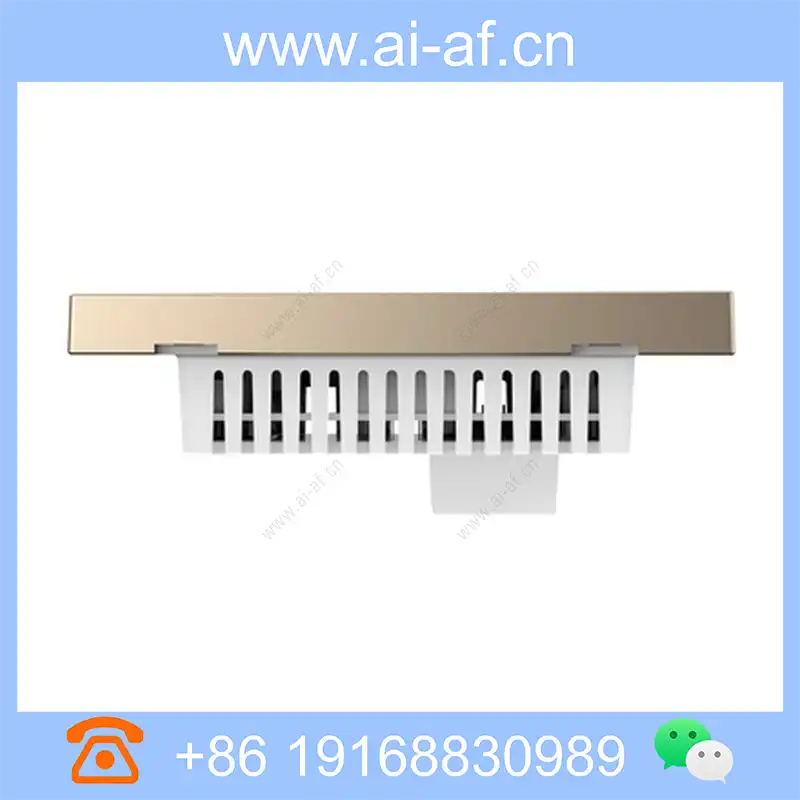

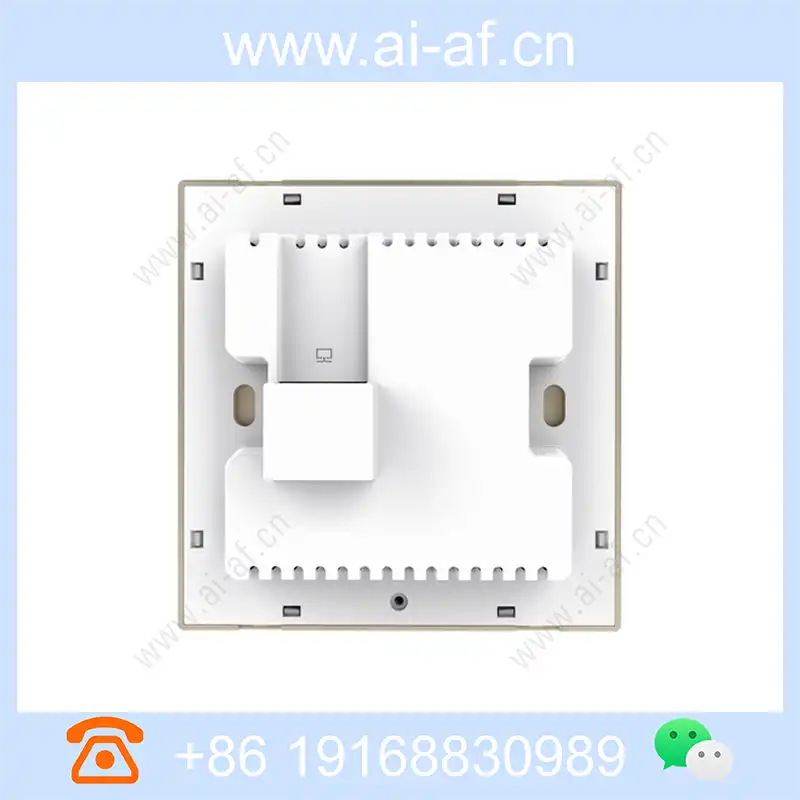

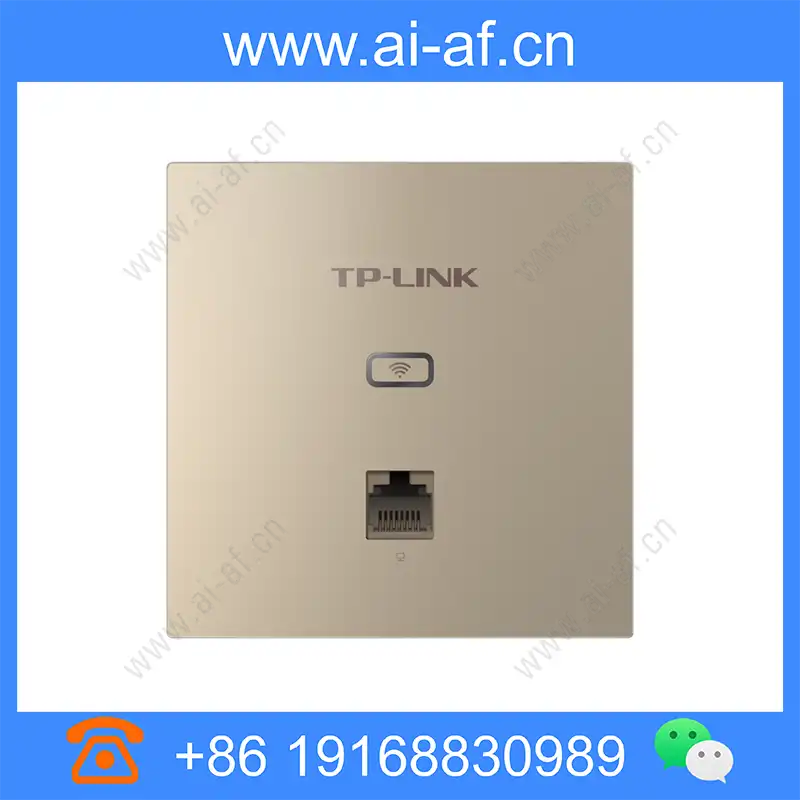

TP-LINK TL-AP1202GI-PoE Thin Milan Gold AC1200 Dual Band Gigabit Wireless Panel AP
11AC wireless technology, 2.4G/5G dual-band concurrent, wireless rate up to 1167Mbps Spectrum navigation, balanced load to ensure network performance Gigabit wired interface, can better play wireless performance 802.3af/at standard PoE network cable power supply, no external power supply required Support weak signal elimination, prohibit weak signal device access function 4 Fat and thin, you can choose different modes according to different application environments 2.0 version of the new design, simple and stylish Support TP-LINK business cloud APP remote view / management machine size (mm): 86*87.5*33, wall thickness 8mm Product model TL-AP1202GI-PoE Thin Milano Gold (Square) Version 1.0 Installation method Install directly into national standard 86 type network connection cassette size
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP1202GI-PoE Thin Milano Gold (Square) Version 1.0 |
| Installation method | Install directly into national standard 86 type network connection cassette |
| size | 86*87.5*33mm |
| Wireless rate | 2.4GHz :300Mbps 5GHz :867Mbps |
| port | Front: 1 10/100/1000M RJ45 port Back: 1 10/100/1000M RJ45 port |
| antenna | Built-in antenna |
| Indicator light | 1 system indicator |
| Button | 1 FAT/FIT mode toggle switch 1 Reset button |
| power supply | Standard PoE power supply |
| Maximum power consumption of the whole machine | 7.07W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4G) + 8 (5G) (support Chinese SSID) Network type: host network, guest network wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK user isolation: between wireless networks Isolation, AP internal isolation Wireless MAC address filtering: support whitelist VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM prohibit weak signal device access In: support to remove weak signal equipment: support |
| Maximum number of connectable clients | 100(2.4G)+ 100(5G) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
