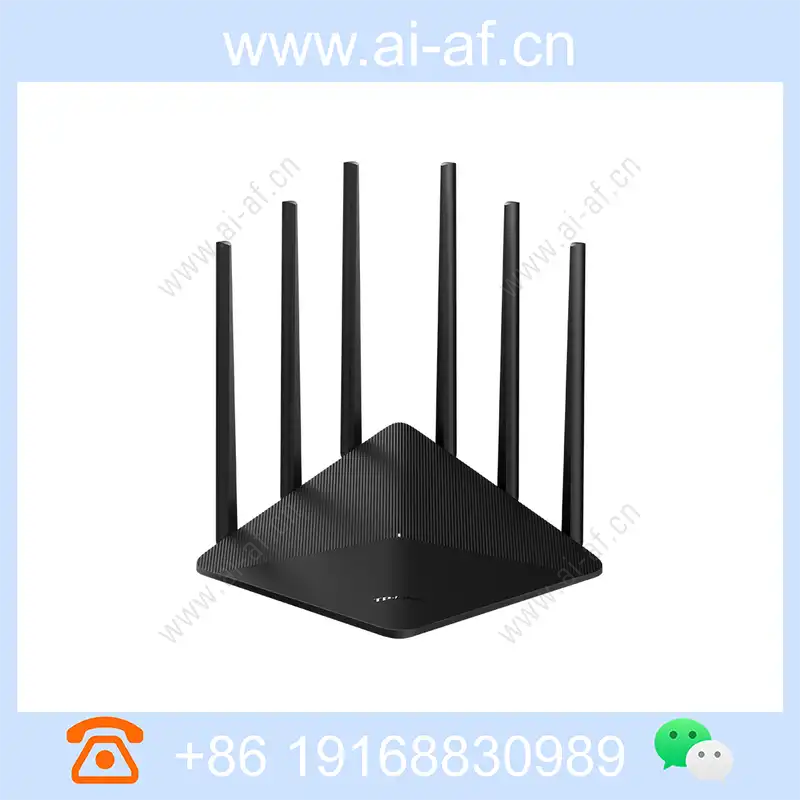

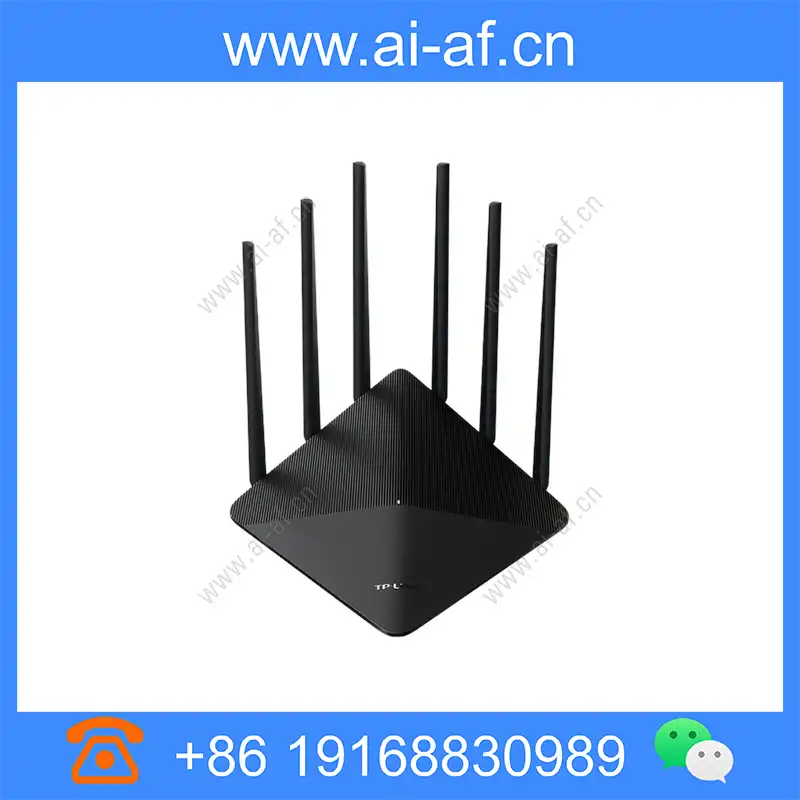

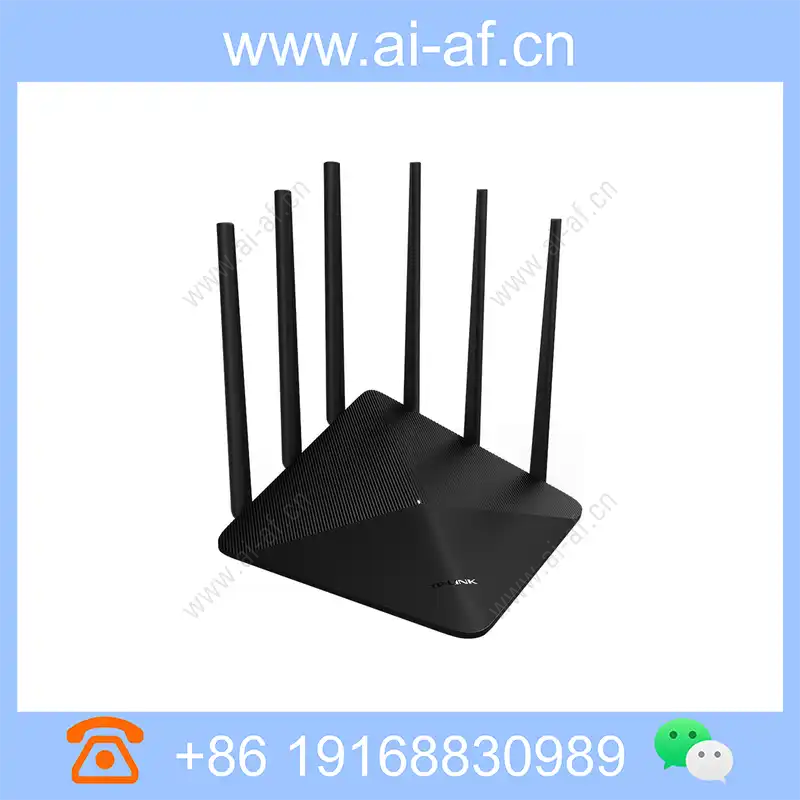

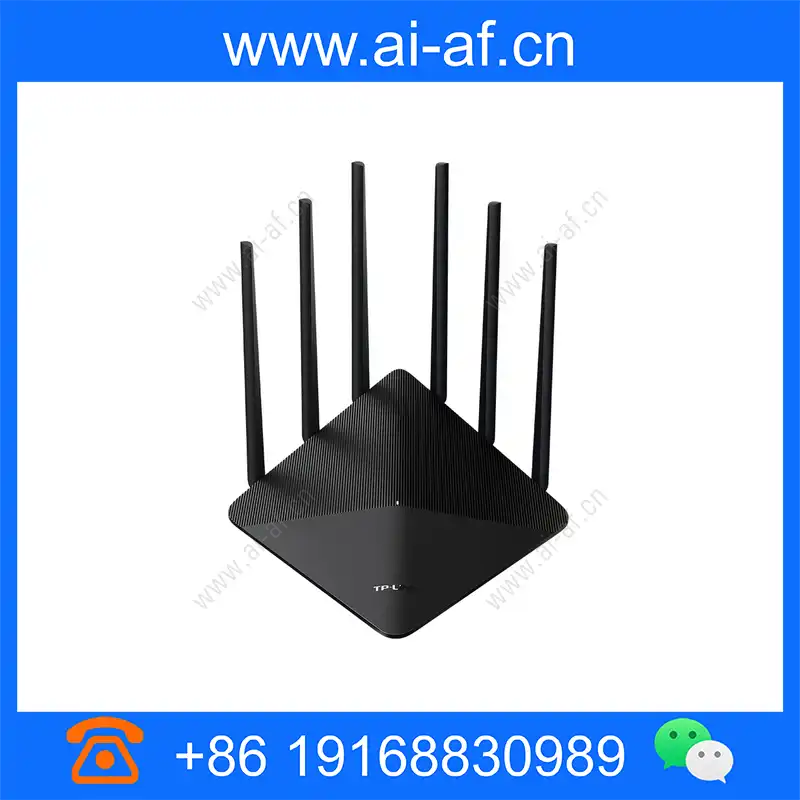

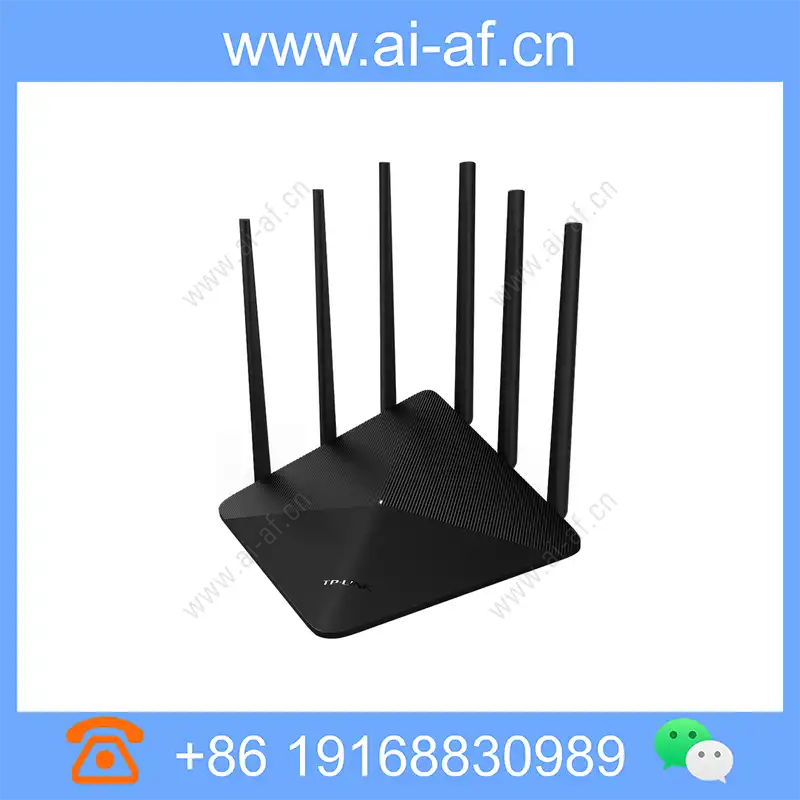

TP-LINK TL-AP1900GD Easy Exhibition Version AC1900 Dual Band Gigabit Easy Exhibition Desktop AP
model
TL-AP1900GD Easy Exhibition Version
AC1900 dual-band Gigabit desktop AP
253.5 x 253 x 67.5mm (free of mounting)
447.5x286.5x86.5mm
0.39kg (single, excluding accessories, packaging)
0.91kg (single, including accessories, packaging)
4 10/100m/1000M adaptive WAN / LAN port, support automatic flip (Auto MDI / MDIX)
1 DC power interface
1 three-color SYS indicator
each port link / ACT instructions
1 reset button
1 easy button
Technical Specifications
| Property Description | Property Value |
|---|---|
| model | TL-AP1900GD Easy Exhibition Version |
| name | AC1900 dual-band Gigabit desktop AP |
| Bare metal size (length x width x height) | 253.5 x 253 x 67.5mm (free of mounting) |
| Packing size (length x width x height) | 447.5x286.5x86.5mm |
| Bare metal weight | 0.39kg (single, excluding accessories, packaging) |
| Total weight | 0.91kg (single, including accessories, packaging) |
| interface | 4 10/100m/1000M adaptive WAN / LAN port, support automatic flip (Auto MDI / MDIX) 1 DC power interface |
| Indicator light | 1 three-color SYS indicator each port link / ACT instructions |
| Button | 1 reset button 1 easy button |
| power supply | DC power supply: 12V |
| Maximum power consumption | DC power supply maximum power consumption 12W |
| Operating temperature | 0°C~40°C |
| Working humidity | 10% ~ 90% RH does not condense |
| storage temperature | -40°C~70°C |
| Storage humidity | 5% ~ 90% RH does not condense |
| Antenna type | External Whole-Directional Antenna |
| Installation method | Desktop Place |
| wireless function | IEEE 802.11A / N / AC, IEEE 802.11b/g/n wireless protocol maximum wireless rate 1900Mbps: 2.4GHz band 600Mbps, 5GHz band 1300Mbps Beamforming 3 x 3 MU-MIMO Maximum Merger Comparison (MRC) Air Piece Code (STBC) Cycle delay / cyclic shift diversity (CDD / CSD) LDPC low-density parity maximum likelihood decoding (MLD) wireless Speccing parameters (shortgi) SSID broadcast / hide SSID quantity: 2.4g: 8; 5g: 8 Chinese SSID, including GB2312, UTF-8 Encoding Setting the master network, employee network channel bandwidth setting. 2.4G: 20M / 40MHz / Auto; 5G: 20M / 40M / 80MHz / Auto Dynamic Channel Selection (DCS) Wi-Fi Multi-Frequency One Fit mode spectrum navigation Transmission power setting: LV1-LV10, 1DBM step length wireless network interval, internal isolation Beacon time slot setting Weak signal equipment eliminates weak signal equipment prohibits access IEEE 802.11k / v protocol Intelligent roaming automatic radio frequency tuning WMM: Based on priority data processing and forwarding WDS function wireless client number limit OFDMA twt |
| Network characteristics | Rate and Duplex Mode Self-negotiation, Automatic MDI / MDI-X Fit mode CAPWAP interrupt service holds smart DHCP server LLDP link discovers Definition VLAN management VLAN according to user access, Get IP address |
| cyber security | Fit mode Portal authentication, MAC address authentication WPA, WPA2, WPA-PSK, WPA2-PSK encryption White list management can access device SSID and TAG VLAN Bind FIT mode broadcast storm suppression FIT mode DHCP protection Fit mode ARP protection |
| Management method | Fit Mode Wireless Controller (AC) Unified Management FAT Mode Independent Web Page Management TP-Link NMS Local Management Platform Concentration Management TP-LINK Commercial Network Cloud Platform centralized management |
| System Management | User Name / Password Management System Log View / Download / Send Server Manual Settings / NTP Server Synchronization Time Backup Configuration < / p> Import configuration Restore factory settings restart device local online upgrade, local firmware upgrade, cloud upgrade PING Watch Dog Function, Exception Equipment Automatic Recovery First Aid Mode, Exception Equipment Enter First Aid Page Upgrade Firmware |
