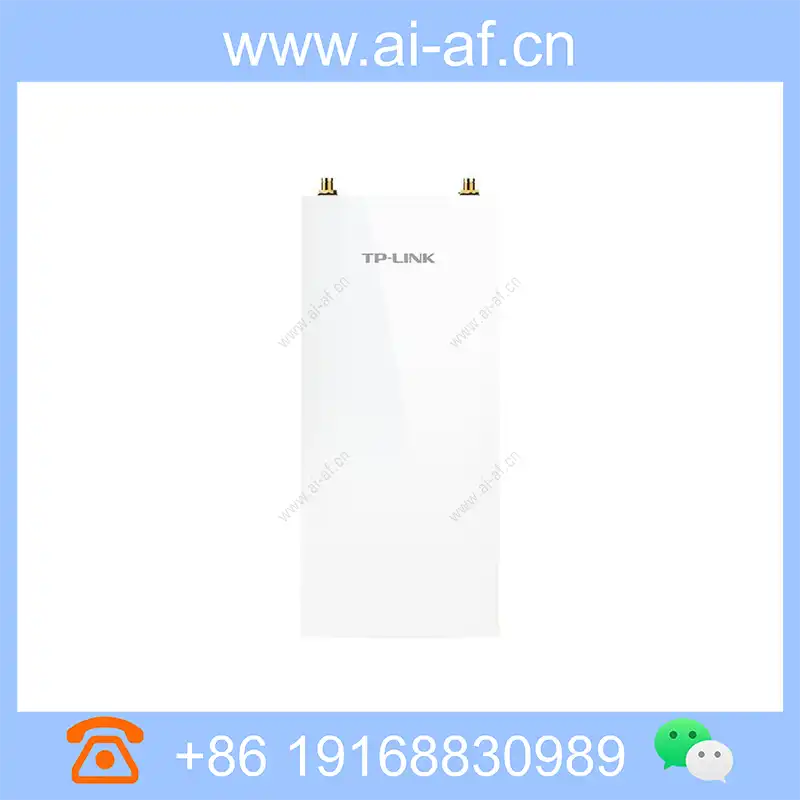

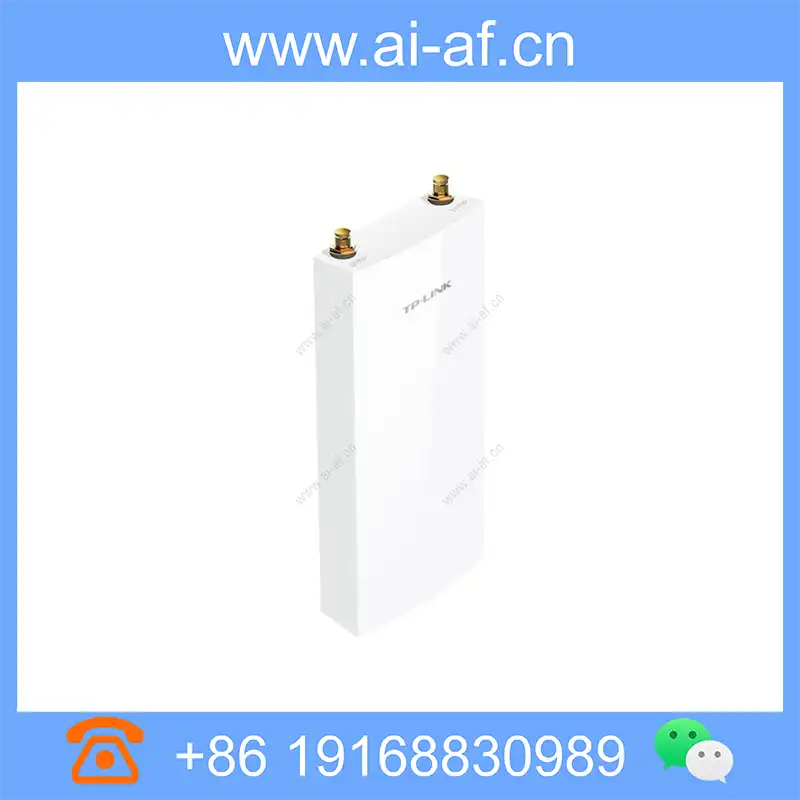

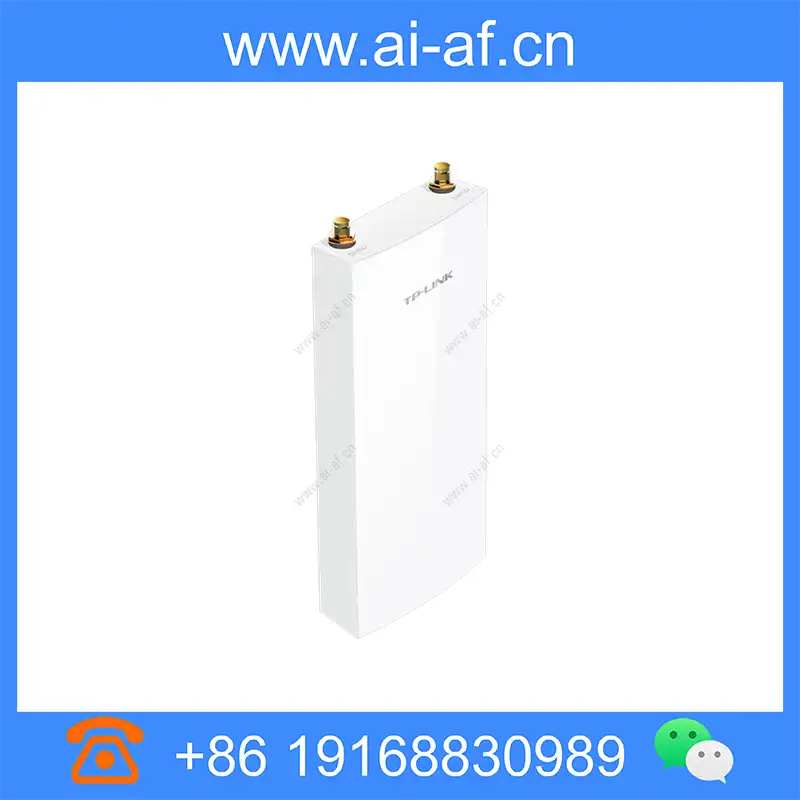

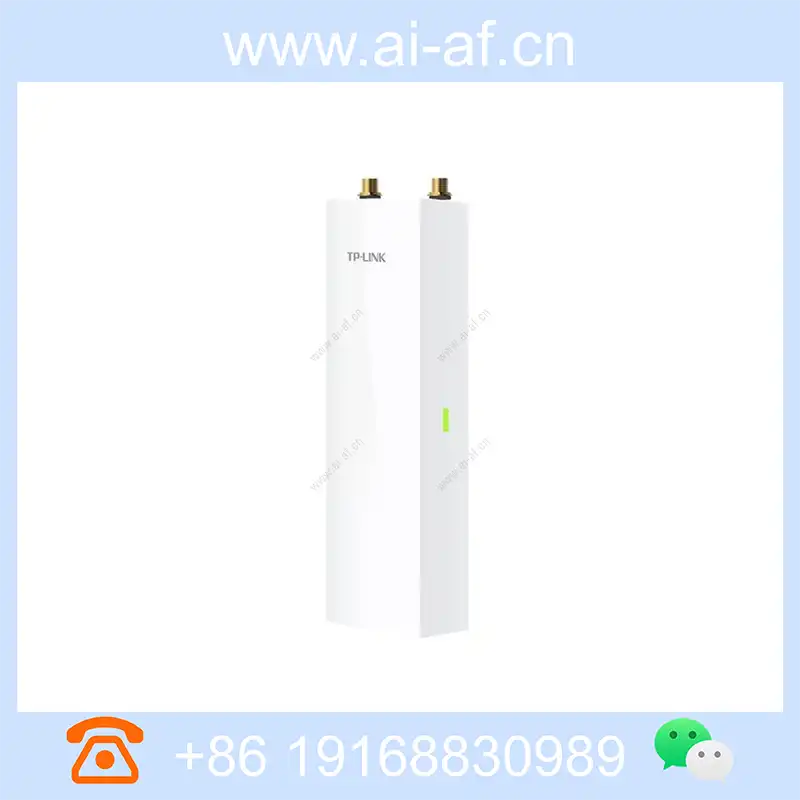

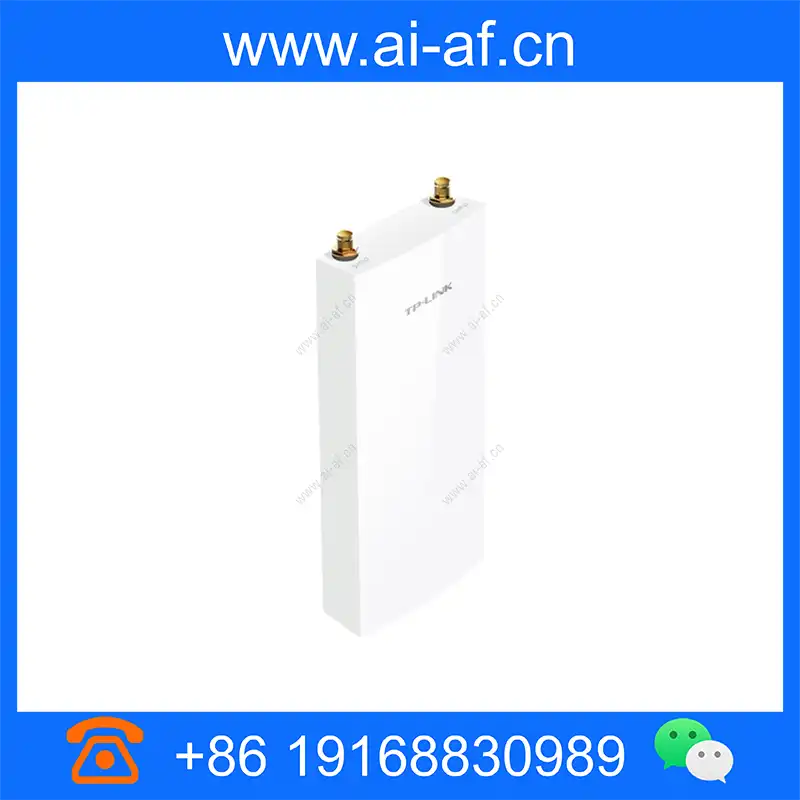

TP-LINK TL-BS200 wireless base station indoor and outdoor universal 2.4GHz 300M 1KM with camera 8
Installation method Pole installation Antenna bracket installation Wireless standard IEEE 802.11b/g/n Proprietary agreement TP-LINK MAXtream TDMA wireless Working frequency band: 2.4GHz-2.483GHz (China) Wireless rate: 300Mbps (must be connected to an external antenna) Transmit power 20dBm antenna 2 RP-SMA connectors for external dish, sector and omniDirectional antennas Maximum wireless transmission distance (no interference) 15 kilometers (external dish antenna) interface 2 2 RP-SMA-MALE interfaces (for external antenna) 2 10/100Mbps RJ45 ports (LAN0/PoE input, LAN1) 1 DC interface Power supply 9V / 0.85A Passive PoE power supply or DC power supply, PoE power supply distance up to 20M Indicator light 1 SYS tri-color indicator Product Size 210 x 95 x 42.65 (mm) Use environment Operating
Technical Specifications
| Property Description | Property Value |
|---|---|
| Installation method | Pole installation Antenna bracket installation |
| Wireless standard | IEEE 802.11b/g/n |
| Proprietary agreement | TP-LINK MAXtream TDMA |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless rate: 300Mbps (must be connected to an external antenna) |
| Transmit power | 20dBm |
| antenna | 2 RP-SMA connectors for external dish, sector and omniDirectional antennas |
| Maximum wireless transmission distance (no interference) | 15 kilometers (external dish antenna) |
| interface | 2 2 RP-SMA-MALE interfaces (for external antenna) 2 10/100Mbps RJ45 ports (LAN0/PoE input, LAN1) 1 DC interface |
| Power supply | 9V / 0.85A Passive PoE power supply or DC power supply, PoE power supply distance up to 20M |
| Indicator light | 1 SYS tri-color indicator |
| Product Size | 210 x 95 x 42.65 (mm) |
| Use environment | Operating temperature: -30°C~70°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| Lightning, dust, and water resistance | ASA engineering plastic casing, IP65 dustproof and waterproof |
| Wireless working mode | AP、Client |
| Network settings | LAN port connection: static IP, dynamic IP, DHCP |
| wireless setting | TP-LINK MAXtream TDMA technology 802.11b/g/n mode automatic channel selection Transmit power adjustment Dynamic frequency selection (DFS) WDS wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, 64/128 /152-bit WEP encrypted SSID broadcast/Do not display multiple SSID, SSID and Tag VLAN mapping (AP mode only) Distance settings Wireless MAC address filtering advanced settings: Beacon time slot, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM |
| Management and maintenance | Unified management by Pharos Control centralized management software HTTP/HTTPS WEB management System log Ping watchdog Dynamic DDNS |
| System Tools | System status: signal strength, noise strength, transmission CCQ, CPU usage, memory usage Status monitoring: throughput/wireless client/interface/ARP spectrum analysis rate test Ping Traceroute |
| System Optimization | IGMP Snooping optimization, multicast proxy, hardware watchdog |
