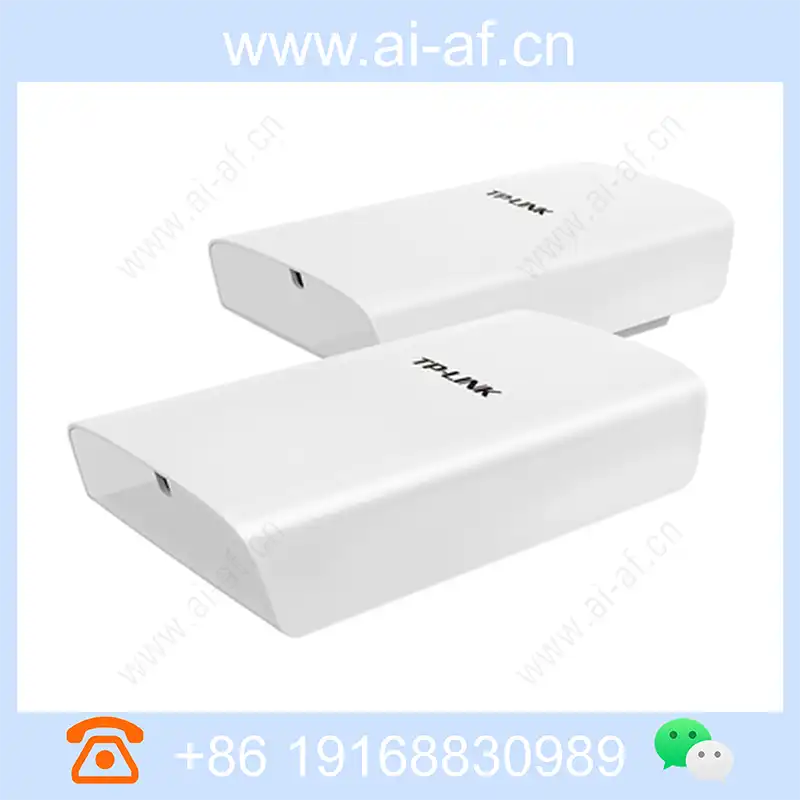

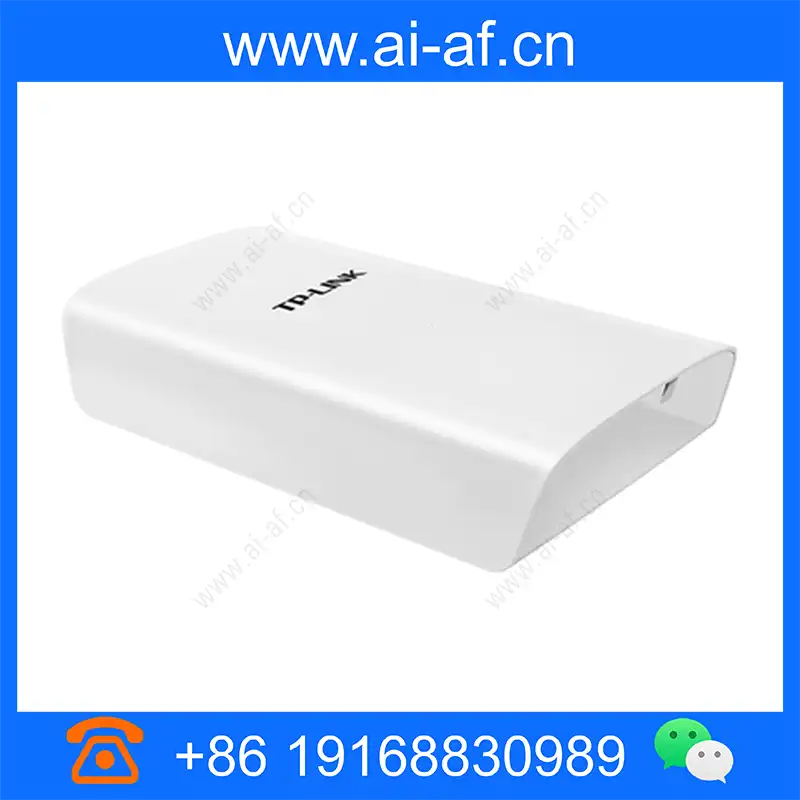

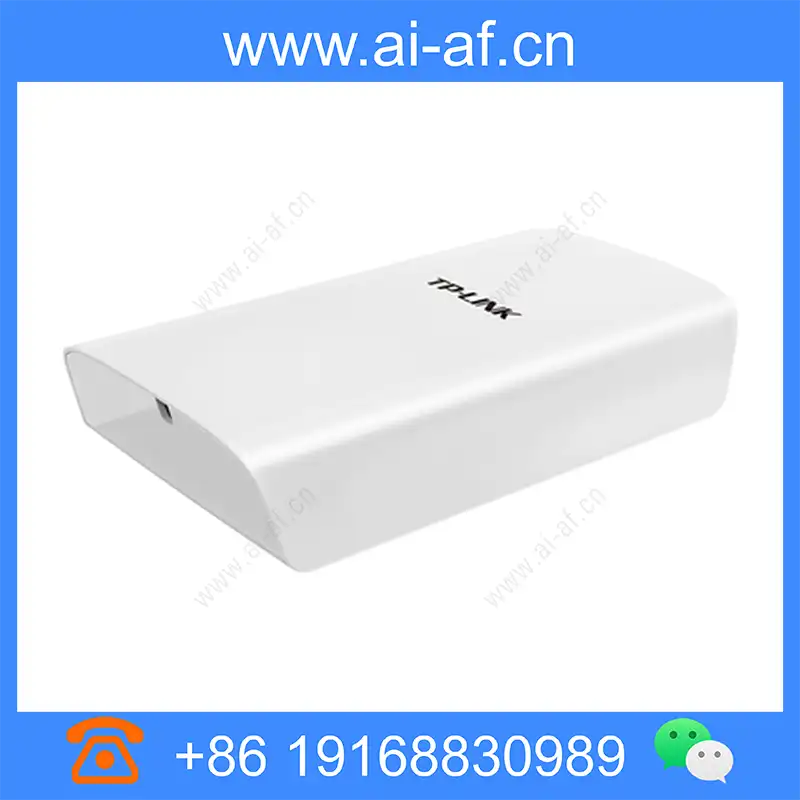

TP-LINK TL-E500 fixed end and car end set elevator wireless monitoring 5GHz 867Mbps
11ac wireless technology, 867Mbps wireless rate 100K super high-rise elevator shaft environment 4K video easily transmitted Factory-free configuration, default setting for bridge connection Support DC/Passive PoE power supply Diversified installation methods, convenient construction and deployment in elevator shaft Strengthen the waterproof and dustproof performance, the equipment works more stable The wireless transmission power is linearly adjustable, adjust the transmission distance according to the demand, and avoid the same frequency interference Independent hardware protection circuit, can automatically restore abnormal equipment Support unified management of TP-LINK bridge centralized management software Product model TL-E500 fixed end TL-E500 car end Installation method Ceiling /
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-E500 fixed end TL-E500 car end |

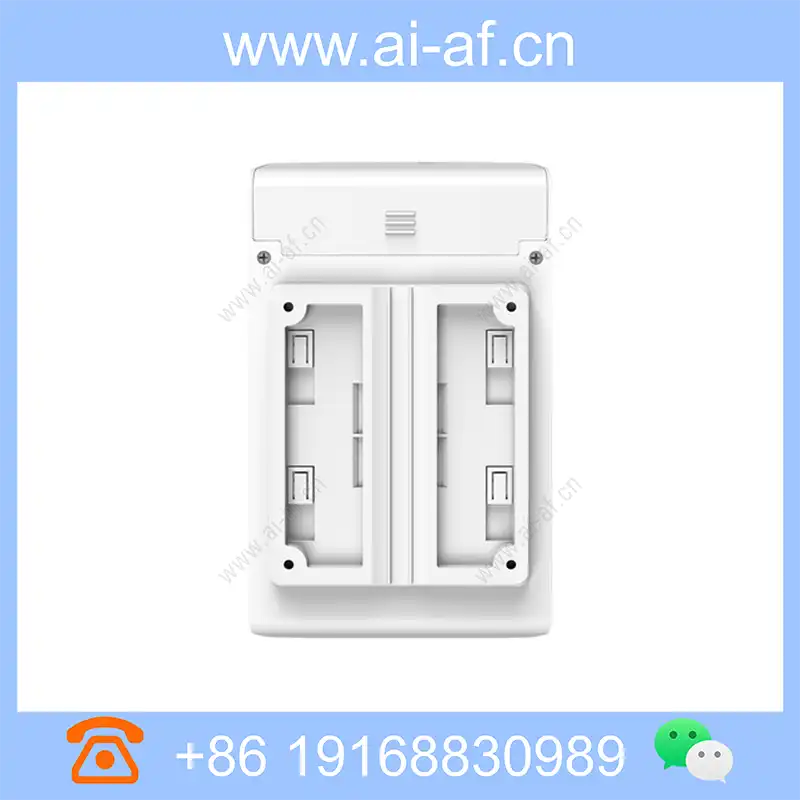

| Installation method | Ceiling / wall mount / bracket installation |
| size | 170*100*38.5mm |
| wireless | Working frequency band: 5.15~5.25GHz, 5.735~5.835GHz Wireless rate: 867Mbps |

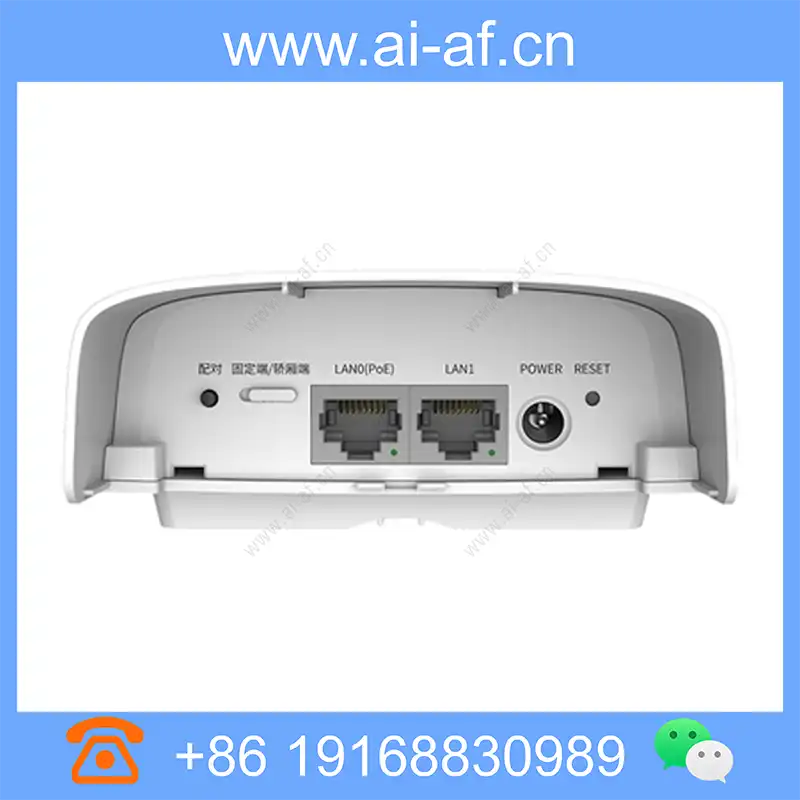

| port | 2 10/100M RJ45 ports 1 DC power socket port |
| Indicator light | One system status indicator |
| Button | 1 Reset button 1 Quick pairing button |
| power supply | 12VDC / 1A; Passive PoE power supply |
| management | Independent web page management TP-LINK bridge centralized management software unified management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: support Chinese SSID wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK transmit power setting: support 1dBm linear adjustment WDS function: support QoS: WMM support fast pairing function |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
