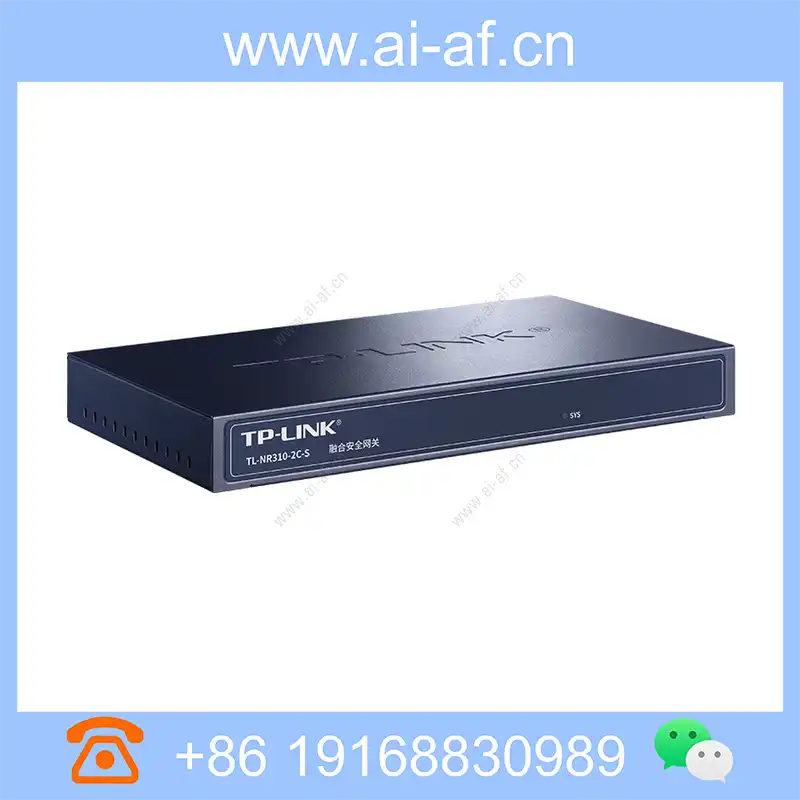

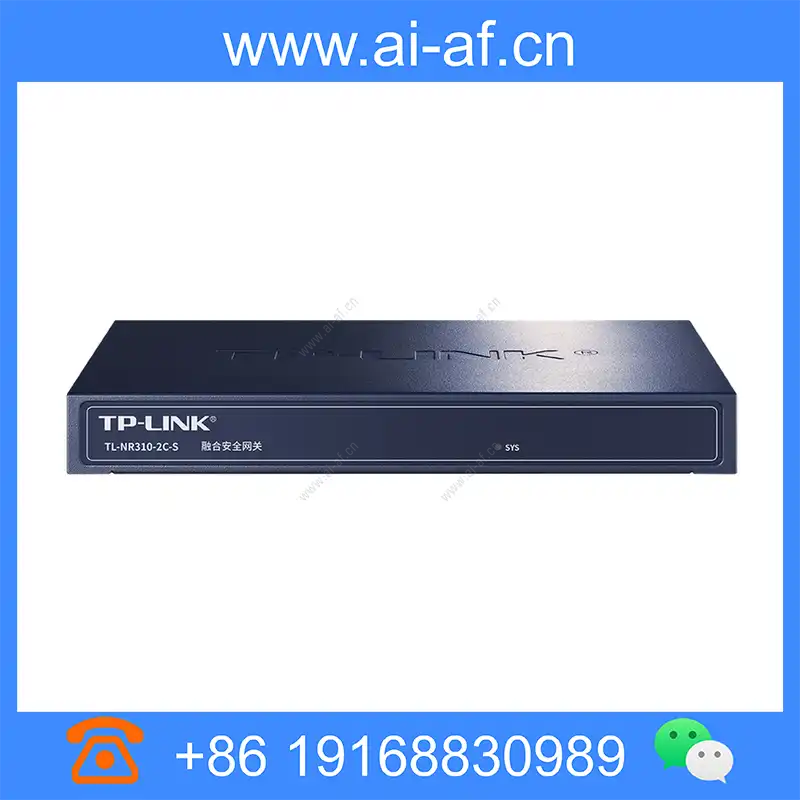

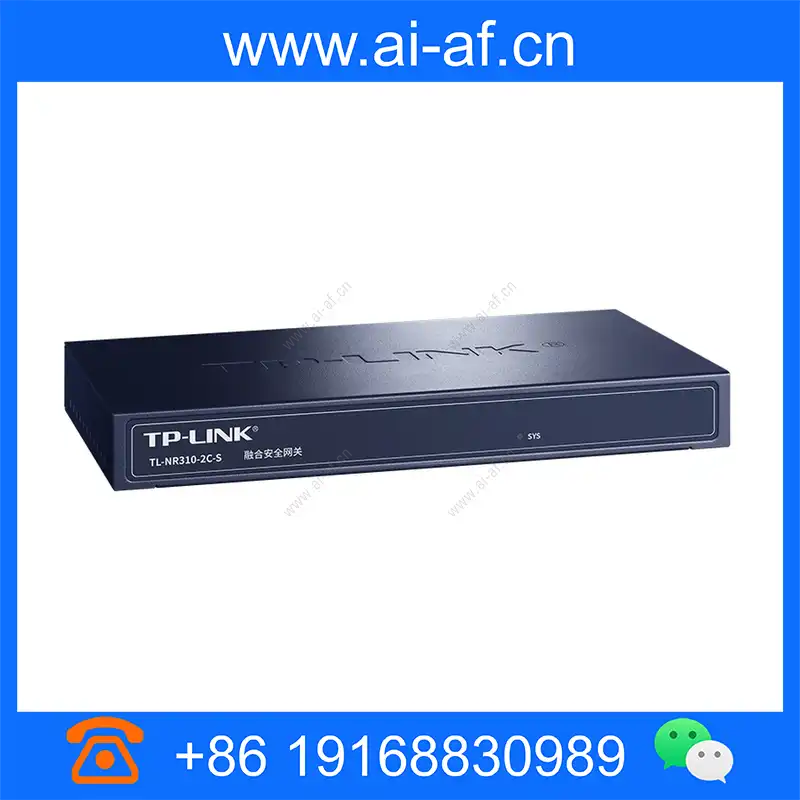

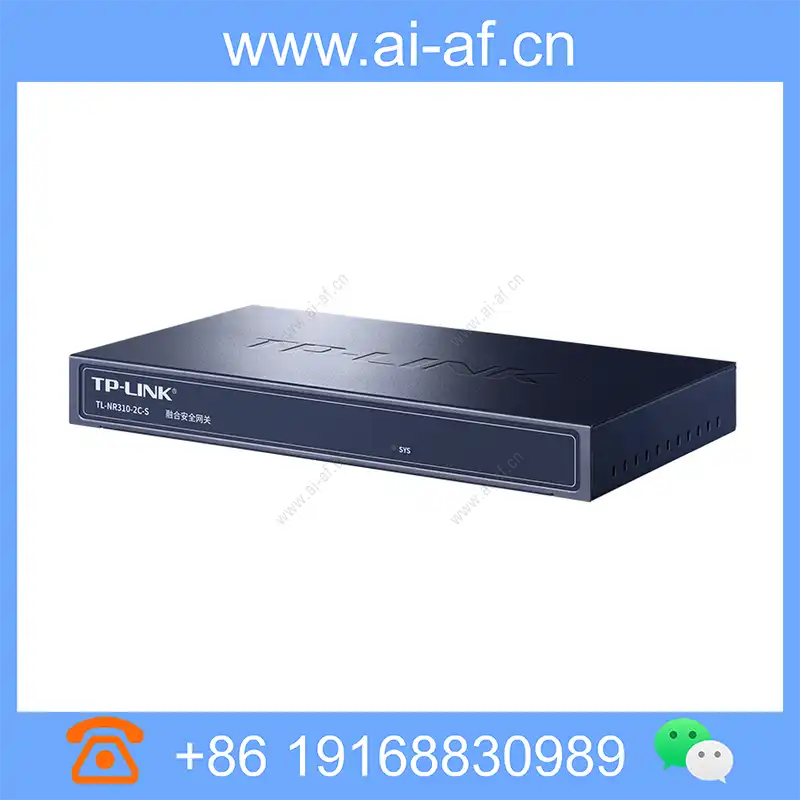

TP-LINK TL-NR310-2C-S Converged Security Gateway

Brand: TP-LINK

Model: TL-NR310-2C-S

Dimensions: 126mm x 209mm x 26mm

5 Gigabit Ethernet ports, 1WAN+4LAN Built-in AC function, unified management of TP-LINK enterprise AP IPSec/PPTP/L2TP VPN, remote communication is more secure Web authentication, SMS authentication, PPPoE server Internet behavior management (mobile APP control/desktop application control/website filtering/behavior audit) Internal and external network ARP protection and common attack protection Intelligent IP bandwidth management and connection limit Support TP-LINK commercial network cloud platform SD-VPN function Support user authentication information to connect with TP-LINK authentication and billing system Support user online behavior audit information to connect with TP-LINK security audit system port

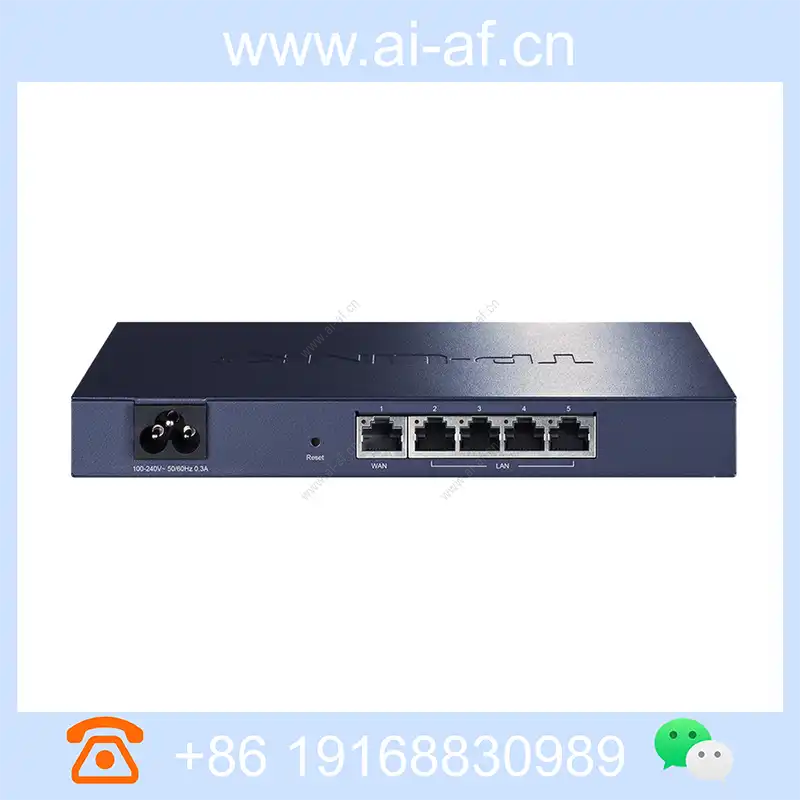

1 10/100/1000M RJ45 WAN port
4 10/100/1000M RJ45 LAN port

Product Features

5 Gigabit Ethernet ports, 1WAN+4LAN
Built-in AC function, unified management of TP-LINK enterprise AP
IPSec/PPTP/L2TP VPN, remote communication is more secure
Web authentication, SMS authentication, PPPoE server
Internet behavior management (mobile APP control/desktop application control/website filtering/behavior audit)
Internal and external network ARP protection and common attack protection
Intelligent IP bandwidth management and connection limit
Support TP-LINK commercial network cloud platform SD-VPN function
Support user authentication information to connect with TP-LINK authentication and billing system
Support user online behavior audit information to connect with TP-LINK security audit system

Technical Specifications

Property Description	Property Value
port	1 10/100/1000M RJ45 WAN port 4 10/100/1000M RJ45 LAN port
Indicator light	Each port: LINK / ACT Each device: SYS
Dimensions	209(w)x126(D)x26(H) mm
Input power	100~240V AC,50/60Hz
Cooling method	Natural heat dissipation
Use environment	operating temperature: 0°C ~ 40°C, Working humidity: 10% ~ 90% RH does not condense storage temperature: -40°C ~ 70°C, storage humidity: 5% ~ 90 % RH does not condense
Typical belt load	100 sets
Network protocol	TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS
Operating status	Interface Information Traffic Statistics Hardware Resource Utilization
Interface settings	wan settings (Internet setting / ISP balance) LAN settings (LAN port parameter / DHCP server settings)
AP management	AP setting, up to 20 TP-LINK AP Wi-Fi setting wireless host status
Behavior control	Application Control, One-Code Management Social Software / Video Software / Music Software / Shopping Leisure Software / News Software / P2P Software / Financial Software / Network Game / App Store / Fundamental Applications / li> qq black and white list Website Packet filtering filter page file type Intelligent biDirectional bandwidth control and connection limit limit Access Control List (ACL) Audit
Safety management	ARP protection (IP + MAC Binding, GARP) MAC address filtering attack protection (DOS attack protection, suspicious package attack protection)
VPN	IPSec VPN (10 tunnels) PPTP/L2TP VPN (20 tunnels, shared), support server and client mode
Certification Management	web authentication, local authentication, RADIUS certification, one-click Internet access, meet a variety of certification requirements SMS authentication, meet real-name authentication requirements, and can conduct secondary marketing based on mobile phone number < / li> Free certification policy
Advanced Features	PPPoE authentication server, 50 sets of machine routing setting (policy route, static route, system routing) NAT setting (NAPT, one-on-one NAT , ALG, Virtual Server, NAT DMZ DDNS (Peanut Shell, Chiang, 3322) Upnp IP traffic statistics Port Monitor
System Tools	Chinese Web Support, Remote Management Configuration Backup and Import Configuration Software Upgrade, Automatic Clearing Diagnostic Tool (Ping Detection, Tracert Detection, fault diagnosis) system time setting system log
