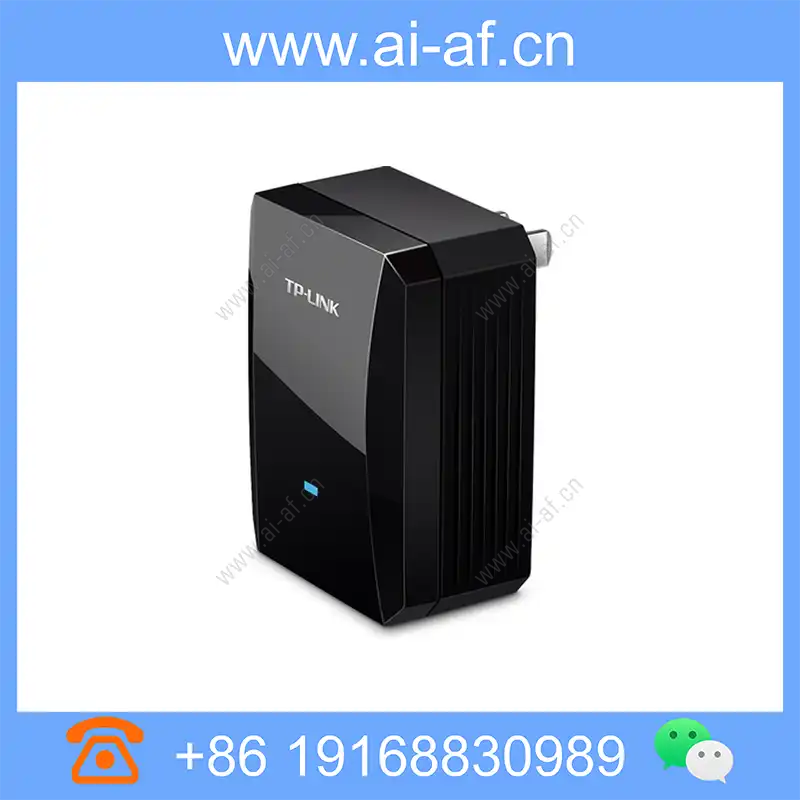

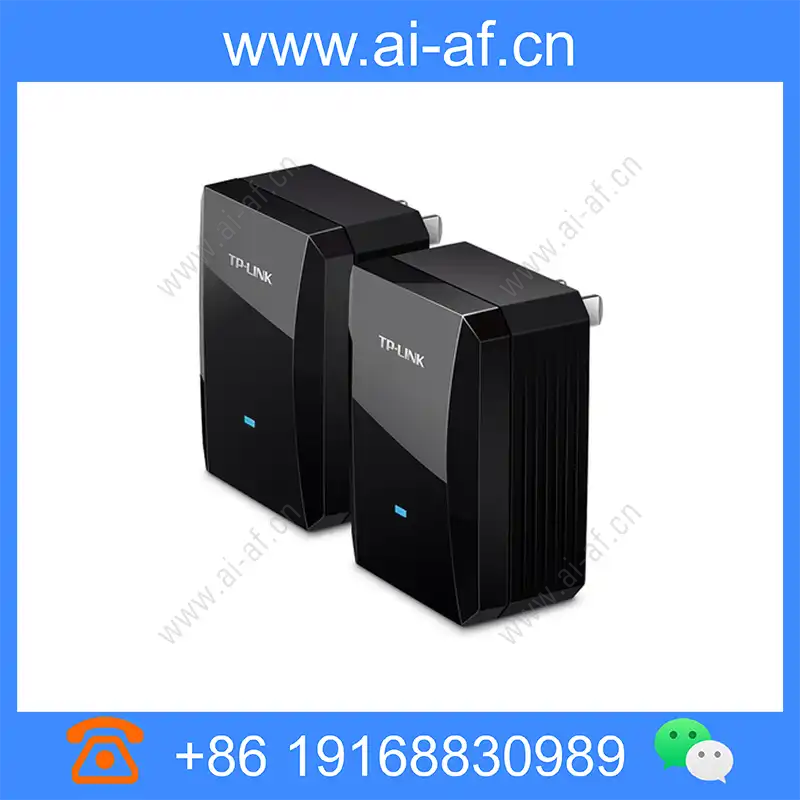

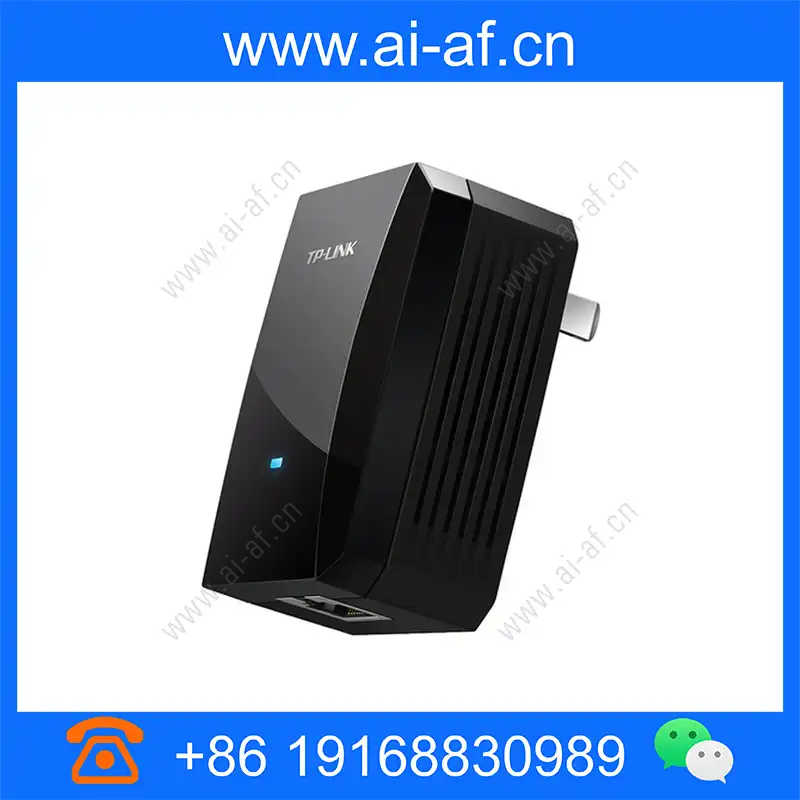

TP-LINK TL-PA500 500M PowerCable Adapter
Brand: TP-LINK
Model: TL-PA500
Dimensions: 67mm x 50mm x 30.50mm
Protocol standard HomePlug AV IEEE 802.3、IEEE 802.3u Modulation OFDM interface Ethernet interface: 1 10/100M adaptive RJ45 port (supports automatic rollover) LED SYS size 67mm x 50mm x 30.5mm(L x W x H) Working voltage range AC 100V~240V Power consumption <2W Packaging accessories Power line adapter: TL-PA500 user manual Use environment Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | HomePlug AV IEEE 802.3、IEEE 802.3u |
| Modulation | OFDM |
| interface | Ethernet interface: 1 10/100M adaptive RJ45 port (supports automatic rollover) |
| LED | SYS |
| size | 67mm x 50mm x 30.5mm(L x W x H) |
| Working voltage range | AC 100V~240V |
| Power consumption | <2W |
| Packaging accessories | Power line adapter: TL-PA500 user manual |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
