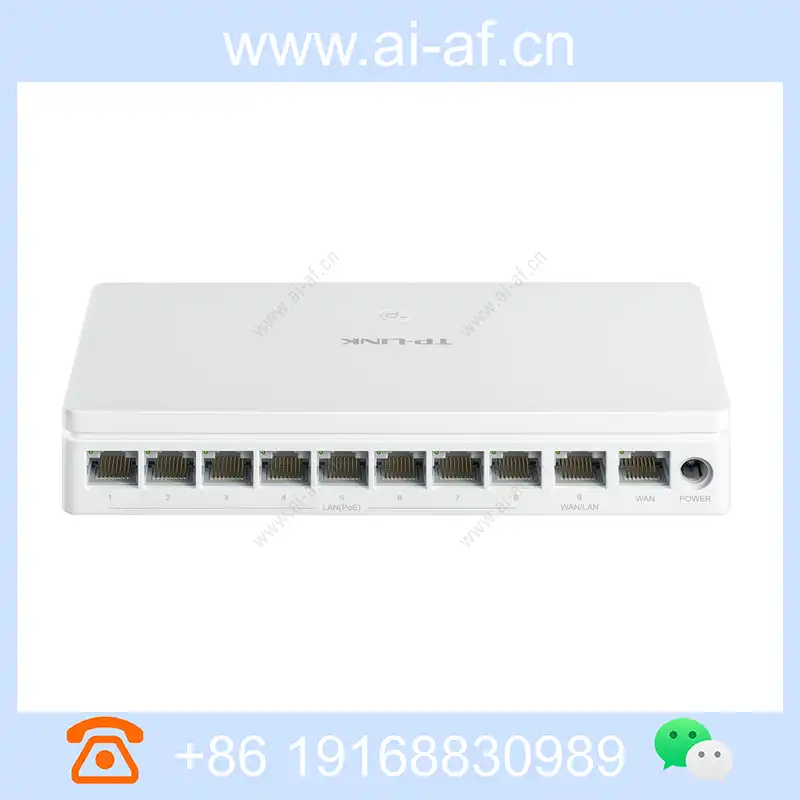

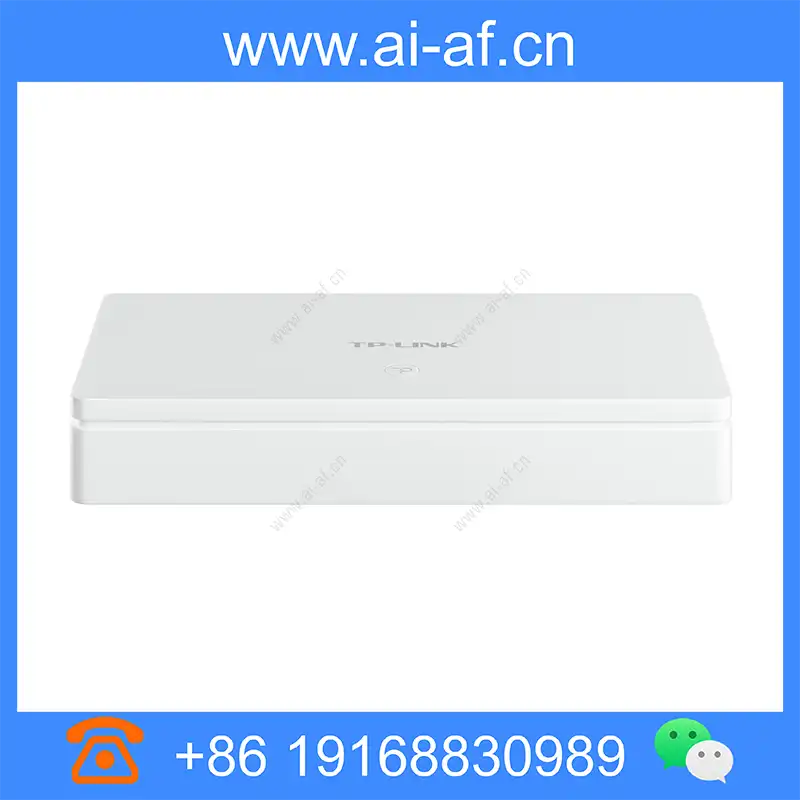

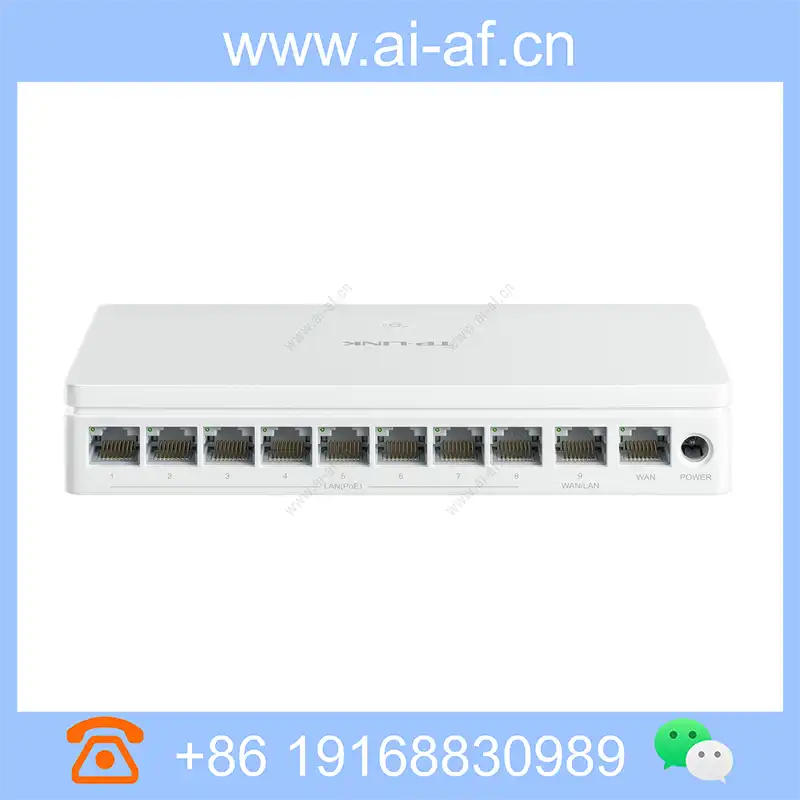

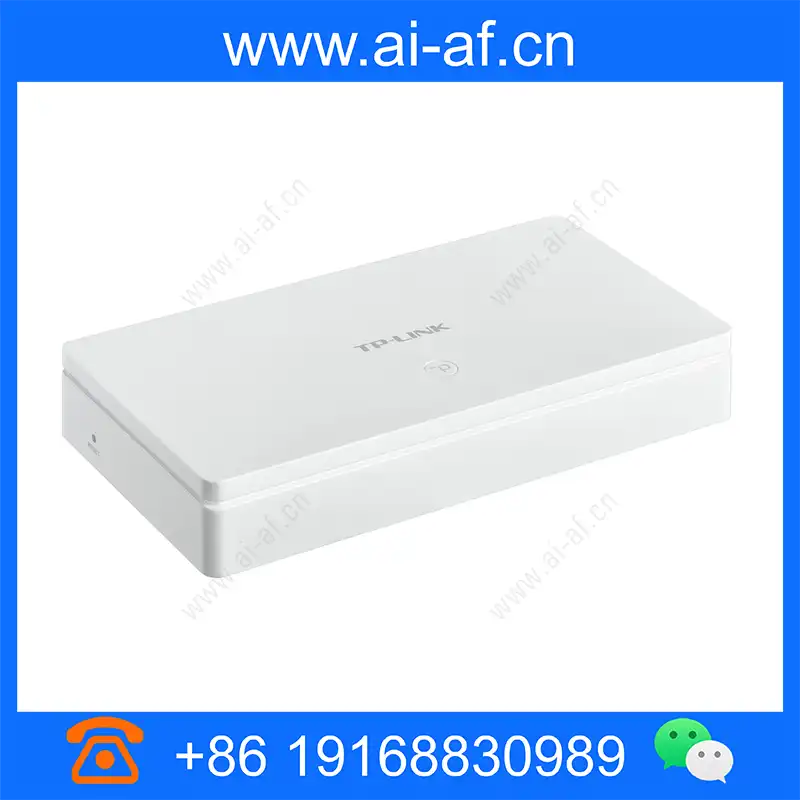

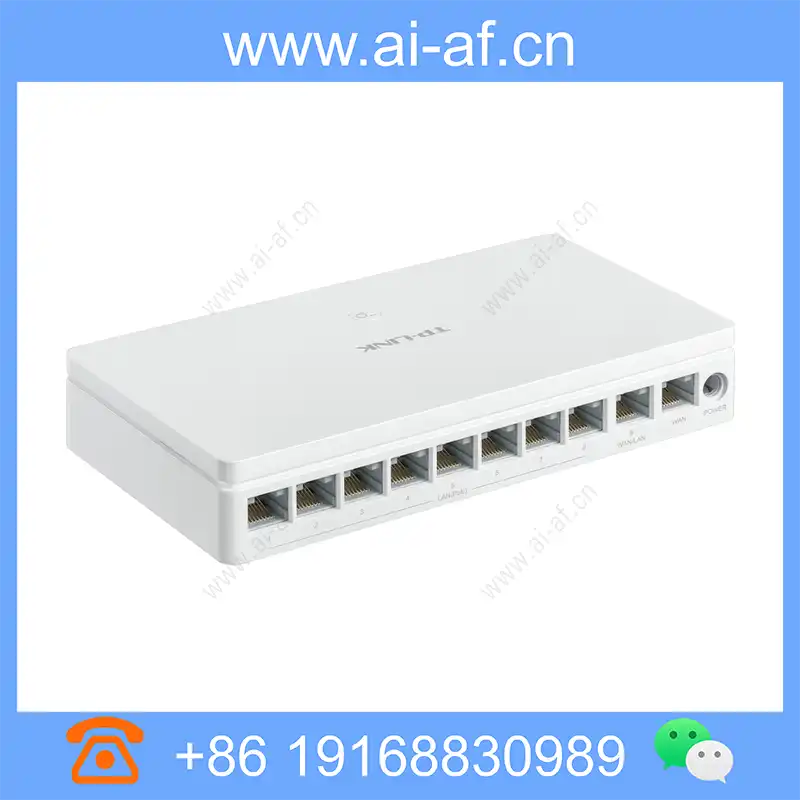

TP-LINK TL-R4010GP-AC PoE·AC Integrated Gigabit Router

Brand: TP-LINK

Model: TL-R4010GP-AC

Dimensions: 88mm x 169mm x 31mm

10 Gigabit Ethernet ports, 1WAN+1WAN/LAN+8LAN Built-in wireless controller for unified management of TP-LINK AP products 8 LAN ports support standard PoE power supply, no need to purchase additional PoE switches New plastic case small size design, support magnetic fixation, silent fanless design Support Easy Exhibition Network, can be used with easy-to-exhibition series, wireless routing, AP, home routing convenient network Support host/guest network and intelligent roaming, seamless roaming throughout the house and easy coverage Support TP-LINK APP management, complete home network configuration in four steps port

1 10/100/1000M RJ45 WAN port
1 10/100/1000M RJ45 WAN/LAN variable port
8 10/100 /1000M RJ45 LAN port (support PoE external power supply)

Product Features

10 Gigabit Ethernet ports, 1WAN+1WAN/LAN+8LAN
Built-in wireless controller for unified management of TP-LINK AP products
8 LAN ports support standard PoE power supply, no need to purchase additional PoE switches
New plastic case small size design, support magnetic fixation, silent fanless design
Support Easy Exhibition Network, can be used with easy-to-exhibition series, wireless routing, AP, home routing convenient network
Support host/guest network and intelligent roaming, seamless roaming throughout the house and easy coverage
Support TP-LINK APP management, complete home network configuration in four steps

Technical Specifications

Property Description	Property Value
port	1 10/100/1000M RJ45 WAN port 1 10/100/1000M RJ45 WAN/LAN variable port 8 10/100 /1000M RJ45 LAN port (support PoE external power supply)
Indicator light	Each port: LINK / ACT Each device: SYS
PoE performance	Compliant with IEEE 802.3af, IEEE 802.3at standards Maximum output of single port 30W Maximum output of whole machine 74W
Input power	53.5VDC/1.6A
Cooling method	Natural heat dissipation
Use environment	Working temperature: 0°C~45°C, Working humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, Storage humidity: 5%~ 90%RH non-condensing
Typical belt load	100 sets
Dimensions	169(w)x88(D)x31(H) mm
Network protocol	TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS
network status	Multi-frequency integration Host network Guest network Network topology Add Yizhan equipment< /li>
Equipment management	Host/guest network device management, support device disable, website access rights management, Internet time rule management Disable device list management AP management, unified Manage 20 TP-LINK AP products
Application Management	Guest network Wireless device access control IP and MAC binding Administrator identity restriction AP Internal Isolation Virtual Server DDNS DMZ Host Auto Cleanup Wireless Timer Switch< /li> Smart Roaming
Route settings	TP-LINK ID Internet settings Wireless settings Port customization LAN port settings< /li> IPv6 Settings DHCP Server Easy Expansion Function Software Upgrade Backup and Load Configuration li> Reboot and factory reset System log
