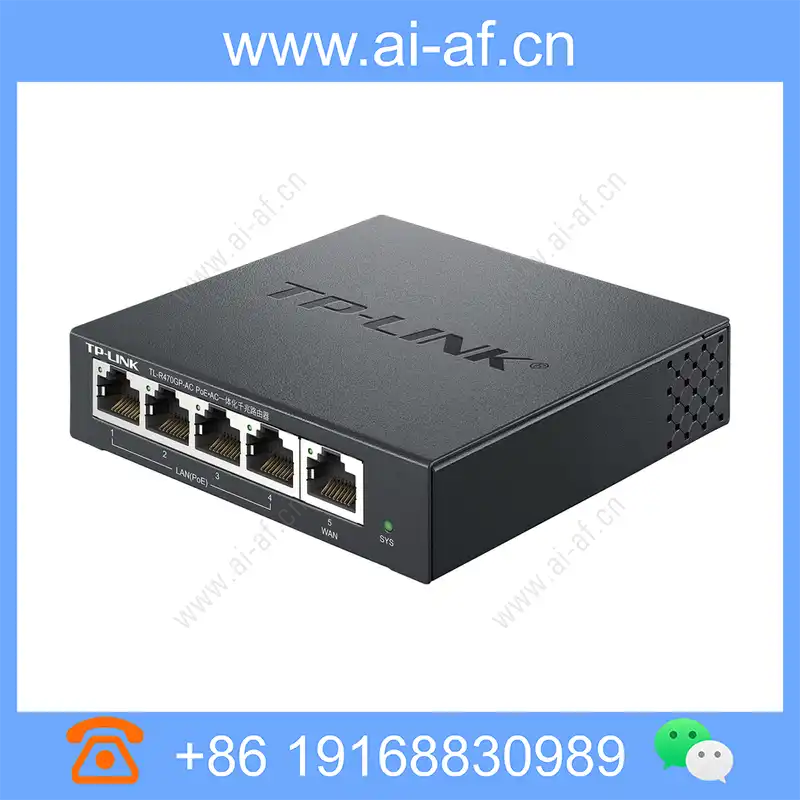

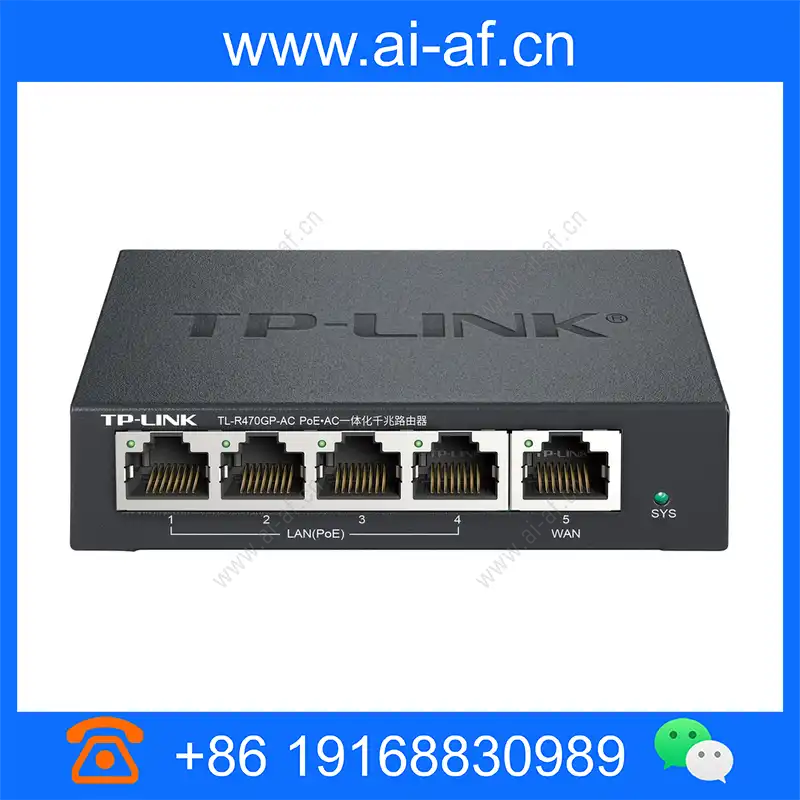

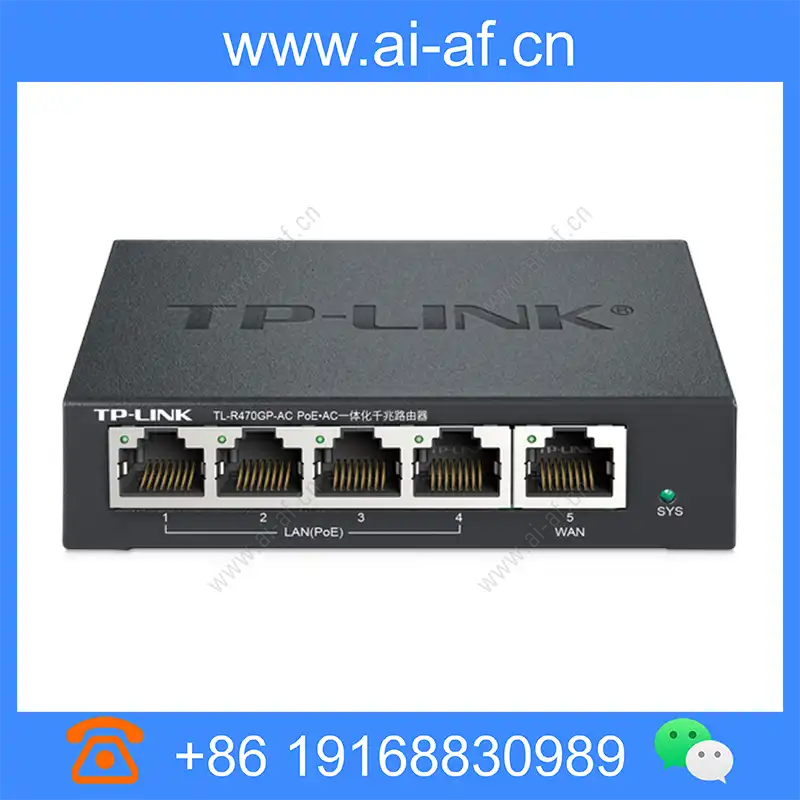

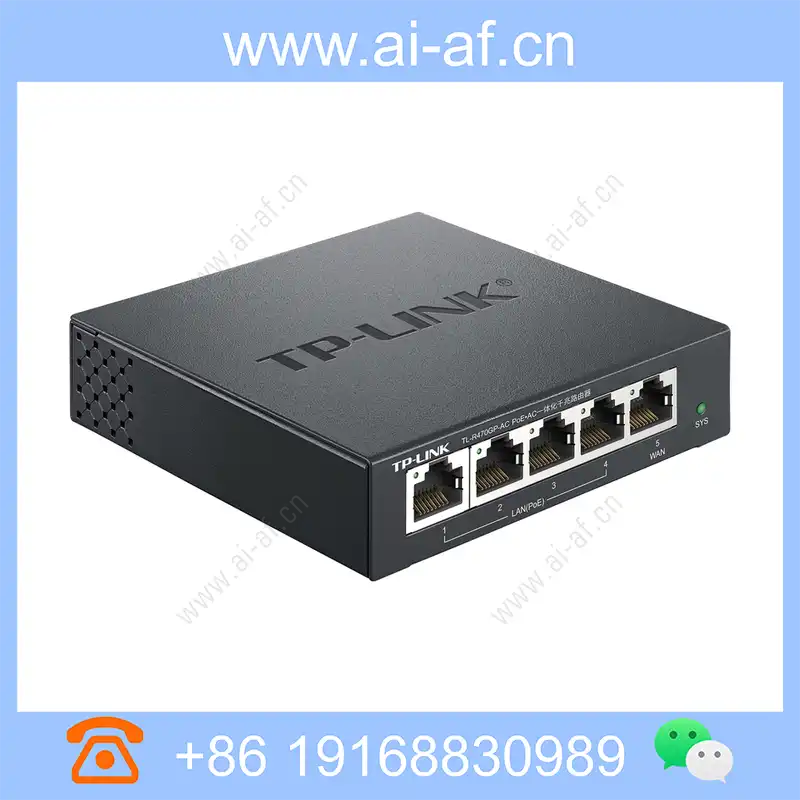

TP-LINK TL-R470GP-AC PoE·AC all-in-one Gigabit Router 5 ports with machine capacity 30 manage 20 APs
Provide 1 10/100/1000M WAN port, 4 10/100/1000M LAN ports The size is 100mm*98mm*25mm, which can be easily put into the weak current box/information box The LAN ports support standard PoE power supply, comply with IEEE802.3af/at standard, and the maximum output power of a single port is 30W Built-in AC function, can manage 20 TP-LINK APs in a unified way Protocol standard IEEE802.3 IEEE802.3u IEEE802.3ab port 1 10/100/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX) 4 10/100/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) Indicator light Per port: Link/Act Per device: SYS PoE performance Compliant with IEEE 802.3af and IEEE 802.3at standards Single port maximum output 30W The whole machine maximum output 60W Power Specifications Power adapter, input 220V AC, 50Hz
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.3 IEEE802.3u IEEE802.3ab |
| port | 1 10/100/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX) 4 10/100/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) |
| Indicator light | Per port: Link/Act Per device: SYS |
| PoE performance | Compliant with IEEE 802.3af and IEEE 802.3at standards Single port maximum output 30W The whole machine maximum output 60W |

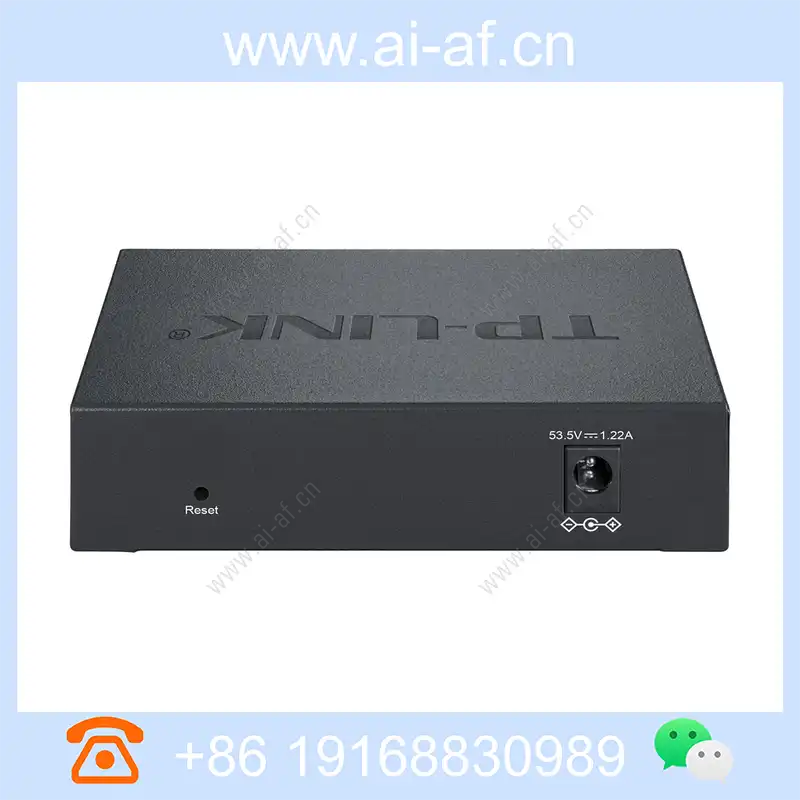

| Power Specifications | Power adapter, input 220V AC, 50Hz, output 53.5VDC / 1.13A |
| Cooling method | Natural cooling |
| Dimensions | 100mmX98mmX25mm |
| Common settings | Connected device management Internet settings Wireless settings (AP) |
| advanced settings | Network parameters Wireless settings (AP), can manage up to 20 TP-LINK AP Internet control Advanced users Equipment management Setup wizard |
| Packaging accessories | PoE·AC Integrated Gigabit Router TL-R470GP-AC Power Adapter Manual |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
