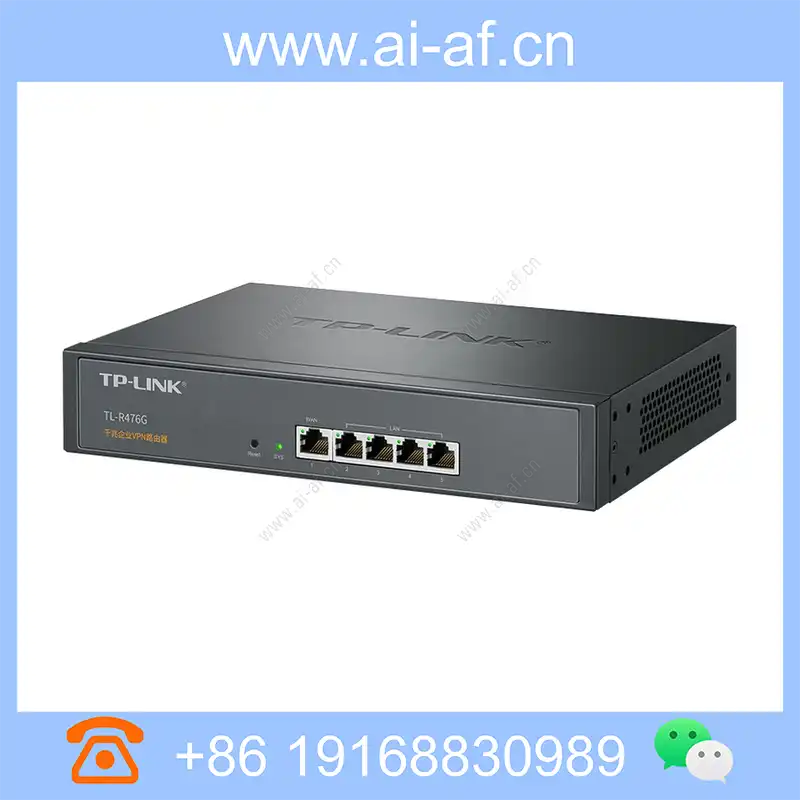

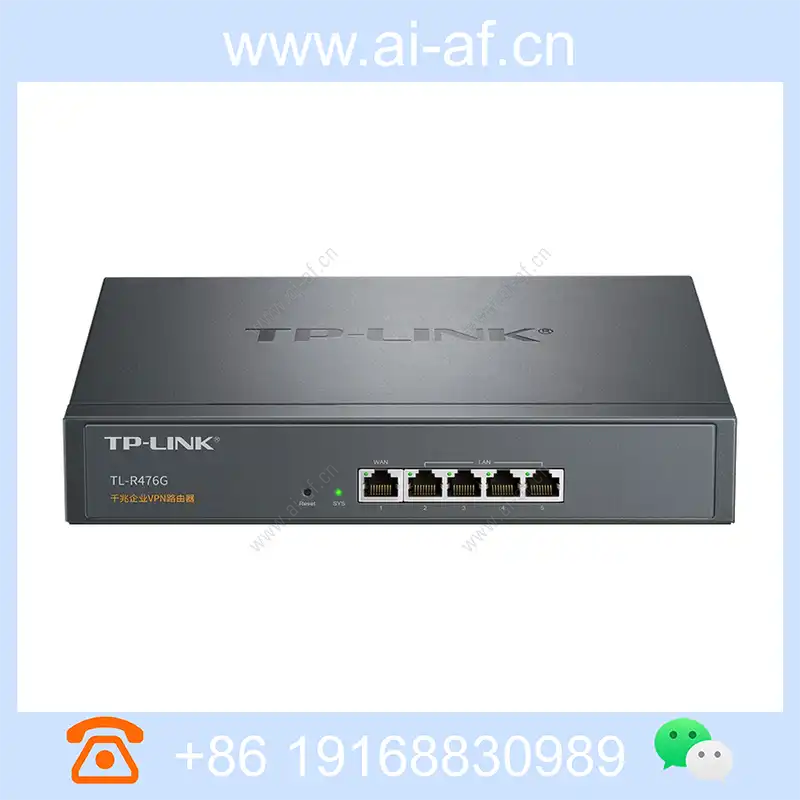

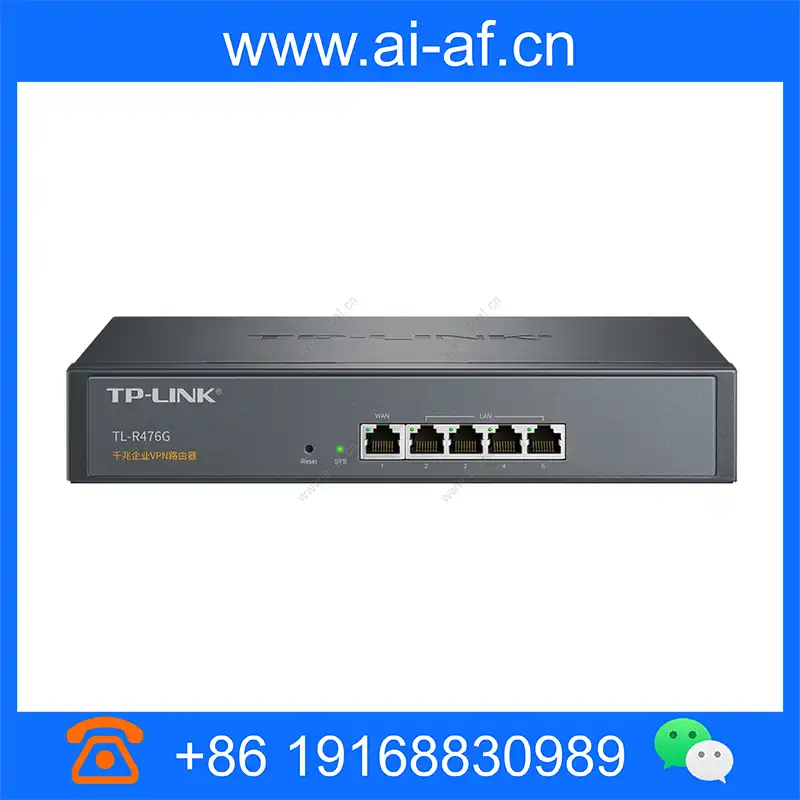

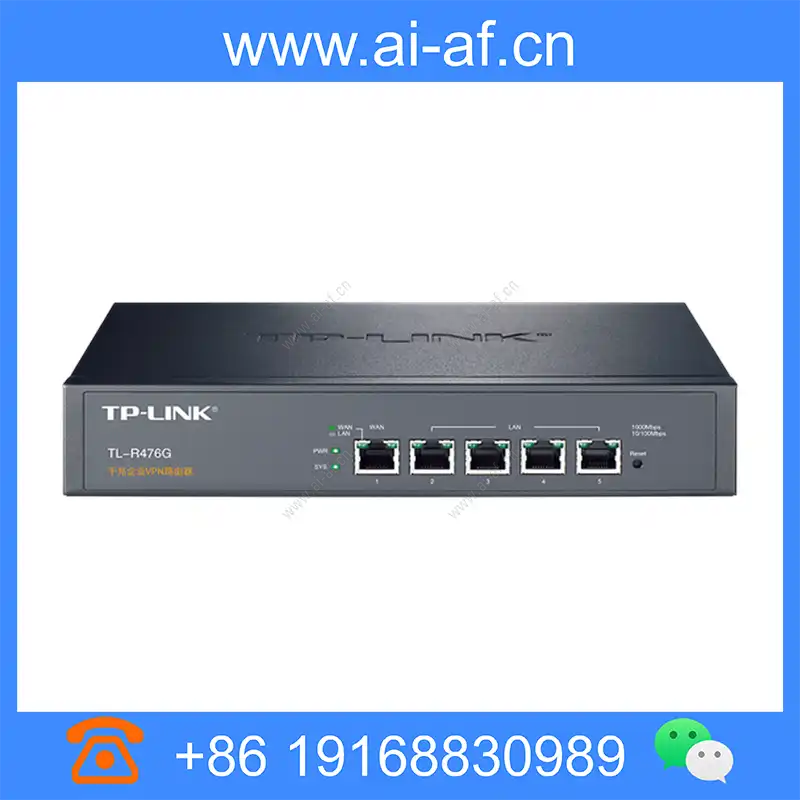

TP-LINK TL-R476G Gigabit Enterprise VPN Router 5 ports with machine capacity 80 manage 30 APs
5 Gigabit Ethernet ports, 1WAN+4LAN Built-in AC function, unified management of TP-LINK enterprise AP IPSec/PPTP/L2TP VPN, remote communication is more secure Web authentication, SMS authentication, PPPoE server Internet behavior management (mobile APP control/desktop application control/website filtering/behavior audit) Internal and external network ARP protection and common attack protection Intelligent IP bandwidth management and connection limit port 1 10/100/1000M RJ45 WAN port 4 10/100/1000M RJ45 LAN ports Indicator light Per port: Link/Act Per device: SYS Dimensions 250(w)x158(D)x44(H) mm Input power 100~240V AC,50/60Hz Cooling method Natural cooling Use environment Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| port | 1 10/100/1000M RJ45 WAN port 4 10/100/1000M RJ45 LAN ports |
| Indicator light | Per port: Link/Act Per device: SYS |
| Dimensions | 250(w)x158(D)x44(H) mm |
| Input power | 100~240V AC,50/60Hz |
| Cooling method | Natural cooling |
| Use environment | Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing |
| Typical belt load | 80-100 units |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS |
| Operating status | Interface information Traffic statistics Hardware resource utilization |
| Interface settings | WAN settings (Internet settings/ISP balance) LAN settings (LAN port parameters/DHCP server settings) |
| AP management | AP settings, manage up to 30 TP-LINK AP wireless network settings wireless host status |
| Behavior control | Application control, one-click control of social software / video software / music software / shopping and leisure software / news software / P2P software / financial software / online games / application store / basic applications and other common applications limit QQ black and white list website group filtering Web file type intelligent two-way bandwidth control and connection limit access control list (ACL) behavior audit |
| Safety management | ARP protection (IP+MAC binding, GARP) MAC address filtering Attack protection (DoS attack protection, suspicious packet attack protection) |
| VPN | IPSec VPN (10 tunnels) PPTP/L2TP VPN (20 tunnels, shared), support server and client mode |
| Certification Management | Web authentication, support local authentication, Radius authentication, one-click Internet access, meet a variety of authentication needs SMS authentication, meet real-name authentication requirements, and can conduct secondary marketing based on mobile phone No authentication strategy |
| Advanced Features | PPPoE authentication server with 50 routing settings (policy routing, static routing, system routing) NAT settings (NAPT, one-to-one NAT, ALG, virtual server, NAT DMZ) DDNS (peanut shell, Kemai, 3322) UPnP IP traffic statistics port monitoring |
| System Tools | Chinese Web network management, remote management configuration backup and import configuration software upgrade, automatic cleanup diagnostic tools (ping detection, tracert detection, fault diagnosis) system time settings system logs |
