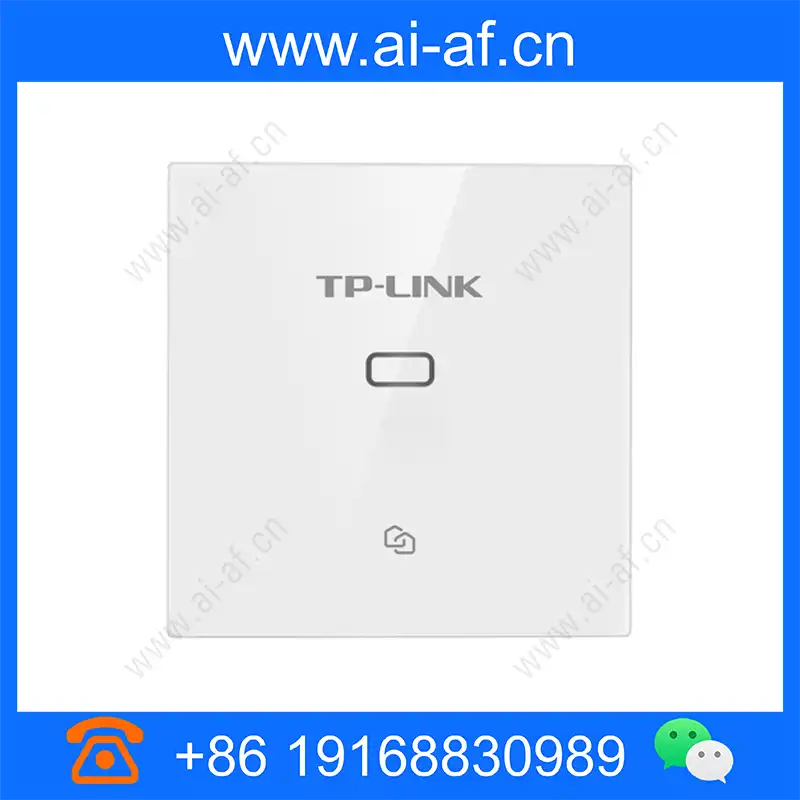

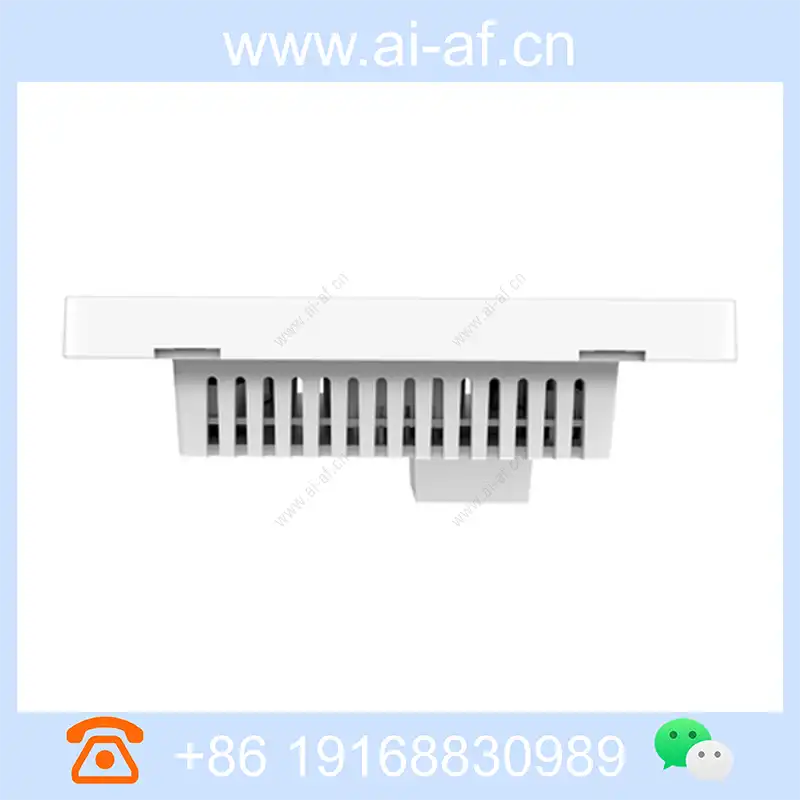

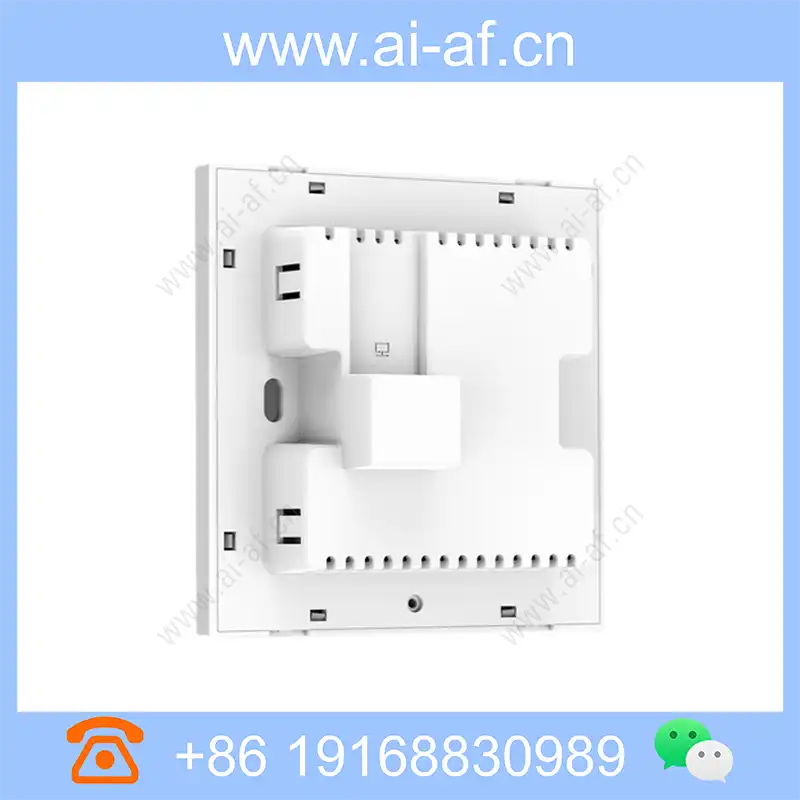

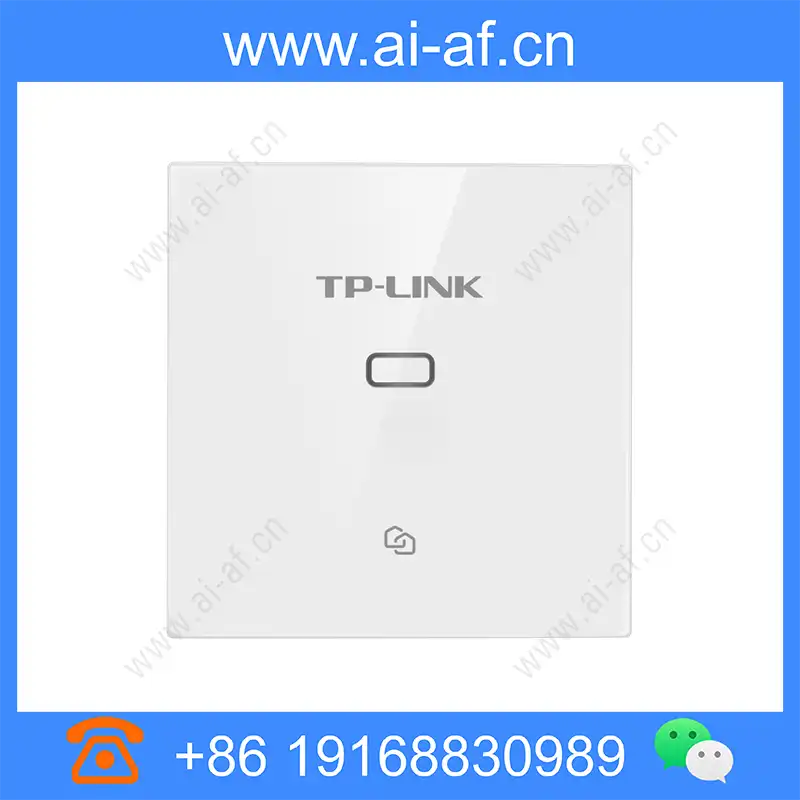

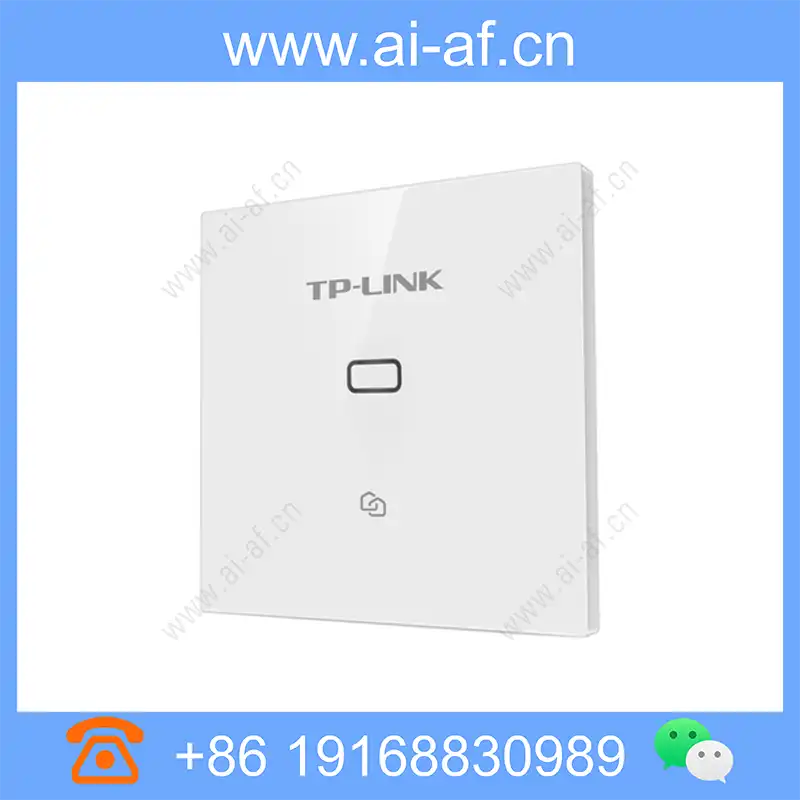

TP-LINK TL-RU-GWP1012 AP Smart Panel Gateway 1FE fat and thin integrated PoE power supply
AC1200 dual-band wireless panel AP Support Zigbee protocol, our smart home equipment networking, support up to 48 sub-devices Support 802.3af/at standard PoE network cable power supply without external power supply Support 2.4G/5G dual frequency concurrency, support load balancing Fat and thin, you can manually select the mode according to different application environments Support "TP-LINK Smart Home APP" remote control management Support TP-LINK business cloud APP remote view / management Product model TL-RU-GWP1012 Installation method Install directly into national standard 86 type network connection cassette size 86*87.5*33mm Wireless rate 2.4GHz : 5GHz :867Mbps Zigbee port Back: 1 10/100M RJ45 port antenna Built-in antenna Indicator light 1 system indicator Button 1 FAT/FIT mode
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-RU-GWP1012 |
| Installation method | Install directly into national standard 86 type network connection cassette |
| size | 86*87.5*33mm |
| Wireless rate | 2.4GHz : 5GHz :867Mbps Zigbee |
| port | Back: 1 10/100M RJ45 port |
| antenna | Built-in antenna |
| Indicator light | 1 system indicator |
| Button | 1 FAT/FIT mode toggle switch 1 Reset button 1 system function button |
| power supply | Standard PoE power supply |
| Maximum power consumption of the whole machine | 5.7W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4G) + 8 (5G) (support Chinese SSID) Network type: host network, guest network wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK user isolation: between wireless networks Isolation, AP internal isolation Wireless MAC address filtering: support whitelist VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM prohibit weak signal device access In: support to remove weak signal equipment: support |
| Maximum number of connectable clients | 100(2.4G)+ 100(5G) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
| Support TL-LINK smart home products | Wireless Smart Panel Switch (Zigbee Single Fire): TL-RU-SWA110Z, TL-RU-SWA120Z Wireless Smart Panel Switch (Zigbee Sticky Note): TL-RU-SWB210Z, TL-RU-SWB240Z Zigbee Human Body Sensor: TL-RU -SEN100Z |
