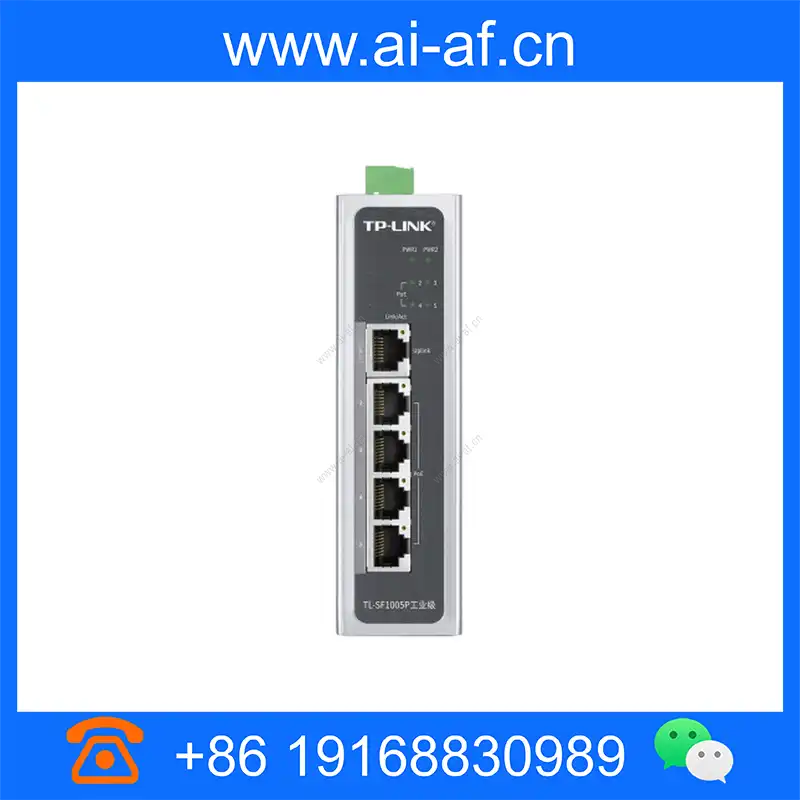

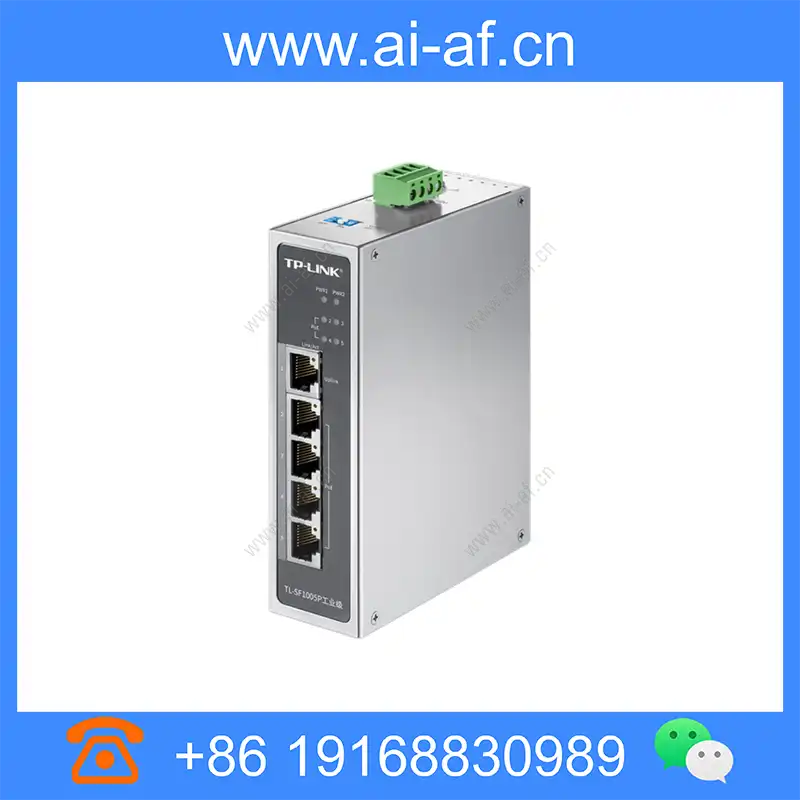

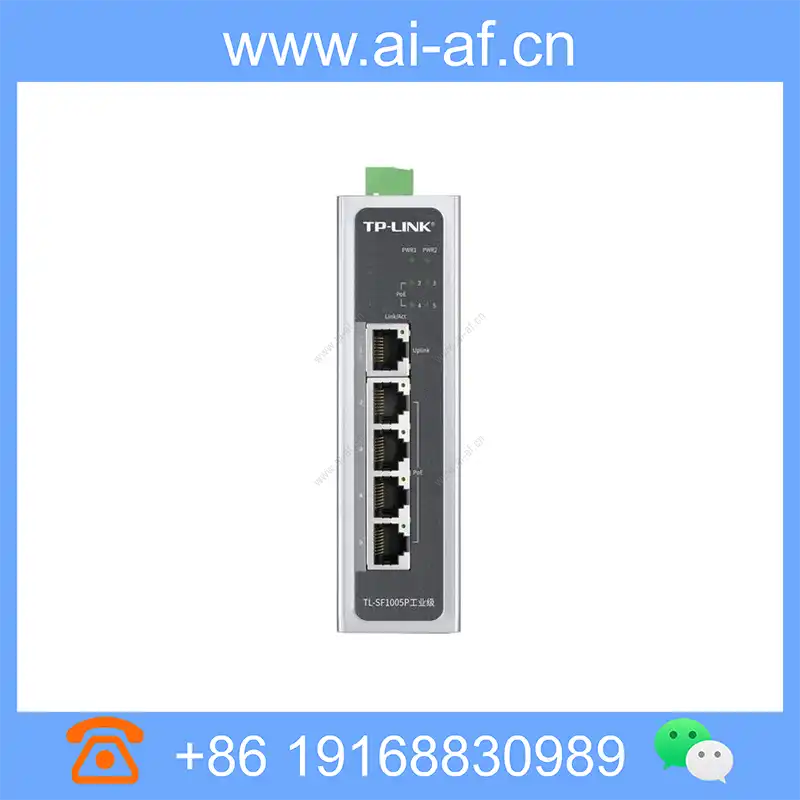

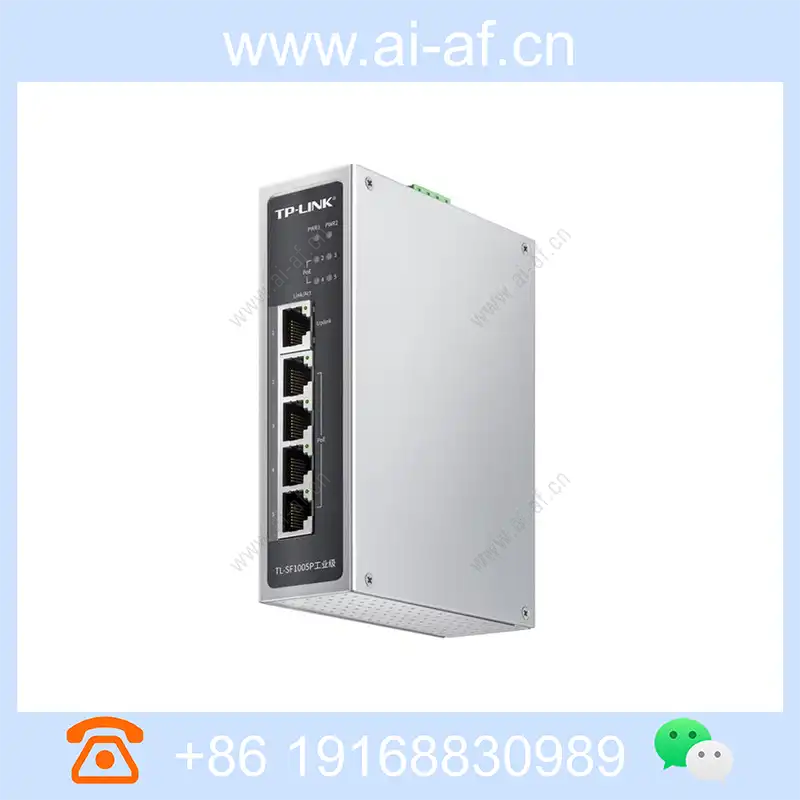

TP-LINK TL-SF1005P industrial grade 5-port 100M unmanaged PoE switch 1FE 4PoE 120W
5 10/100M adaptive RJ45 ports, ports 1~4 support IEEE 802.3af/at standard PoE power supply Single port POE power can reach 30W, the maximum PoE output power of the whole machine is 62W Support IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control Support port auto flip (Auto MDI / MDIX) function All ports have wire-speed forwarding capabilities Network Standard IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at port 5 10/100Mbps RJ45 ports, of which 1-4 ports support PoE function Indicator light Each device has 1 Power indicator light Each port has 1 Link/Ack indicator light Network media 10BASE-T: Category 3, 4, 5 unShielded twisted pair (≤100 meters) 100BASE-TX: Category 5 and above unShielded twisted pair (≤100 meters) performance Store and forward
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Network Standard | IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| port | 5 10/100Mbps RJ45 ports, of which 1-4 ports support PoE function |
| Indicator light | Each device has 1 Power indicator light Each port has 1 Link/Ack indicator light |
| Network media | 10BASE-T: Category 3, 4, 5 unShielded twisted pair (≤100 meters) 100BASE-TX: Category 5 and above unShielded twisted pair (≤100 meters) |
| performance | Store and forward support 2K MAC address table depth |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |

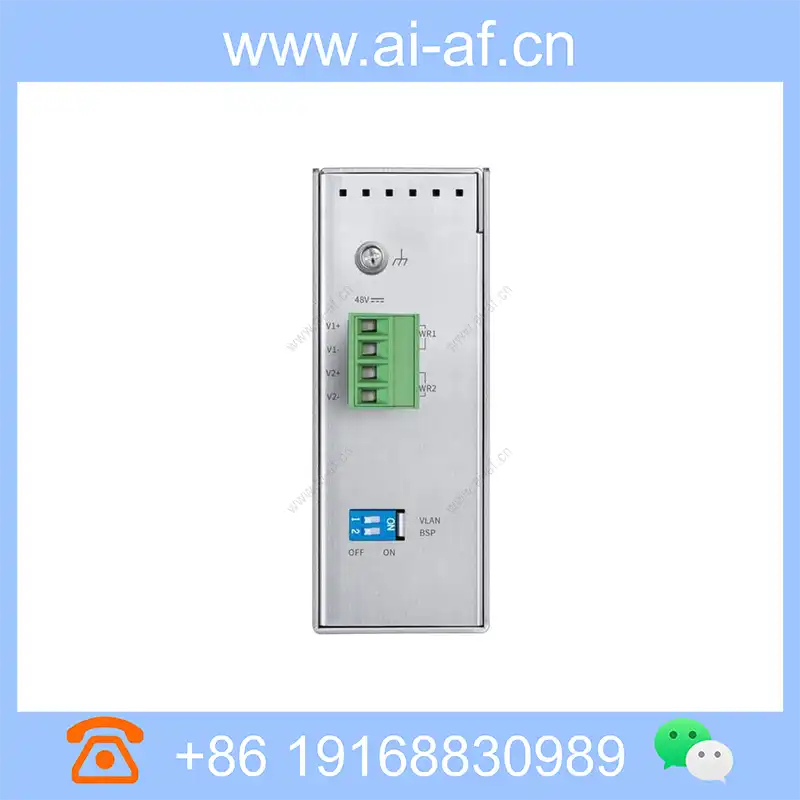

| Input power | External 53.5VDC/1.22A power adapter |
| Overall dimensions (L * W * H) | 100mmX98mmX25mm |
| basic skills | Supports IEEE 802.3af/at standard power receiving device (PD) PoE port priority mechanism IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
