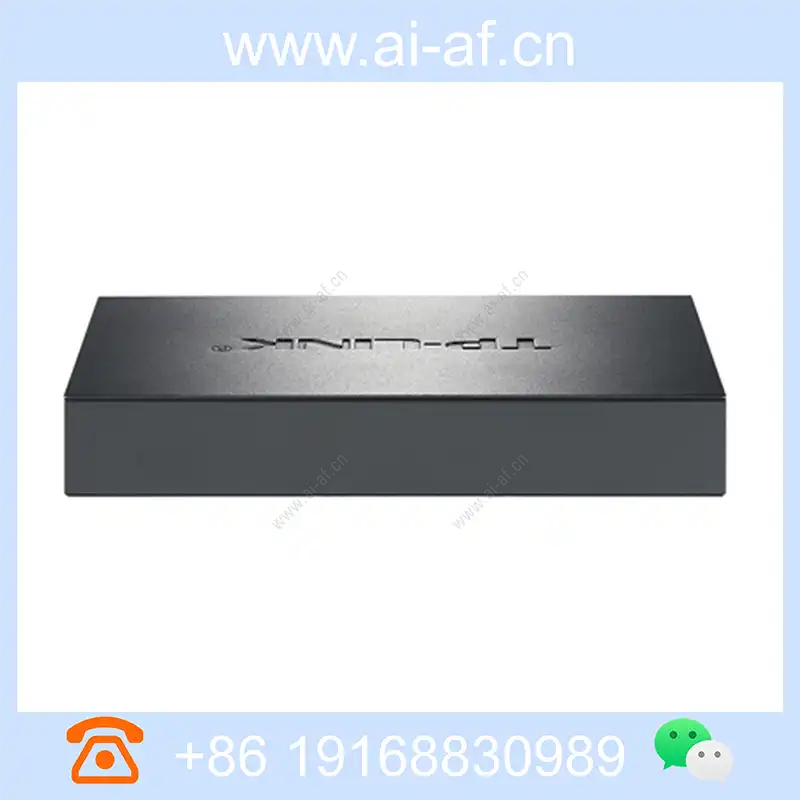

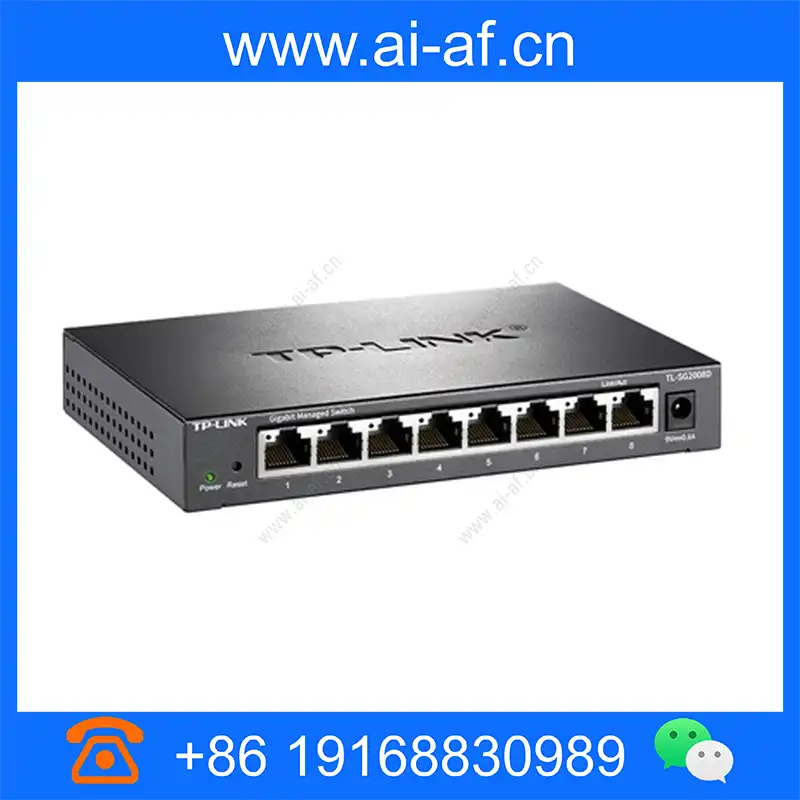

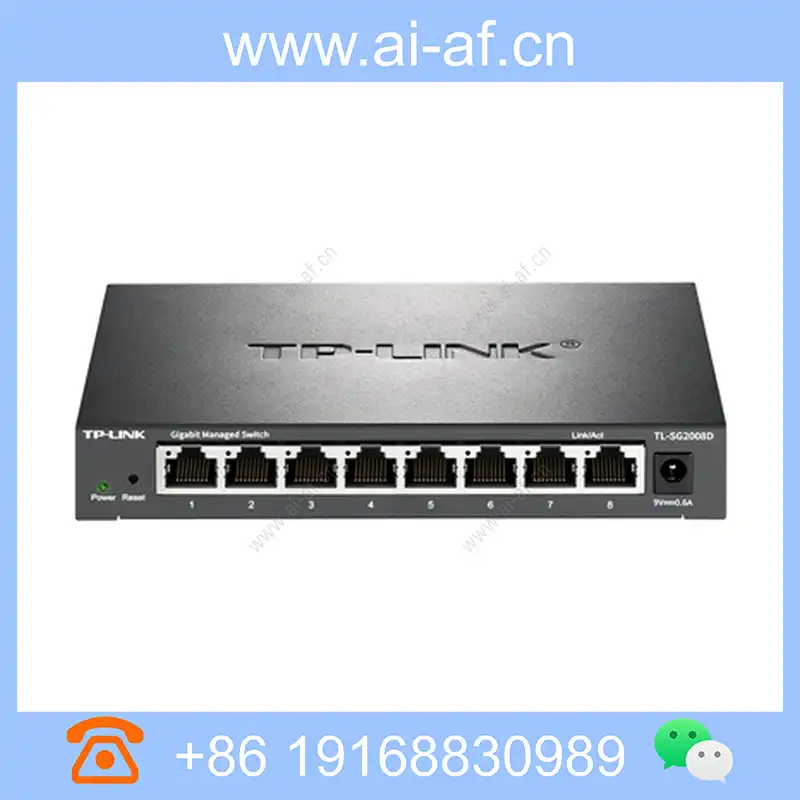

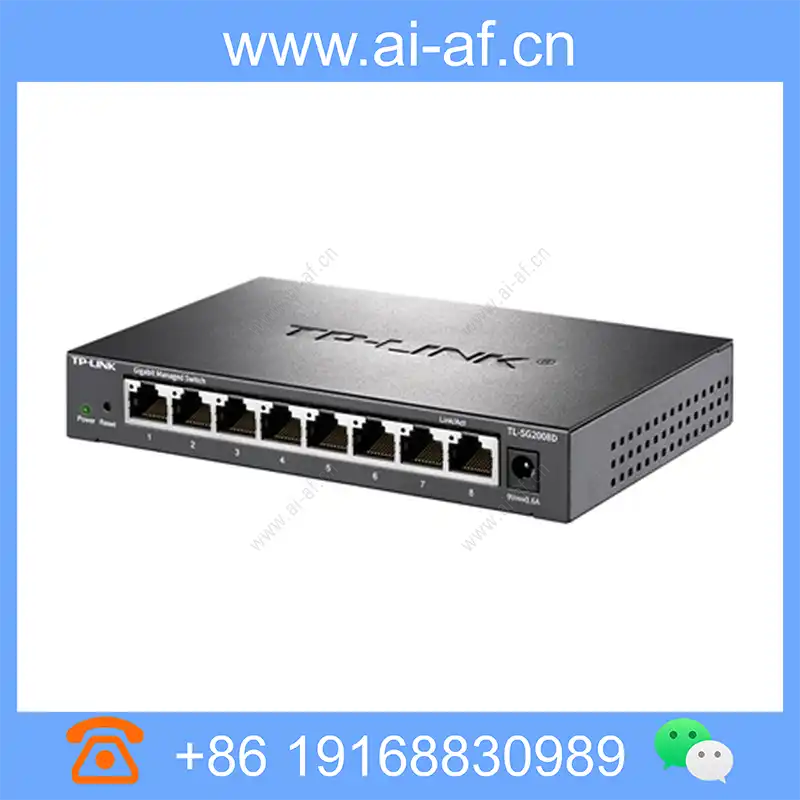

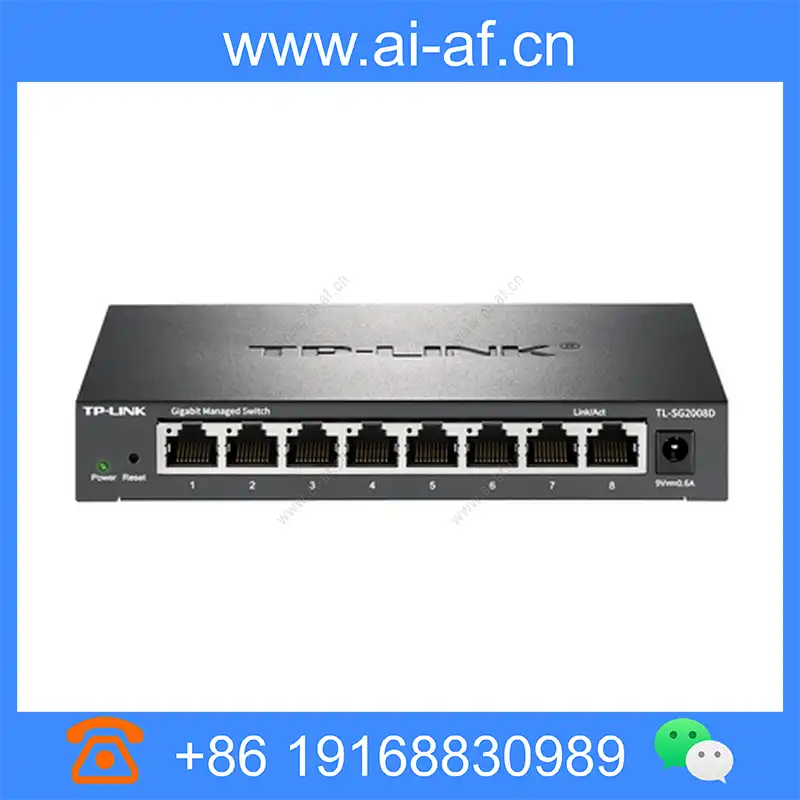

TP-LINK TL-SG2008D Full Gigabit Cloud Management Switch

Brand: TP-LINK

Model: TL-SG2008D

Dimensions: 158mm x 100mm x 25mm

8 10/100/1000Base-T RJ45 ports Support Business Cloud APP and web-side remote management Support intelligent start, abnormal alarm, fast discharge Support 802.1Q VLAN, QoS, bandwidth control Support port traffic statistics, port monitoring, port convergence, port isolation Support cable detection, loopback protection Product model TL-SG2024D TL-SG2016D TL-SG2008 TL-SG2005 TL-SG2008D Gigabit RJ45 port 24 16 8 5 8 Gigabit SFP port 2 0 0 0 0 MAC address capacity 8K 8K 4K 2K 4K Mode switch Support cloud management, VLAN isolation, standard exchange three working modes no Network management functions Support remote management through Shangyun APP and Shangyun network cloud platform (Web terminal) Support local web management Support 802.1Q VLAN, MTU VLAN, port VLAN Support to configure port

Product Features

8 10/100/1000Base-T RJ45 ports
Support Business Cloud APP and web-side remote management
Support intelligent start, abnormal alarm, fast discharge
Support 802.1Q VLAN, QoS, bandwidth control
Support port traffic statistics, port monitoring, port convergence, port isolation
Support cable detection, loopback protection

Product model	TL-SG2024D	TL-SG2016D	TL-SG2008	TL-SG2005	TL-SG2008D
Gigabit RJ45 port	24	16	8	5	8
Gigabit SFP port	2	0	0	0	0
MAC address capacity	8K	8K	4K	2K	4K
Mode switch	Support cloud management, VLAN isolation, standard exchange three working modes				no
Network management functions	Support remote management through Shangyun APP and Shangyun network cloud platform (Web terminal) Support local web management Support 802.1Q VLAN, MTU VLAN, port VLAN Support to configure port flow control, duplex, on/off Support port aggregation, port monitoring, port isolation, port traffic statistics Support DHCP Snooping (except 5/8 port models) Support QoS, port egress/ingress speed limit, storm suppression Support cable detection, loopback detection
Business cloud function	Support quick start Support device information reporting Support alarm push Support equipment remote operation and maintenance
Shell size (mm)	29418044	29418044	20912626	1009825	15810025
Input power	100~240VAC, 50/60Hz	100~240VAC, 50/60Hz	100~240VAC, 50/60Hz	5VDC/0.6A	9V/0.6A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Technical Specifications

Property Description	Property Value
Product model	TL-SG2008D
Gigabit RJ45 port	8
Gigabit SFP port	0
MAC address capacity	4K
Mode switch	Support cloud management, VLAN isolation, standard exchange three working modes
Network management functions	supports remote management through business cloud app, business cloud network cloud platform (web end) Support local Web Management support 802.1Q VLAN, MTU VLAN, port VLAN < / li> supports configuring port flow control, duplex, on / off support port aggregation, port monitoring, port isolation, port traffic statistics support DHCP Snooping (5 / 8 Except of 8 ports) support QoS, port output / entry speed limit, storm suppression support cable detection, loopback detection
Business cloud function	Support for fast opening Support device information is reported support alarm push support device remote operation and maintenance
Shell size (mm)	15810025
Input power	9V/0.6A
Use environment	operating temperature: 0°C ~ 40°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH does not condense Storage humidity: 5% ~ 90% RH does not condense
