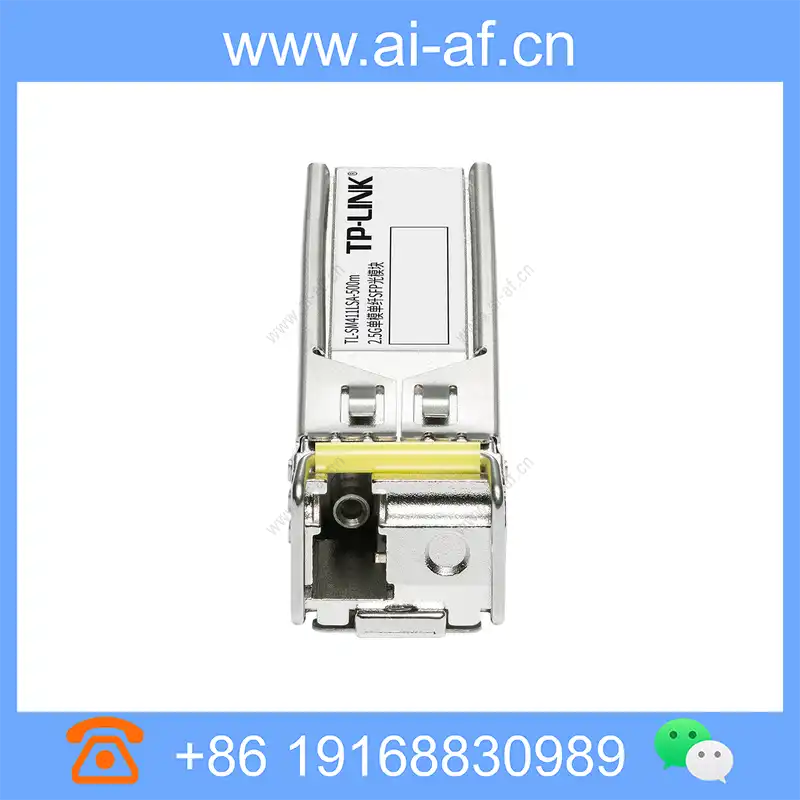

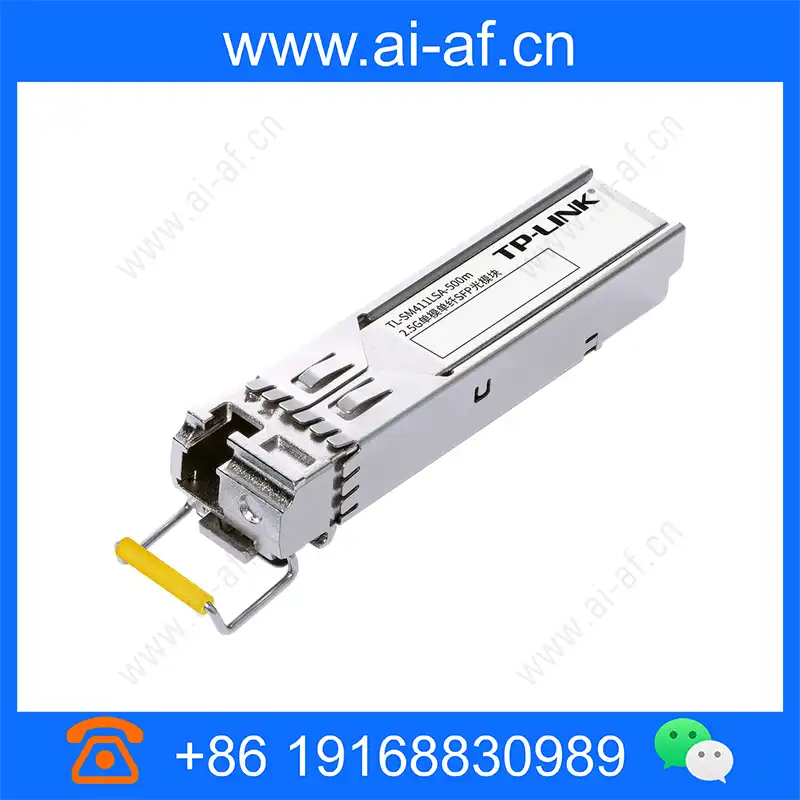

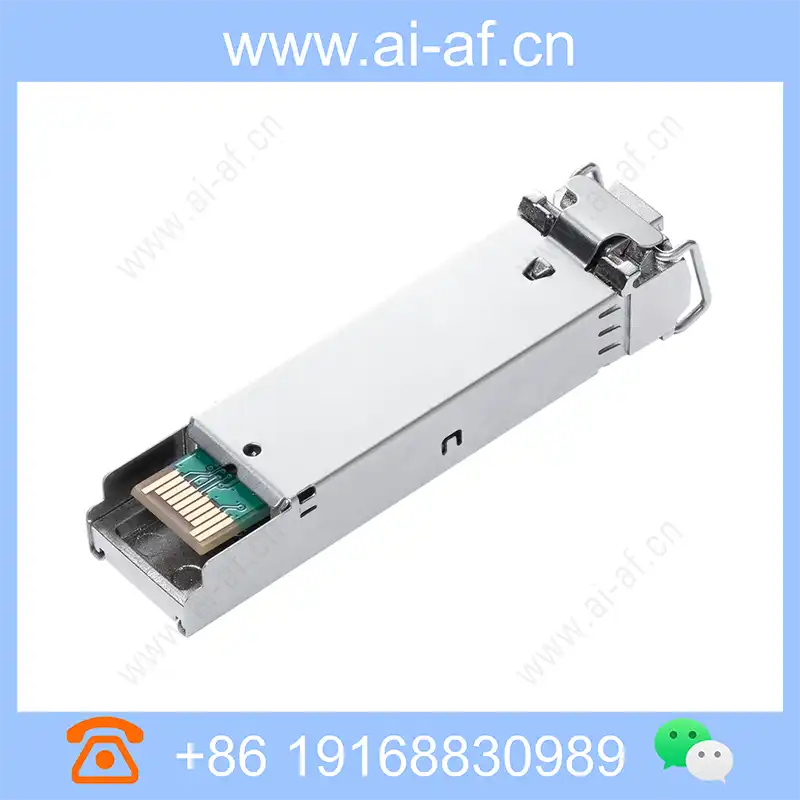

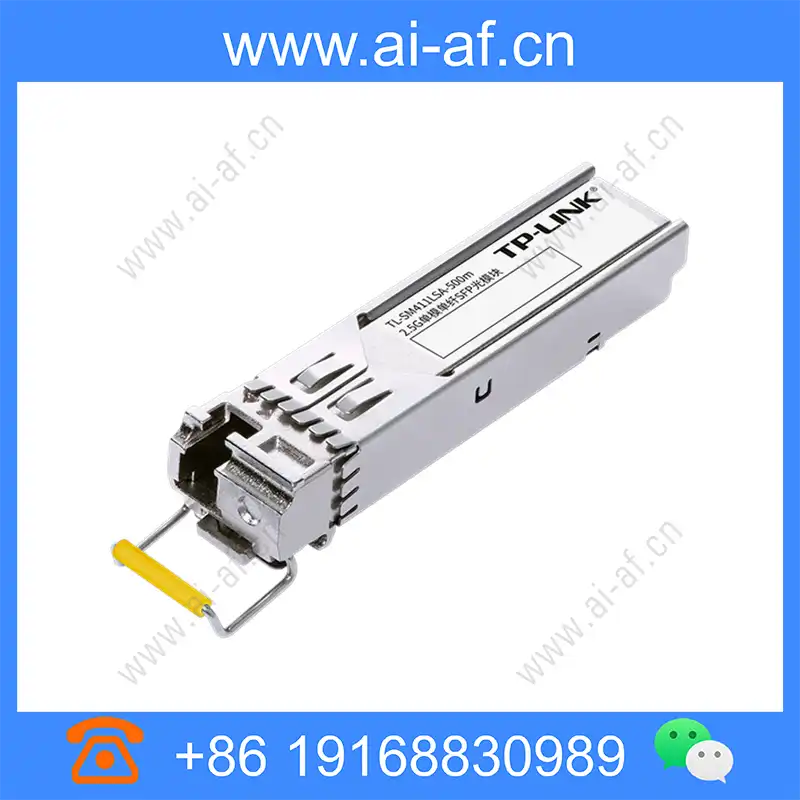

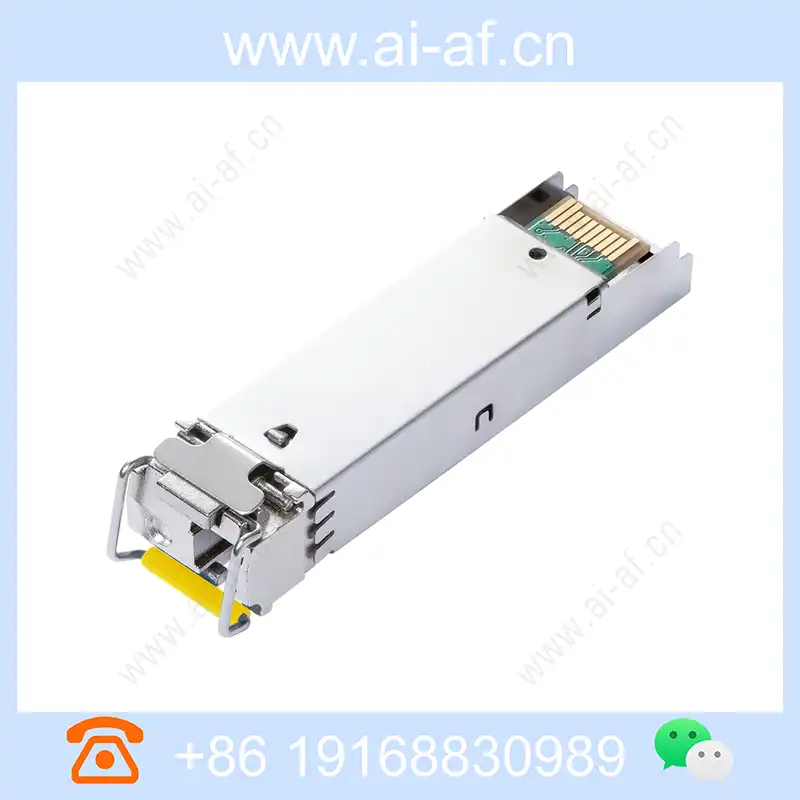

TP-LINK TL-SM411LSA-500M 2.5G Single Mode Single Fiber SFP Optical Module
Brand: TP-LINK
Model: TL-SM411LSA-500m
Use hot-swappable SFP package Full-duplex optical transceiver module Rate up to 3.125Gbps Single mode fiber transmission, up to 500m Single fiber LC optical port, working wavelength 1550nm/1310nm Built-in digital diagnosis function Working voltage 3.3V Shell working temperature 0℃ ~ 70℃ Use with TL-SM411LSB-500M Transmission rate
- 3.125Gbps
- 500m
- single mode fiber
- single fiber LC
- TX:1550nm·
- RX:1310nm
- 3.3V
- 0°C ~ 70°C
- Average emission optical power: -9 ~ 1dBm
- Receive sensitivity: -14dbm
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Transmission rate |
|
| Transmission distance |
|
| Transmission medium |
|
| Interface Type |
|
| Center wavelength |
|
| Operating Voltage |
|
| Working temperature of housing |
|
| Light parameter |
|
