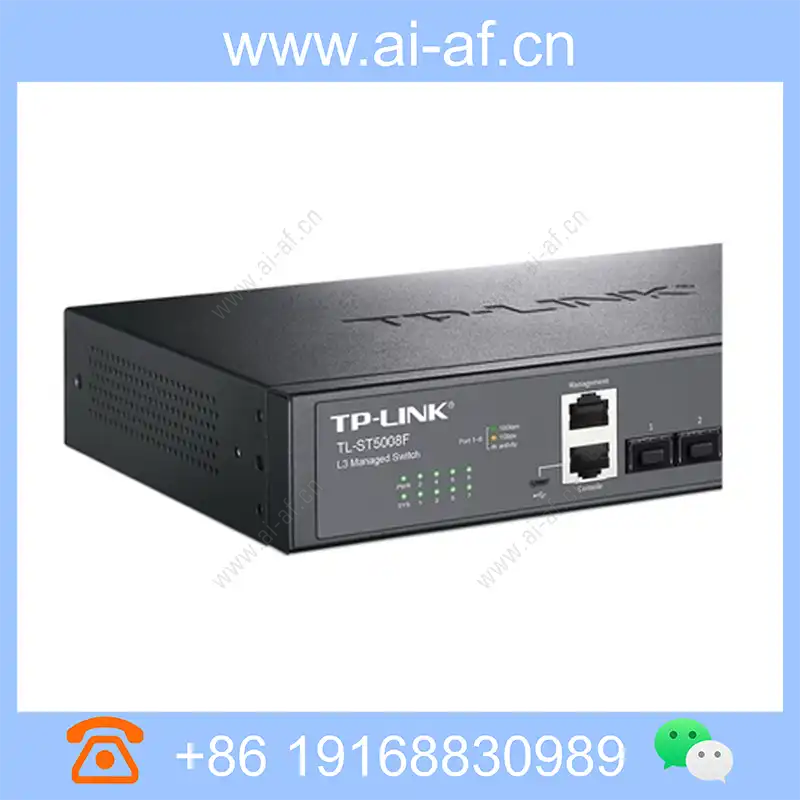

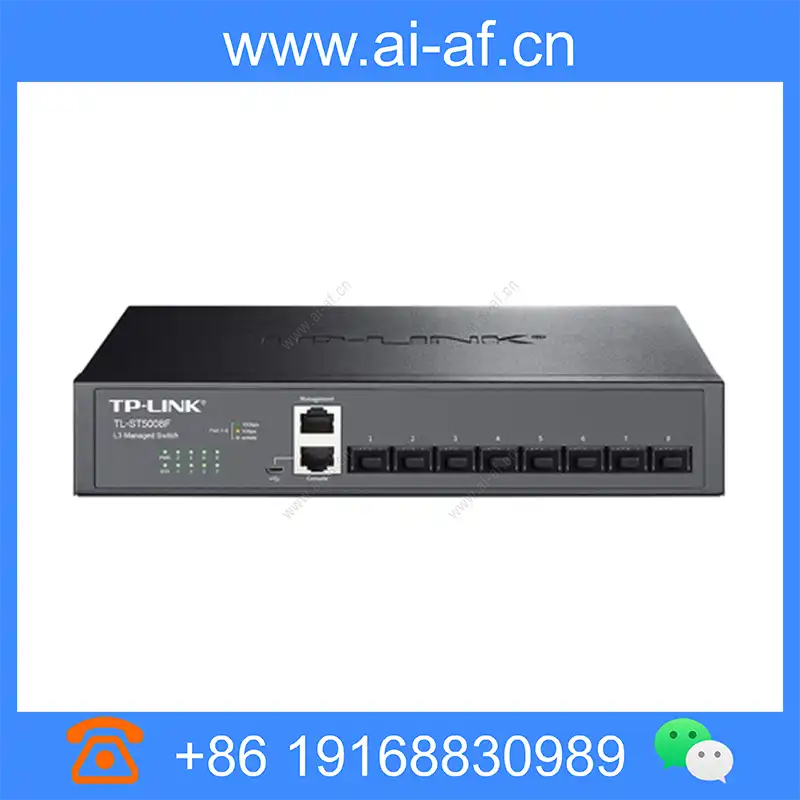

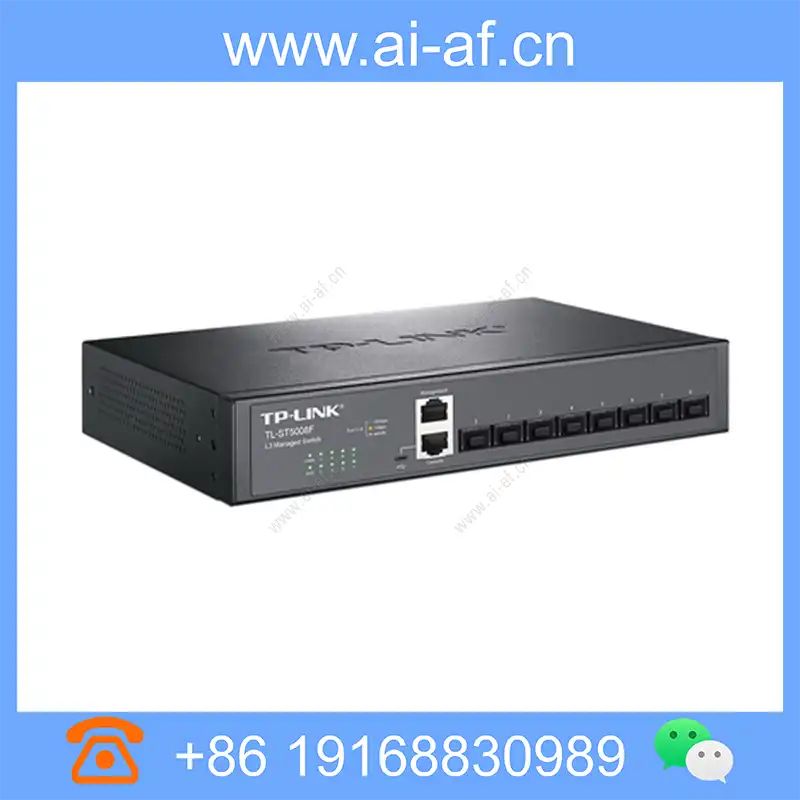

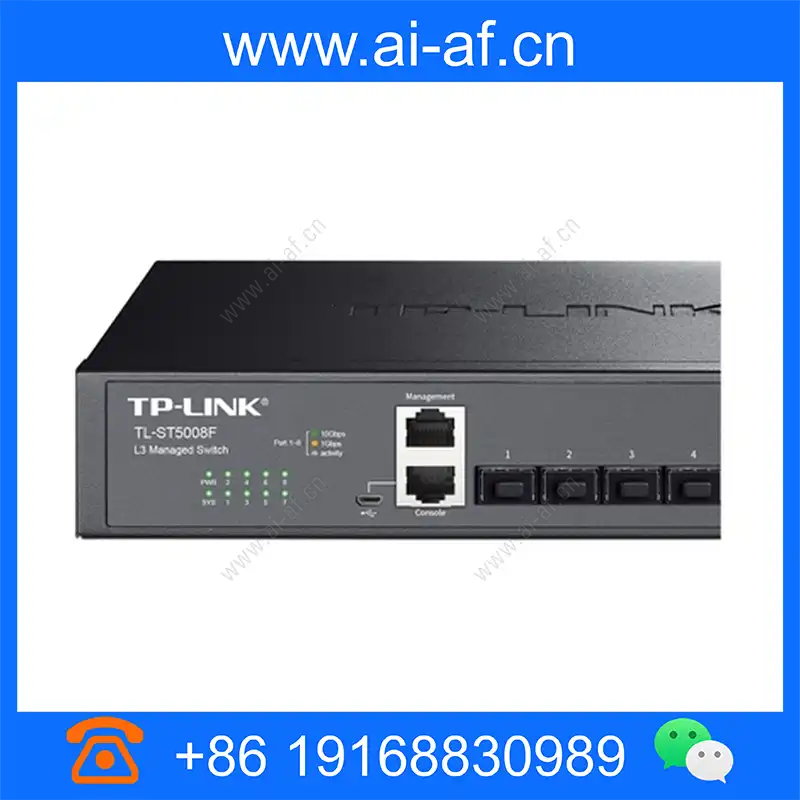

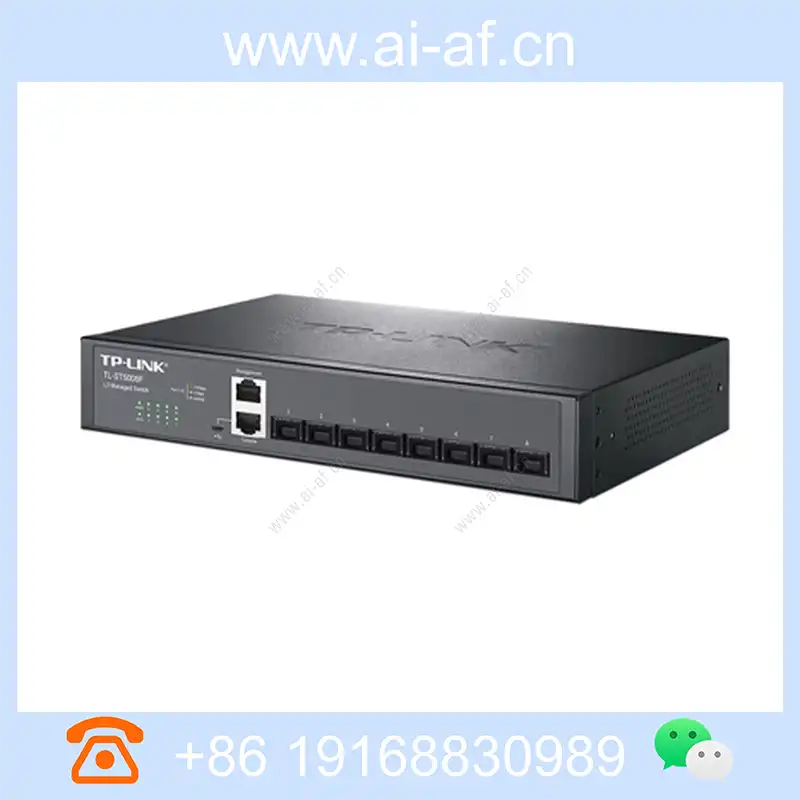

TP-LINK TL-ST5008F All 10 Gigabit Layer 3 Network Management Switch

Brand: TP-LINK

Model: TL-ST5008F

Dimensions: 250mm x 158mm x 44mm

8 x 10 Gig SFP+ ports Support Micro USB Console port Support Management port, RJ45 Console port Support RIP dynamic routing, static routing, ARP proxy Support DHCP server, DHCP relay, DHCP Snooping Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication Support VLAN, QoS, ACL, spanning tree, multicast, IPv6 Support Web network management, CLI command line, SNMP Product model TL-ST8226F TL-ST5416 TL-ST5016F TL-ST5008F Exchange capacity 2.56Tbps 1.28Tbps 1.28Tbps 640G Packet forwarding rate 480Mpps 240Mpps 240Mpps 120M 10 Gigabit RJ45 port 0 12 0 0 10G SFP+ port 24 4 16 8 40G QSFP+ port 2 0 0 0 RJ45 Console port 1 1 1 1 Micro USB Console port 1 0 1 1 USB storage port 1 0 1 0 Management management port 1 0 1 1 Hot-swappable power modules stand by not support not support not

Product Features

8 x 10 Gig SFP+ ports
Support Micro USB Console port
Support Management port, RJ45 Console port
Support RIP dynamic routing, static routing, ARP proxy
Support DHCP server, DHCP relay, DHCP Snooping
Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
Support VLAN, QoS, ACL, spanning tree, multicast, IPv6
Support Web network management, CLI command line, SNMP

Product model	TL-ST8226F	TL-ST5416	TL-ST5016F	TL-ST5008F
Exchange capacity	2.56Tbps	1.28Tbps	1.28Tbps	640G
Packet forwarding rate	480Mpps	240Mpps	240Mpps	120M
10 Gigabit RJ45 port	0	12	0	0
10G SFP+ port	24	4	16	8
40G QSFP+ port	2	0	0	0
RJ45 Console port	1	1	1	1
Micro USB Console port	1	0	1	1
USB storage port	1	0	1	0
Management management port	1	0	1	1
Hot-swappable power modules	stand by	not support	not support	not support
Stack	Support (8 stacking units)	not support	not support	not support
MAC address capacity	32K	16K	16K	16K
TP-LINK commercial cloud platform	stand by	Not supported	Not supported	stand by
routing	Support BGP dynamic routing Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy	Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy	Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy	Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy
DHCP	Support DHCP server Support DHCP relay Support DHCP Snooping Support Option138, Option82, Option60
VLAN	Support 4K VLANs Support 802.1Q VLAN, MAC VLAN, Protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support VLAN VPN (QinQ) Support GVRP protocol Support 1:1 and N:1 VLAN Mapping function
MAC address table	Follows IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic, filtering address table
Safety features	Based on user hierarchical management and password protection Support to restrict user access based on port number, IP address, MAC address Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN quaternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping, DHCP attack protection Support 802.1X authentication Support port security, port isolation Support CPU protection function
Access Control (ACL)	Support L2(Layer 2)~L4(Layer 4) packet filtering function Support port mirroring, port redirection, flow rate limit, QoS remarking
Quality of Service (QoS)	Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm
Spanning tree	Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
Multicast	Support PIM-DM, PIM-SM, static multicast routing Support IGMP v1/v2/v3 Snooping Support quick leave mechanism Multicast VLAN supported Support multicast filtering, packet statistics, unknown multicast discard
Management and maintenance	Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support CPU monitoring, memory monitoring Support system logs, graded warnings Support Ping, Tracert detection, cable detection
Shell size (mm)	440×420×44	440×220×44	440×220×44	250*158×44
Input power	100~240VAC, 50/60Hz
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Recommended for supporting optical module/electrical port module

Module type	Product model	rate	distance	Transmission medium	Center wavelength	Working temperature of housing
Optical module	TL-SM512LS-10KM	10Gbps	10km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM512LS-5KM	10Gbps	5km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM512LM-300m	10Gbps	300m	OM3 MMF, Double Fiber LC	850nm	0~70℃
	TL-SM311LSA/B-20KM	1.25Gbps	20km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311LSA/B-2KM	1.25Gbps	2km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311SSA/B-2KM	1.25Gbps	2km	SMF, Single Fiber SC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM312LS-40KM	1.25Gbps	40km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM	1.25Gbps	20km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM Industrial Grade	1.25Gbps	20km	SMF, double fiber LC	1310nm	-40~85℃
TL-SM311LM	1.25Gbps	550m	OM2 MMF, Double Fiber LC	850nm	0~70℃
Electrical port module	TL-SM510U	10Gbps	30m	Super six network cable	—	0~70℃
Electrical port module	TL-SM310U	1Gbps	100m	Super five network cable	—	0~70℃

Technical Specifications

Property Description	Property Value
Product model	TL-ST5008F
Exchange capacity	640G
Packet forwarding rate	120M
10 Gigabit RJ45 port	0
10G SFP+ port	8
40G QSFP+ port	0
RJ45 Console port	1
Micro USB Console port	1
USB storage port	0
Management management port	0
Hot-swappable power modules	not support
Stack	not support
MAC address capacity	16K
TP-LINK commercial cloud platform	stand by
routing	Support RIP V1/V2 dynamic routing support static routing support ARP proxy
DHCP	Support DHCP server support DHCP relay support DHCP snooping support Option138, option82, option60
VLAN	support 4K VLAN support 802.1Q VLAN, Mac VLAN, protocol VLAN, Private VLAN support guest VLAN, Voice VLAN support VLAN VPN (Qinq) Support GVRP protocol support 1: 1 and n: 1 VLAN mapping function
MAC address table	Follow IEEE 802.1D Standard Support MAC address automatic learning and aging support static, dynamic, filter address table
Safety features	Based on user hierarchical management and password protection support port number, IP address, MAC address restriction user access support HTTPS, SSL V3, TLS V1, SSH V1 / V2 Support IP-MAC-Port-VLAN quad-binding support ARP protection, IP source protection, DOS protection support DHCP Snooping, DHCP attack protection support 802.1x authentication support port security, port isolation support CPU protection
Access Control (ACL)	Supports L2 (Layer 2) ~ L4 (Layer 4) Pack filter function support port image, port reDirection, flow limit, QoS heavy mark
Quality of Service (QoS)	Supports 8 port queues support port priority, 802.1p priority, DSCP priority support SP, WRR, SP + WRR, EQU priority scheduling algorithm < / li>
Spanning tree	Supports STP (IEEE 802.1D), RSTP (IEEE 802.1W) and MSTP (IEEE 802.1s) protocol support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering < / li>
Multicast	Supports PIM-DM, PIM-SM, Static Multicast Routing Support IGMP V1/V2/V3 Snooping Support fast leaving mechanism support Multicast VLAN support multicast filtering, packet statistics, unknown multicast discard
Management and maintenance	Supports Web Support (HTTP, HTTPS, SSL V3, TLS V1) support CLI (Telnet, SSH V1 / V2, local serial port) support SNMP V1/V2/V3, compatible public MIBS and TP-LINK private mibs support LLDP, RMON support CPU monitoring, memory monitoring support system log, classification warning support ping, tracert detection, cable detection
Shell size (mm)	250*158x44
Input power	100~240VAC, 50/60Hz
Use environment	operating temperature: 0°C ~ 40°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH does not condense Storage humidity: 5% ~ 90% RH does not condense
