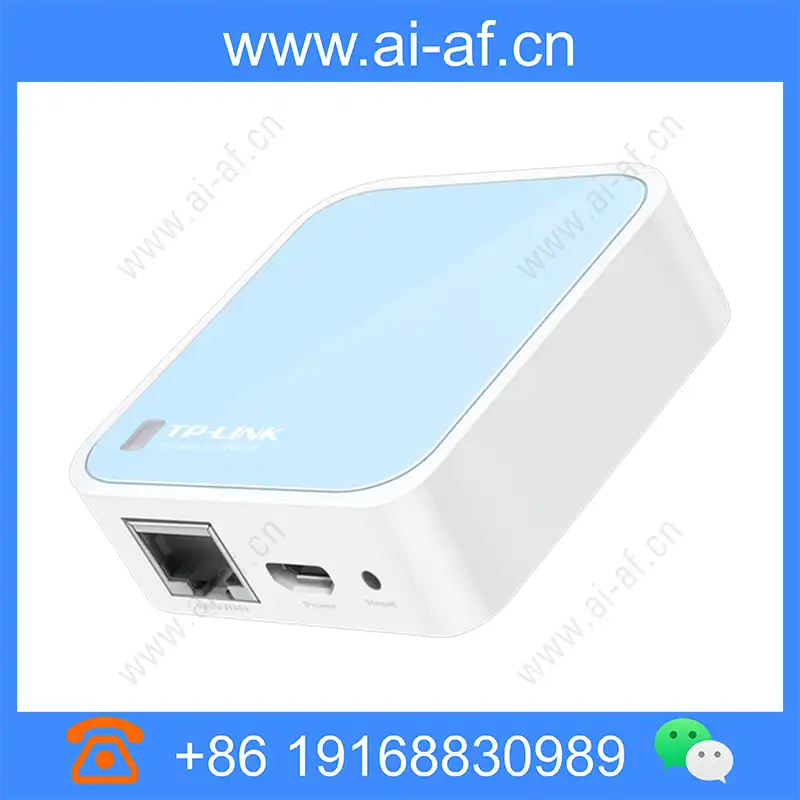

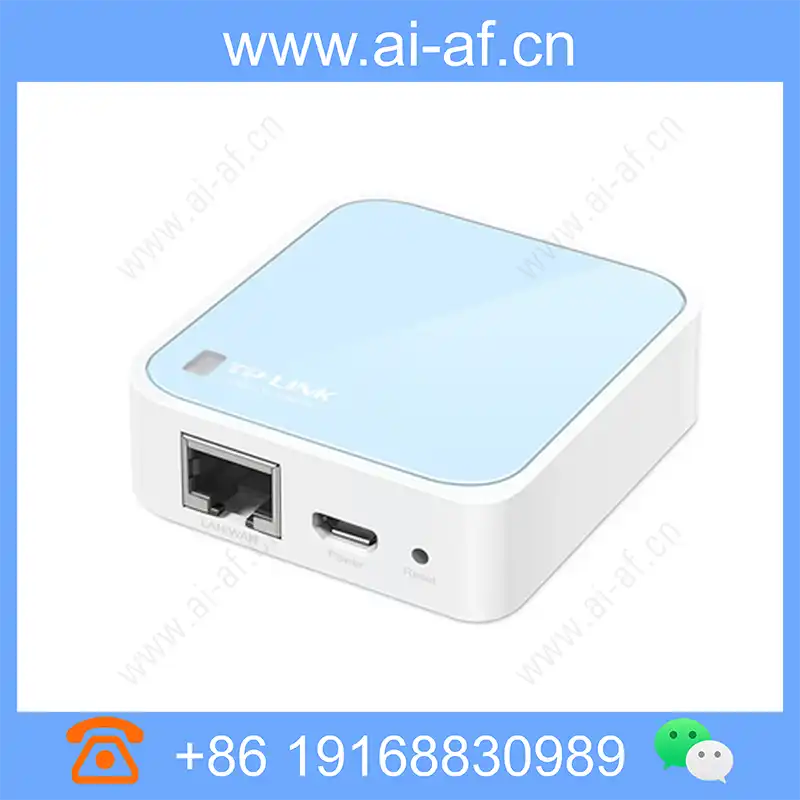

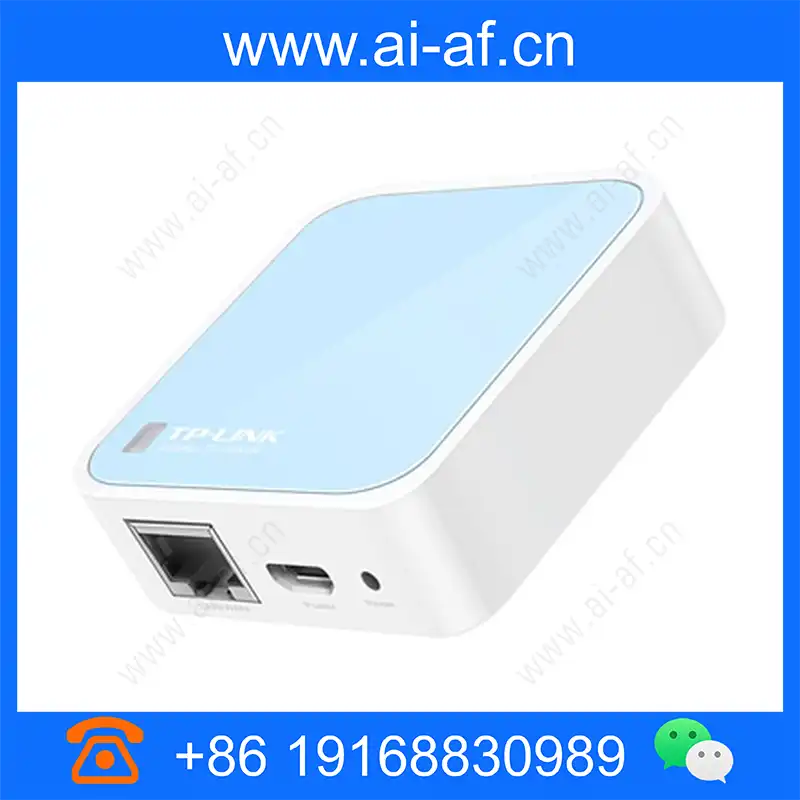

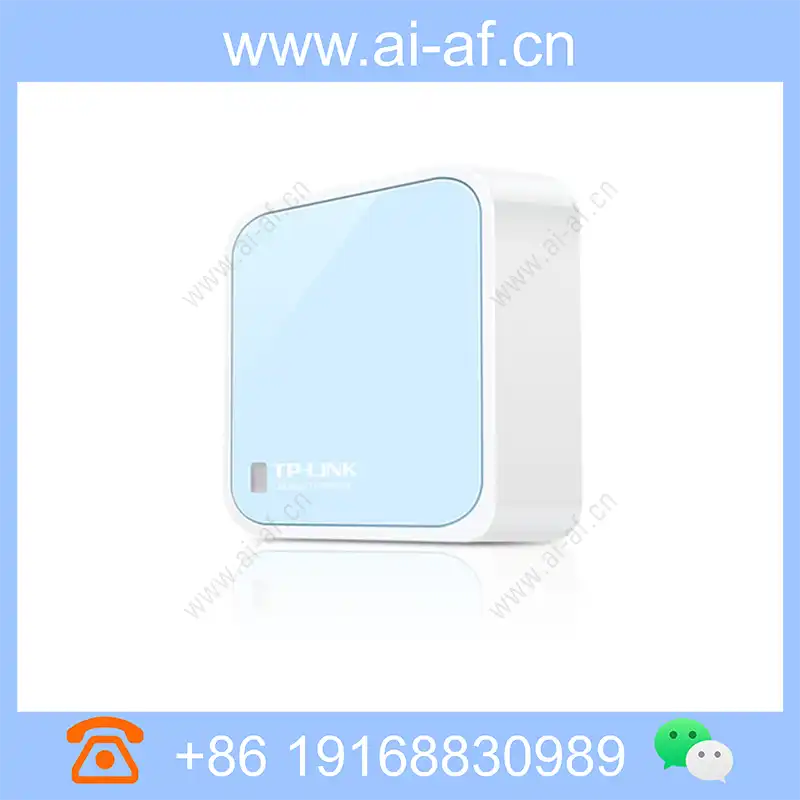

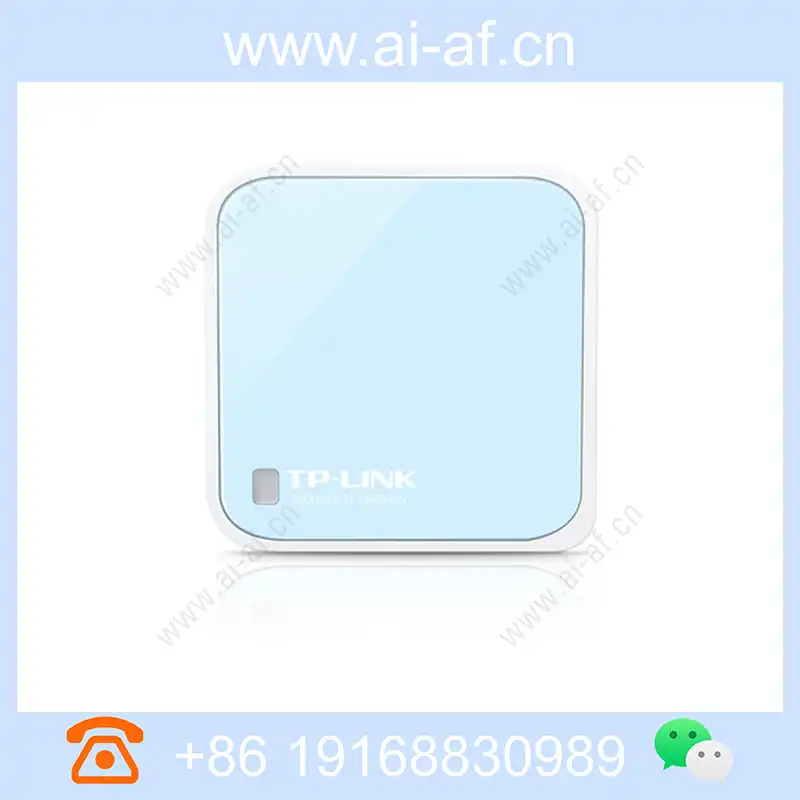

TP-LINK TL-WR802N 300M Mini Wireless Router
Protocol standard IEEE 802.11n、IEEE 802.11g、IEEE 802.11b; IEEE 802.3、IEEE 802.3u Wireless rate 300Mbps interface 1 10/100M self-adaptive LAN/WAN port, support auto flip (Auto MDI/MDIX) MicroUSB charging interface Button Reset button LED Status Indicator antenna Built-in smart omniDirectional antenna size 57mm x 57mm x 18mm(L x W x H) basic skills Wireless switch; SSID broadcast switch; Channel selection: 1-13; Band bandwidth selection: 20MHz, 40MHz, automatic; Wireless mode selection: 11n only, 11 bgn mixed, 11 bg mixed, 11g only, 11b only. Operating mode AP (wireless access point) mode; Client (wireless client) mode; Repeater (wireless relay) mode; Bridge (wireless bridge) mode; Router (wireless routing) mode. Wireless security Wireless MAC address filtering; wireless security function
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE 802.11n、IEEE 802.11g、IEEE 802.11b; IEEE 802.3、IEEE 802.3u |
| Wireless rate | 300Mbps |
| interface | 1 10/100M self-adaptive LAN/WAN port, support auto flip (Auto MDI/MDIX) MicroUSB charging interface |
| Button | Reset button |
| LED | Status Indicator |
| antenna | Built-in smart omniDirectional antenna |
| size | 57mm x 57mm x 18mm(L x W x H) |
| basic skills | Wireless switch; SSID broadcast switch; Channel selection: 1-13; Band bandwidth selection: 20MHz, 40MHz, automatic; Wireless mode selection: 11n only, 11 bgn mixed, 11 bg mixed, 11g only, 11b only. |
| Operating mode | AP (wireless access point) mode; Client (wireless client) mode; Repeater (wireless relay) mode; Bridge (wireless bridge) mode; Router (wireless routing) mode. |
| Wireless security | Wireless MAC address filtering; wireless security function switch; 64/128/152 bit WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism. |
| Useful functions | IP bandwidth control function (wireless routing mode support); peanut shell DDNS (wireless routing mode support). |
| Network settings | WAN port connection type support: PPPoE, dynamic IP, static IP Dialing type: automatic dialing, on-demand dialing, manual dialing, timed dialing (wireless routing mode support); MAC address modification and cloning (wireless routing mode support); VPN Pass -through (wireless routing mode support); static routing (wireless routing mode support). |
| DHCP settings | DHCP server (not supported in wireless client mode); client list (not supported in wireless client mode); static address assignment |
| Port forwarding | Virtual server (wireless routing mode support); special applications (wireless routing mode support); DMZ host (wireless routing mode support); UPnP settings (wireless routing mode support). |
| Security Settings | IP and MAC address binding to prevent ARP attacks (wireless routing mode support); IP address filtering (wireless routing mode support); domain name filtering (wireless routing mode support); MAC address filtering (wireless routing mode support); |
| System Tools | Traffic statistics; system logs; remote Web management; configuration file import and export; WEB browsing and upgrading. |
| Packaging accessories | 300M mini wireless router TL-WR802N; power adapter; USB cable; user manual warranty card |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
