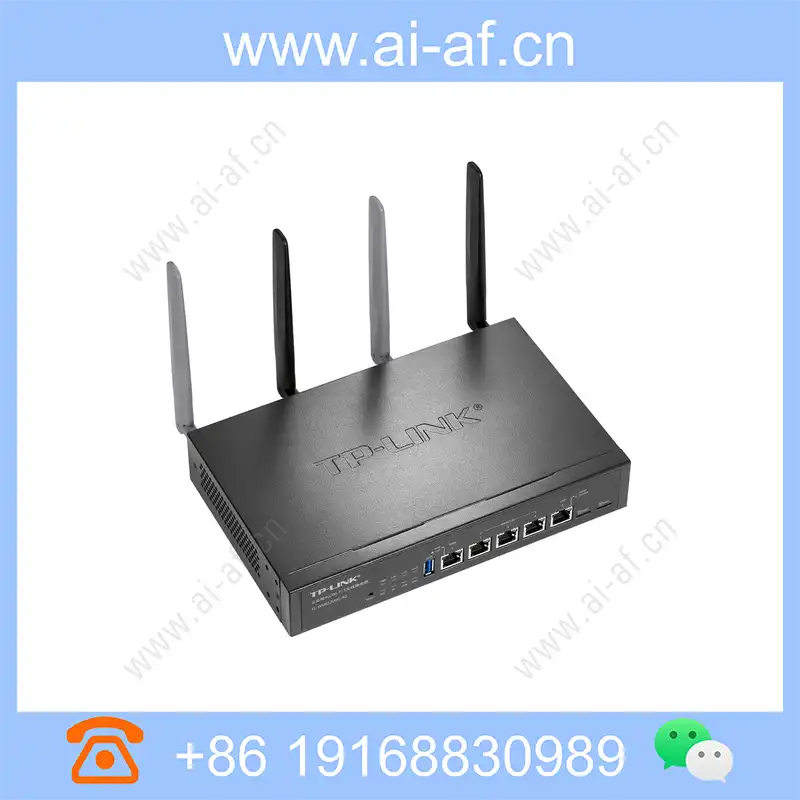

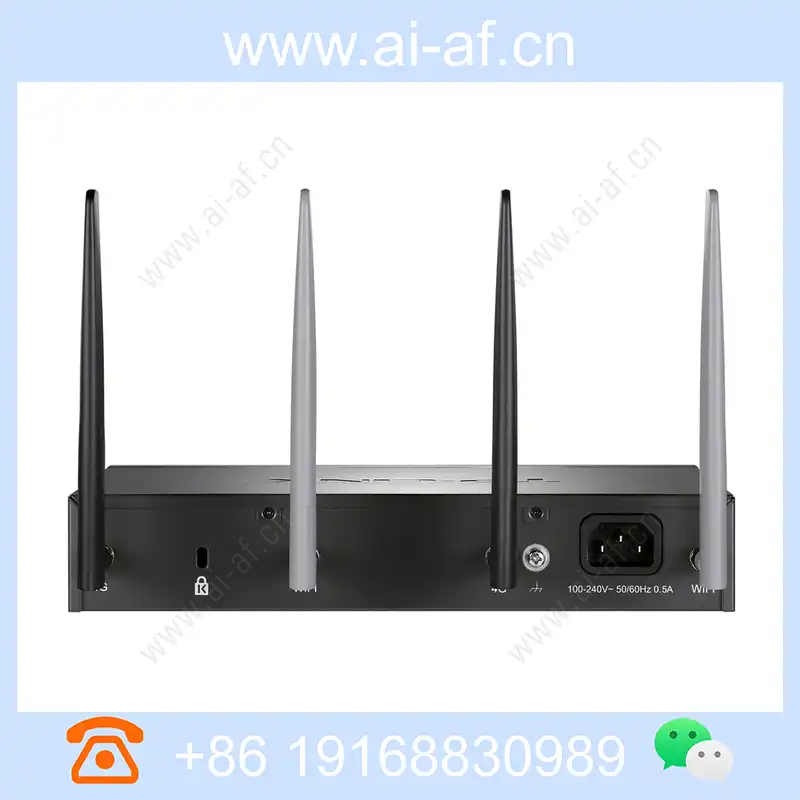

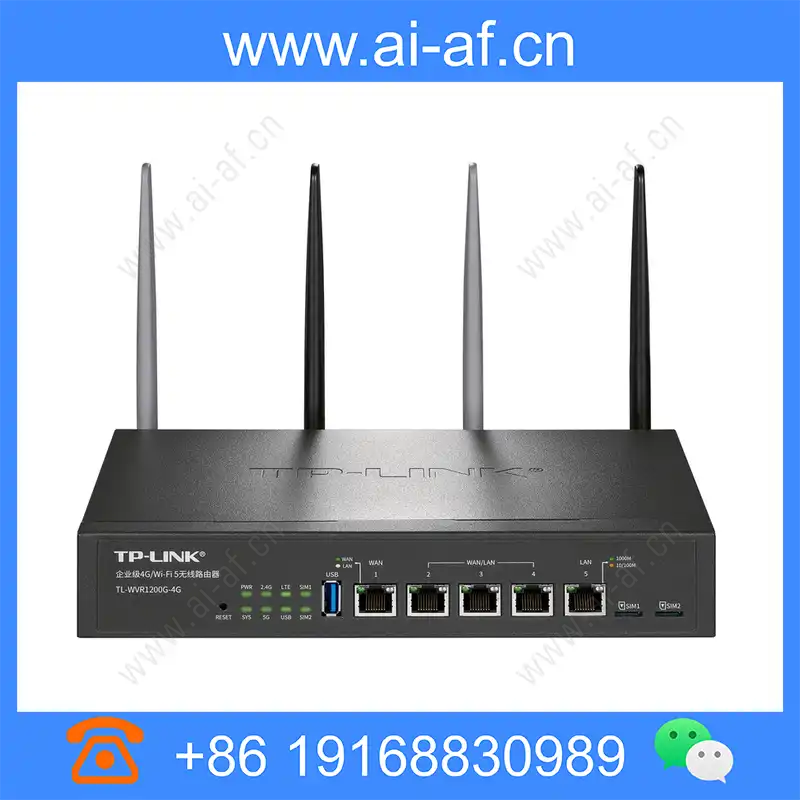

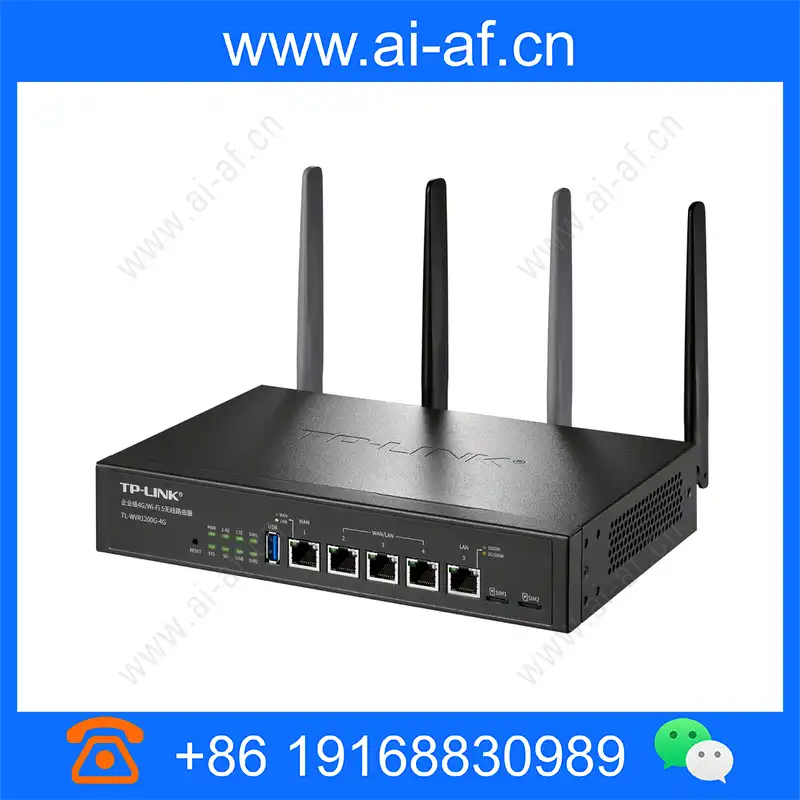

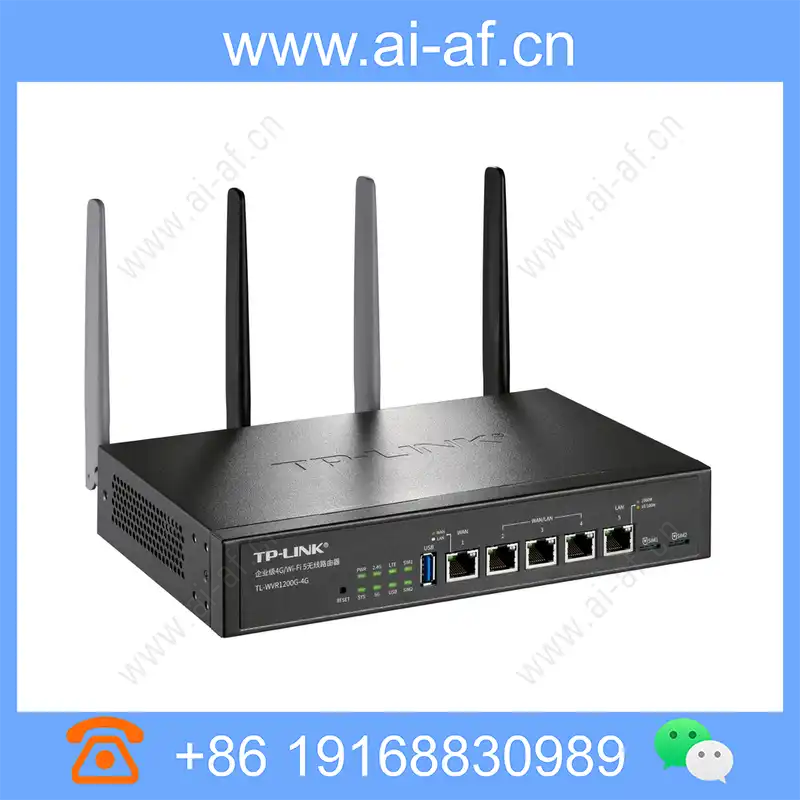

TP-LINK TL-WVR1200G-4G Enterprise 4G/Wi-Fi 5 Wireless Router

Brand: TP-LINK

Model: TL-WVR1200G-4G

Dimensions: 158mm x 250mm x 44mm

1200M 11AC dual frequency wireless 1 Gigabit WAN port, 1 Gigabit LAN port, 3 WAN/LAN Gigabit variable ports External 2 detachable 4G antennas, 2 detachable dual-band WiFi antennas Support multiple WAN ports, Web authentication, guest network functions Support AP management, IPSec VPN, L2TP VPN, PPTP VPN Internet behavior management (application restriction, website filtering, URL filtering, web security, access control list) ARP protection, attack protection, intelligent bandwidth control, and connection limit Support TP-LINK Business Cloud APP Remote View / Manage * port

1 10/100/1000M RJ45 WAN port
3 10/100/1000M RJ45 WAN / LAN port optional
1 10/100/1000M RJ45 LAN port
1 USB port

Wireless rate

2.4GHz :300Mbps
5GHz

Product Features

1200M 11AC dual frequency wireless
1 Gigabit WAN port, 1 Gigabit LAN port, 3 WAN/LAN Gigabit variable ports
External 2 detachable 4G antennas, 2 detachable dual-band WiFi antennas
Support multiple WAN ports, Web authentication, guest network functions
Support AP management, IPSec VPN, L2TP VPN, PPTP VPN
Internet behavior management (application restriction, website filtering, URL filtering, web security, access control list)
ARP protection, attack protection, intelligent bandwidth control, and connection limit
Support TP-LINK Business Cloud APP Remote View / Manage *

Technical Specifications

Property Description	Property Value
port	1 10/100/1000M RJ45 WAN port 3 10/100/1000M RJ45 WAN / LAN port optional 1 10/100/1000M RJ45 LAN port 1 USB port
Wireless rate	2.4GHz :300Mbps 5GHz :867Mbps
antenna	2 external detachable 2.4GHz/5GHz dual-band WiFi 4.5dBi omnidirectional antennas 2 external detachable 4G 4.8dBi antennas
Indicator light	Per port: WAN/LAN, 1000M/100M Per device: PWR, SYS, 2.4GHz, 5GHz, USB, LTE, SIM1, SIM2
Dimensions	250(w)x158(D)x44(H) mm
Input power	100~240V AC,50/60Hz
Cooling method	thermal silicone + natural heat dissipation
Use environment	operating temperature: 0°C ~ 40°C, Working humidity: 10% ~ 90% RH does not condense storage temperature: -40°C ~ 70°C, storage humidity: 5% ~ 90 % RH does not condense
Network protocol	TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS
Access method	Dynamic IP, Static IP, PPPoE, L2TP, PPTP MAC Address: MAC Address Changes equalization mode: bandwidth equilibrium, balanced / li> ISP selection
LAN port settings	DHCP server LAN port IP setting client list static address assignment
wireless setting	SSID broadcast Support up to 13 Multi-SSIDs Support WPA, WPA2, WPA-PSK, WPA2-PSK wireless encryption AP Internal Isolation, Guest Network Wireless Bridging Wireless MAC Address Filtering Wireless Host Status
AP management	AP setting wireless network setting AP database upgrade
Application control	social software: WeChat / QQ / page QQ / FRIB / Ali Wangwang / Tencent TM / more play YY / enterprise QQ / Mo Mo / Sina Weibo / Zhi video software: Tencent Video / PPSTREAM / PPTV / Fast Broadcasting / Pipi / UUSEE / CNTV / iQiyi / Fighting Live / Sohu Video / Youku Video Music Software: Cool Music / Cool Music / QQ Music / Baidu Music / Netease Cloud Music Shopping Leisure Software: Mobile Jingdong / Taobao News Software: Zaker / Today's Headline / Netease News P2P Software: Thunder and Thunder to see / Bit Comet / EDonkey / QQ Cyclone / Flashget Financial Software: Flush / Big Wisdom and Analytics / Qianlong / Compass / Securities Star / Merchants Securities / Galaxy Securities / Guotai Junan Securities / Yimeng Trand Hand / Oriental Fortune / Huatai Securities Network Game: QQ Game / Thunder Game Box / Lianzhong / Haofang Platform / Fantasy Westward Warcraft / World of Warcraft / Running Karting / QQ Farm App Store: PP Assistant / Pea Pod / Application Bao Basics Applications: HTTP / HTTPS / MMS / RTSP
Access control	Site grouping: Website filtering, URL filter file download: Filter specified file extension type bandwidth limit: bandwidth allocation / connection limit < / ul>
Safety management	IP and MAC address Bind ARP protection MAC address filter anti-DOS class, scan class, suspicious package three categories Common attack behavior
VPN	ipsec l2tp PPTP User Management
Certification Management	Web Certification authentication status authentication user manages
Advanced Features	Routing Settings: Policy Routing / Static Route / System Routing NAT Settings: NAPT / One-on-one NAT / ALG Virtual Server Dynamic DNS UPnP IP traffic statistics port monitoring
Management and maintenance	Chinese Web Network Management, Remote Management Configuration Backup and Import Configuration System Software Upgrade Online Detection, PING, Tracert Diagnostic Tool < / li> system log

TP-LINK TL-WVR1200G-4G Enterprise 4G/Wi-Fi 5 Wireless Router

Product Features

Technical Specifications

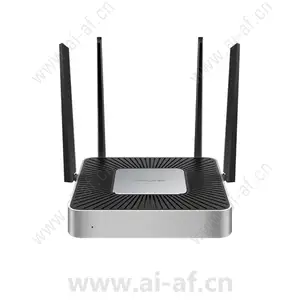

TP-LINK TL-WVR1200L AC1200 dual-frequency wireless VPN Router 5 ports with machine capacity 100 manage 10 APs

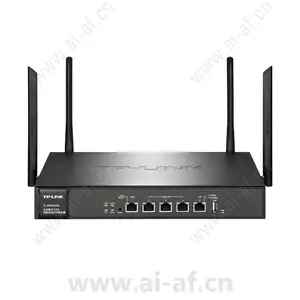

TP-LINK TL-WVR1200G AC1200 dual-frequency wireless VPN Router 5 ports with machine capacity 100 manage 10 APs

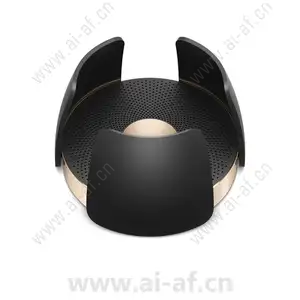

TP-LINK TL-WTR9300 AC3200 Tri-band Ring Array Antenna Gigabit Wireless Router

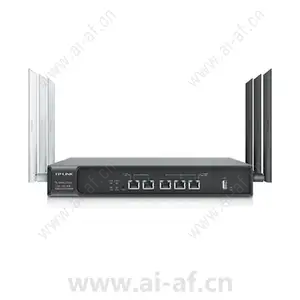

TP-LINK TL-WVR1750G 11AC dual frequency wireless VPN Router 5 ports with machine capacity 100 manage 10 APs

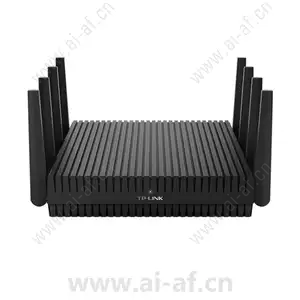

TP-LINK TL-WTR9520 AC5400 Tri-band Gigabit Wireless Router

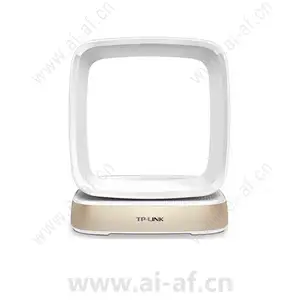

TP-LINK TL-WTR9500 AC5400 Tri-band Square Array Antenna Gigabit Wireless Router

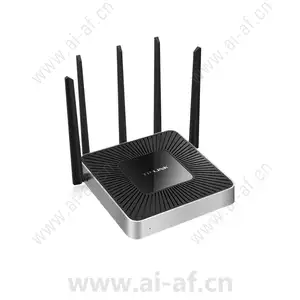

TP-LINK TL-WVR1300L AC1300 dual-frequency wireless VPN Router 5 ports with machine capacity 100 manage 10 APs

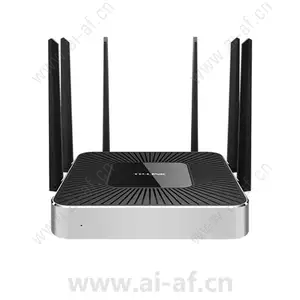

TP-LINK TL-WVR1750L AC1750 dual-frequency wireless VPN Router 5 ports with machine capacity 150 manage 10 APs

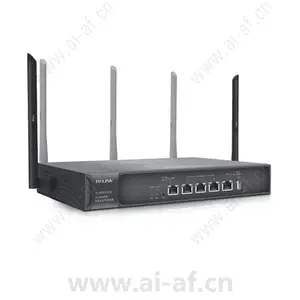

TP-LINK TL-WVR1300G AC1350 dual-frequency wireless VPN Router 5 ports with machine capacity 80 manage 10 APs

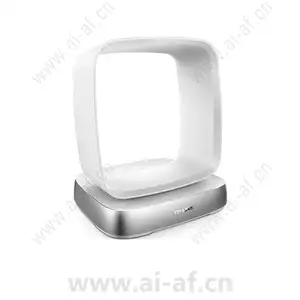

TP-LINK TL-WTR9400 AC4300 Tri-band Square Array Antenna Gigabit Wireless Router
