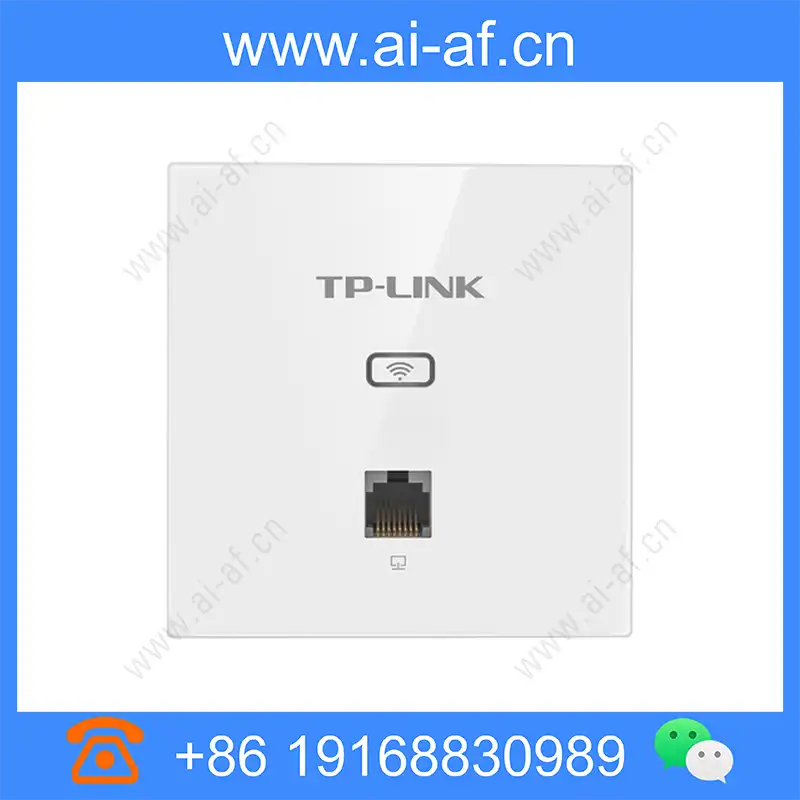

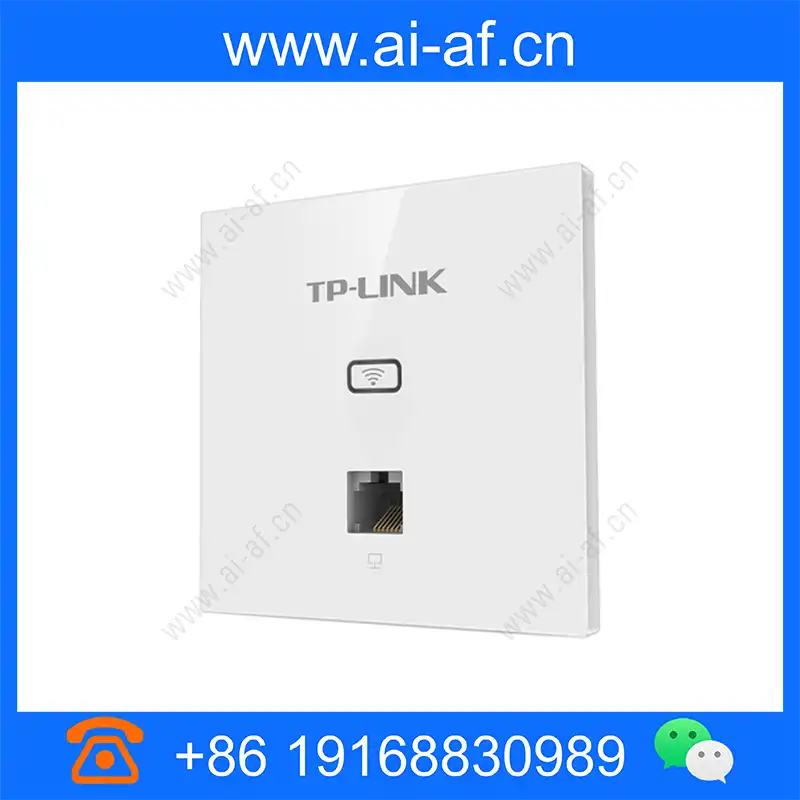

TP-LINK TL-XAP1802GI-PoE Thin (Square) AX1800 Dual-band Gigabit Wi-Fi 6 Wireless Panel AP

Brand: TP-LINK
Model: TL-XAP1802GI-PoE-thin-section(square)
Dimensions: 86mm x 86mm x 55mm

New generation Wi-Fi 6 (802.11ax) technology 11AX 2.4G/5G dual-band concurrent, wireless rate up to 1800Mbps GB 86 shell, elegant appearance 802.3af/at standard PoE network cable power supply, no external power supply required Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz band to make the 2.4GHz and 5GHz bands more balanced and ensure network performance FIT mode supports automatic RF tuning FIT mode supports intelligent roaming Support weak signal elimination, prohibit weak signal equipment access function Fat and thin, you can choose different modes according to different application environments Support centralized management of TP-LINK commercial network cloud platform Support TP-LINK business cloud APP remote view / management Product model

Product Features

    • New generation Wi-Fi 6 (802.11ax) technology
    • 11AX 2.4G/5G dual-band concurrent, wireless rate up to 1800Mbps
    • GB 86 shell, elegant appearance
    • 802.3af/at standard PoE network cable power supply, no external power supply required
    • Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz band to make the 2.4GHz and 5GHz bands more balanced and ensure network performance
    • FIT mode supports automatic RF tuning
    • FIT mode supports intelligent roaming
    • Support weak signal elimination, prohibit weak signal equipment access function
    • Fat and thin, you can choose different modes according to different application environments
    • Support centralized management of TP-LINK commercial network cloud platform
    • Support TP-LINK business cloud APP remote view / management

Technical Specifications

Property DescriptionProperty Value
Product model
  • TL-XAP1802GI-PoE thin section (square)
Installation method
  • directly install it to the national standard 86 network wiring box
size
  • 86*86*55mm
Wireless rate
  • 2.4GHz :574Mbps
  • 5GHz :1201Mbps
port
  • front bottom: 1 10/100M/1000M RJ45 port

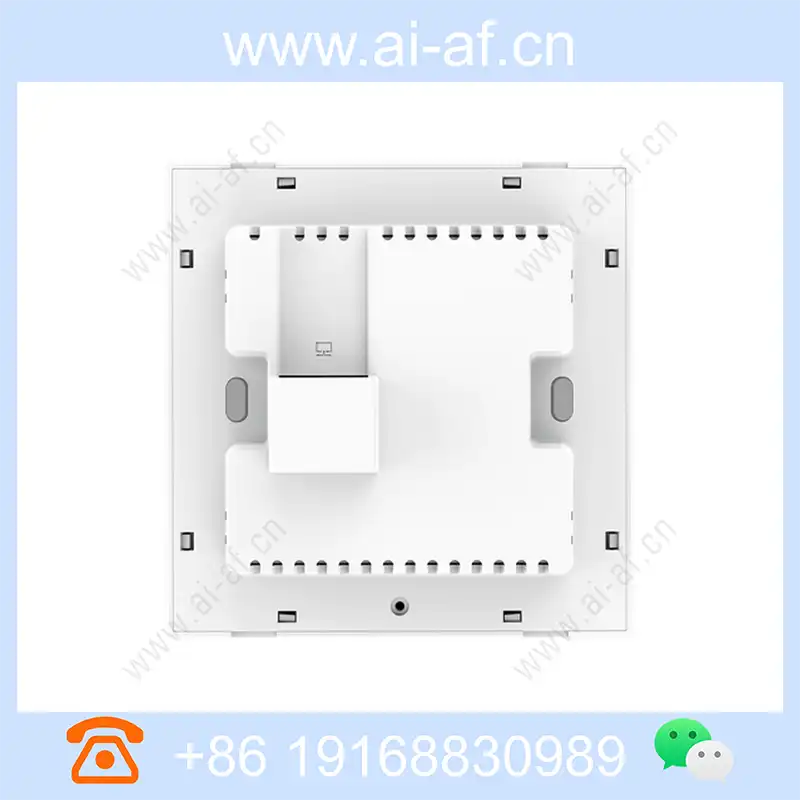

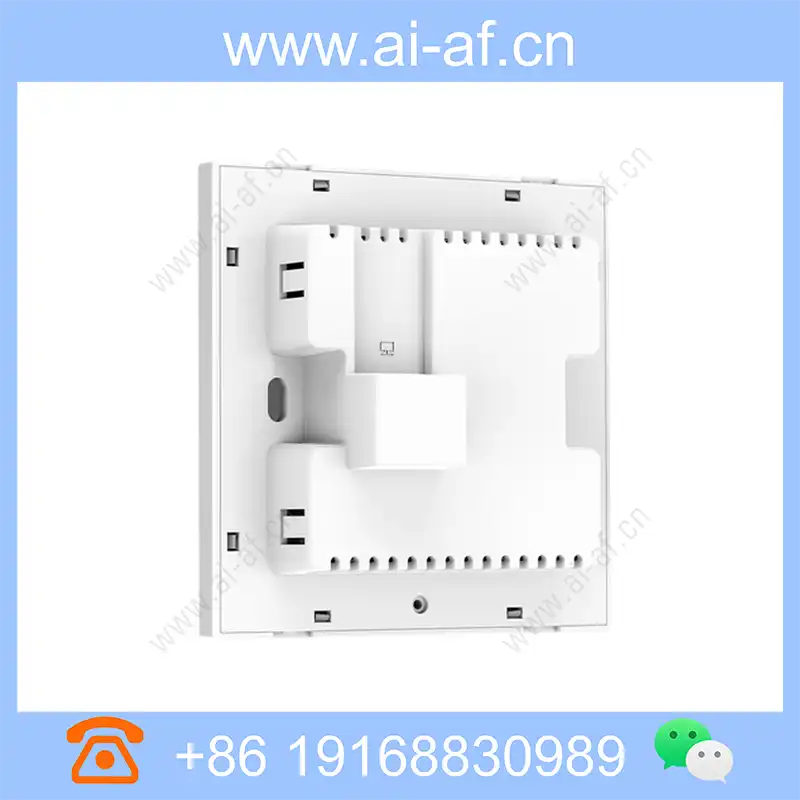

  • Back: 1 10/100M/1000M RJ45 port
antenna
  • Built-in antenna
Indicator light
  • 1 system indicator
Button
  • 1 FAT / FIT mode Dial switch
  • 1 reset button
  • 1 Wi-Fi / LED multiplexing switch (LED turns on / off Press button 1 ~ 2s)
power supply
  • standard PoE power supply
Maximum power consumption of the whole machine
  • 11.5W
management
  • FIT AP mode: Manage
  • FAT AP mode by TP-LINK Wireless Controller (AC): Independent Web Page Management
Use environment
  • operating temperature: 0°C ~ 40°C
  • Working humidity: 10% ~ 90% RH does not condense
  • storage temperature: -40°C ~ 70°C
  • Storage humidity: 5% ~ 90% RH does not condense
wireless function
  • SSID broadcast: Support
  • SSID Quantity: 8 (2.4G) +8 (5G) (Support Chinese SSID)
  • Network Type: Visitor Network, Employee Network
  • Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK
  • User Isolation: Wireless Network Spacetion, AP internal isolation
  • wireless MAC address filtering : Support whitelist
  • VLAN settings: Support SSID and TAG VLAN Bind
  • Transmission power setting: Support 1DBM linear adjustment
  • WDS function: support
  • Wireless client number limit: Support
  • QoS: WMM
  • Prohibition of weak signal access: Support
  • exclude weak signal device: support < / li>
  • Support automatic radio frequency adjustment
  • support intelligent roaming
Maximum number of connectable clients
  • 128(2.4G)+128(5G)
System Management
  • device management: full Chinese Web Management
  • restore factory setting: Support
  • backup configuration: support
  • Import configuration: Support
  • software upgrade: support
  • ping watchdog: Support
