TP-LINK TL-XAP3007GC-PoE/DC Easy Display AX3000 Dual Band Gigabit Wi-Fi 6 Wireless Ceiling AP

Brand: TP-LINK

Model: TL-XAP3007GC-PoE-DC-Easy-Exhibition-Edition

Weight: 0.52kg

Dimensions: 306mm x 304mm x 85mm

11AX (Wi-Fi 6) dual-band concurrent, maximum wireless rate up to 2976Mbps Support for Easy Exhibition Mesh Network, child-node free wiring, cover blind spot signal extension is more convenient The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Professional dual-band antenna to improve the signal quality of the coverage area Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance Simple ceiling installation, 802.3at standard PoE network cable power supply The port is hidden in the shell, and the wiring is beautiful Fat and thin, choose different working modes in different environments Independent

Product Features

11AX (Wi-Fi 6) dual-band concurrent, maximum wireless rate up to 2976Mbps
Support for Easy Exhibition Mesh Network, child-node free wiring, cover blind spot signal extension is more convenient
The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs
Professional dual-band antenna to improve the signal quality of the coverage area
Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance
Simple ceiling installation, 802.3at standard PoE network cable power supply
The port is hidden in the shell, and the wiring is beautiful
Fat and thin, choose different working modes in different environments
Independent hardware protection circuit can automatically recover abnormal AP
FIT mode supports radio frequency automatic tuning function
FIT mode supports intelligent roaming technology
Support centralized management of TP-LINK commercial cloud platform
Support TP-LINK business cloud APP remote view / management

Technical Specifications

Property Description	Property Value
model	TL-XAP3007GC-PoE/DC Easy Exhibit
name	AX3000 Dual Band Gigabit Wi-Fi 6 Wireless Ceiling AP
Bare metal size (length x width x height)	φ243 x 64mm (free of mounting)
Packing size (length x width x height)	306x304x85mm
Bare metal weight	0.52kg (single, excluding accessories, packaging)
Total weight	0.94kg (single, including accessories, packaging)
interface	1 10/100/1000Mbps rate adaptive Ethernet interface 1 DC power interface
Indicator light	1 system indicator
Button	1 RESET button 1 Yizhan button 1 FAT/FIT mode toggle switch
power supply	IEEE 802.3at standard PoE power supply DC power supply: 12V Note: This product does not include a power adapter, if you need to use DC power supply, please purchase it yourself 12VDC 2A output power adapter and 5.5mm*2.1mm DC power connector.
Maximum power consumption	The maximum power consumption of PoE power supply is 16.2W
Operating temperature	0°C~40°C
Working humidity	10% ~ 90% RH does not condense
storage temperature	-40°C~70°C
Storage humidity	5% ~ 90% RH does not condense
Antenna type	Built-in full-Directions
Installation method	Ceiling installation Wall-mounted
wireless function	IEEE 802.11a/n/ac/ax, IEEE 802.11b/g/n/ax wireless protocols Maximum wireless rate 2976Mbps: 2.4GHz band 574Mbps, 5GHz band 2402Mbps li> Beamforming Maximum Combining Ratio (MRC) Space Time Block Code (STBC) Cyclic Delay/Cyclic Shift Bit Diversity (CDD/CSD) LDPC Low Density Parity Check Maximum Likelihood Decoding (MLD) Wireless Speed Up Parameters (ShortGI) SSID broadcast/hidden SSID number: 2.4G: 7; 5G: 7 Chinese SSID, including GBK, UTF-8 encoding Set the master network and employee network channel bandwidth settings. 2.4G: 20M/40MHz/Auto; 5G: 20M/40M/80/160MHz/Auto Dynamic Channel Selection (DCS) Wi-Fi Multi-Frequency > FIT Mode Spectrum Navigation Transmit power setting: Lv1-Lv10, 1dBm step size Isolation between wireless networks and internal AP isolation Beacon Slot setting Weak signal device removal Weak signal device is forbidden to access IEEE 802.11k/v/r protocol intelligent roaming Automatic RF Tuning WMM: Priority-based data processing and forwarding WDS function Limited number of wireless clients OFDMA TWT
Network characteristics	Rate and duplex mode self-negotiation, automatic MDI / MDI-x Fit mode CAPWAP interrupt service Hold Fit mode AC Double Link Backup < / li> LLDP link discovers VLAN management VLAN management VLAN based on user access > Intelligent DHCP Server FAT mode DHCPv6, IPv6 address access, RADIUSV6 authentication and other functions Fit mode CAPWAPV6, WPORTALV6 authentication, DHCPV6 protection
cyber security	FIT mode Portal authentication, MAC address authentication WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK, WPA3 encryption Whitelist management can be accessed Incoming device SSID and Tag VLAN binding Broadcast storm suppression in FIT mode DHCP protection in FIT mode ARP protection in FIT mode< /li>
Management method	FIT Mode Wireless Controller (AC) Unified Management FAT Mode Independent Web Page Management NMS Commercial Cloud Platform Concentration Management TP -Link network management system centralized management
System Management	User Name / Password Management System Log View / Download / Send Server Manual Settings / NTP Server Synchronization Time Backup Configuration < / li> Import configuration Restore factory settings restart device local online upgrade, local firmware upgrade, cloud upgrade PING Watch Dog Function, Exception Equipment Automatic Recovery First Aid mode, exception device enters the first aid page upgrade firmware

TP-LINK TL-XAP3007GC-PoE/DC Easy Display AX3000 Dual Band Gigabit Wi-Fi 6 Wireless Ceiling AP

Product Features

Technical Specifications

TP-LINK TL-XAP3002GI-PoE Thin Champagne Gold (Square) AX3000 Dual Band Gigabit Wi-Fi 6 Wireless Panel AP

TP-LINK TL-XAP3022GI-PoE thin (square) AX3000 dual-band Wi-Fi 6 wireless panel AP (2.5G port)

TP-LINK TL-XAP3022GI-PoE Thin Carbon Black (Square) AX3000 Dual Band Wi-Fi 6 Wireless Panel AP (2.5G Port)

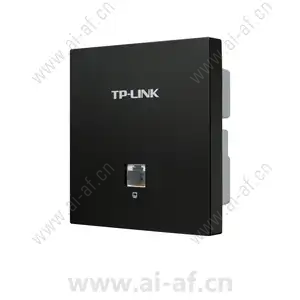

TP-LINK TL-XAP3002GI-PoE Thin Carbon Black (Square) AX3000 Dual Band Gigabit Wi-Fi 6 Wireless Panel AP

TP-LINK TL-XAP3022GI-PoE Thin Deep Space Silver (Square) AX3000 Dual Band Wi-Fi 6 Wireless Panel AP (2.5G Port)

TP-LINK TL-XAP3022GI-PoE Thin Champagne Gold (square) AX3000 Dual Band Wi-Fi 6 Wireless Panel AP (2.5G Port)

TP-LINK TL-XAP3002GI-PoE Thin Deep Space Silver (Square) AX3000 Dual Band Gigabit Wi-Fi 6 Wireless Panel AP

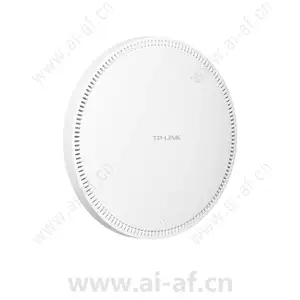

TP-LINK TL-XAP3020GC-PoE/DC Easy Exhibition Version AX3000 Dual Band Wi-Fi 6 Wireless Ceiling AP (2.5G Port)
