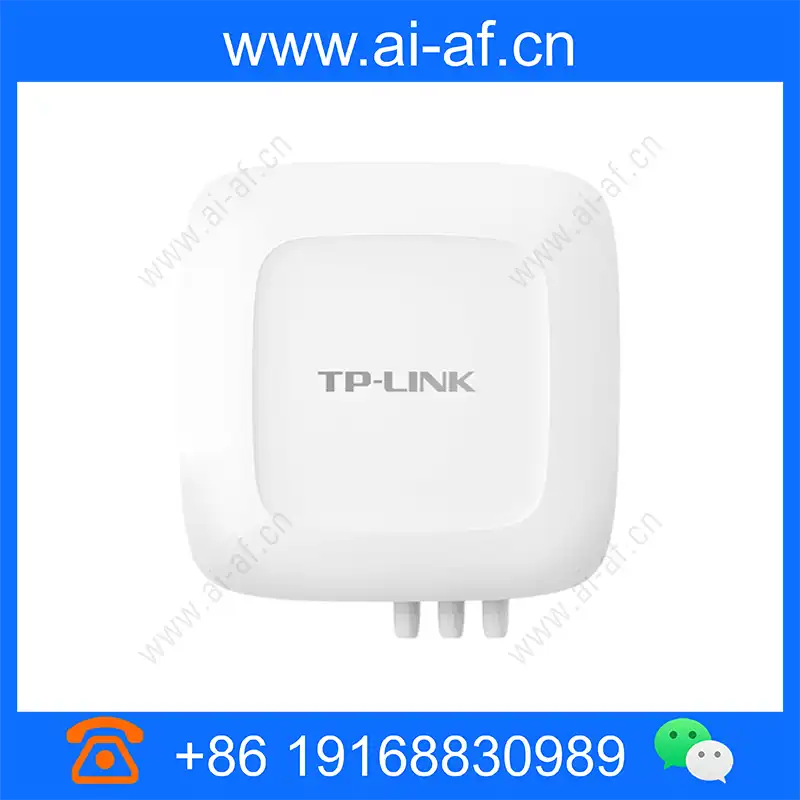

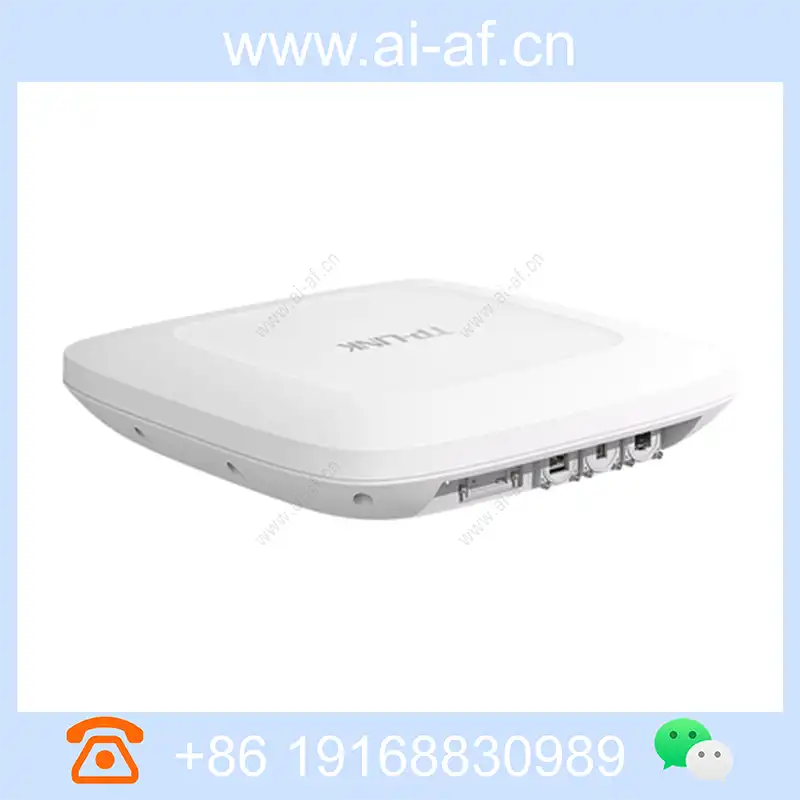

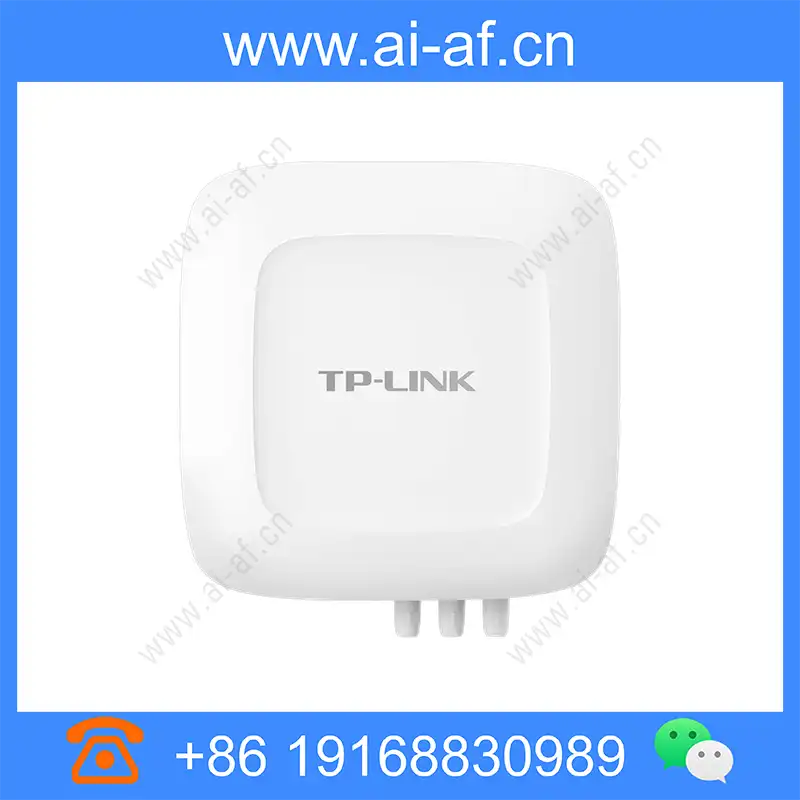

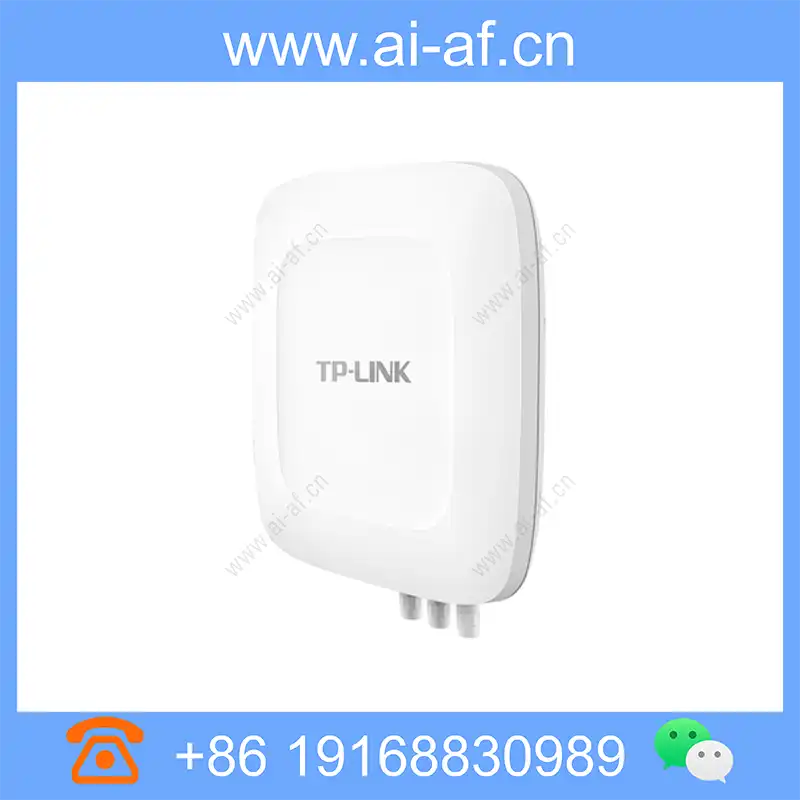

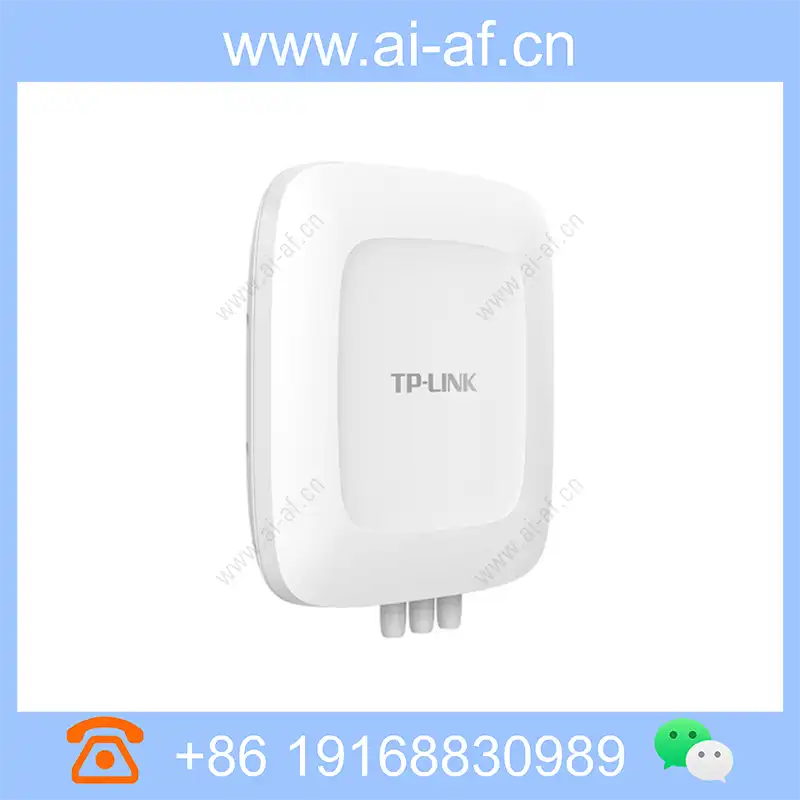

TP-LINK TL-XAP6002GP Omnidirectional AX6000 dual-band Wi-Fi6 outdoor wireless AP 2.5G network port
Brand: TP-LINK
Model: TL-XAP6002GP-OMNIDIRECTIONAL
Dimensions: 360mm x 360mm x 73mm
Next-generation Wi-Fi 6 (802.11ax) technology 11AX dual-band concurrent, the highest wireless rate can reach 5951Mbps 2.5G network port, support IEEE 802.3bz Ethernet standard, higher speed Internet access Gigabit SFP optical port, direct connection is more convenient Built-in 5dBi omniDirectional antenna, independent RF circuit design, coverage radius up to 500 meters Professional outdoor shell design, waterproof and dustproof grade up to IP68, working temperature up to -30℃~65℃, adapt to various harsh environments Automatic radio frequency tuning, optimized overall performance (not supported, recent update software support) Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance Intelligent roaming to improve wireless
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-XAP6002GP omniDirectional |
| Installation method | Pole / wall mounting |
| size | 360x360x73mm |
| wireless | 2.4GHz band: 1147Mbps 5GHz band: 4804Mbps |
| port | 1 10/100/1000M/2500Mbps RJ45 port (support IEEE 802.3bz) 1 100/1000Mbps SFP interface (recommended to use industrial-grade optical modules with operating temperature above 85°C) 1 DC interface |
| antenna | Built-in 5dBi omniDirectional antenna |
| Antenna coverage angle | 360° |
| Indicator light | 1 system indicator 1 SFP indicator |
| Button | 1 RESET button 1 FAT/FIT mode toggle switch |
| power supply | 53.5VDC/0.81A Passive PoE power supply, power supply distance up to 100M IEEE 802.3bt/at standard PoE power supply 12-53.5V DC power supply (factory delivered DC power adapter and PoE power supply) |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Environmental protection | IP68 dustproof and waterproof |
| Use environment | Operating temperature: -30°C~65°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Recommended coverage distance (open environment) | 2.4G: 300 meters; 5G: 500 meters (when used with different wireless terminals, the actual coverage distance may vary) |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks, AP internal isolation Wireless MAC address filtering: support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM kick out weak signal devices, prohibit Weak signal equipment access: support |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
