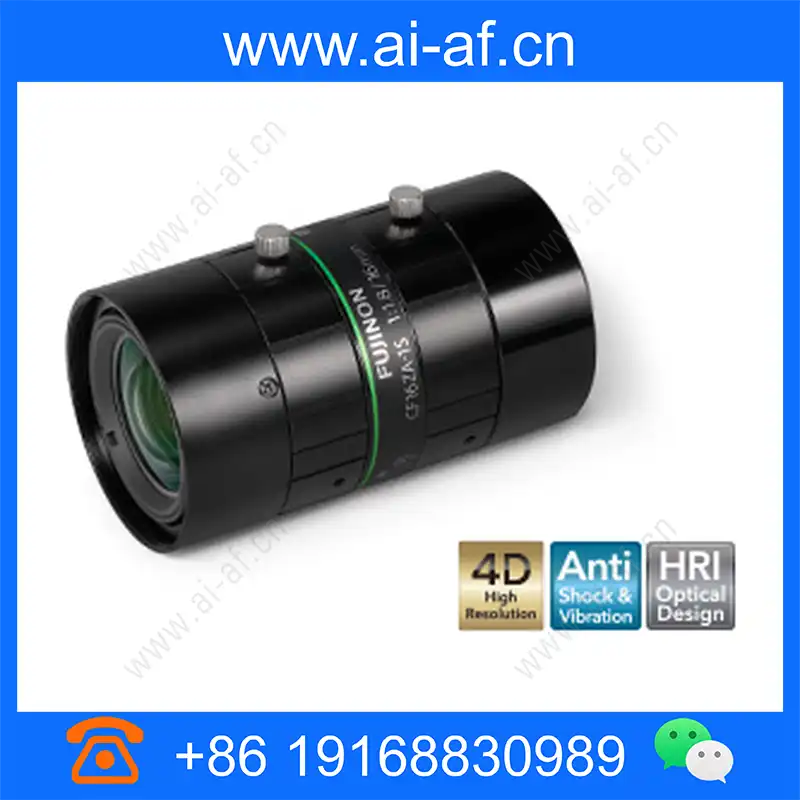

FUJINON CF16ZA-1S Machine Vision Lens 16mm F1.8-F16 C-mount

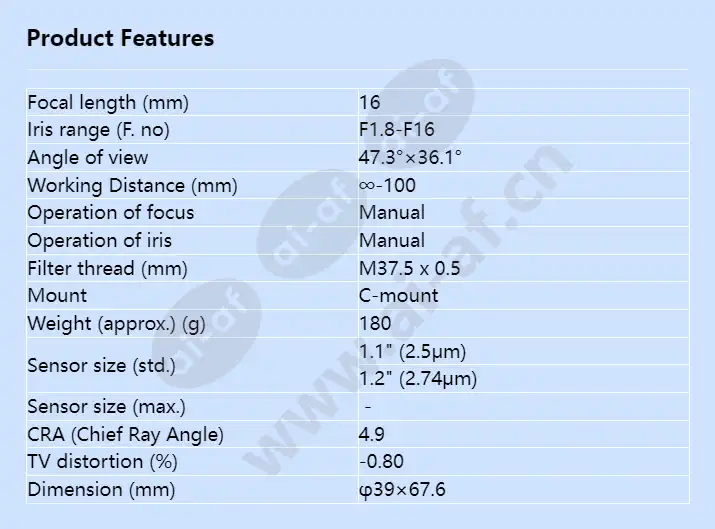

Focal length (mm) 16 Iris range (F. no) F1.8-F16 Angle of view 47.3°×36.1° Working Distance (mm) ∞‐100 Operation of focus Manual Operation of iris Manual Filter thread (mm) M37.5 x 0.5 Mount C-mount Weight (approx.) (g) 180 Sensor size (std.) 1.1" (2.5μm) 1.2" (2.74μm) Sensor size (max.) － CRA (Chief Ray Angle) 4.9 TV distortion (%) -0.80 Dimension (mm) φ39×67.6
