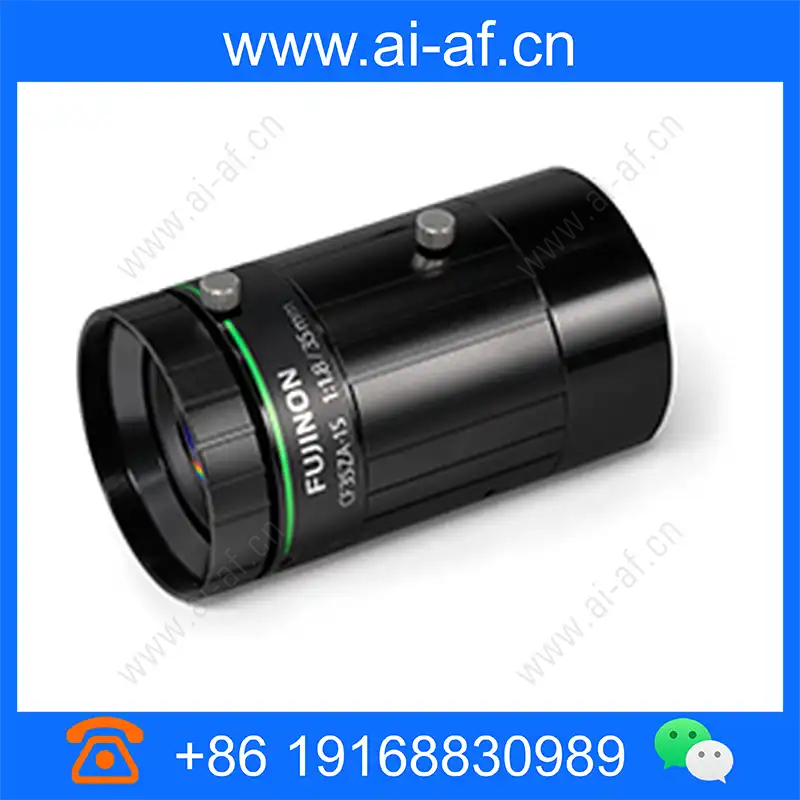

FUJINON CF35ZA-1S Machine Vision Lens 35mm F1.8-F16 C-mount

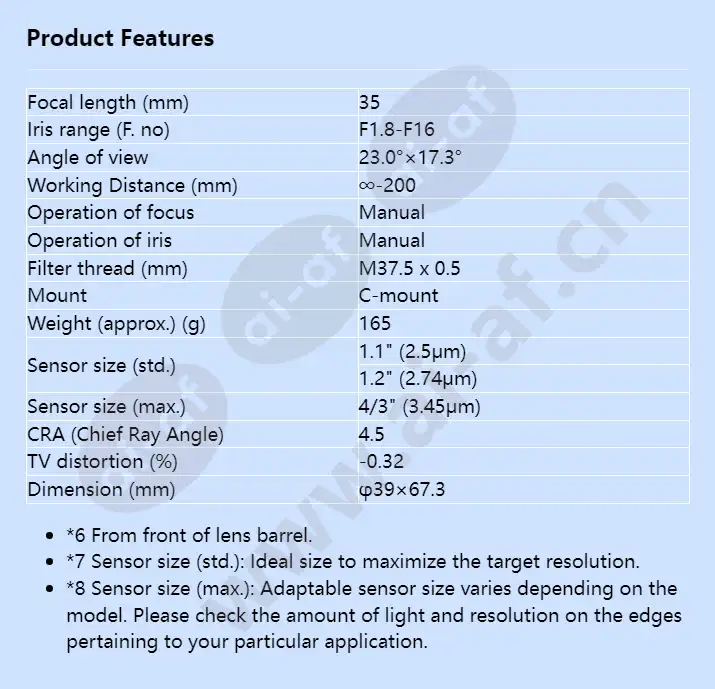

Focal length (mm) 35 Iris range (F. no) F1.8-F16 Angle of view 23.0°×17.3° Working Distance (mm) ∞‐200 Operation of focus Manual Operation of iris Manual Filter thread (mm) M37.5 x 0.5 Mount C-mount Weight (approx.) (g) 165 Sensor size (std.) 1.1" (2.5μm) 1.2" (2.74μm) Sensor size (max.) 4/3" (3.45μm) CRA (Chief Ray Angle) 4.5 TV distortion (%) -0.32 Dimension (mm) φ39×67.3 *6 From front of lens barrel. *7 Sensor size (std.): Ideal size to maximize the target resolution. *8 Sensor size (max.): Adaptable sensor size varies depending on the model. Please check the amount of light and resolution on the edges pertaining to your particular application.
