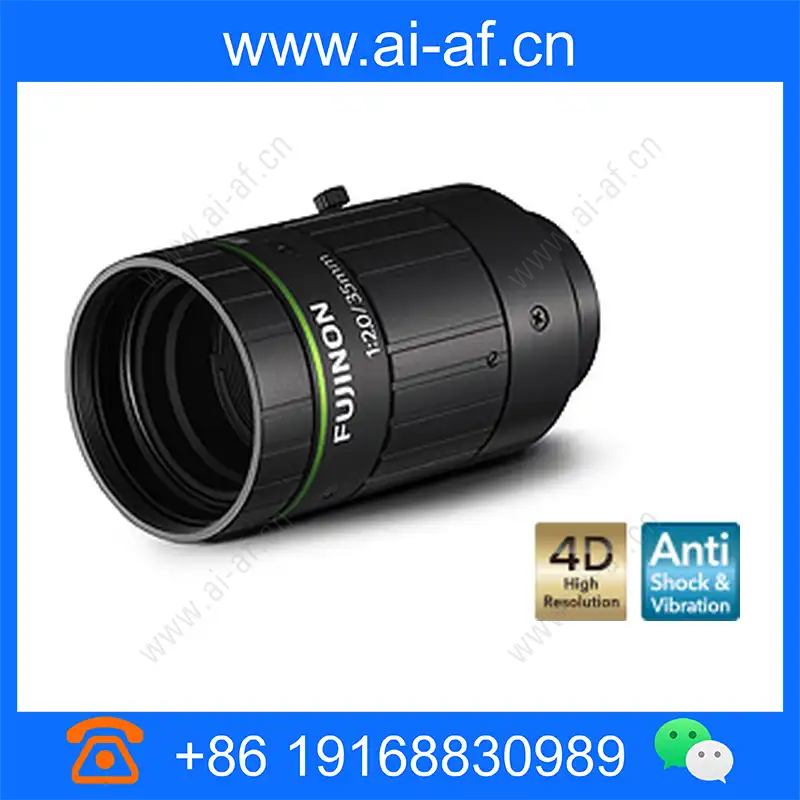

FUJINON HF3520-12M Machine Vision Lens 35mm F2.0-F22 C-mount
Brand: FUJINON
Model: HF3520-12M

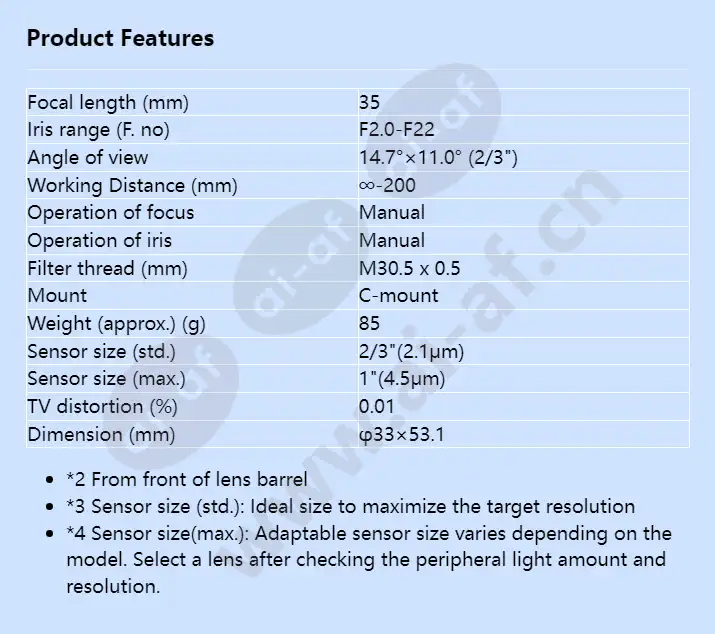

Focal length (mm) 35 Iris range (F. no) F2.0-F22 Angle of view 14.7°×11.0° (2/3") Working Distance (mm) ∞‐200 Operation of focus Manual Operation of iris Manual Filter thread (mm) M30.5 x 0.5 Mount C-mount Weight (approx.) (g) 85 Sensor size (std.) 2/3"(2.1μm) Sensor size (max.) 1"(4.5μm) TV distortion (%) 0.01 Dimension (mm) φ33×53.1 *2 From front of lens barrel *3 Sensor size (std.): Ideal size to maximize the target resolution *4 Sensor size(max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.
