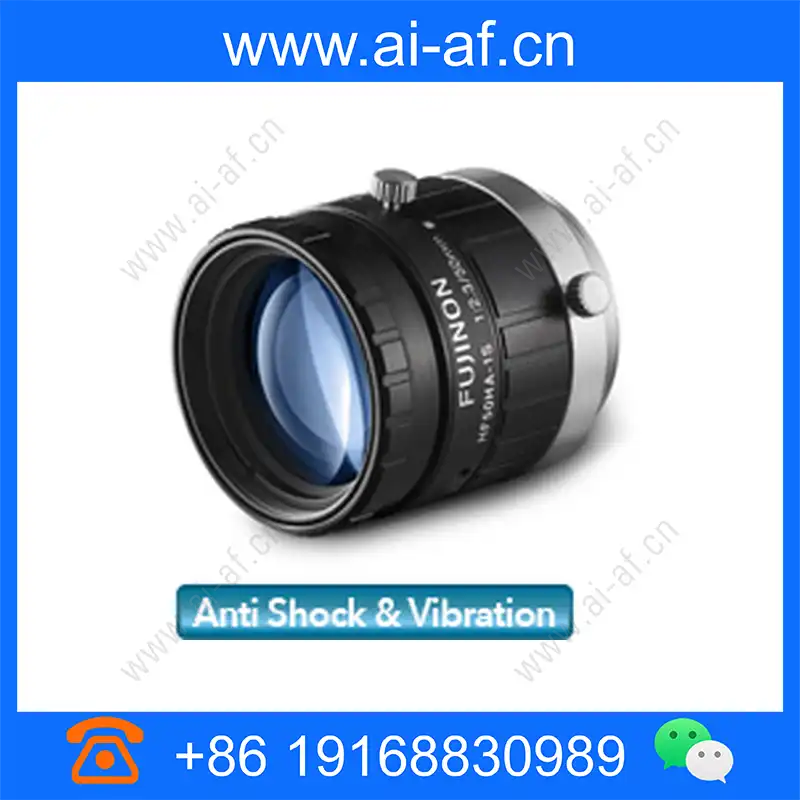

FUJINON HF50HA-1S Machine Vision Lens 50mm F2.3-F22 C-mount

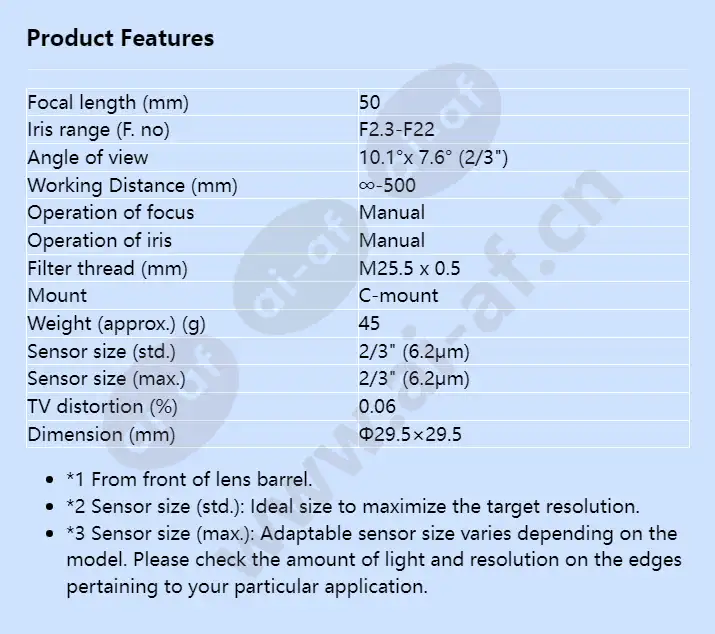

Focal length (mm) 50 Iris range (F. no) F2.3-F22 Angle of view 10.1°x 7.6° (2/3") Working Distance (mm) ∞-500 Operation of focus Manual Operation of iris Manual Filter thread (mm) M25.5 x 0.5 Mount C-mount Weight (approx.) (g) 45 Sensor size (std.) 2/3" (6.2μm) Sensor size (max.) 2/3" (6.2μm) TV distortion (%) 0.06 Dimension (mm) Φ29.5×29.5 *1 From front of lens barrel. *2 Sensor size (std.): Ideal size to maximize the target resolution. *3 Sensor size (max.): Adaptable sensor size varies depending on the model. Please check the amount of light and resolution on the edges pertaining to your particular application.
