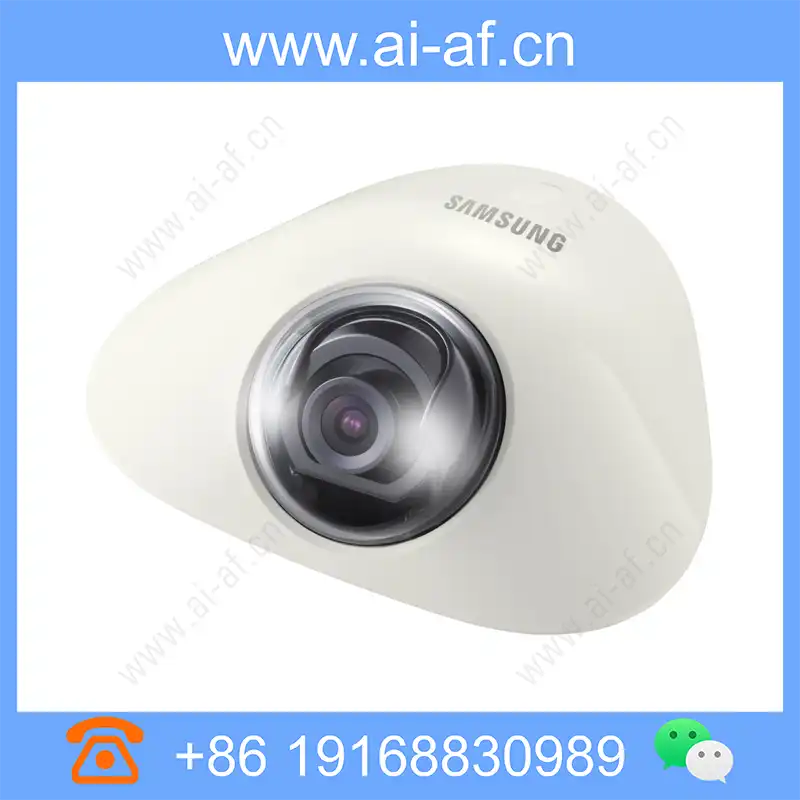

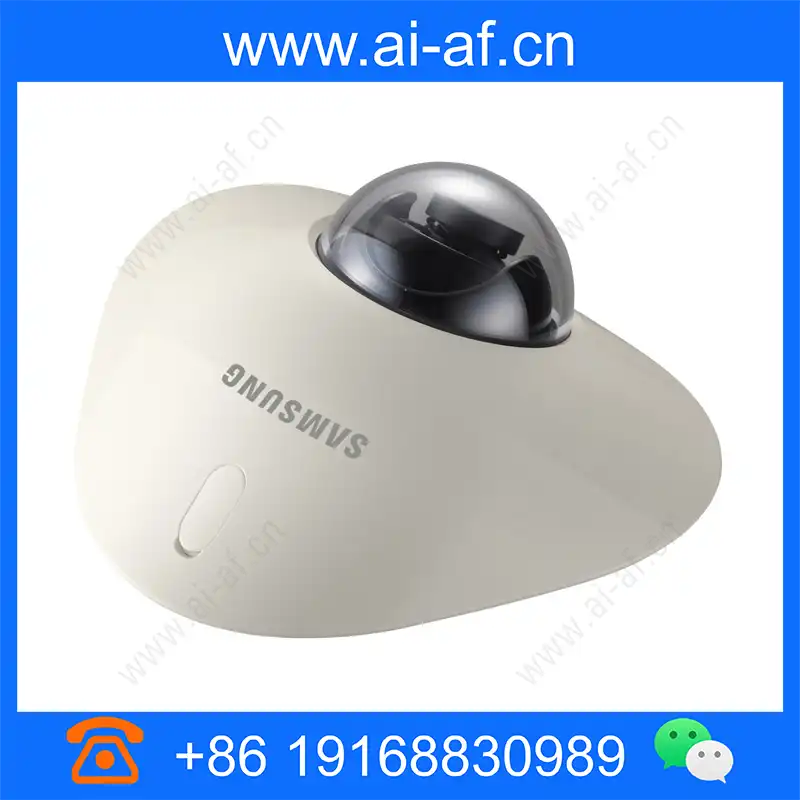

Samsung Hanwha SCD-2010F High Resolution Mini Dome Camera

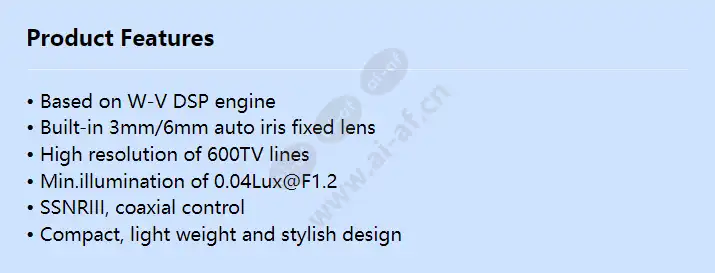

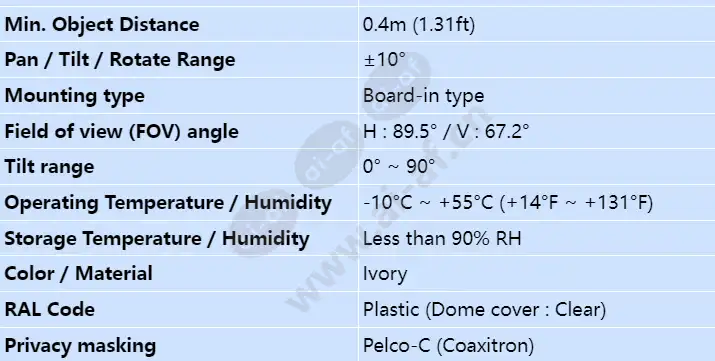

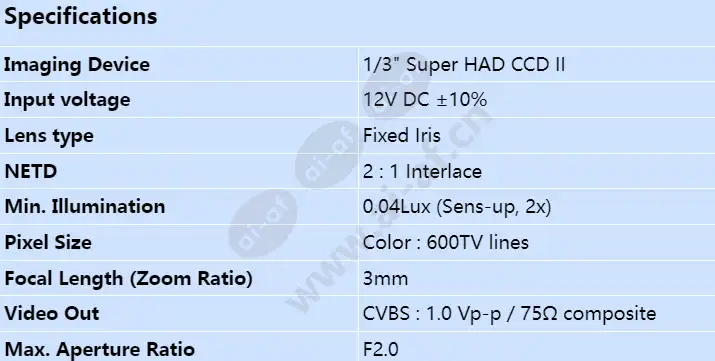

• Based on W-V DSP engine • Built-in 3mm/6mm auto iris fixed lens • High resolution of 600TV lines • Min.illumination of 0.04Lux@F1.2 • SSNRIII, coaxial control • Compact, light weight and stylish design Imaging Device 1/3" Super HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 600TV lines Min. Illumination 0.04Lux (Sens-up, 2x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3mm Max. Aperture Ratio F2.0 Angular Field of View H : 89.5° / V : 67.2° Min. Object Distance 0.4m (1.31ft) Lens Type Fixed Iris Mount Type Board-in type Pan / Tilt / Rotate Range ±10° Tilt Range 0° ~ 90° Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage 12V DC ±10% Color / Material
