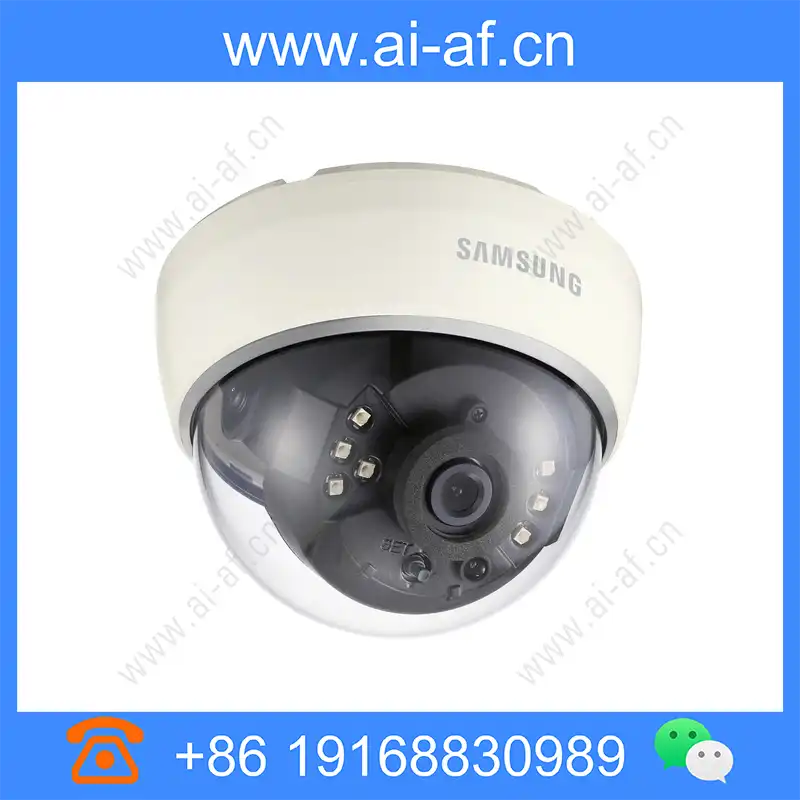

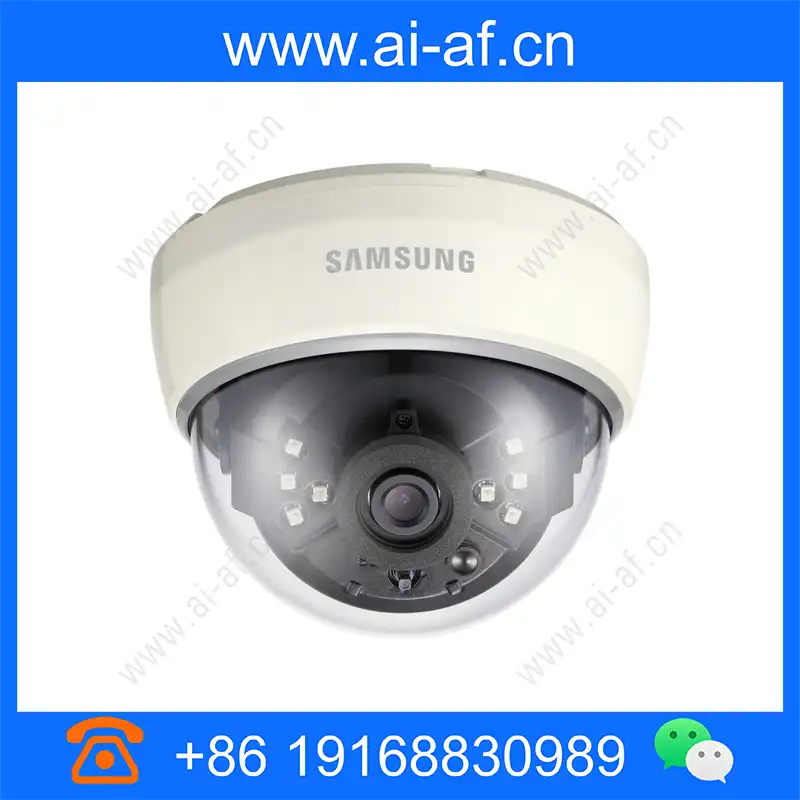

Samsung Hanwha SCD-2020R 1/3 inch High Resolution Small IR Dome Camera

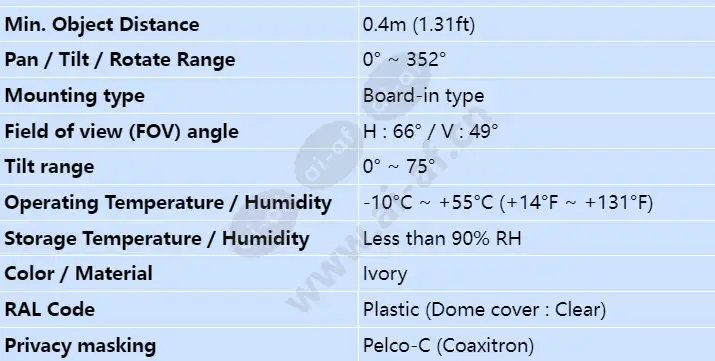

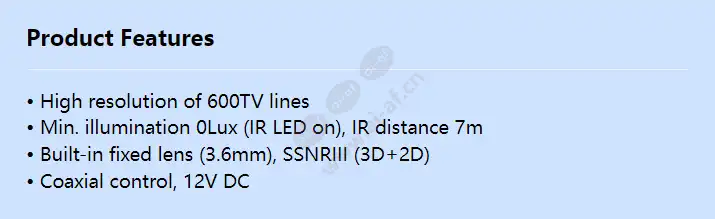

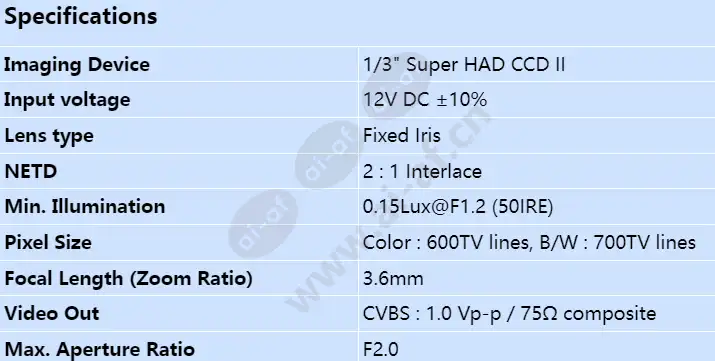

• High resolution of 600TV lines • Min. illumination 0Lux (IR LED on), IR distance 7m • Built-in fixed lens (3.6mm), SSNRIII (3D+2D) • Coaxial control, 12V DC Imaging Device 1/3" Super HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 600TV lines, B/W : 700TV lines Min. Illumination 0.15Lux@F1.2 (50IRE) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3.6mm Max. Aperture Ratio F2.0 Angular Field of View H : 66° / V : 49° Min. Object Distance 0.4m (1.31ft) Lens Type Fixed Iris Mount Type Board-in type Pan / Tilt / Rotate Range 0° ~ 352° Tilt Range 0° ~ 75° Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage 12V DC ±10% Color / Material Ivory RAL Code Plastic
