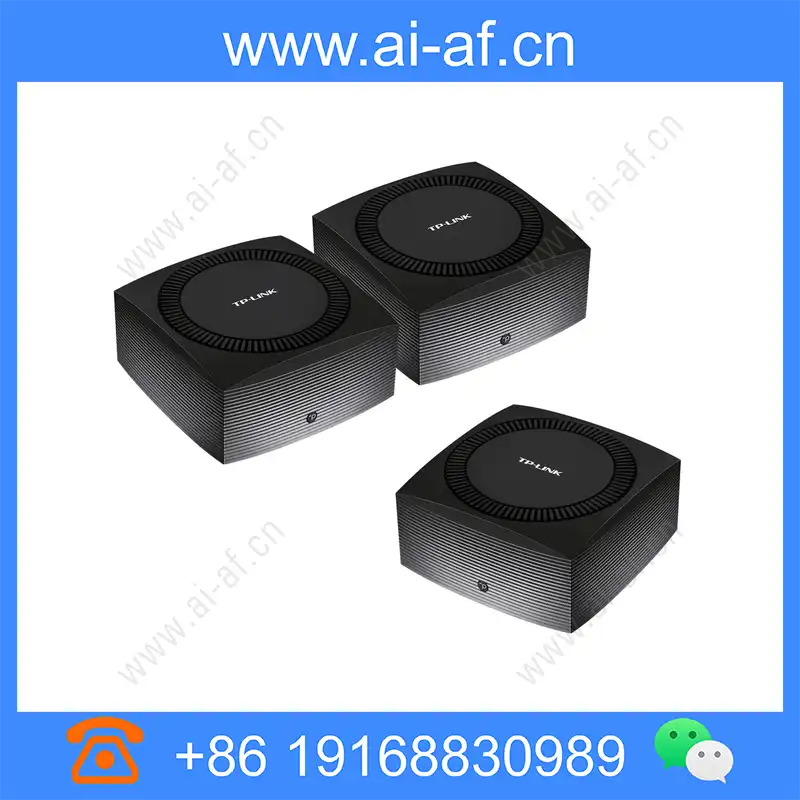

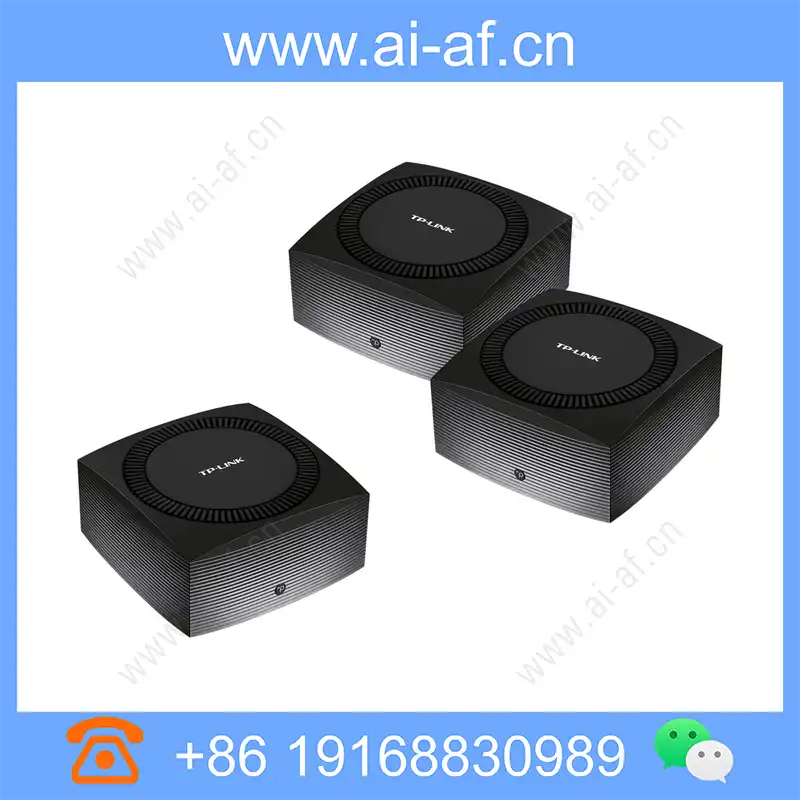

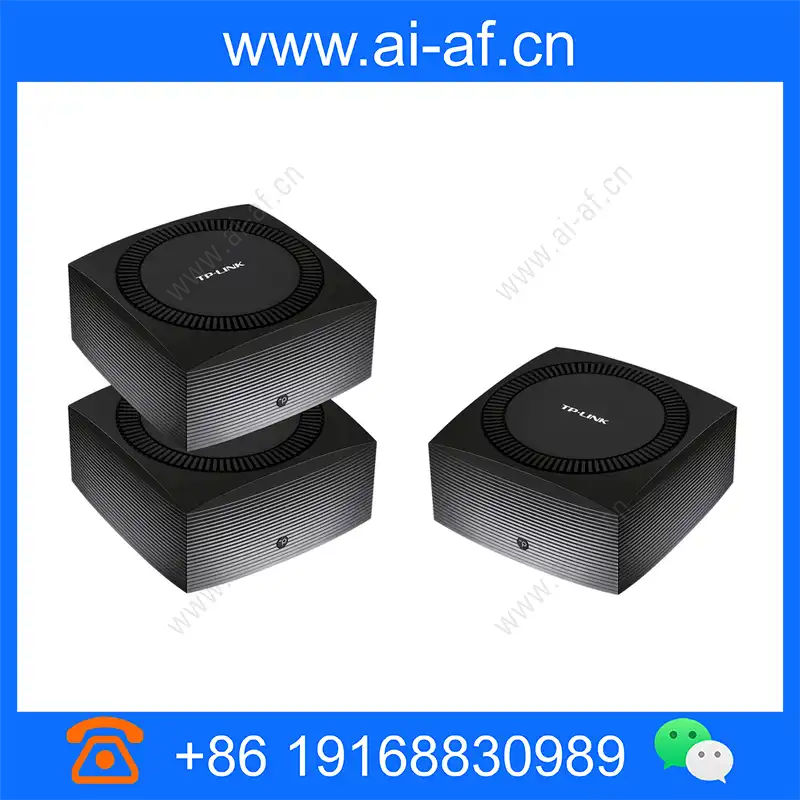

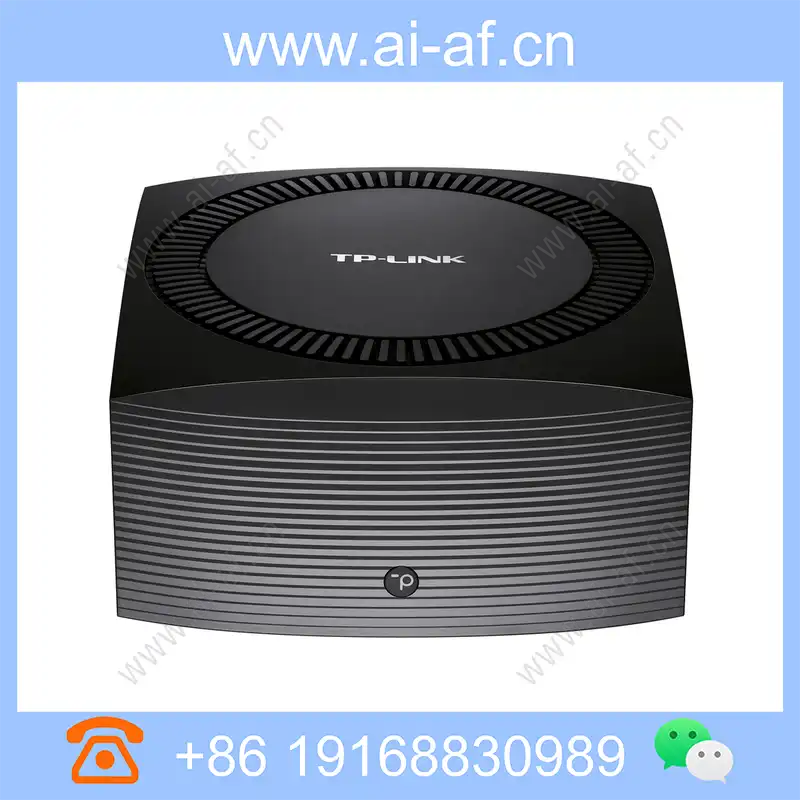

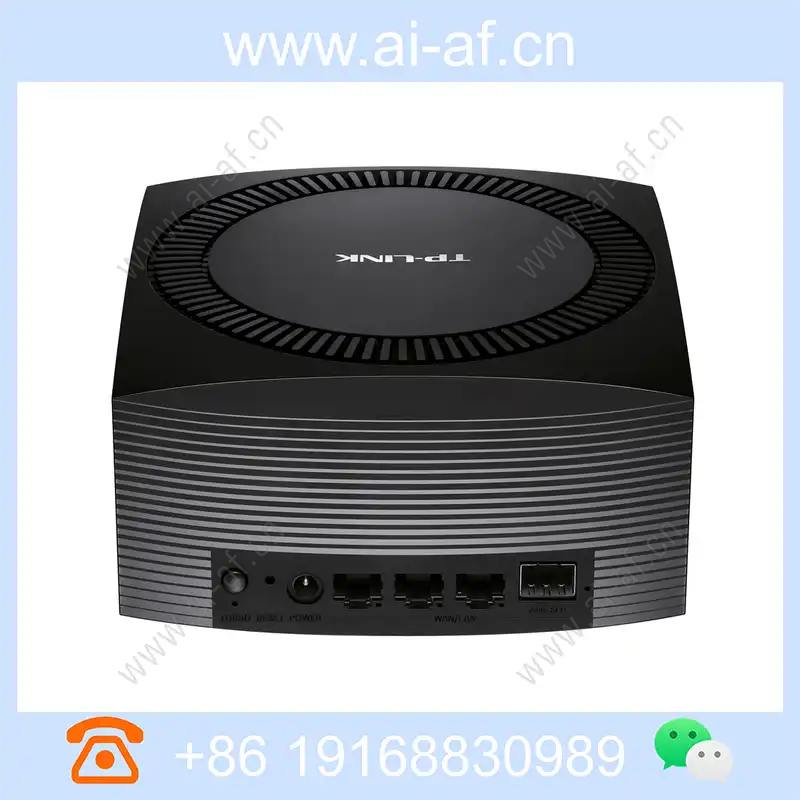

TP-LINK K66 Tri-band Wi-Fi 6 Easy-Zhan Routing Set (2.5G Port)

Brand: TP-LINK
Model: K66
Dimensions: 150mm x 150mm x 82.30mm

Wi-Fi

IEEE 802.11a/b/g/n/ac/ax wireless protocol

Maximum wireless rate 5378Mbps (2.4GHz 574Mbps, 5G1 2402Mbps, 5G2 2402Mbps*)

< p>*Following regulations, select China 5G2 frequency band in the regional settings does not support 160MHz

Beamforming (Beamforming)

Wi-Fi multi-frequency integration

easy

Ethernet port

3 10/100/1000Mbps rate auto-adaptive WAN/LAN ports; 1 2.5Gbps rate auto-adaptive SFP interface, support WAN/LAN auto-adaptation (blind insertion of network ports)

Antenna type

Built-in omnidirectional antennas: 2 2.4G antennas, 4 5G antennas

Software function

Signal Conditioning

Terminal Management

IP and MAC Address Binding

AP Isolation

Virtual Server<


Technical Specifications

Property DescriptionProperty Value
Wi-Fi

IEEE 802.11a/b/g/n/ac/ax wireless protocol

Maximum wireless rate 5378Mbps (2.4GHz 574Mbps, 5G1 2402Mbps, 5G2 2402Mbps*)

< p>*Following regulations, select China 5G2 frequency band in the regional settings does not support 160MHz

Beamforming (Beamforming)

Wi-Fi multi-frequency integration

easy

Ethernet port

3 10/100/1000Mbps rate auto-adaptive WAN/LAN ports; 1 2.5Gbps rate auto-adaptive SFP interface, support WAN/LAN auto-adaptation (blind insertion of network ports)

Antenna type

Built-in omnidirectional antennas: 2 2.4G antennas, 4 5G antennas

Software function

Signal Conditioning

Terminal Management

IP and MAC Address Binding

AP Isolation

Virtual Server< /p>

DDNS

DMZ host

automatic cleaning

wireless timer switch

port customization

band customization

local online/local firmware/remote upgrade

management

Computer / Mobile / PAD Web Management

Mobile App Management

Safety

WPA-PSK, WPA2-PSK, WPA3 wireless encryption

host network, guest network

administrator identity limited

power supply

DC power supply, factory delivery 12V / 2.5A power adapter

packing list

3 routers

3 power adapters 12V/2.5A

3 network cables (1 meter)

Quick Installation Guide 1

1 parameter record label

size and weight

Length*width*height: 150*150*82.3mm
