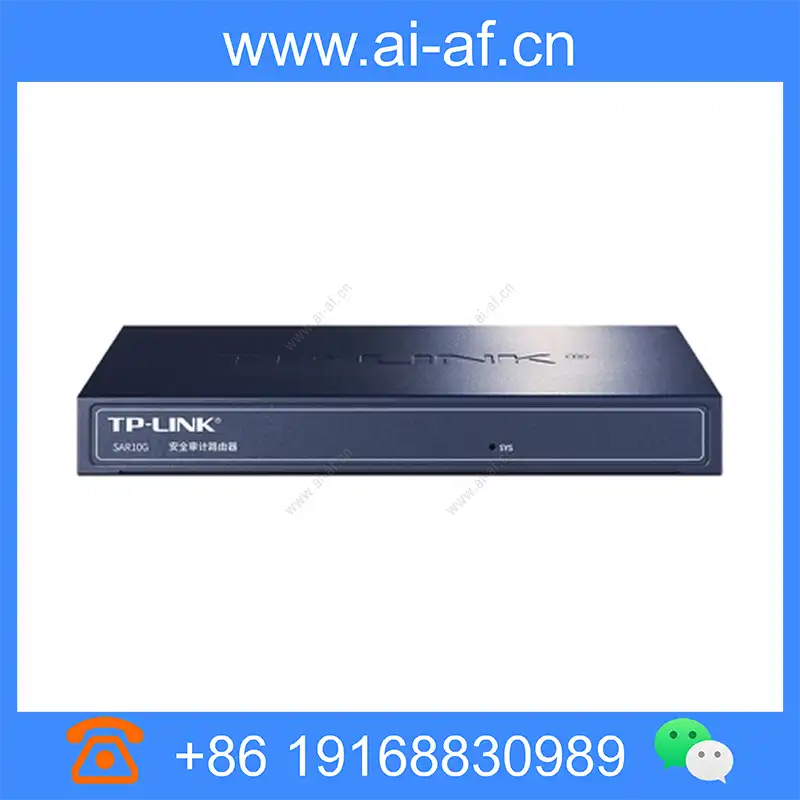

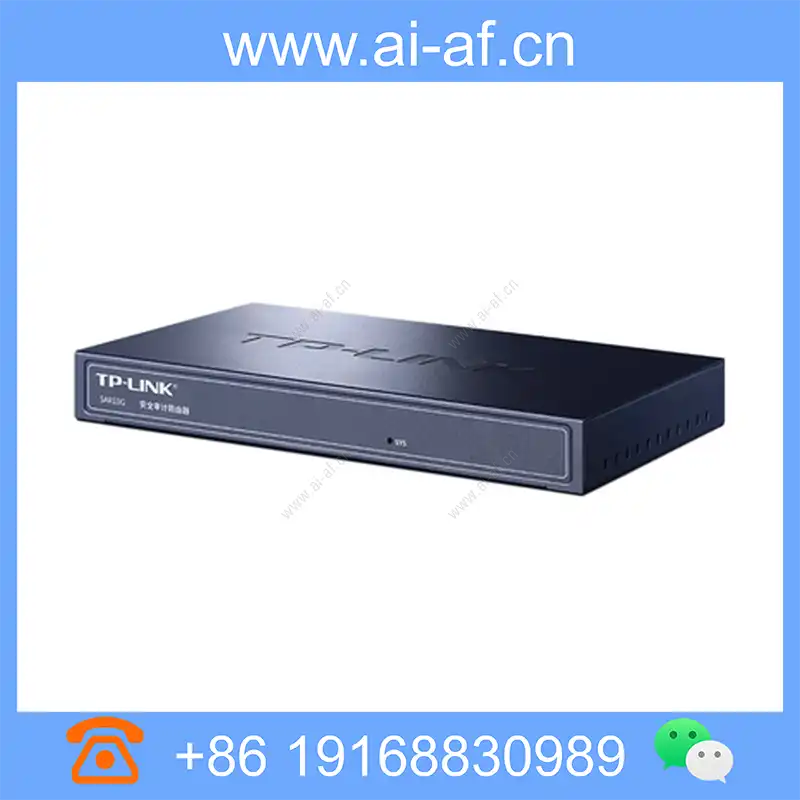

TP-LINK SAR10G Security Audit Router
5 Gigabit Ethernet ports, 1WAN+4LAN Support Internet information security audit, in line with the requirements of the Ministry of Public Security Order 82 Support security audit function in narcles mode High-performance hardware platform with strong performance With dual-core network-specific processors, main frequency 880MHz, with 128MB DDRIII high-speed memory, powerful processing performance. Support Internet information security audit, in line with the requirements of the Ministry of Public Security Order 82 port 1 10/100/1000M RJ45 WAN port 3 10/100/1000M RJ45 WAN/LAN configurable ports 1 10/100/1000M RJ45 LAN port Indicator light Per port: Link/Act Per device: SYS Dimensions 209(w)x126(D)x26(H) mm Input power 100~240V AC,50/60Hz Cooling method Natural cooling Use environment
Product Features
High-performance hardware platform with strong performanceWith dual-core network-specific processors, main frequency 880MHz, with 128MB DDRIII high-speed memory, powerful processing performance. Support Internet information security audit, in line with the requirements of the Ministry of Public Security Order 82 |
Technical Specifications
| Property Description | Property Value |
|---|---|

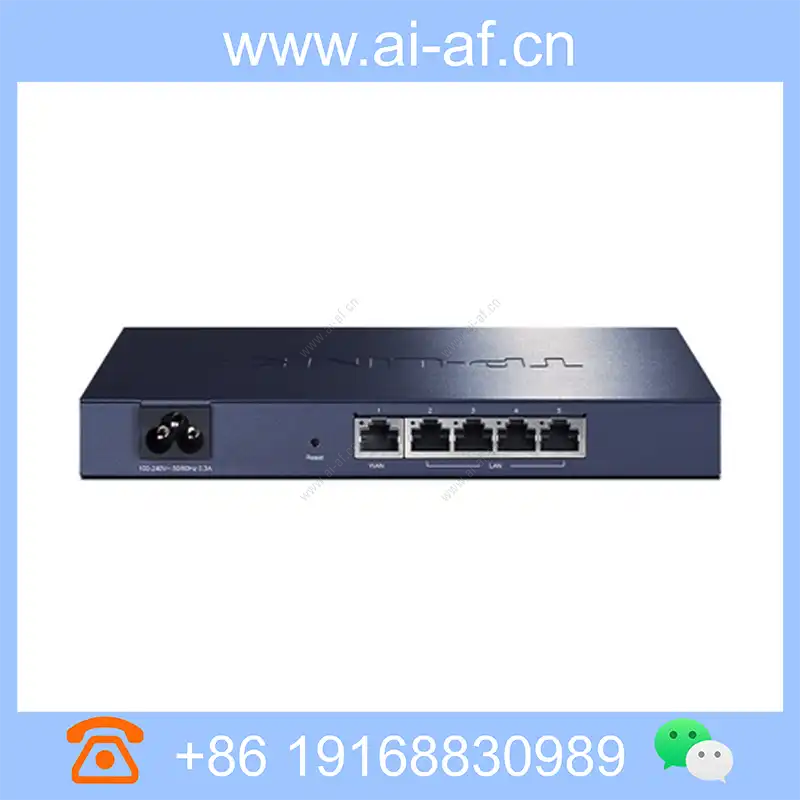

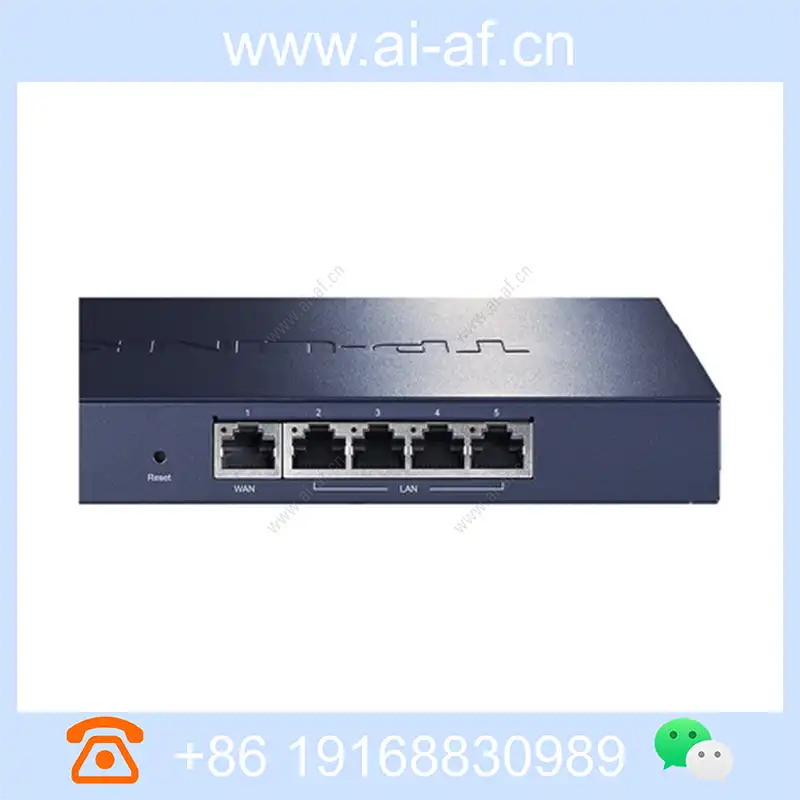

| port | 1 10/100/1000M RJ45 WAN port 3 10/100/1000M RJ45 WAN/LAN configurable ports 1 10/100/1000M RJ45 LAN port |
| Indicator light | Per port: Link/Act Per device: SYS |
| Dimensions | 209(w)x126(D)x26(H) mm |
| Input power | 100~240V AC,50/60Hz |
| Cooling method | Natural cooling |
| Use environment | Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing |
| Typical belt load | 50-80 sets |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS |
| Operating status | Interface information Traffic statistics Hardware resource utilization |
| Interface settings | WAN settings (Internet settings/traffic balance/ISP balance) LAN settings (LAN port parameters/DHCP server settings) |
| AP management | AP settings, manage up to 20 TP-LINK AP wireless network settings wireless host status |
| security audit | Meet the requirements of Order 82 of the Ministry of Public Security |
| Behavior control | Application control, one-key control of social software/ video software/ music software/ shopping and leisure software/ news information software/ P2P software/ financial software/ online games/ application stores/ basic applications, etc. Dozens of common applications limit QQ black and white list website group filtering Filter web page file types, intelligent two-way bandwidth control and connection limit access control list (ACL) behavior audit |
| Safety management | ARP protection (IP+MAC binding, GARP) MAC address filtering Attack protection (DoS attack protection, suspicious packet attack protection) |
| VPN | IPSec VPN (10 tunnels) PPTP/L2TP VPN (20 tunnels, shared), support server and client mode |
| Certification Management | Web authentication, support local authentication, Radius authentication, one-click Internet access, meet multiple authentication needs SMS authentication, meet real-name authentication requirements, and can be based on mobile phone number for secondary marketing Customizable authentication page, easily push text and image ads, carry out Marketing promotion certification-free strategy |
| Advanced Features | PPPoE authentication server with 50 routing settings (policy routing, static routing, system routing) NAT settings (NAPT, one-to-one NAT, ALG, virtual server, NAT DMZ) DDNS (peanut shell, Kemai, 3322) UPnP IP traffic statistics port monitoring |
| System Tools | Chinese Web network management, remote management configuration backup and import configuration software upgrade, automatic cleanup diagnostic tools (ping detection, tracert detection, fault diagnosis) system time settings system logs |
