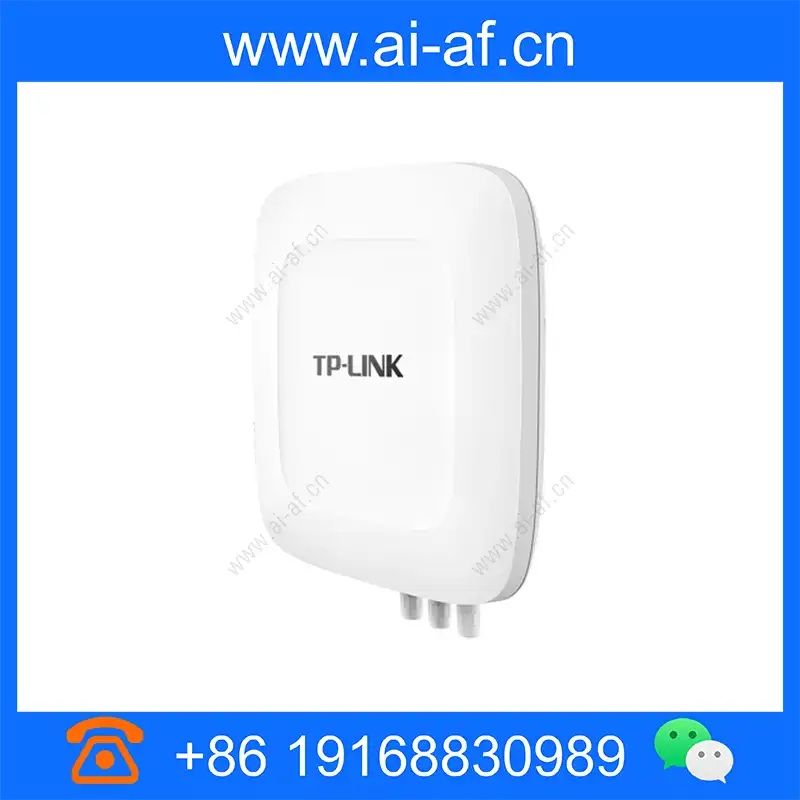

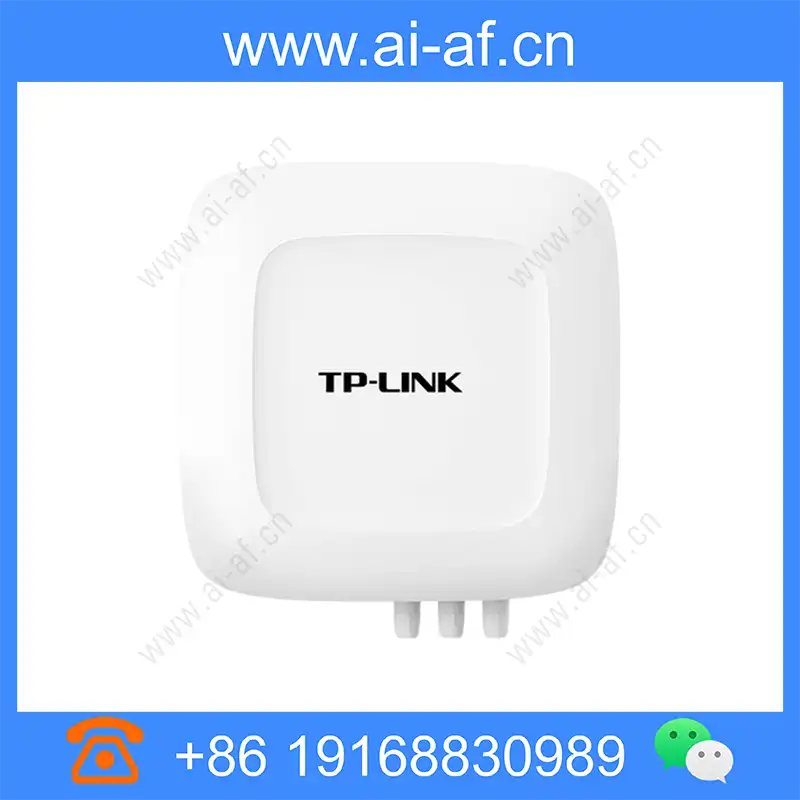

TP-LINK TL-AP1902GP OmniDirectional Easy Exhibition Version AC1900 Dual-band Outdoor High-power Wireless AP

Brand: TP-LINK
Model: TL-AP1902GP-full-to-exassembly-version
Dimensions: 360mm x 360mm x 73mm

11AC dual-band concurrent, the highest wireless rate can reach 1900Mbps Gigabit SFP optical port, direct connection is more convenient Support for Easy Exhibition Mesh Network, child-node free wiring, cover blind spot signal extension is more convenient Fat skin, FIT / FAT mode software adaptive setting, no independent hardware adjustment Built-in 5dBi omniDirectional antenna, independent RF circuit design, coverage radius up to 500 meters Professional outdoor shell design, waterproof and dustproof grade up to IP68, working temperature up to -30℃~65℃, adapt to various harsh environments Automatic RF tuning to optimize overall performance Intelligent roaming to improve wireless experience (11r is not currently supported, and the software is updated recently) Support TP-LINK commercial

Product Features

  • 11AC dual-band concurrent, the highest wireless rate can reach 1900Mbps
  • Gigabit SFP optical port, direct connection is more convenient
  • Support for Easy Exhibition Mesh Network, child-node free wiring, cover blind spot signal extension is more convenient
  • Fat skin, FIT / FAT mode software adaptive setting, no independent hardware adjustment
  • Built-in 5dBi omniDirectional antenna, independent RF circuit design, coverage radius up to 500 meters
  • Professional outdoor shell design, waterproof and dustproof grade up to IP68, working temperature up to -30℃~65℃, adapt to various harsh environments
  • Automatic RF tuning to optimize overall performance
  • Intelligent roaming to improve wireless experience (11r is not currently supported, and the software is updated recently)
  • Support TP-LINK commercial network cloud platform, business cloud APP centralized management

Technical Specifications

Property DescriptionProperty Value
Product model
  • TL-AP1902GP full-to-exassembly version
Installation method
  • Picklest / Wall installation
size
  • 360x360x73mm
wireless
  • 2.4GHz band: 600Mbps
  • 5GHz band (11ac): 1300Mbps

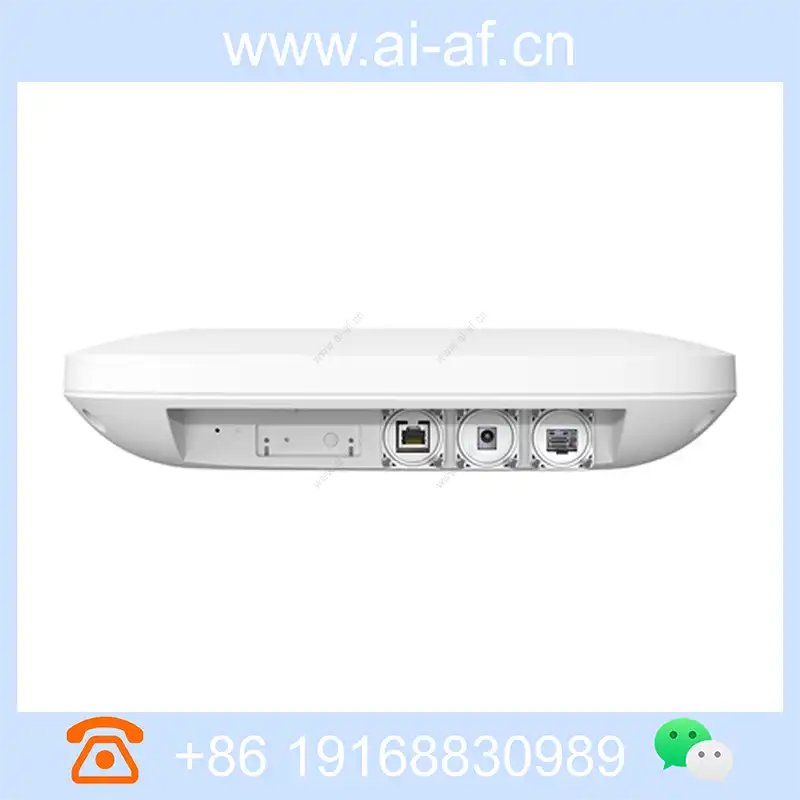

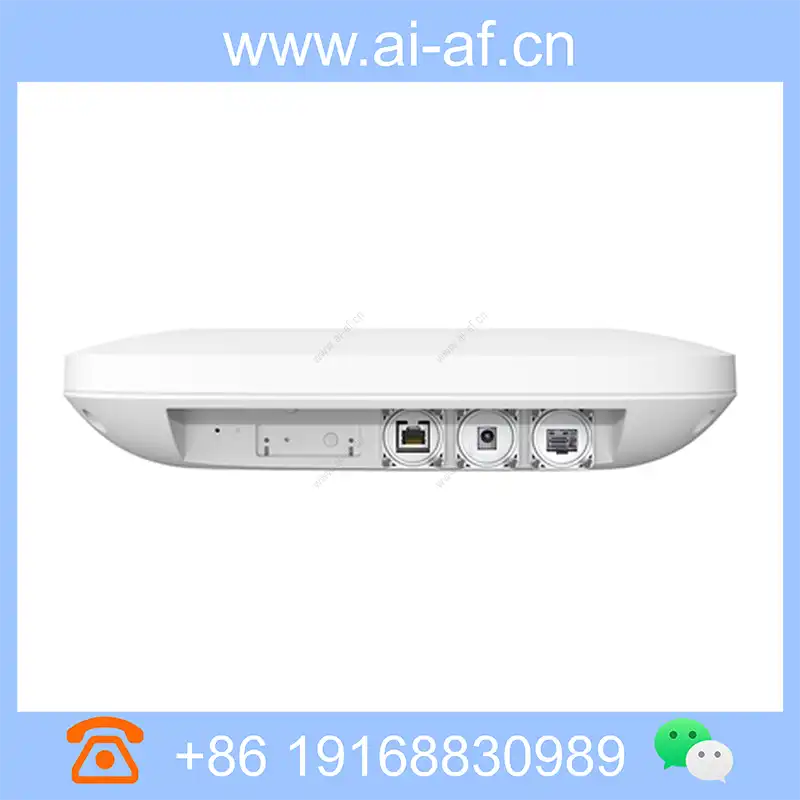

port
  • 1 10/100/1000M RJ45 port
  • 1 1000Mbps SFP interface
  • 1 DC port
Indicator light
  • 1 system indicator
  • 1 SFP indicator
Button
  • 1 reset button
  • 1 easy exhibition matchup button
Power supply
  • 802.3af / at standard PoE power supply
  • 12-53.5V DC power supply
  • 53.5VDC / 0.81A Passive PoE power supply, power supply distance up to 100M
Maximum machine power consumption
  • 24W
management
  • FIT AP mode: Unified Management
  • FAT AP Mode: Independent Web Page Management
  • TP-LINK Commercial Network Cloud Platform centralized management
Use environment
  • operating temperature: 0°C ~ 40°C
  • Working humidity: 10% ~ 90% RH does not condense
  • storage temperature: -40°C ~ 70°C
  • Storage humidity: 5% ~ 90% RH does not condense
wireless function
  • SSID broadcast: Support
  • SSID quantity: 8 (2.4GHz) +8 (5GHz), support Chinese SSID
  • network type: Visitor network, employee network < / li>
  • Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK
  • User Isolation: Wi-Fi interval, AP internal isolation
  • wireless MAC address filtering: Support white list (100)
  • VLAN settings: Support SSID and TAG VLAN binding
  • Transmission power setting: Support 1DBM linear adjustment
  • wireless client number limit : Support
  • QoS: WMM
  • WDS: Support
  • kicking weak signal equipment, no weak signal access: Support
Maximum number of connectable clients
  • 64(2.4GHz)+64(5GHz)
System Management
  • device management: full Chinese Web Management
  • restore factory setting: Support
  • backup configuration: support
  • Import configuration: Support
  • software upgrade: support
  • ping watchdog: Support
