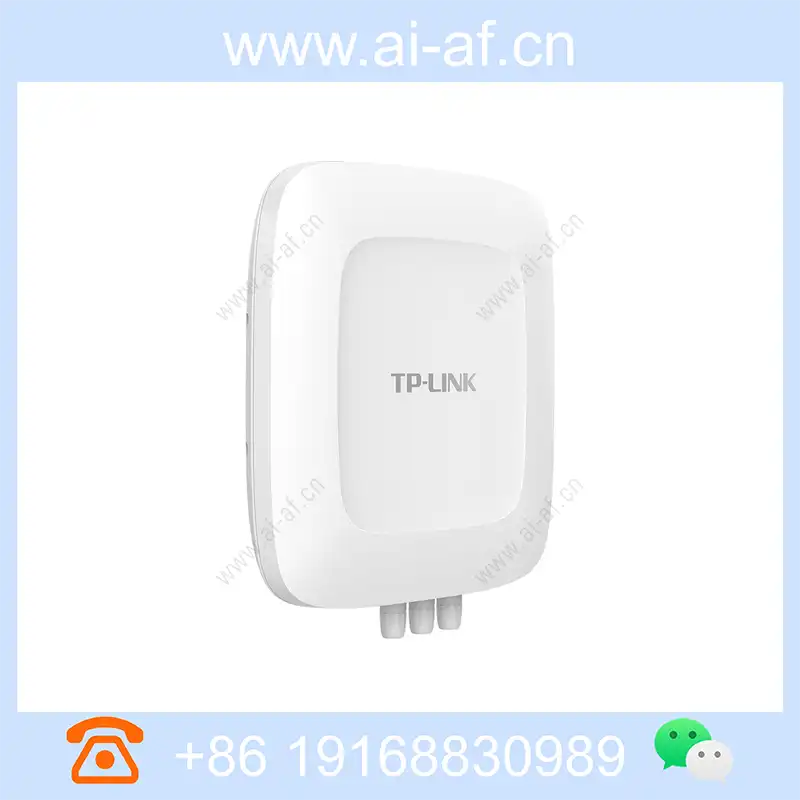

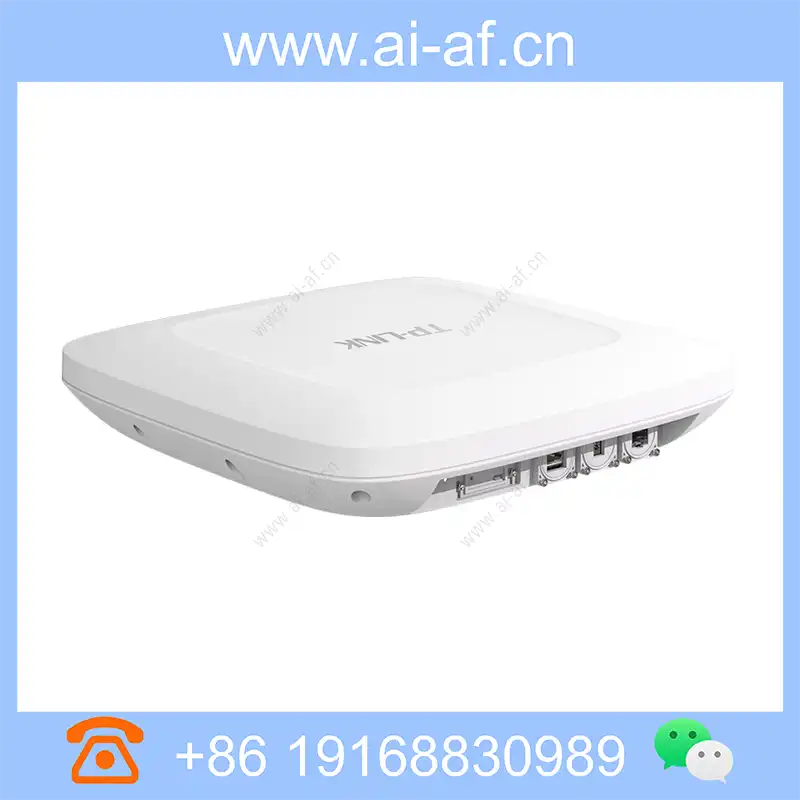

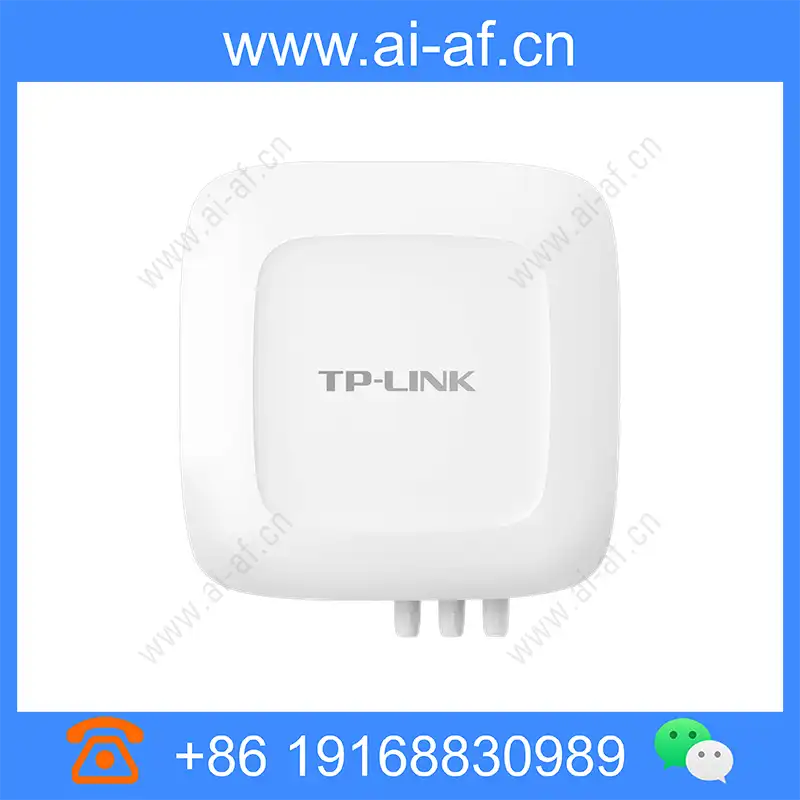

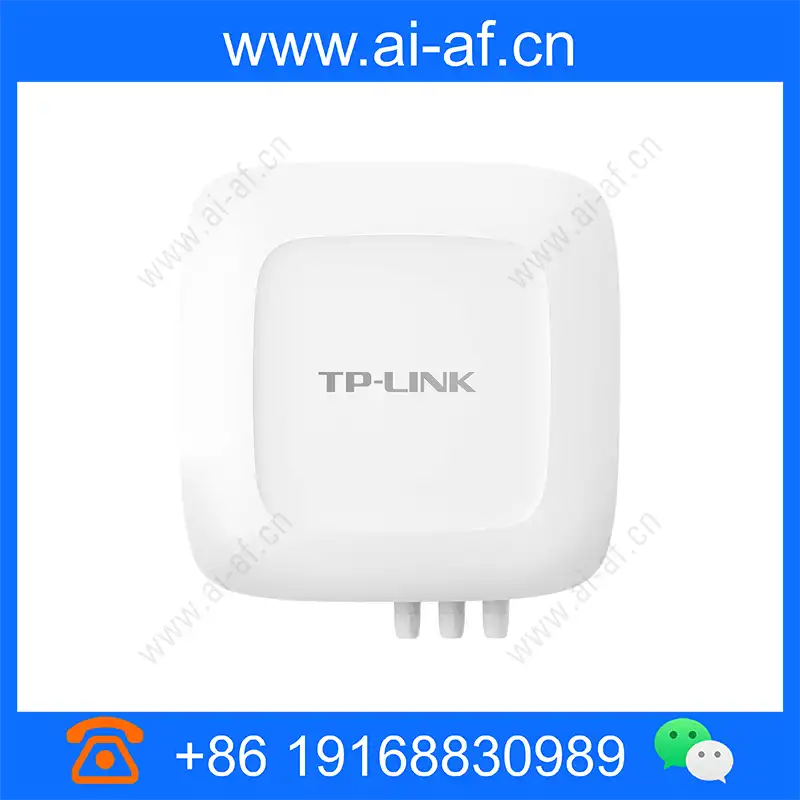

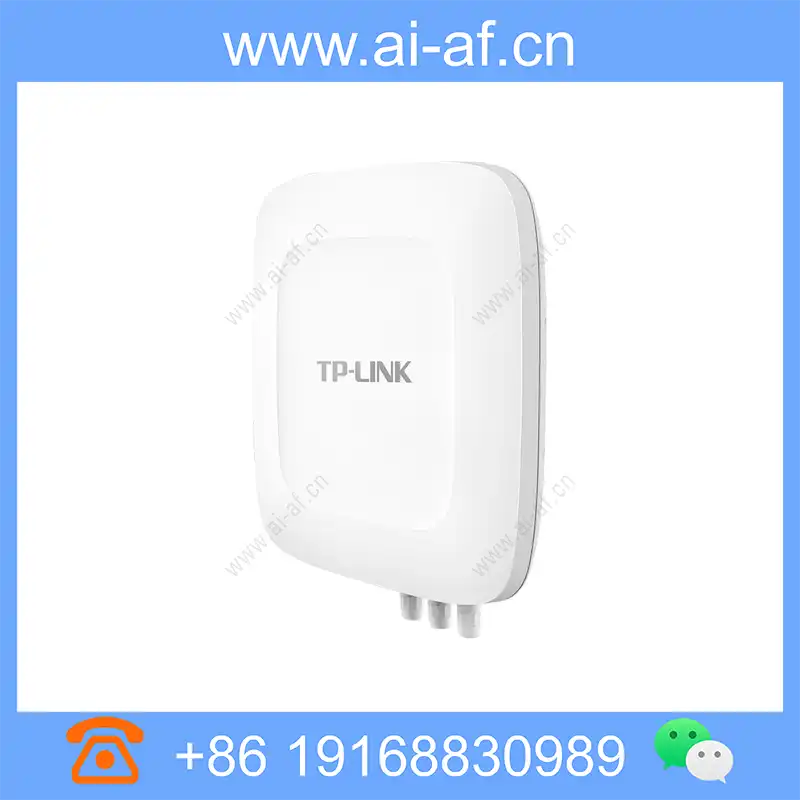

TP-LINK TL-AP1902GP Omnidirectional AC1900 dual frequency outdoor high power wireless AP
11AC dual-band concurrent, the highest wireless rate can reach 1900Mbps Gigabit network port, with AC1900 wireless speed, truly exert the capability of Gigabit port Gigabit SFP optical port, direct connection is more convenient Built-in 5dBi omniDirectional antenna, independent RF circuit design, coverage radius up to 500 meters Professional outdoor shell design, waterproof and dustproof grade up to IP68, working temperature up to -30℃~65℃, adapt to various harsh environments Automatic RF tuning to optimize overall performance Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance Intelligent roaming to improve wireless experience (11r is not currently supported, and the software is updated recently) DC, 802.3at PoE and
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP1902GP OmniDirectional |
| Installation method | Pole / wall mounting |
| size | 360x360x73mm |
| wireless | 2.4GHz band: 600Mbps 5GHz band: 1300Mbps |
| port | 1 10/100/1000Mbps RJ45 port 1 1000Mbps SFP interface 1 DC interface |
| antenna | Built-in 5dBi omniDirectional antenna |
| Antenna coverage angle | 360° |
| Indicator light | 1 system indicator 1 SFP indicator |
| Button | 1 RESET button 1 FAT/FIT mode toggle switch |
| power supply | 53.5VDC/0.81A Passive PoE power supply, power supply distance up to 100M IEEE 802.3at standard PoE power supply 12-53.5V DC power supply (factory delivery DC power adapter and PoE power supply) |
| Management method | FAT AP mode: Web page self-management FIT AP mode: wireless controller (AC) centralized management TP-LINK commercial network cloud platform centralized management |
| Environmental protection | IP68 dustproof and waterproof |
| Use environment | Operating temperature: -30°C~65°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Recommended coverage distance (open environment) | 2.4G: 300 meters 5G: 500 meters (when used with different wireless terminals, the actual coverage distance may vary) |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks, AP internal isolation Wireless MAC address filtering: support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM kick out weak signal devices, prohibit Weak signal equipment access: support |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
