TP-LINK TL-EN4266G 42U Network Cabinet
Product model
TL-EN4266G
42U, 19-inch standard cabinet
600mm(width)*600mm(depth)*2000mm(height)
SPCC cold rolled steel sheet, SGCC galvanized sheet
Landing

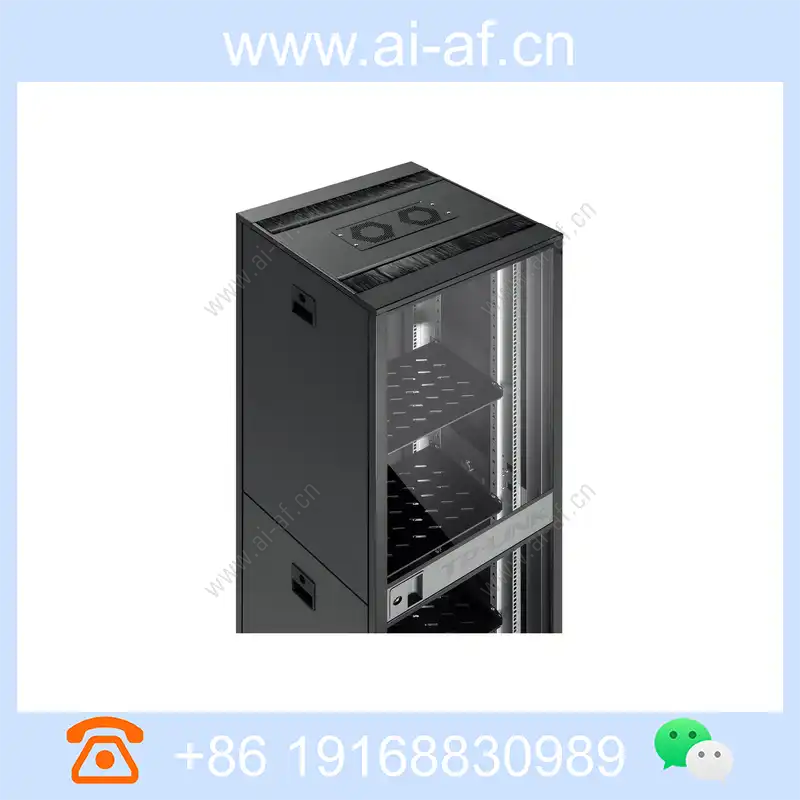

Top fan hole + bottom cooling hole + removable side door
Top brush/Side trace/Bottom trace
Square hole strip*4, floating nut*40, door lock key*2, fan module*1, load-bearing tray*3, segmented removable side door*4, removable bottom cover*1 , detachable top cover with brush*1, detachable glass door*1, detachable steel plate rear door*1, universal casters*4, feet*4
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-EN4266G |
| capacity | 42U, 19-inch standard cabinet |
| size | 600mm(width)*600mm(depth)*2000mm(height) |
| Material | SPCC cold rolled steel sheet, SGCC galvanized sheet |
| Installation method | Landing |
| Heat dissipation | Top fan hole + bottom cooling hole + removable side door |
| Overline | Top brush/Side trace/Bottom trace |
| Accessories | Square hole strip*4, floating nut*40, door lock key*2, fan module*1, load-bearing tray*3, segmented removable side door*4, removable bottom cover*1 , detachable top cover with brush*1, detachable glass door*1, detachable steel plate rear door*1, universal casters*4, feet*4 |
| Recommended accommodating device depth | ≤440mm |
