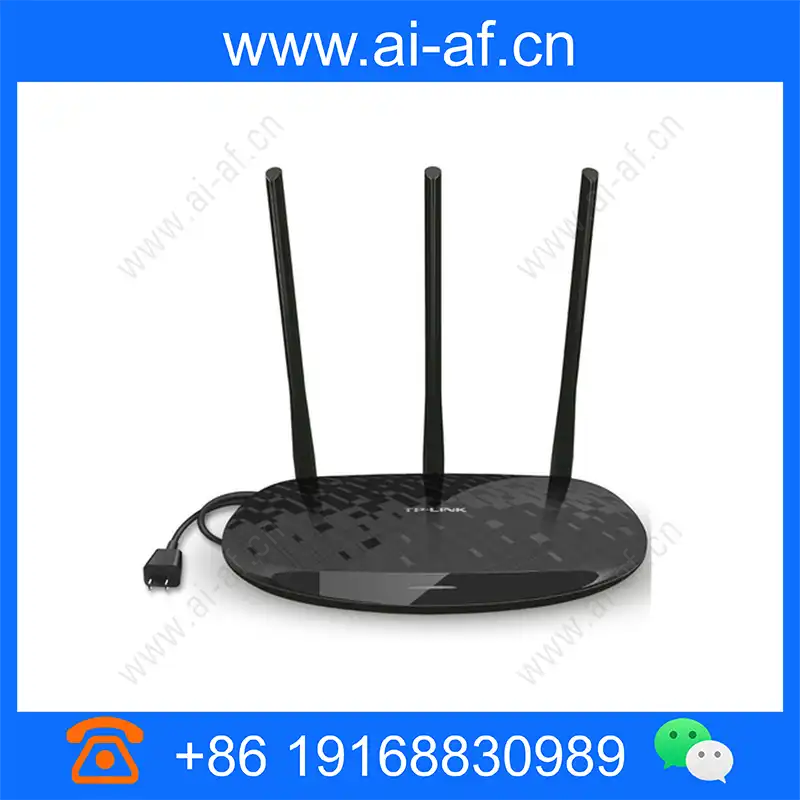

TP-LINK TL-H39RD 450M HyFi Wireless Router
Protocol standard IEEE 802.11n、IEEE 802.11g、IEEE 802.11b IEEE 802.3、IEEE 802.3u Homeplug AV Wireless rate 450Mbps Power line rate 500Mbps interface 2 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M adaptive WAN ports, support auto flip (Auto MDI/MDIX) Button Reset button LED System indicator antenna 3 external fixed omniDirectional antennas size 201mm x 142mm x 34mm(L x W x H) basic skills Wireless switch SSID broadcast switch Channel selection: 1-13 Bandwidth optional: 20MHz, 40MHz, automatic Wireless mode optional: 11n only, 11 bgn mixed, 11 bg mixed, 11g only, 11b only Wireless security Wireless MAC address filtering Wireless security function switch WPA-PSK/WPA2-PSK Other functions Support wireless roaming, wireless host status display Useful functions IP
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE 802.11n、IEEE 802.11g、IEEE 802.11b IEEE 802.3、IEEE 802.3u Homeplug AV |
| Wireless rate | 450Mbps |
| Power line rate | 500Mbps |
| interface | 2 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M adaptive WAN ports, support auto flip (Auto MDI/MDIX) |
| Button | Reset button |
| LED | System indicator |
| antenna | 3 external fixed omniDirectional antennas |
| size | 201mm x 142mm x 34mm(L x W x H) |
| basic skills | Wireless switch SSID broadcast switch Channel selection: 1-13 Bandwidth optional: 20MHz, 40MHz, automatic Wireless mode optional: 11n only, 11 bgn mixed, 11 bg mixed, 11g only, 11b only |
| Wireless security | Wireless MAC address filtering Wireless security function switch WPA-PSK/WPA2-PSK |
| Other functions | Support wireless roaming, wireless host status display |
| Useful functions | IP bandwidth control function Parental control, Internet control Peanut shell DDNS |
| Network settings | WAN port connection type automatic detection WAN port connection type support: PPPoE, dynamic IP, static IP Dialing type: automatic dialing, on-demand dialing, manual dialing MAC address modification and cloning Static routing |
| DHCP settings | DHCP server Client list Static address assignment |
| Port forwarding | Virtual server DMZ host UPnP settings |
| Security Settings | IP and MAC address binding to prevent ARP attacks, parental control, Internet control |
| System Tools | Traffic Statistics System Security Log Local Web Management Control Remote Web Management Configuration File Import and Export Web Software Upgrade |
| Packaging accessories | 450M HyFi Wireless Router TL-H39RD User Manual Warranty Card Declaration of Toxic and Harmful Substances |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
