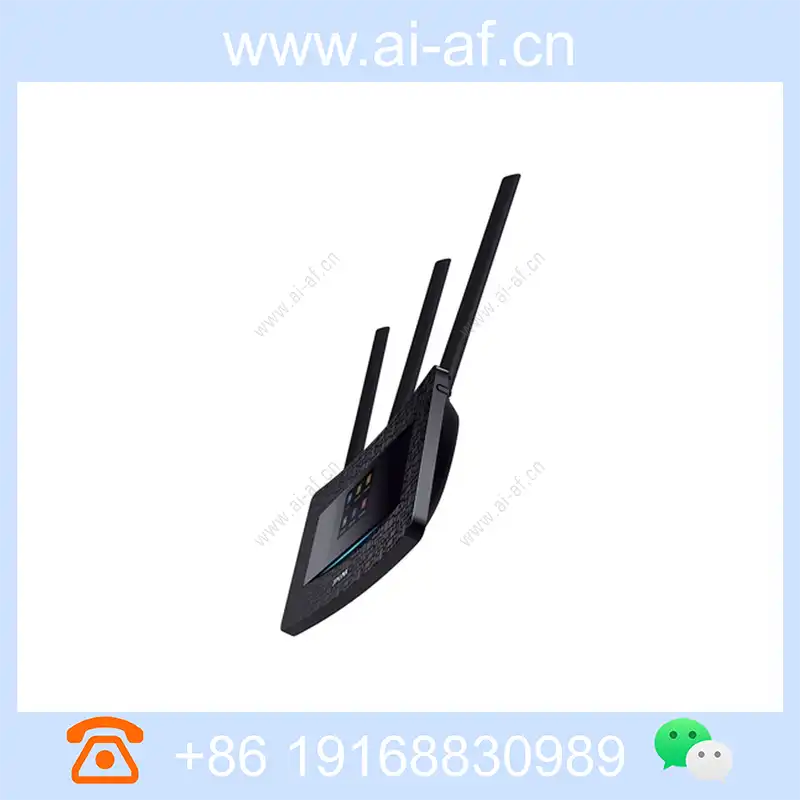

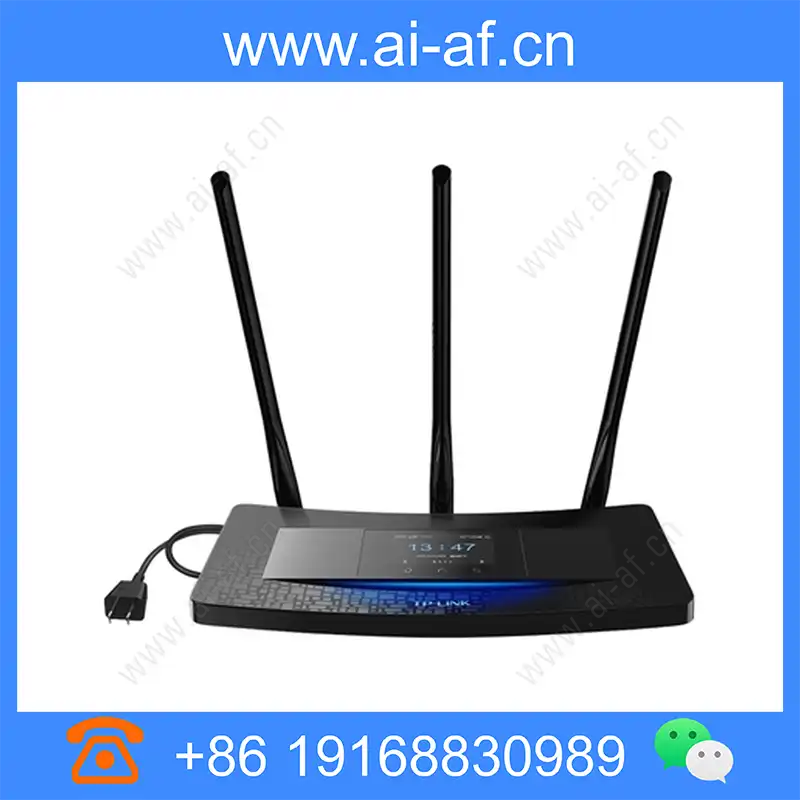

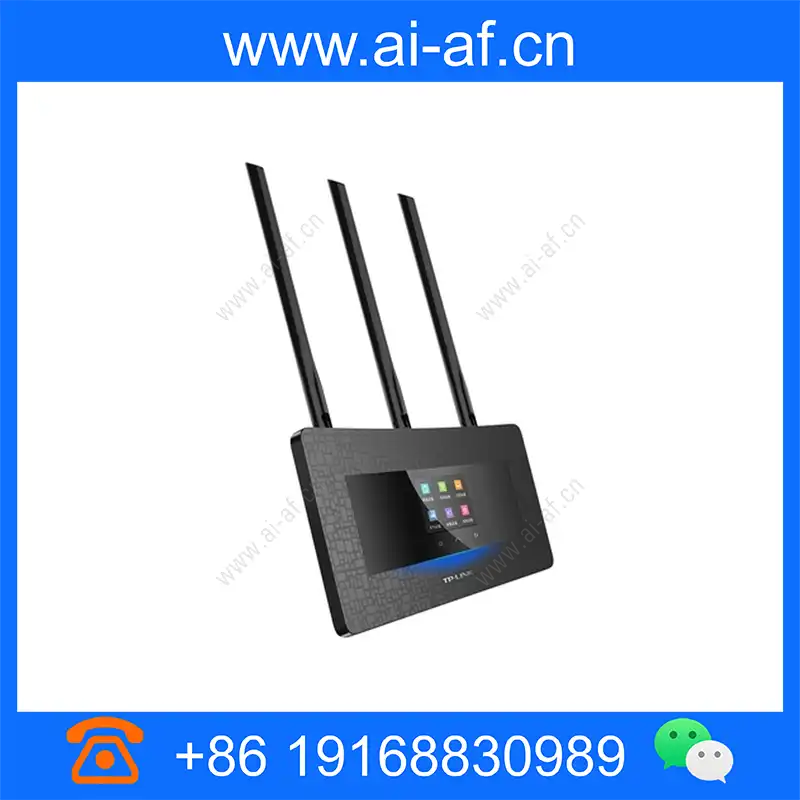

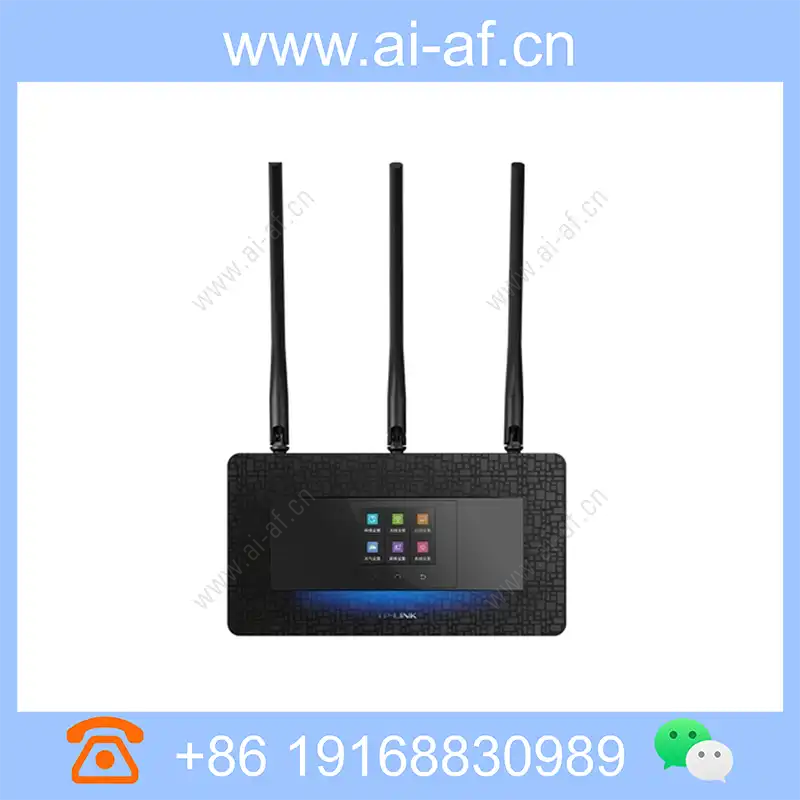

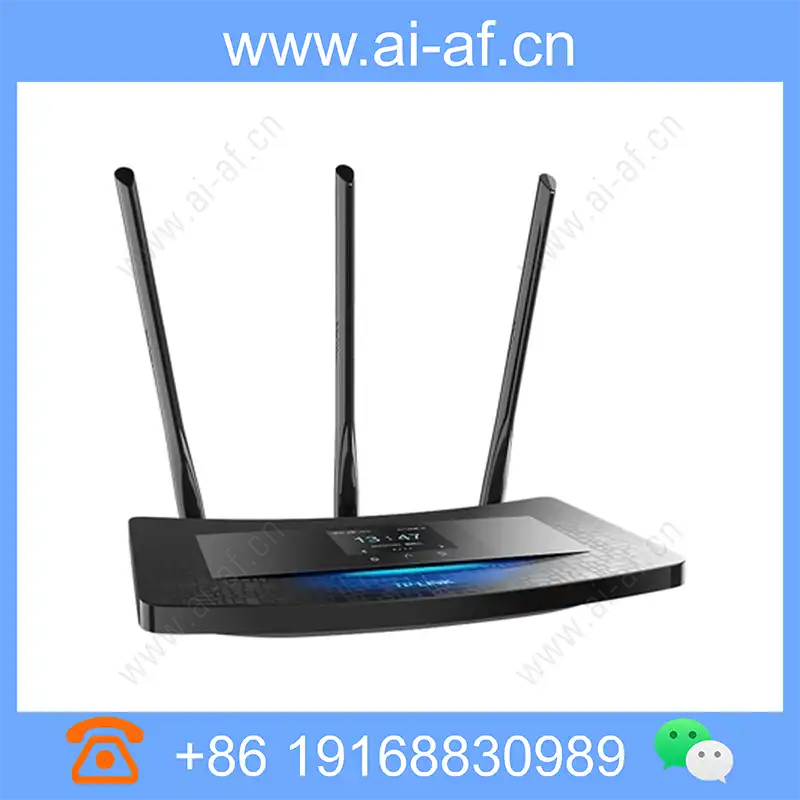

TP-LINK TL-H39RT Touch Screen HyFi Wireless Router
Protocol standard IEEE 802.11n、IEEE 802.11g、IEEE 802.11b; IEEE 802.3、IEEE 802.3u; Homeplug AV Wireless rate 450Mbps Power line rate 500Mbps screen 320*240 2.4 inches, with resistive touch screen Equipped with a resistive stylus interface 2 10/100M adaptive LAN ports, support automatic flip (Auto MDI/MDIX); 1 10/100M adaptive WAN port, support automatic flip (Auto MDI/MDIX); Button Reset button LED System indication; Key lamp; antenna 3 external fixed omniDirectional antennas size 242mm*131mm *41mm(L x W x H) basic skills Wireless switch; SSID broadcast switch; Channel selection: 1-13; Band bandwidth selection: 20MHz, 40MHz, automatic; Wireless mode selection: 11n only, 11 bgn mixed, 11 bg mixed, 11g only, 11b only; Wireless security Wireless MAC address filtering; wireless security
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE 802.11n、IEEE 802.11g、IEEE 802.11b; IEEE 802.3、IEEE 802.3u; Homeplug AV |
| Wireless rate | 450Mbps |
| Power line rate | 500Mbps |
| screen | 320*240 2.4 inches, with resistive touch screen Equipped with a resistive stylus |
| interface | 2 10/100M adaptive LAN ports, support automatic flip (Auto MDI/MDIX); 1 10/100M adaptive WAN port, support automatic flip (Auto MDI/MDIX); |
| Button | Reset button |
| LED | System indication; Key lamp; |
| antenna | 3 external fixed omniDirectional antennas |
| size | 242mm*131mm *41mm(L x W x H) |
| basic skills | Wireless switch; SSID broadcast switch; Channel selection: 1-13; Band bandwidth selection: 20MHz, 40MHz, automatic; Wireless mode selection: 11n only, 11 bgn mixed, 11 bg mixed, 11g only, 11b only; |
| Wireless security | Wireless MAC address filtering; wireless security function switch; WPA-PSK/WPA2-PSK |
| other functions | Support wireless roaming; wireless host status display; |
| Useful functions | IP bandwidth control function; parental control, Internet control; weather forecast wireless timing off peanut shell DDNS; |
| Network settings | WAN port connection type automatic detection; WAN port connection type support: PPPoE, dynamic IP, static IP; dialing type: automatic dialing, on-demand dialing, manual dialing; MAC address modification and cloning; static routing; |
| DHCP settings | DHCP server; client list; static address assignment; |
| Port forwarding | Virtual server; DMZ host; UPnP settings; |
| Security Settings | IP and MAC address binding to prevent ARP attacks; Parental control; Internet control; |
| System Tools | Traffic statistics; System security log; Local Web management control; Remote Web management; Configuration file import and export; Web software upgrade; |
| Packaging accessories | Touch screen HyFi wireless router TL-H39RT resistive stylus; user manual; warranty card; declaration of toxic and hazardous substances |
| Use environment | Operating temperature: 0°C to 40°C; Storage temperature: -30°C to 70°C; Operating humidity: 10% to 90%RH non-condensing; Storage humidity: 5% to 90%RH non-condensing; |
