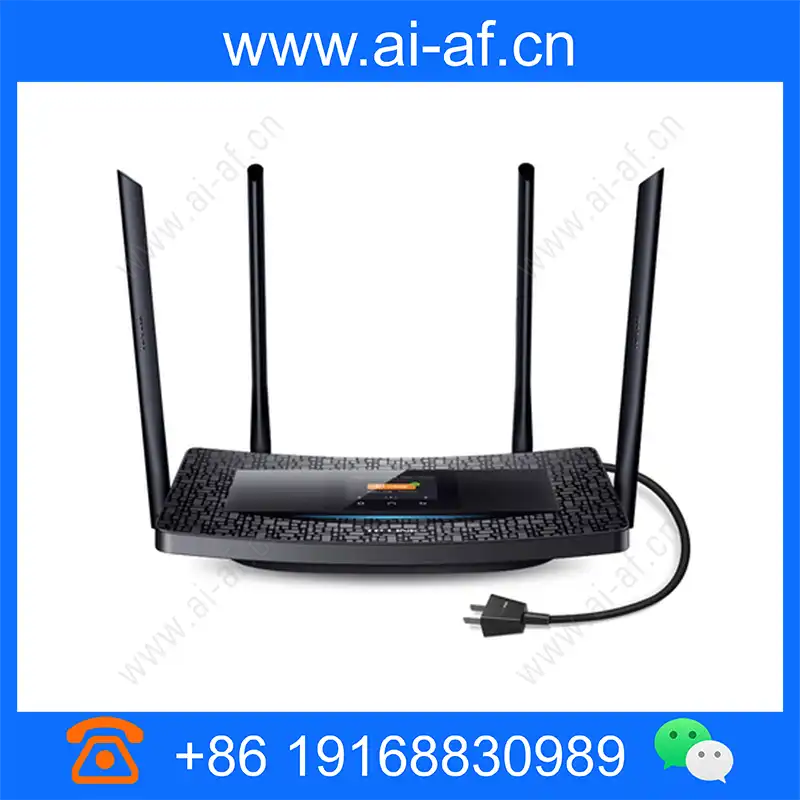

TP-LINK TL-H69RT Touch Screen HyFi Wireless Router
Protocol standard IEEE802.11ac IEEE802.11n IEEE802.11g IEEE802.11b IEEE802.11a IEEE802.3 IEEE802.3u Homeplug AV Wireless rate 2.4GHz band: 450Mbps 5GHz band: 433Mbps Power line rate 500Mbps interface 2 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M adaptive WAN ports, support auto flip (Auto MDI/MDIX) Button Reset button LED System indicator antenna 3 external 2.4GHz non-removable omniDirectional antennas 1 external 5GHz non-removable omniDirectional antennas size 242mm*131mm *41mm(L x W x H) screen 320*240 2.4 inches, with resistive touch screen Equipped with a resistive stylus basic skills Wireless switch SSID broadcast switch 2.4GHz channel selection: 1-13; 5GHz channel selection: 36, 40, 44, 48, 149, 153, 157, 161, 165 2.4GHz wireless mode options: 802.11b
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11ac IEEE802.11n IEEE802.11g IEEE802.11b IEEE802.11a IEEE802.3 IEEE802.3u Homeplug AV |
| Wireless rate | 2.4GHz band: 450Mbps 5GHz band: 433Mbps |
| Power line rate | 500Mbps |
| interface | 2 10/100M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M adaptive WAN ports, support auto flip (Auto MDI/MDIX) |
| Button | Reset button |
| LED | System indicator |
| antenna | 3 external 2.4GHz non-removable omniDirectional antennas 1 external 5GHz non-removable omniDirectional antennas |
| size | 242mm*131mm *41mm(L x W x H) |
| screen | 320*240 2.4 inches, with resistive touch screen Equipped with a resistive stylus |
| basic skills | Wireless switch SSID broadcast switch 2.4GHz channel selection: 1-13; 5GHz channel selection: 36, 40, 44, 48, 149, 153, 157, 161, 165 2.4GHz wireless mode options: 802.11b only, 802.11g only, 802.11n only, 802.11b/g mixed, 802.11b/g/n mixed 5GHz wireless mode optional: 802.11a/n mixed, 802.11ac/n/a mixed WDS wireless bridge |
| Wireless security | WPA-PSK / WPA2-PSK security mechanism |
| Other functions | Support wireless roaming, wireless host status display, AP isolation |
| Useful functions | IP bandwidth control function Peanut shell DDNS domain name login |
| Network settings | WAN port connection type support: PPPoE, dynamic IP, static IP Dialing type: automatic dialing, on-demand dialing, manual dialing MAC address cloning and modification WAN port rate adjustable static routing |
| DHCP settings | DHCP server DHCP client Client list Static address assignment |
| Port forwarding | Virtual server DMZ host UPnP settings |
| Security Settings | IP and MAC address binding to prevent ARP attacks LAN WEB management Remote WEB management |
| System Tools | Software upgrade Configuration file import and export System log |
| Packaging accessories | Touch Screen HyFi Wireless Router TL-H69RT User Manual Warranty Card Declaration of Toxic and Harmful Substances Router Parameter Record Label |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
