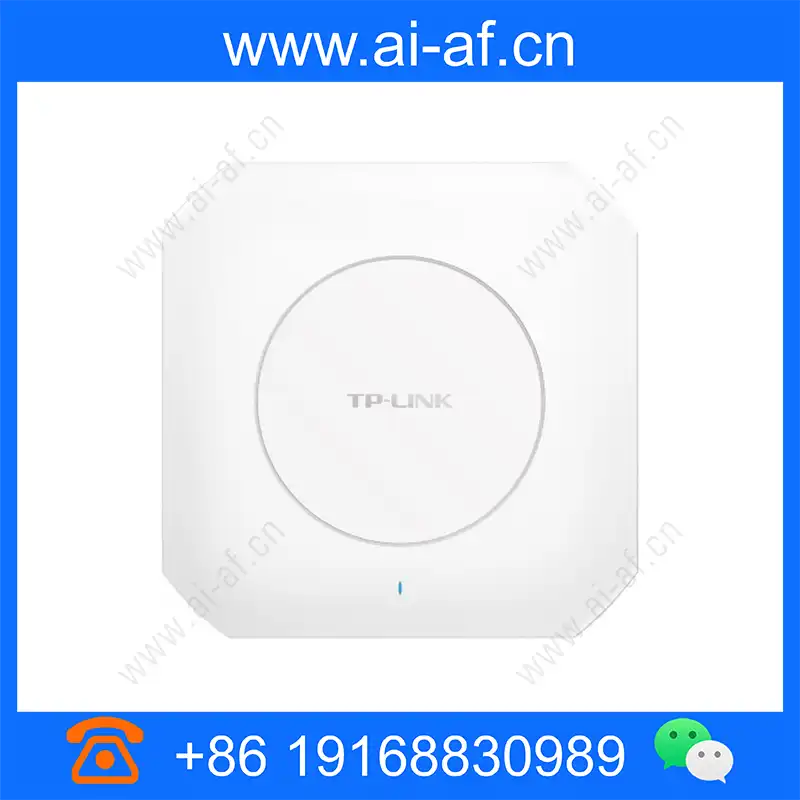

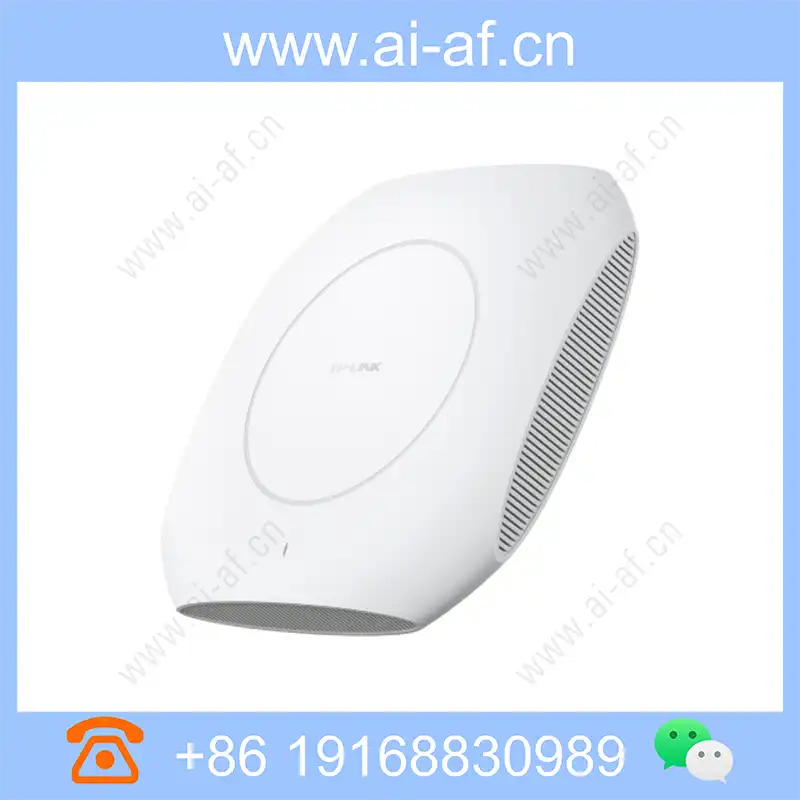

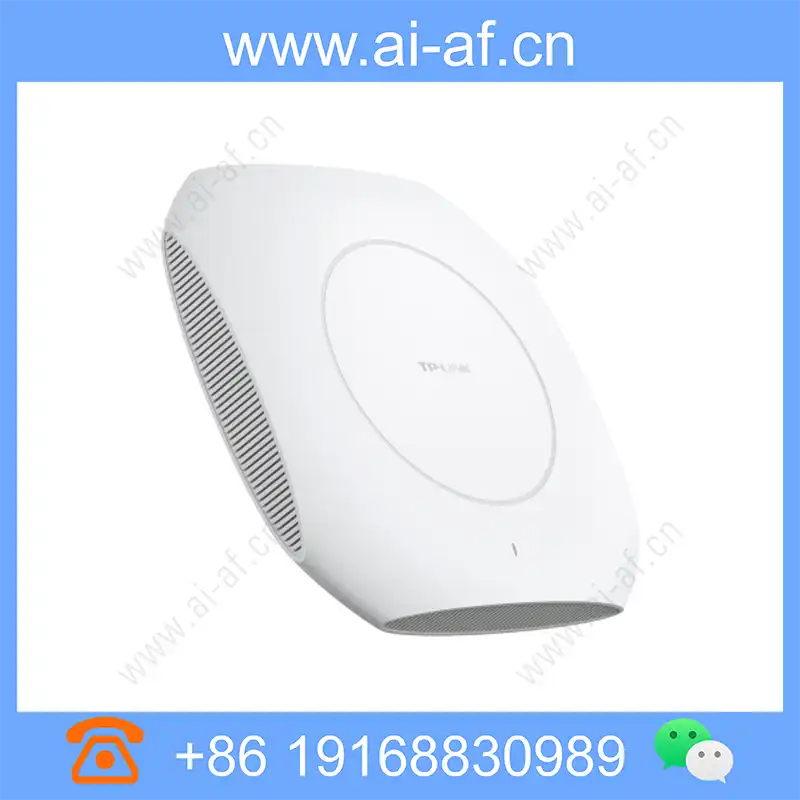

TP-LINK TL-HDAP4300GC-Non-standard PoE/DC 4300M tri-band high-density wireless ceiling AP
11AC tri-band concurrent, wireless rate up to 4300Mbps The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Automatic selection of suitable channels, smooth and stable network Professional dual-band antenna to improve the signal quality of the coverage area Simple ceiling installation, PASSIVE POE network cable power supply Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance Adopts Wave2 MU-MIMO technology to effectively improve the data transmission efficiency and realize high-speed Internet access from multiple terminals simultaneously Fat and thin, choose different working modes in different
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-HDAP4300GC-non-standard PoE / DC |
| Installation method | Ceiling / wall mounting |
| size | 290*290*70mm |
| wireless | 2.4GHz band: 800Mbps 5GHz band (11AC): 1733Mbps (5G-1) + 1733Mbps (5G-2) |

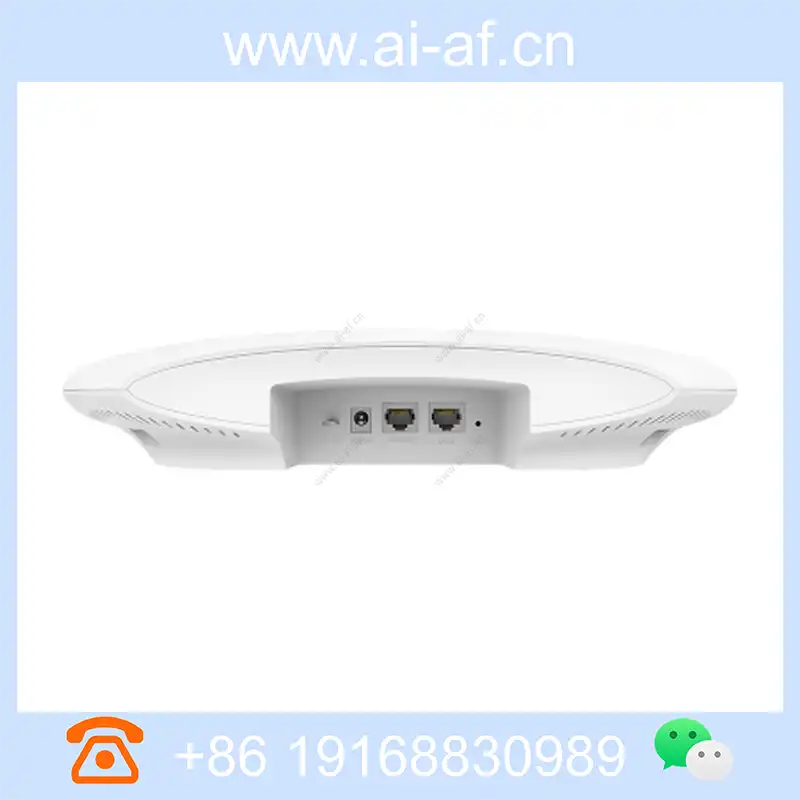

| port | 1 10/100/1000M RJ45 interface (LAN1/PoE) 1 10/100/1000M RJ45 interface (LAN2) 1 DC port |
| Indicator light | 1 system indicator |
| Button | 1 Reset button 1 FAT/FIT mode toggle switch |
| Power supply | 53.5VDC 1.13A power supply 53.5VDC Passive PoE network cable power supply |
| Maximum machine power consumption | 42.4W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz), support Chinese SSID Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks 、AP internal isolation wireless MAC address filtering: support whitelist VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment wireless client number limit: support QoS: WMM WDS: support spectrum navigation (5GHz priority): Support kick out weak signal equipment, prohibit weak signal equipment access: support load balancing: support |
| Maximum number of connectable clients | 100(2.4G-1)+100(5G-1)+100(5G-2) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
