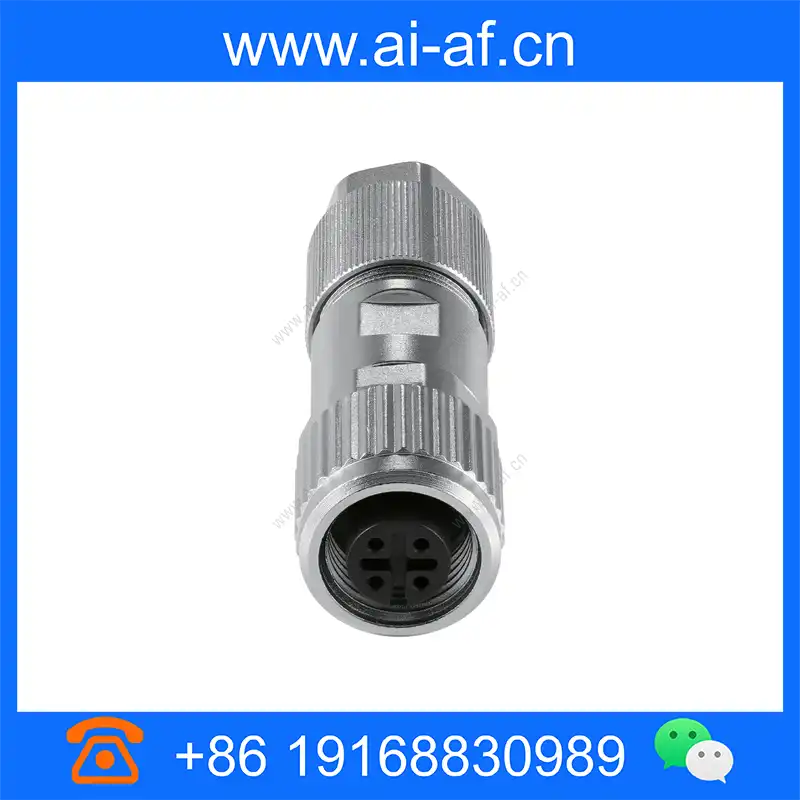

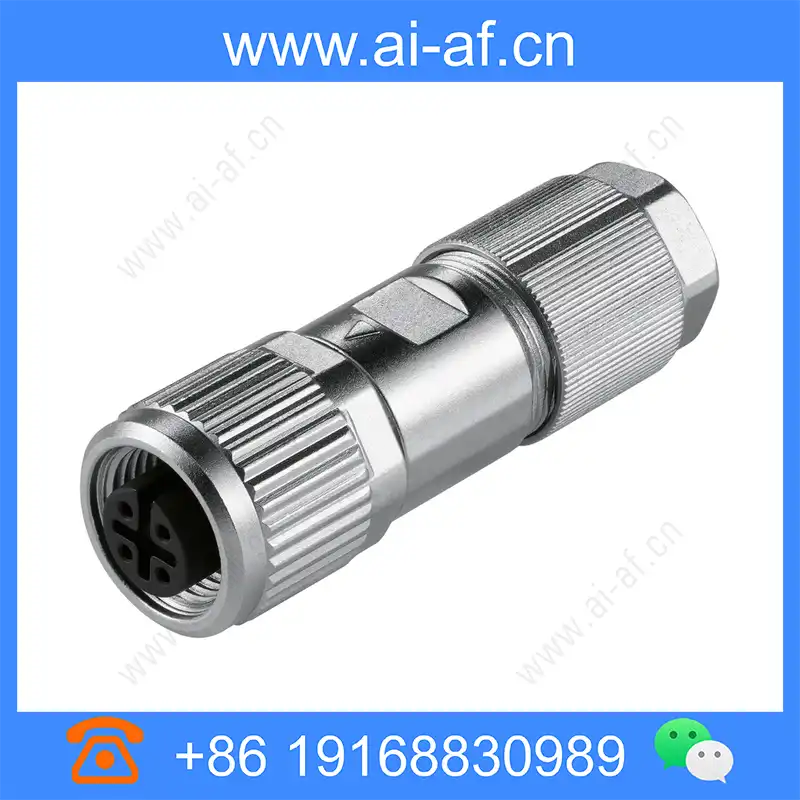

TP-LINK TL-M12A4-F M12 A-Code 4 Pin Female Connector

Brand: TP-LINK

Model: TL-M12A4-F

M12, 4pin, A-code, female IP protection level: IP67 Working temperature: -40~85℃ Mechanical life: > 500 plugging cycles Outlet diameter: 6-8mm Crimping range: 20AWG~18AWG Can be used with vehicle switch TL-SG5008-TN67 industrial grade power port Protection class

IP67

Operating temperature

-40~85°C

Mechanical life

>100 plug cycles

rated voltage

250V

rated current

Crimping range

20AWG~18AWG

Outlet diameter

6-8mm

Contact Plating Material

Gold plated

Product Features

M12, 4pin, A-code, female
IP protection level: IP67
Working temperature: -40~85℃
Mechanical life: > 500 plugging cycles
Outlet diameter: 6-8mm
Crimping range: 20AWG~18AWG

Can be used with vehicle switch TL-SG5008-TN67 industrial grade power port

Technical Specifications

Property Description	Property Value
Protection class	IP67
Operating temperature	-40~85°C
Mechanical life	>100 plug cycles
rated voltage	250V
rated current	4A
Crimping range	20AWG~18AWG
Outlet diameter	6-8mm
Contact Plating Material	Gold plated
