TP-LINK TL-MC311B-20 Industrial Grade Industrial Optical Fiber Transceiver

Brand: TP-LINK

Model: TL-MC311B-20-Industrial-Grade

Dimensions: 115mm x 70mm x 28mm

1 Gigabit SC fiber interface, 1 Gigabit RJ45 port Working wavelength: 1310nm (transmit), 1550nm (receive) Industrial grade working temperature: -40℃~75℃ Wide voltage input: 9.6V~60VDC Small size (115 mm *70 mm *28 mm), better adapt to industrial environment Provide port interrupt alarm switch to adapt to various complex network environments Multiple installation methods: rail installation + wall installation IP30 protection: reduce the impact of dust Aluminum alloy shell, durable Two power inputs, redundant backup, greatly improve the reliability of product power supply EMC high protection level, without fear of various harsh environments *Industrial fiber transceivers are not equipped with a power supply at the factory. If you need to use a power supply, please purchase it separately

Product Features

1 Gigabit SC fiber interface, 1 Gigabit RJ45 port
Working wavelength: 1310nm (transmit), 1550nm (receive)
Industrial grade working temperature: -40℃~75℃
Wide voltage input: 9.6V~60VDC
Small size (115 mm *70 mm *28 mm), better adapt to industrial environment
Provide port interrupt alarm switch to adapt to various complex network environments
Multiple installation methods: rail installation + wall installation
IP30 protection: reduce the impact of dust
Aluminum alloy shell, durable
Two power inputs, redundant backup, greatly improve the reliability of product power supply
EMC high protection level, without fear of various harsh environments
*Industrial fiber transceivers are not equipped with a power supply at the factory. If you need to use a power supply, please purchase it separately
Recommended to buy our industrial grade power supply: TL-P24075 industrial grade

Technical Specifications

Property Description	Property Value
Protocol standard	IEEE 802.3,802.3i,802.3u,802.3z,802.3ab
Port shape	1 Gigabit RJ45 port 1 gigabit single-module single fiber optic module, transmit wavelength 1310 nm, received wavelength 1550 nm
Indicator light	2 status indicators LINK / ACT PWR1, PWR2
power input	DC input voltage 12/24/48 VDC (9.6~ 60 VDC) input current 0.21A(MAX) support reverse polarity protection
Exchange performance	support storage forwarding MAC address table depth 2K internal cache 1Mbit
Light parameter	Average Emitting Optical Power-6 ~ -1DBm Receive Sensitivity -21dBm
Data transmission rate per port	2000Mbps full duplex
Packet forwarding rate	10Base-T: 14881PPS / port 100base-x: 148810pps / port 1000Base-T: 1488095pps / port 1000Base- X: 1488095pps / port
structure	IP30 protection rating product size 115mm * 70mm * 28mm rail / wall installation
temperature	operating temperature -40°C - 75°C storage temperature -40°C - 85°C
humidity	Working humidity 10% RH - 90% RH, no condensation working humidity 10% RH - 90% RH, no condensation
Certification Standards_EMS	IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-4,Level 3 IEC/EN 61000-4-5,Level 3 IEC/EN 61000-4-6,Level 3 IEC/EN 61000-4-8,Level 5 IEC/EN 61000-4-9,Level 5 IEC/EN 61000-4-10,Level 5
Packaging accessories	Industrial Fiber Transceiver TL-MC311B-20 Industrial Grade Warranty Card User Manual

TP-LINK TL-NAP1200-GI2-P AC1200 Dual Band Gigabit Wireless Panel AP

TP-LINK TL-MC311B-20 Industrial Grade Industrial Optical Fiber Transceiver

Product Features

Technical Specifications

TP-LINK TL-NAP1200-GI2-P AC1200 Dual Band Gigabit Wireless Panel AP

TP-LINK TL-MC114B-ST Industrial Grade Industrial Optical Fiber Transceiver

TP-LINK TL-MC200CM industrial grade optical fiber transceiver Gigabit multimode dual fiber 2SC 1GE 550m

TP-LINK TL-MC210CS industrial grade optical fiber transceiver Gigabit single-mode dual-fiber 2SC 1GE 20KM

TP-LINK TL-MC311A-20 industrial grade optical fiber transceiver single mode single fiber 1SC 1GE 20KM

TP-LINK TL-MC311B-20 industrial grade optical fiber transceiver single mode single fiber 1SC 1GE 20KM

TP-LINK TL-NAC10000 Wireless Controller

TP-LINK TL-NAC300-NMS TP-LINK Multi-Service Wireless Controller

TP-LINK TL-NAC1000 Wireless Controller

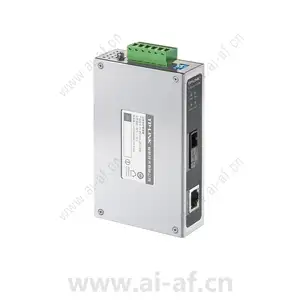

TP-LINK TL-MC311A-20 Industrial Grade Industrial Optical Fiber Transceiver
