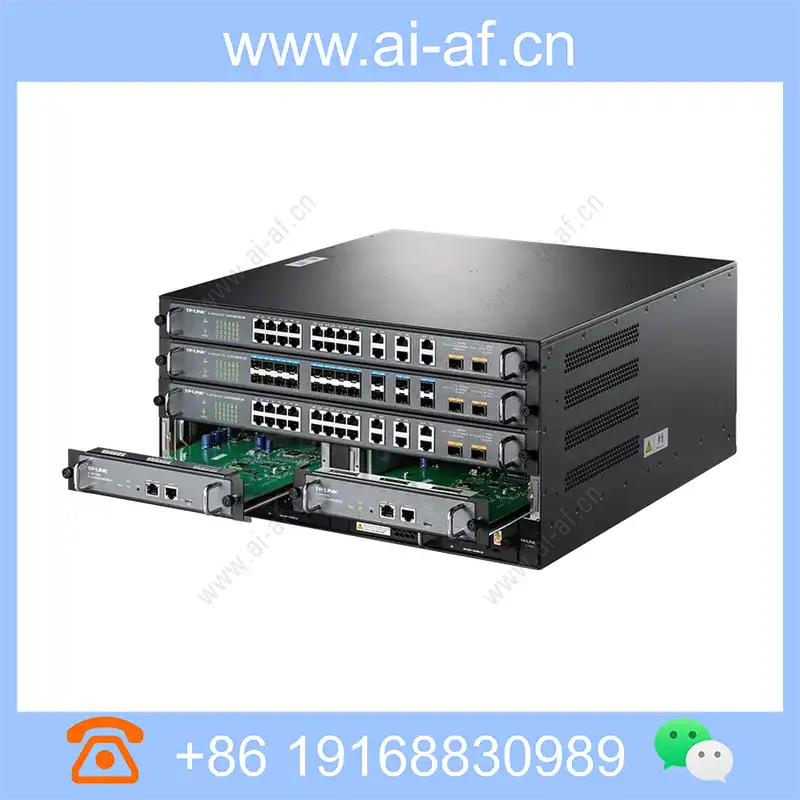

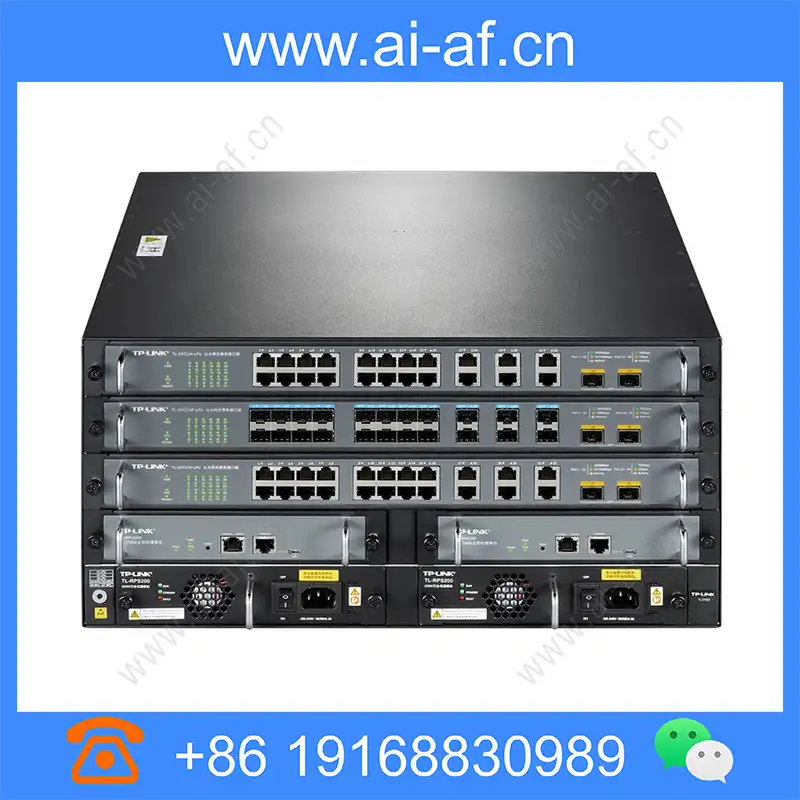

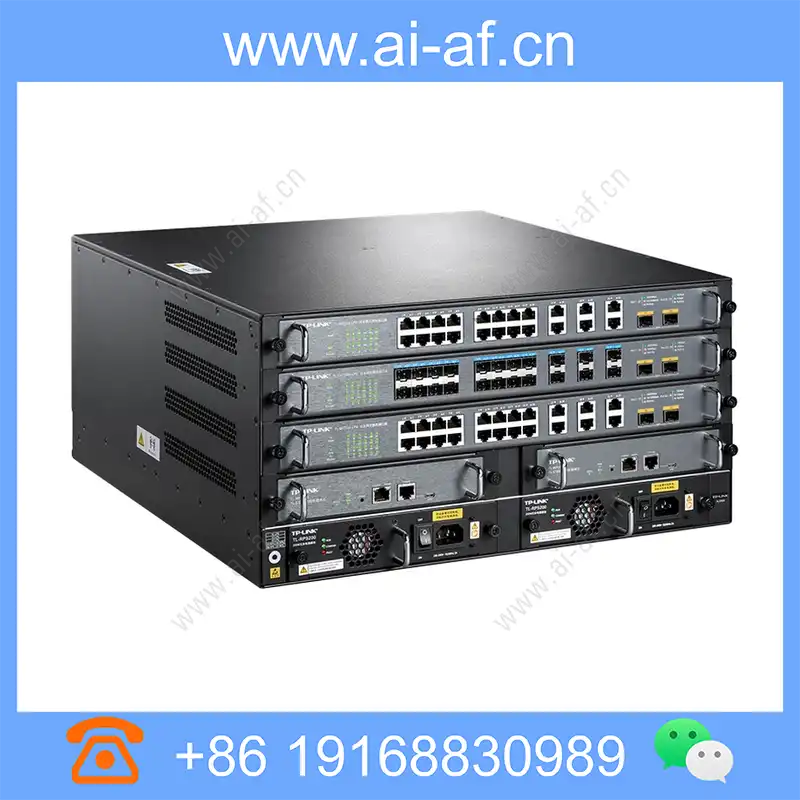

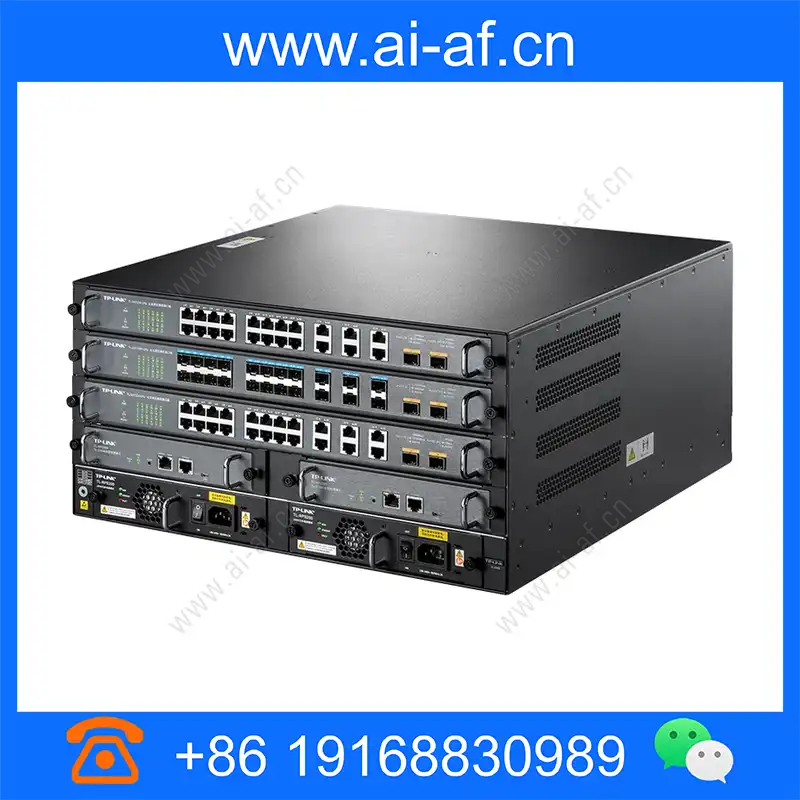

| Each chassis TL-S7603 | - supports 3 service boards (need to purchase TL-SH7224-LPU, TL-SH7224F-LPU)
- standard two TL-MPU500
- standard With two TL-RPS200
|
|---|
| Each service board TL-SH7224-LPU | - 22 Gigabit RJ45 Electrical Exiglet
- 2 10,000 SFP + optical port
|
|---|
| Each service board TL-SH7224F-LPU | - 22 Gigabit SFP optical port
- 2 10,000 gigably SFP + optical port
|
|---|
| Indicator light | - port, power supply, system status indicator
|
|---|
| performance | - Storage Forwarded
- Support 16K MAC address table depth
|
|---|
| Input power | |
|---|
| Dimensions (L x W x H) | - 442mm * 441.8mm * 221.1mm (high 5U)
|
|---|
| Use environment | - operating temperature: 0°C ~ 40°C
- storage temperature: -40°C ~ 70°C
- Working humidity: 10% ~ 90% RH does not condense
- Storage humidity: 5% ~ 90% RH does not condense
|
|---|
| routing | - support OSPF, RIP Dynamic Routing Protocol
- Support Static Routing Protocol
- Support Agent ARP
|
|---|
| Safety features | - IP-Mac-Port-VID quad-binding
- IP source protection, DOS protection, port security
- 802.1x authentication, guest vlan
- Support Mac-IP-VLAN ID-Port-Port Four-yuan Bind
- support 802.1x authentication, RADIUS configuration
- support ARP protection, IP source Protection, DOS protection
- support port isolation, port security
- support SSL, SSH
|
|---|
| ACL | - supports L2 ~ L4 packet filter
- supports the time period-based ACL control
- support port, VLAN, POLICY
|
|---|
| VLAN | - support 802.1q VLAN, Mac VLAN, Private VLAN, protocol VLAN
- support VLAN VPN
- support Voice VLAN
- support GARP / GVRP
|
|---|
| MAC address table | - support 16K MAC Address
- Support setting port maximum learning MAC address number
- address table display, static address table, dynamic address table, filter address table
|
|---|
| Port management | - port convergence, port monitoring, port speed
- storm suppression
|
|---|
| Spanning tree | - STP (802.1d), RSTP (802.1W), MSTP (802.1s)
- spanning tree security
|
|---|
| Multicast | - support IGMP V1/V2/V3
- multicast VLAN, multicast address table, multicast filter
|
|---|
| QoS | - Each port supports 8 output queue
- support port, 802.1p, DSCP / TOS priority
- support EQU, SP, WRR, SP + WRR Four priority scheduling mode
- support Voice VLAN
|
|---|
| DHCP | - DHCP Client、DHCP Server
- DHCP Relay
- DHCP Snooping
|
|---|
| Convergence Management | - support static aggregation
- support dynamic aggregation
|
|---|
| System Management | - supports WEB management based on HTTP, SSL (V2 / V3 / TLSV1), CLI management based on Telnet, Console, SSH (V1 / V2)
- SNMP V1/V2/V3 ( TP-LINK MIBS), national standard cluster management
|
|---|
| system maintenance | - supports LLDP
- Support Configuration Import Export and System Time Settings
- Ring Backup Detection, Cable Detection, PING, Tracert Detection
- Display / Filter System Log, Log Server
|
|---|
| Maximum number of manageable APs | |
|---|
| Maximum number of SSIDs supported | - 500 (support Chinese SSID)
|
|---|
| wireless function | - Wireless network unified configuration
- DHCP server
- Layer 2 fast roaming
- automatic channel adjustment
- linear power adjustment
- WMM, Short Gi
- Prohibition of weak signal client access and kicking weak signal client
|
|---|
| Wireless security | - 64/128/152 Bit WEP Encryption, WPA-PSK / WPA2-PSK (AES / TKTP), WPA / WPA2 Security Mechanism
- SSID Isolation, the internal isolation of the AP
- SSID and TAG VLAN mapping
|
|---|
| AP management | - AP automatically discovered
- AP unified configuration and management
- AP timing restart
- AP software automatically unified upgrade
- Load balancing
based on access users |
|---|
| verification method | - MAC Certification
- Portal Certification: Local Portal, Remote Post
- WeChat Connection Wi-Fi
|
|---|
| Authentication server | |
|---|
